FLOS ZEPPELIN 1 Manuel utilisateur

REV. 1

DATE 31/05/2021

ZEPPELIN 1

F9800009

Flos reserves the right to introduce any changes to its own models, without prior notice.

ZEPPELIN 1

F9800009

Flos reserves the right to introduce any changes to its own models, without prior notice.

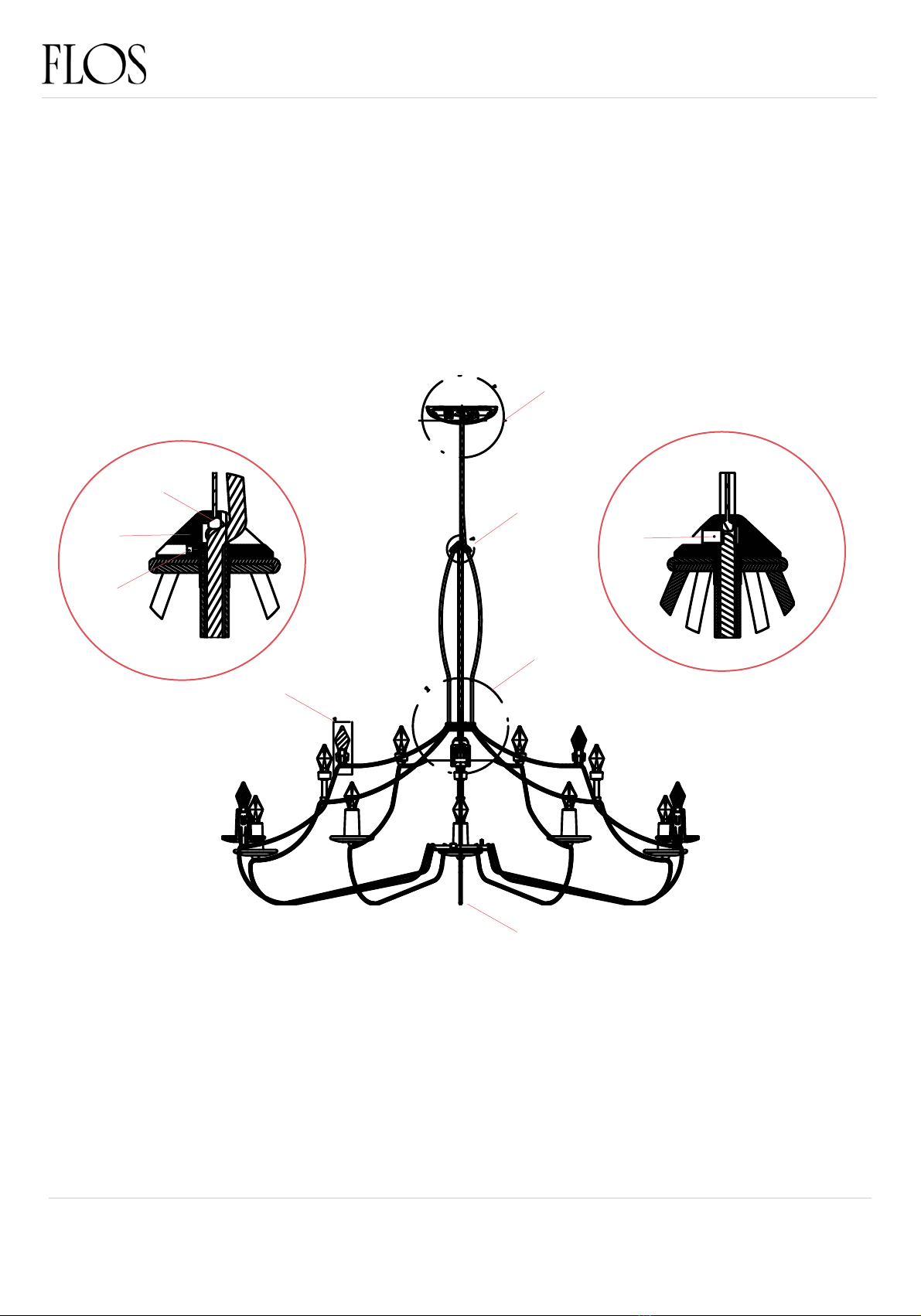

01. RA3690209 –Complete rose assembly

02. RF05382 –Kit of quantity 5 OR rings

03. 13833 –Porcelain E27 lampholder

04. RF9800300 –Crystal sphere diffuser assembly

REV. 1

DATE 31/05/2021









RA3690209

COMPLETE ROSE ASSEMBLY

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

ZEPPELIN 1 F9800009

Diameter of the fixing metal ring Glo-Ball 1

REV. 1

DATE 31/05/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RA3690209

COMPLETE ROSE ASSEMBLY

ZEPPELIN 1 F9800009

Fig.1

Fig.2

Fix the wall fixture (A) with the appropriate

expansion bolts. NOTE: Select and employ screw

anchors which are suited to the surface where the

appliance is to be installed.

Connect the power cable to the terminal box (not

supplied with the spare-part). Mount the ceiling-

rose (F).

REV. 1

DATE 31/05/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF05382

KIT OF QUANTITY 5 OR RINGS

ZEPPELIN 1 F9800009

REV. 1

DATE 31/05/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

13833

PORCELAIN E27 LAMP HOLDER

ZEPPELIN 1 F9800009

REV. 1

DATE 31/05/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Delicately remove the crystal bowl from the lamp (refer to letter G in the

image below). Afterwards remove the lamp from the ceiling and lay it down on

a clean towel.

ZEPPELIN 1 F9800009

GFig.1

REV. 1

DATE 31/05/2021

13833

PORCELAIN E27 LAMP HOLDER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

In the upper part of the lamp (refer to letter D in the image below), unscrew

the two grub screws number 19 (M6 x 10 image in the green circle) and

number 20 (M3 x 6 in the red circle).

ZEPPELIN 1 F9800009

FRONT VIEW SECTION LATERAL VIEW SECTION

Fig. 2

REV. 1

DATE 31/05/2021

13833

PORCELAIN E27 LAMP HOLDER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Unscrew the white 10 x 1 terminal (refer to point 18) and slip off the stem with

its lamp holder (refer to point number 17) from the lower part (refer to letter E

in the image below).

ZEPPELIN 1 F9800009

Fig. 3

REV. 1

DATE 31/05/2021

13833

PORCELAIN E27 LAMP HOLDER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Unhook the lamp holder by inserting between the lifting hooks of the lamp holder a fine screwdriver. Afterwards

replace the lamp holder by connecting it electrically.

REMARKS!!! Please respect the polarities of the electrical wires.

Assemble the lamp holder by pressing it back on the lamp holder support.

Slip back on the stem in the body lamp.

In the upper part of the lamp (refer to letter D in the image Fig.2 page 8), fasten the two grub screws number 19

(M6 x 10 image in the green circle) and number 20 (M3 x 6 in the red circle).

Assemble the lamp back on the ceiling (refer to the installation sheet of the Zeppelin 1).

Fig. 4

N.B: CABLE SHEATH 3x0,75 TRANSP.

80mm ON LAMP HOLDER SIDE

ZEPPELIN 1 F9800009

REV. 1

DATE 31/05/2021

13833

PORCELAIN E27 LAMP HOLDER
