FLOS WireRing Manuel utilisateur

REV. 1

DATE 19/08/2021

WIRERING

F9514020

Flos reserves the right to introduce any changes to its own models, without prior notice.

01. RF9510200

–Kit with screws, nuts and components

02. RF26675

–Ring assembly

03. RF26651

–Electrical mounting assembly with dimmer

04. RF26646

–Electrical mounting body assembly

05. RF3320100

–Plug kit + black driver

WIRERING

F9514020

REV. 1

DATE 19/08/2021

RF9510200

KIT WITH SCREWS, NUTS AND COMPONENTS

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

WIRERING F9514020

REV. 1

DATE 19/08/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF26675

RING ASSEMBLY

REV. 1

DATE 19/08/2021

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Disconnect the body lamp from the old ring.

Fig.1

REV. 1

DATE 19/08/2021

RF26675

RING ASSEMBLY

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Remove the old ring from the wall.

Insert the new ring in the hole into the wall.

Fig.2

Fig.3

REV. 1

DATE 19/08/2021

RF26675

RING ASSEMBLY

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Connect the body lamp to the new ring respecting the correct installation

direction.

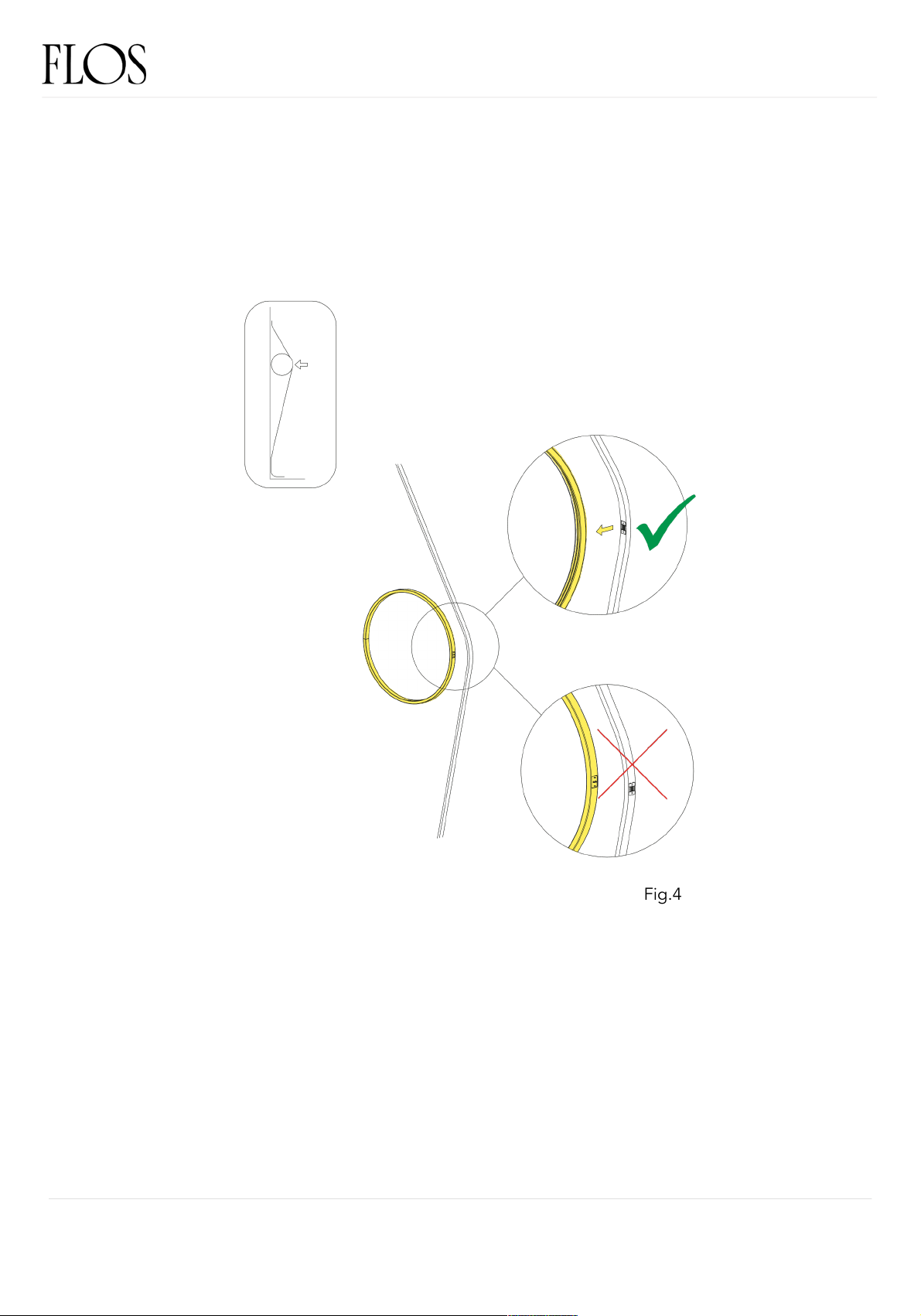

Fig.4

REV. 1

DATE 19/08/2021

RF26675

RING ASSEMBLY

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF26651

ELECTRICAL MOUNTING BODY ASSEMBLY

REV. 1

DATE 19/08/2021

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Disconnect the plug of the old body lamp from the dimmer unit by rotating

it 90°counterclockwise.

Fig.1

REV. 1

DATE 19/08/2021

RF26651

ELECTRICAL MOUNTING BODY ASSEMBLY

WIRERING F9514020

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Unscrew and remove the ferrule.

Fig.2

REV. 1

DATE 19/08/2021

RF26651

ELECTRICAL MOUNTING BODY ASSEMBLY

WIRERING F9514020
