Flavel FVPC**MN Instructions de montage

enilworth & Linear

Powerflue

FUEL EFFECT

POWERFLUE GAS FIRES

Installation, Maintenance & User Instructions

Hand these instructions to the user

Model No’s FVPC**MN & FVPP**MN are for use on Natural Gas (G20)

at a supply pressure of 20 mbar in G.B. / I.E.

** denotes fascia / colour variant

CONTENTS

Section 1 Information and Requirements PAGE

1.0 Appliance Information 3

1.1 Conditions of Installation 4

1.2 Flue terminal position 5

1.3 Fireplace / surround suitability 6

1.4 Fire place opening / catchment space 6

1.5 Shelf position 6

1.6 Installation types 7-9

1.7 Hearths 9

1.8 Spillage monitoring system 9

Section 2 Installation of Fire

2.1 Unpacking the fire 10

2.2 Marking the flue pipe opening 10

2.3 Marking / making the fan unit recess (Inset fan installations) 11-13

2.4 Marking the fan unit spacer position (Outset fan installations) 14-16

2.5 Securing the fan box / running the gas supply pipe 17-19

2.6 Making the electrical connection 20

2.7 Gas tightness and inlet pressure 21

Section 3 Assembling Fuel Bed and Commissioning

3.1 Assembling the ceramics and fuel bed (Linear pebble models) 22-24

3.2 Assembling the ceramics and fuel bed ( enilworth & Linear models) 24-27

3.3 Lighting the appliance 29

3.4 Checking for clearance of combustion 30

products

Section 4 Maintenance

4.1 Removal of the Burner Assembly 31

4.2 Removal of the Piezo Igniter 31

4.3 Removal of the Control Tap 32

4.4 Removal of the Thermocouple 32

4.5 Removal of the Solenoid 32

Spare Parts Shortlist / Wiring Diagram 33

Section 5 User Instructions

5.1 Installation information / about your new fire 34-36

5.2 Lighting the appliance 37

5.3 Cleaning instructions 38

5.4 Re-assembling the ceramics and fuel-bed 39-45

Efficiency Declaration

The efficiency of this appliance has been measured as specified in BS EN 13278 and the

result is 48%. The gross calorific value of the fuel has been used for this efficiency

calculation. The test data from which it has been calculated has been certified by GL

Industrial Services U Ltd. The efficiency value may be used in the U Government’s

Standard Assessment Procedure (SAP) for energy rating of dwellings.

This appliance is manufactured by :-

BFM Europe Ltd, Trentham Lakes, Stoke-on-Trent, ST4 4TJ

SECTION 1

INFORMATION AND REQUIREMENTS

1.0 APPLIANCE INFORMATION

Model FVPC**MN

FVPP**MN

** denotes fascia / colour variant

Gas Type G20

Main injectors (2 off) Size 260

Pilot Type Copreci

Single Flame

21100 / 141

Max. Gross Heat Input : 6.9 kW

Min. Gross Heat Input : 4.2 kW

Cold Pressure : 20.0 +/-1.0 mbar

Ignition : Push-button Piezo

Supply Voltage : 230V a.c.

Supply Frequency : 50Hz

Supply Fuse : 3 Amp to BS 1362

Power Input : 60W

IP Rating : IP00

Electrode Spark Gap 4.0mm

Packed Weight : 18.5 kg enilworth Brass, 16.5 kg Black &

Chrome

Packed Weight : 16.5 kg Linear Coal, 15.0 kg Linear Pebble

Fire box Dimensions (with trim’s / fascia’s fitted)

Width : (with standard trim) 470mm

Height : (with standard trim) 586mm

Depth : (overall-without fender) 170mm

Gas Connection : 8mm Compression (Supplied with fire)

INSTALLATION REQUIREMENTS

1.1 CONDITIONS OF INSTALLATION

It is the law that all gas appliances are installed only by a GAS SAFE Registered

Installer, in accordance with these installation instructions and the Gas Safety

(Installation and Use) Regulations 1998 as amended. Failure to install appliances

correctly could lead to prosecution. It is in your own interest and that of safety to

comply with the law.

The installation must also be in accordance with all relevant parts of the Local and

National Building Regulations where appropriate, the Building Regulations

(Scotland Consolidation) issued by the Scottish Development Department, and all

applicable requirements of the following British Standard Code of Practice.

1. B.S. 5871 Part 2 Installation of Inset Fuel Effect Gas Fires

2. B.S. 6891 Installation of Gas Pipework

3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation

4. B.S. 1251 Open fire place components

5. B.S. 715 Metal flue pipes for gas appliances

6. B.S. 6461 Part 1 Installation of Chimneys and flues

7. I.S. 813 : 1996 Domestic Gas Installation (Republic of Ireland)

No purpose made additional ventilation is normally required for this

appliance, when installed in G.B. When Installing in I.E. please consult

document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the

National Standards Authority of Ireland. If installing in Northern Ireland,

please consult local building regulations. Any purpose made ventilation

must be checked periodically to ensure that it is free from obstruction.

1.2 FLUE TERMINAL POSITION

The minimum acceptable dimensions from the flue terminal to obstructions and

ventilation openings are shown below in fig. 1 and listed in the table (fig. 2 below)

IT IS IMPORTANT THAT THE POSITION OF THE FLUE ALLOWS THE FREE

PASSAGE OF AIR ACROSS IT AT ALL TIMES.

Fig. 1

Fig. 2

DIMENSION TERMINAL POSITION MINIMUM DIMENSION

A Directly below an opening, air brick, 300mm (12 in.)

opening window

B Above an opening, air brick, 300mm (12 in.)

opening window

C Horizontally to an opening, air brick, 300mm (12 in.)

opening window etc.

D Below gutters, soil pipes or drain pipes 75mm (3 in.)

E Below eaves 200mm (8 in.)

F Below balconies or car port roof 200mm (8 in.)

G From a vertical drain pipe or soil pipe 150mm (6 in.)

H From an internal or external corner 200mm (8 in.)

I Above ground roof or balcony level 300mm (12 in.)

J From a surface facing the terminal 600mm (24 in.)

From a terminal facing the terminal 1200m (48 in.)

L From an opening in the car port 1200m (48 in.)

M Vertically from a terminal on the same wall 1500mm (59 in.)

N Horizontally from a terminal on the 300mm (12 in.)

same Wall

O From the wall on which the terminal is mounted 50mm (2 in.)

P From a vertical structure on the roof N/A

Q Above intersection with roof 150mm

1.3 FIREPLACE / SURROUND SUITABILITY

The fire must only be installed on a hearth it must not be installed directly onto

carpet or other combustible floor materials. The fire is suitable for fitting to

non-combustible fire place surrounds and proprietary fire place surrounds with a

temperature rating of at least 150oc. If a heating appliance is fitted directly against

a wall without the use of a fire surround or fire place all combustible material must

be removed from behind the trim. Soft wall coverings such as blown vinyl, wall

paper etc. could be affected by the rising hot air and scorching and/or discoloration

may result. Due consideration should be made to this when installing or

decorating.

1.4 FIRE PLACE OPENING

The front opening of the fire place must be between 375 and 440 mm wide, and

between 550 and 570mm high. If the opening exceeds these dimensions then a

surround must be constructed from suitable non-combustible material to produce a

correct size opening. Any surround must be suitably sealed to the fire place to

prevent leakage. See below in fig.3

1.5 SHELF POSITION

The fire may be fitted below a combustible shelf providing there is a minimum

distance of 200mm above the top of the fire and the shelf does not project more

than 150mm. If the shelf overhangs more than 150mm the distance between the

fire and the shelf must be increased by 15mm for every 25mm of additional

overhang over 150mm.

Fire Opening

375mm Minimum

440mm Maximum

550mm Minimum

570mm Maximum

Minimum Flat

Sealing Area

Fig. 3

610mm Minimum

520mm Minimum

1.6 INSTALLATION TYPES

This fire can be fitted against an outside facing facing flat wall surface or into a

fireplace opening cut into the wall.

When fitting the fire in front of the inner cavity wall, the distance between the

mounting face of the fire and the rear face of the firebox must be a minimum of

170mm, a false chimney breast or fireplace surround should be constructed. The

firebox must then be secured into the fireplace using the method described in

section 2. Any combustible material must be removed from the the area around

the firebox flange. In all installations, ensure that there is no structural damage to

the property or the damp course. See fig. 4 below

When fitting the fire into a cavity wall, this requires the opening of the inner leaf

of brickwork, to recess the firebox into. The opening needs to be sufficient to

accomodate the firebox. To support the wall above the hole, a suitable lintel must

be inserted across the top of the opening. If fitting the appliance into a cavity wall,

a lintel 750mm long having a thickness of 75mm with a height of the inner wall

should be used. The lintel could be either pre-cast concrete or steel - Catnic

CN52 or CN 46 could be used, depending upon the inner wall thickness. Before

proceeding with the installation of the fire, an assessment of the area immediately

above the fire is required, see Fig. 5 overpage. If there is no existing openings

within either triangle, proceed with forming the opening. However, if opening or

beams occur within either triangle, then you should seek specialist advice from a

structural engineer or consider relocating the proposed position of the firebox.

Fan Unit Outset

False Chimney

Breast or Fireplace

Rebate

170mm All

Models

570mm Maximum with standard flue duct

supplied and with fan unit outset

Fig. 4

Flue Pipe

Fan Unit Inset

170mm All

Models

Flue Pipe

715mm Maximum with standard flue duct

supplied and with fan unit inset

Up to 5000mm (5 metres) maximum with up to 3 off 90 degree bends with optional extra flue duct

components is available - see spare parts list for part numbers

150mm is minimum

flue length

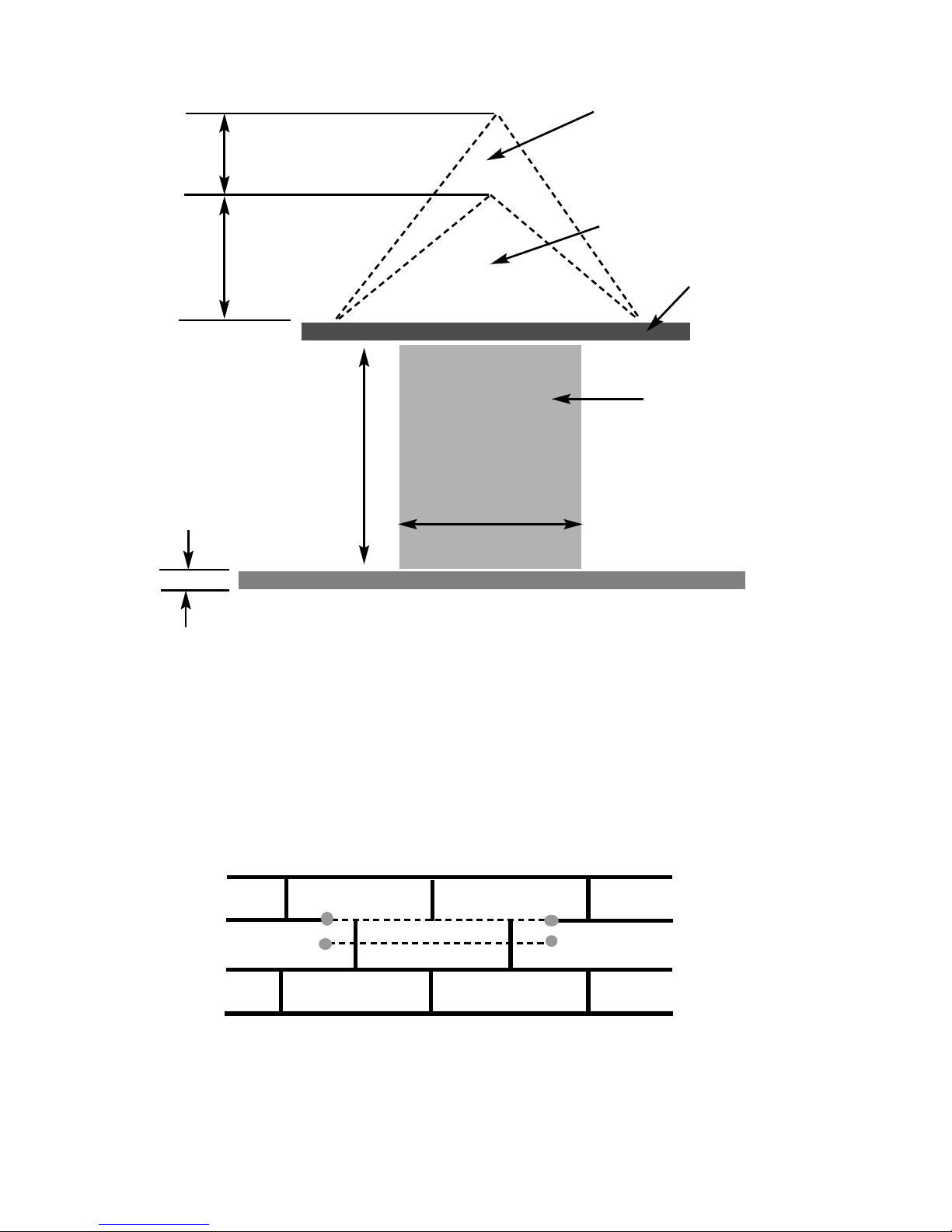

Fig. 5

To proceed with the installation when the above stated criteria have been

satisfied :-

Mark out where possible, centrally beneath a block joint where the lintel is to be

fitted. Unless lime mortar has been used it will be necessary to drill four holes

with a masonary drill, then use a mechanical cutter such as a “shark saw” to cut

out the correct size of slot in the inner leaf of brickwork for the lintel you have

chosen to install. See fig. 6 below.

Fig. 6

Fit the lintel, ensure that it is bedded on mortar. Do not bed on a dry bed.

Then remove all debris from the cavity and construct the opening to the minimum /

maximum opening sizes as shown overpage (fig. 7) and in section 1.4, (fig. 3)

Opening Height

550mm Minimum

570mm Maximum

Firebox recess in

wall

400mm interactive

area

600mm load

triangle

The Interactive Zone -

Openings, beams or joists within

this area need to be assessed.

Load triangle - o beam or

opening permissible within this

area

Lintel

e.g. 750mm x 75mm

50mm Minimum Hearth Thickness

Opening Width

375mm Minimum

440mm Maximum

Remove any combustible material from within the area of the opening. No

combustible material can be allowed to come into contact with any area of the

appliance.

Fig. 7

1.7 HEARTHS

This appliance must only be installed on to a concrete or non-combustible hearth.

The hearth material must be a minimum thickness of 12mm with the top surface at

least 50mm above the floor. The hearth must be fitted symmetrically about the fire

opening and have a minimum width of 760mm and a minimum projection of

300mm forwards from the fire opening.

1.8 SPILLAGE MONITORING SYSTEM

This appliance is fitted with an atmosphere sensing spillage monitoring system in

the form of an oxygen sensing burner. This is designed to shut the fire off in the

event of a partial or complete blockage of the flue causing a build up of

combustion products in the room in which the fire is operated. The following are

important warnings relating to this spillage monitoring system :-

1) The spillage monitoring system must not be adjusted by the installer.

2) The spillage monitoring system must not be put out of operation.

3) When the spillage monitoring system is exchanged only a complete original

manufacturers part may be fitted.

Lintel must project

Minimum of 150mm

each side of the

opening

Opening Sizes Width :-

375mm Minimum

440mm Maximum

Opening sizes Height :-

550mm Minimum

570mm Maximum

Ensure that the recess that is cut is to the required

dimensions and is screed level so that the firebox will

sit level within the recess.

SECTION 2

INSTALLATION OF FIRE

2.1 UNPAC ING THE FIRE

Carefully lift the fire out of the carton. Remove the loose item packaging carefully

from the front of the appliance. Check the contents as listed :-

Packing Check List - All Models

1 off Fire box / burner assembly & standard flue pipe

1 off Boxed fuelbed base, ceramic front rail and 18 synthetic coals or 14

synthetic pebbles

1 off Loose items bag including isolation valve and olive.

1 off Installation, maintenance & user instruction book (combined)

1 off Fret / Ashpan cover

1 off Trim

1 off Rope seal, fan box clamping plate, fan spigot & fixing screws (packed in

loose items)

1off Boxed fan unit (Pack 2 of 2)

2.2 MAR ING THE FLUE PIPE OPENING ON THE WALL (ALL MODELS)

Drill a pilot hole into the outer leaf of brickwork at a height of 482mm from the

hearth level, centrally about the firebox, then create a square hole 100mm / 4 inch

vertically central to the centre line of the appliance. See fig. 8 below.

NOTE : If the fire is to be fitted against the inner cavity wall, the inner and

outer cavity walls will require the 100mm / 4 inch hole creating

Fig. 8

Inner

Cavity Wall

Outer

Cavity Wall

482mm to Centre

of Flue Pipe from

bottom of opening

100mm / 4 inch

square hole

IMPORTANT NOTE ::

DO NOT FIT THIS APPLIANCE FAN UNIT ABOVE A HEIGHT OF

1.4M FROM GROUND LEVEL

MAXIMUM

1.4 METRE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Flavel Cheminée intérieure

Flavel

Flavel Atlanta Manuel utilisateur

Flavel

Flavel REGENT FRLC EN Series Manuel utilisateur

Flavel

Flavel FKPC MN Series Instructions de montage

Flavel

Flavel Atlanta FBFR MN Series Manuel utilisateur

Flavel

Flavel Pure FPRG**RN2 Manuel utilisateur

Flavel

Flavel Atlanta FAVRU0MN Manuel utilisateur

Flavel

Flavel Linear Pebble Manuel utilisateur

Flavel

Flavel Caress Manuel utilisateur

Flavel

Flavel Kenilworth HE Instructions de montage

Flavel

Flavel Windsor Instructions de montage

Flavel

Flavel Sophia Simline BF Instructions de montage

Flavel

Flavel Emberglow Manuel utilisateur

Flavel

Flavel RENOIR RC Instructions de montage

Flavel

Flavel Emberglow FEBC00MN Manuel utilisateur

Flavel

Flavel Caress Slimeline SC FNVC**SN Manuel utilisateur

Flavel

Flavel FRLCP0MN Manuel utilisateur

Flavel

Flavel Calypso Instructions de montage

Flavel

Flavel Calypso FNCN**SN Series Manuel utilisateur

Flavel

Flavel ATLANTA FBFR**MN Manuel utilisateur

Flavel

Flavel Emberglow Classic FEMC00MN Manuel utilisateur

Flavel

Flavel Warwick FIRC14MN Manuel utilisateur

Flavel

Flavel Windsor Instructions de montage

Flavel

Flavel Linear Pebble FRDPU0MN Manuel utilisateur

Flavel

Flavel Regent FRGCP0MN Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
