MODEL
TV STAND WITH MOUNT
F02M1441J
ISSUED: 2020.1-0
for visual
enjoyment English----------------------------------------------------------------------1-12
日本語----------------------------------------------------------------------13-24
1
What's in the box
56 x2
4
3
2
1
What's in the box Easy to install
2
A x2 B x1 C x1 D x2
E x1
x4 x4 x4 x4
x4 x4 x8 x8
F x1 G x1 H x1
3
4mm 5mm
M8x30 Ø5x15x1
ST4.8x38 M5x10
M5x14
M-A M-B M-C M-D
M-E M-F M-G M-H
M6x14 M6x30 M8x30
M8x50 5mm 15mm
The smooth side connects the pole.
1
2
5
5a
5b
4
H
32
1A x2
Easy to install Easy to install
4 5
3
4
5
6
Using screws to fix the ring determine
the height of the bracket.
F
D
B
5b
5a
G
Easy to install Easy to install
76
M-B x4
M-A x4
OR
M-F x4
6x2
6x2
M-C x4
TO
OR OR OR
M-E x4
M-F x4
M-H x8
M-G x8
mounting
F
5
NO
7

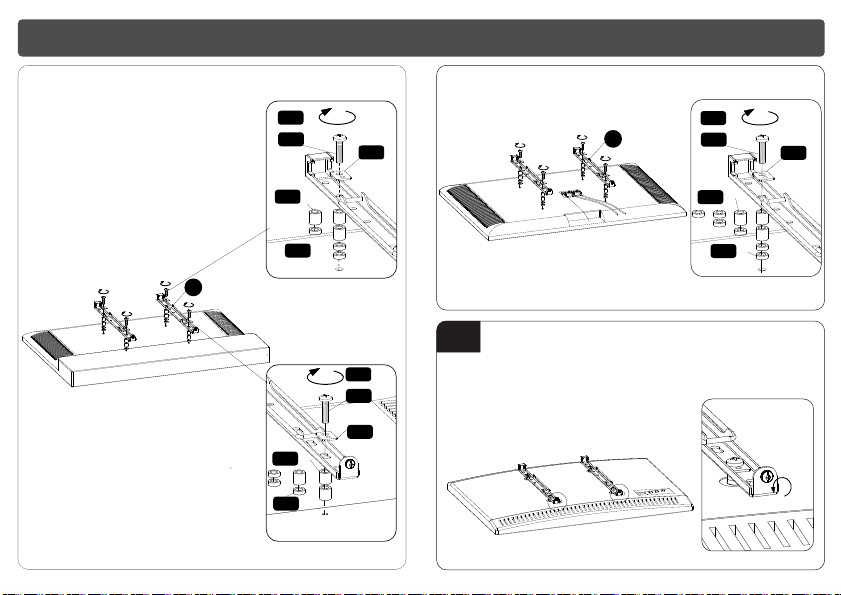

（a2) For Curved Screen TV
（a1) For Flat Screen TV
Easy to installEasy to install
98
（a4) For TV with wires in the middle
Unscrew the knobs
TO
OR OR OR
M-G x8
M-F x4
M-E x4
M-C x4
M-H x8
6x2
6x2
TO
M-H x4
M-C x2
M-E x2
M-F x2
M-G x4
OR
TO
OR OR
M-F x2
M-E x2
M-C x2
M-H x4
M-G x4
8
（a3) For Uneven TV
E
D
Easy to installEasy to install
10
911
Solid Brick and Concrete Mounting
WARNING
· Installers must verify that the supporting surface will safely support the combined
weight of the equipment and all attached hardware and components.
Secure wall anchors
1into drilled holes
with hammer
45mm
Φ8mm
Drill pilot holes
Mark the exact location
of mounting holes
2
1
3
(0.31"）
Pencil
Screw
driver
Tools Required
(Not included) Φ8mm(0.31”)
Wood Drill Hammer
C
1110
Easy to install 部品の確認
12
WARNING
·Make sure that mounting screws are anchored into the center of the studs. The use of
a stud finder is highly recommended.
· Installers are responsible to provide hardware for other types of mounting situations.
· Installers must verify that the supporting surface will safely support the combined
weight of the equipment and all attached hardware and components.
Wood Stud Wall Mounting
Tud Finder Pencil Drill
Φ3.5mm(0.13”)
Wood Drill
Screw
driver
Φ3.5mm
40mm
Drill pilot holes
Mark the exact location
of mounting holes
Find and mark the exact location
of mounting holes
3
2
(0.13"）
E
D
12
1
Tools Required
(Not included)
13
56 x2
4
3
2
1
部品の確認 組み立て手順
14
A x2 B x1 C x1 D x2
E x1
x4 x4 x4 x4
x4 x4 x8 x8
F x1 G x1 H x1
15
4mm 5mm
M8x30 Ø5x15x1
ST4.8x38 M5x10
M5x14
M-A M-B M-C M-D
M-E M-F M-G M-H
M6x14 M6x30 M8x30
M8x50
5mm 15mm
滑らかな面を図のように上面へ向かて取り付けまる。
1
2
5
5a
5b
4
H
32
1A x2
組み立て手順 組み立て手順
16 17
3
4
5
6
六角ネジGを使用して高さを調 整します F
D
B
5b
5a
G
