USER GUIDE

PRESYS PLUS ONBOARD PREAMP

Presys Plus Quick Start

1. Set the controls • Set volume and notch off. Set the bass, middle, treble

and brilliance controls to center.

2. Plug in • Connect the Presys Plus to an ampliﬁer or PA with a ¼-inch

instrument cable. The battery light (batt) will ﬂash once quickly to indicate it has

switched on.

3. Turn up • Raise the volume and adjust the bass, middle, treble and

brilliance controls to your liking.

Presys Plus Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Bass • Boost here to add depth and weight to the sound of the guitar.

Middle • Turn the middle knob all the way left for a smooth “scooped out”

tone at high volume levels. Raise the middle knob to the right of center to add

midrange “bite” to the sound.

Treble • Boost to cut through the mix. Cut to mellow and subdue the sound.

Brilliance • This slider can add shimmer and sparkle to your sound. It zeros in

on crisp high frequency tones, the realm of harmonics and acoustic string sound.

Lower the brilliance slider to reduce ﬁnger noise and fret buzz.

Notch • Tune the notch ﬁlter to remove low-end feedback. Raise the volume

until feedback occurs, then slowly turn the notch to the right until the feedback is

eliminated.

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

Tuner • Use the tuner lights as shown below to tune your instrument.

Battery • When the batt indicator lights steadily it is time to change the bat-

tery. To conserve power, unplug the instrument and turn off the tuner when not

in use. Replace the battery by ﬂipping open the preamp body using the latch

located above the Fishman logo. Be sure to observe the correct polarity during

this installation.

“A” note

below pitch

“A” note

in tune

“A” note

above pitch

“A#” note

in tune

Sample EQ Settings

Fingerstyle “Scooped” Mid

This will add fullness to the bass This setting emphasizes extreme bass

and deﬁnition to the treble. and treble

Strummer Cut Through the Mix

A good setting for strumming chords. When you need to be heard through a

loud band.

www.ﬁshman.com

513-300-144 Rev B 7-09

PRESYS PREAMP

513-200-138_r2

CUT-OUT TEMPLATE

www.ﬁshman.com

NOTE: When using mounting brackets,

screw holes should be .093” [2.38mm]

67.62

2.662

45.34

1.785

65.35

2.573

71.00

2.795

50.80

2.00

21.82

.852

R 7.32

.288

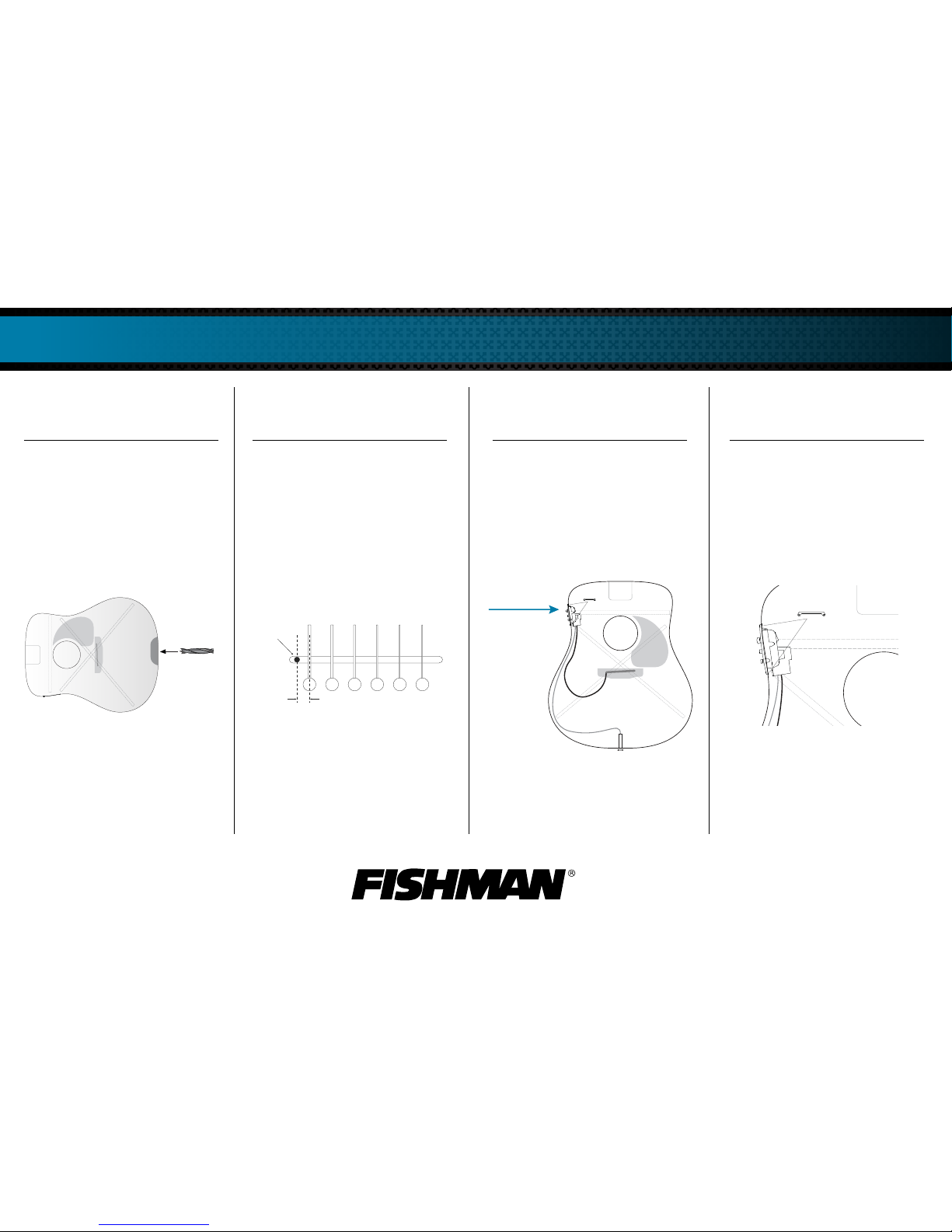

PRESYS PREAMP INSTALLATION GUIDE ﬁshman.com

Step 2: Sonicore Pickup

Installation

Drill a 3/32” hole (2.4mm) in the

saddle slot for the pickup wire,

no less than .100” (2.5mm) from

nearest string. Refer to Sonicore

installation guide for further

details.

Widen the endpin hole to 15/32”

(11.9mm) to accomodate the

endpin output jack. Refer to

Endpin Jack installation guide

for further details.

Position the preamp on the ﬂat-

test convenient surface on the

side of the instrument that also

allows internal clearance. Cut out

cavity for preamp using supplied

template.

Step 3: Preamp Location

Step 1: Endpin Jack

Installation

Attach the preamp to the guitar

using the supplied screws and

mounting brackets.

Step 4: Attach Preamp

≥ .100”

[≥2.5mm]

.093”

[2.4mm]

ENDPIN JACK INSTALLATION ﬁshman.com

Step 3

Add outside washer and nut. Tighten

using small screwdriver and wrench

Add strap nut. Tighten securely with

rubber tipped pliers

When jack is properly installed, end of

threaded barrel should remain outside

top of strap button

Step 5

*IMPORTANT

(close up inside guitar)
