USER GUIDE

PRESYS PLUS ONBOARD PREAMP

2 3

Presys Plus Quick Start

1. Set the controls • Set volume and notch off. Set the bass, middle, treble

and brilliance controls to center.

2. Plug in • Connect the Presys Plus to an ampliﬁer or PA with a ¼-inch

instrument cable. The battery light (batt) will ﬂash once quickly to indicate it has

switched on.

3. Turn up • Raise the volume and adjust the bass, middle, treble and

brilliance controls to your liking.

4 5

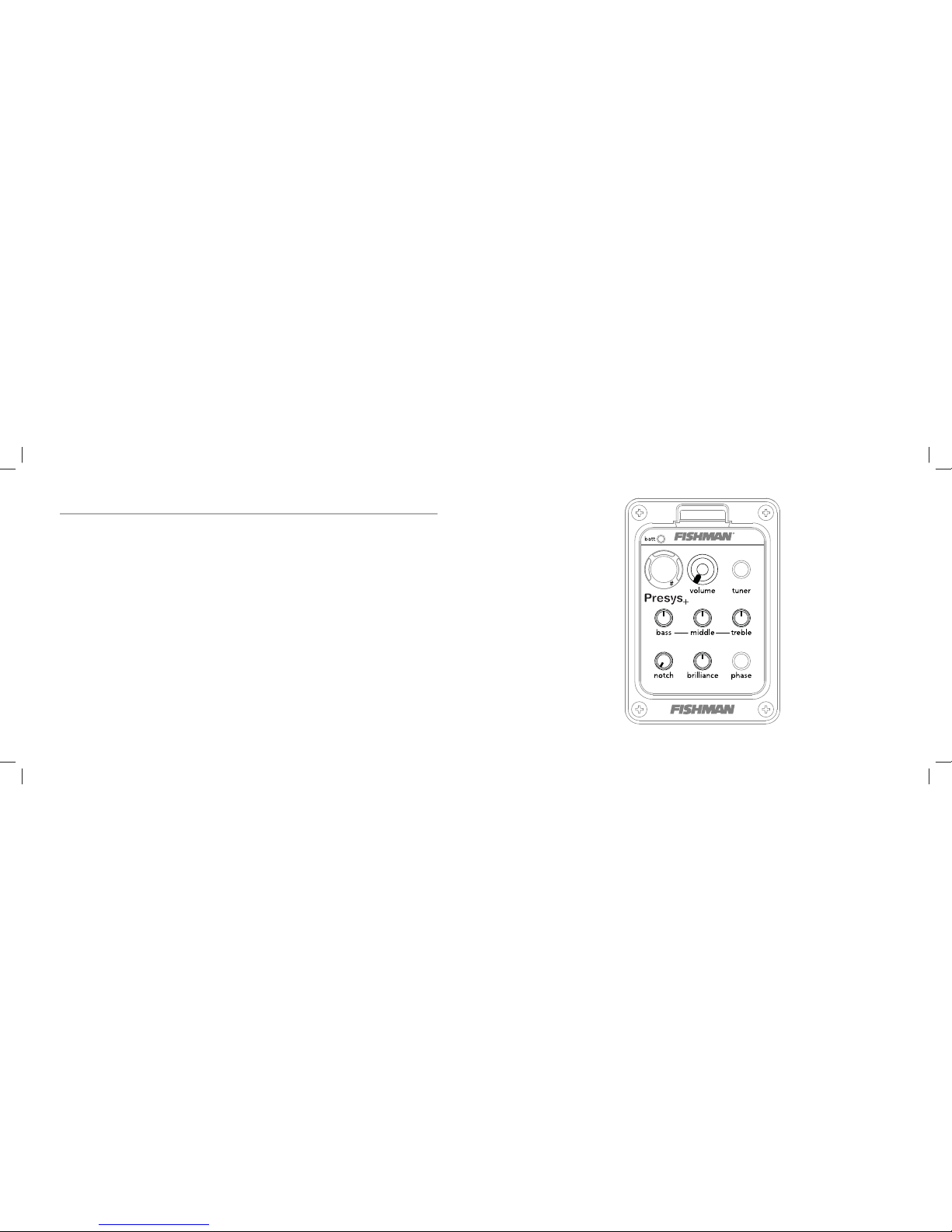

Presys Plus Controls

Volume • For the cleanest signal, set the volume knob as high as possible,

without causing distortion or feedback.

Bass • Boost here to add depth and weight to the sound of the guitar.

Middle • Turn the middle knob all the way left for a smooth “scooped out”

tone at high volume levels. Raise the middle knob to the right of center to add

midrange “bite” to the sound.

Treble • Boost to cut through the mix. Cut to mellow and subdue the sound.

Brilliance • This slider can add shimmer and sparkle to your sound. It zeros in

on crisp high frequency tones, the realm of harmonics and acoustic string sound.

Lower the brilliance slider to reduce ﬁnger noise and fret buzz.

Notch • Tune the notch ﬁlter to remove low-end feedback. Raise the volume

until feedback occurs, then slowly turn the notch to the right until the feedback is

eliminated.

Phase • Use the phase switch to improve bass response at low volume and

suppress feedback at high volume.

Tuner • Use the tuner lights as shown below to tune your instrument.

Battery • When the batt indicator lights steadily it is time to change the bat-

tery. To conserve power, unplug the instrument and turn off the tuner when not

in use. Replace the battery by ﬂipping open the preamp body using the latch

located above the Fishman logo. Be sure to observe the correct polarity during

this installation.

“A” note

below pitch

“A” note

in tune

“A” note

above pitch

“A#” note

in tune

6 7

Sample EQ Settings

Fingerstyle “Scooped” Mid

This will add fullness to the bass This setting emphasizes extreme bass

and deﬁnition to the treble. and treble

Strummer Cut Through the Mix

A good setting for strumming chords. When you need to be heard through a

loud band.

513-300-184 Rev C 2-11

www.ﬁshman.com

FCC COMPLIANCE NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful

interference to radio communications and there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures: reorient or relocate the receiving

antenna, increase the separation between the equipment and receiver, connect the equipment into

an outlet on a circuit different from that of the receiver. Consult the dealer or an experienced radio/TV

technician if help is needed with interference.

NOTE: FMIC and Fishman Transducers, Inc. are not responsible for unauthorized equipment

modiﬁcations that could violate FCC rules, and/ or void product safety certiﬁcations.
