UV-AIRE™ AIR PURIFYING SYSTEM

Model: UV-E

(For use with 12”, 18” and 28” Field Controls Lamps)

(120/240 volt application)

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION

LEAVE THE INSTALLATION INSTRUCTIONS WITH THE OWNER/OPERATOR OF THE DEVICE

AFTER OPENING THE CARTON, UNPACK AND INSPECT THE UNIT AND LAMP FOR DAMAGE.

DO NOT INSTALL THIS UNIT IF ANY DAMAGE IS NOTICEABLE.

SAFETY CONSIDERATIONS

WARNING: Never expose eyes or skin to UVC light from any source.

• Looking directly at the UVC light may cause permanent eye damage or blindness.

• Never operate the UV-Aire™ Air Purifying System out of the plenum.

WARNING: UV light will break down plastic materials not rated for UV exposure:

(Examples: wire insulation, flex duct, drain pans and humidifiers)

• The unit must be mounted at least 30” from the above stated type of materials.

• If it is necessary to mount the unit in direct line of site of these types of materials, they must be shielded

with aluminum foil, aluminum foil tape, or sheet metal.

ITEMS INCLUDED IN KIT:

1-UV-E power unit (NEMA3 housing)

1-Mounting Template

4-Sheet metal mounting screws

1-Angled mounting bracket

1-Flat mounting bracket

1-Instruction Sheet

1-Wing nut

2-Hex nuts

1-Lamp

UV-C light inhibits the growth and reproduction of germs and bacteria that circulate through a

homes’ heating and air conditioning system. The treatment is a safe, silent, and proven way

to make your home a healthier place to live.

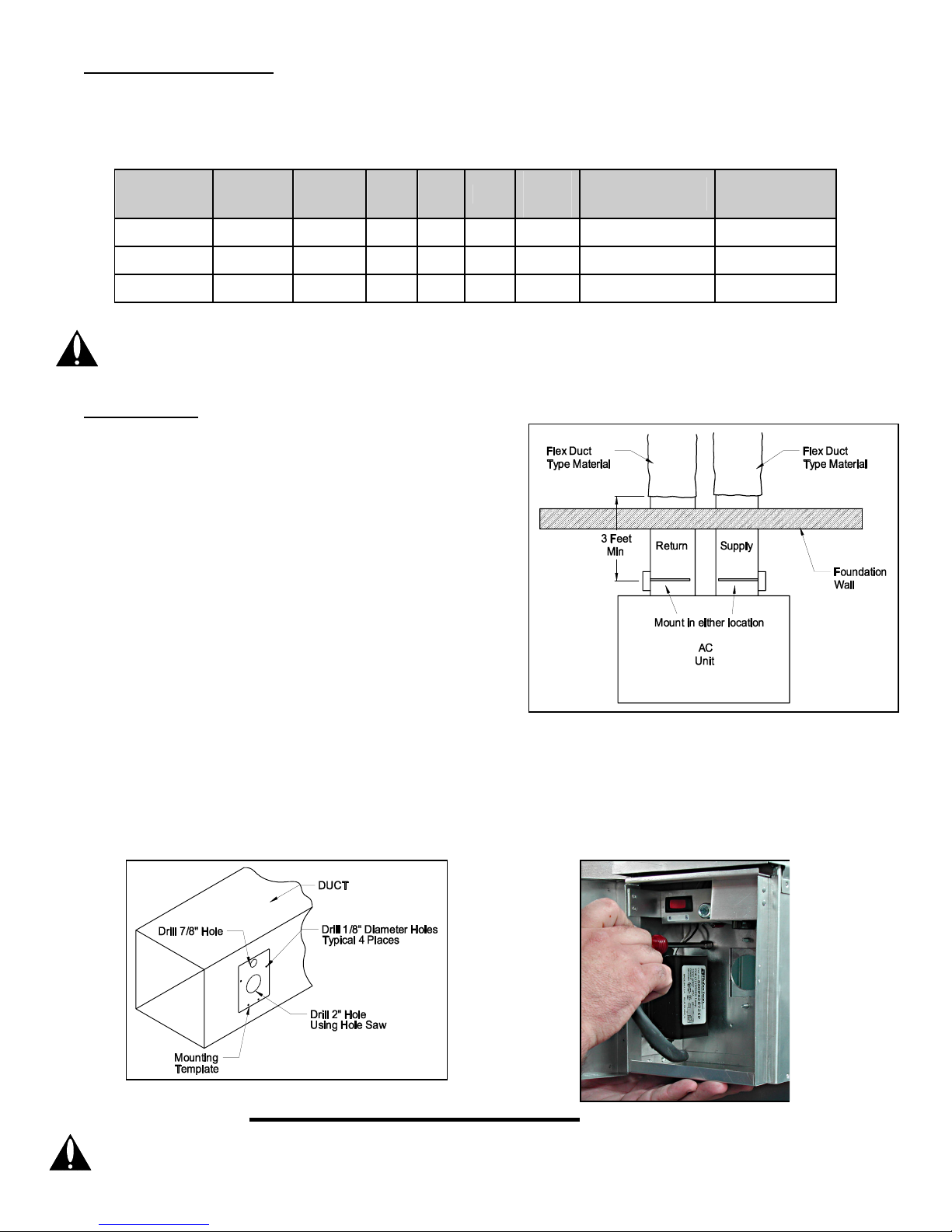

Page 2

Figure 1

I. GENERAL INFORMATION

This product is not sold as a medical device and is not for the purpose of diagnosis of any disease or condition nor for

use in the mitigation, treatment, or prevention of any disease or condition.

There are different size units available, depending on the square footage of your home. See chart below for

determining your homes needs.

Lamp Length

Minimum

Duct

Width

Volts Amps Hz Watts

Max Air

Temp

°F

Lamp Intensity at 1

meter

Recommended

Max Sq. Feet

12” 9 120/240 0.5 60 30 150°

37 µW/cm21500

18” 14 120/240 0.5 60 30 150°

73 µW/cm22000

28” 22 120/240 1.1 60 60 150°

105 µW/cm23000

WARNING: Before installing or servicing a humidifier, air filter, heat system, or this unit, etc., always turn all power

OFF and have units unplugged. Electrical shock can cause personal injury or death. Never expose eyes or skin to

direct UVC light from any source.

II. INSTALLATION

1. Determine a suitable location on either the supply or

return for the unit as shown in Figure 1. The unit must be

mounted at least 3 feet from any flex duct type material.

NOTE: Unit can only be mounted in a vertical position as

noted on inside cover label.

2. Apply mounting template to air duct as shown in Figure 2.

3. Drill 1/8” diameter mounting holes at positions indicated

on template. (See Figure 2)

4. Using a 2” hole saw, drill out lamp hole as shown on

template. (See Figure 2)

5. Drill a 7/8” inspection hole as shown on template. (See

Figure 2)

6. Remove template.

7. Mount unit to duct using the 4 supplied sheet metal

screws. (See Figure 3)

Figure 2

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

Figure 3

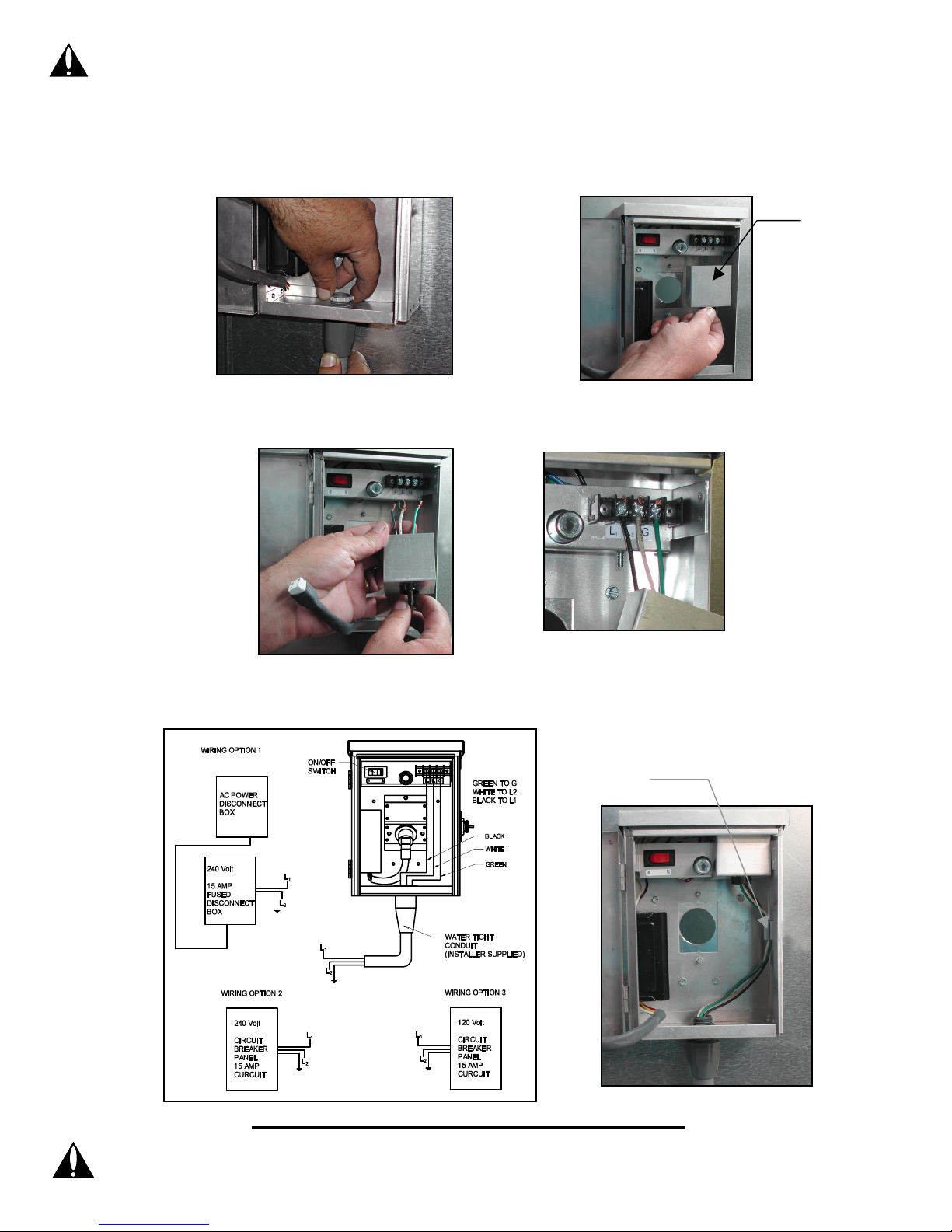

Page 3

WARNING: Disconnect electrical power supply before wiring

9. Connect to an appropriate power source such as an AC power disconnect box or to a circuit breaker panel. (See

Figure 8)

10. Determine length of wire and conduit necessary according to power connection and install wiring conduit and

water tight connector as shown in example figure 4. (Supplied by installer.)

11. Remove wiring access cover to expose terminal block. (Figure 5)

12. Push power source wires through bushing in access cover then begin securing wires according to the wiring

diagram in figure 8. (See Figures 6 & 7)

13. Replace access cover.

14. Group wires together and tuck in wire clip on right side of box. (See Figure 9)

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

Acces Cover

Wire Clip

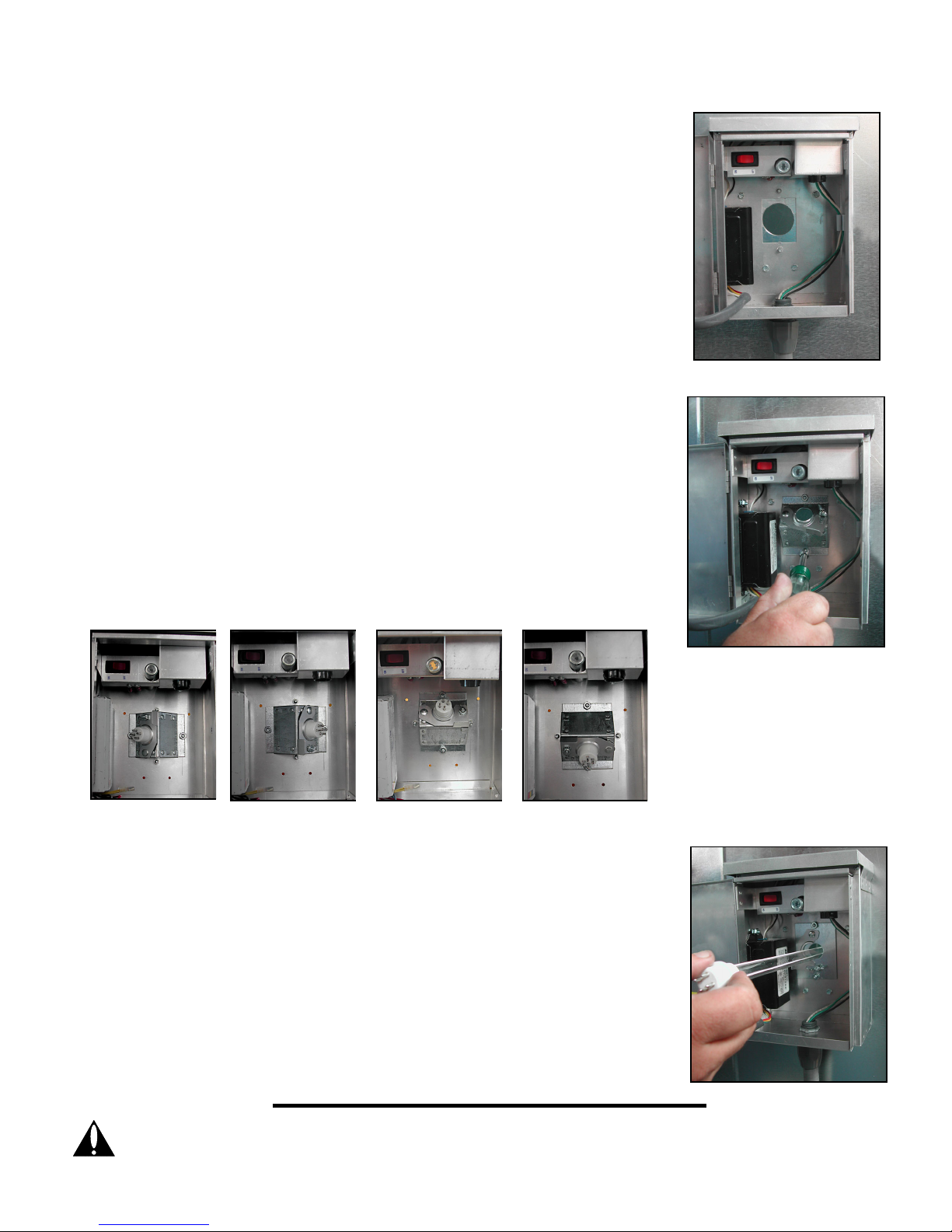

Page 4

15. Determine whether to use flat or angled bracket. (Refer to UV-Aire Configurations in Section III for aid in this

decision)

a. Flat Bracket Installation

i. Remove the two hex nuts and flat bracket from included bagged

hardware.

ii. Install the flat bracket and secure to the unit base with the hex nuts

provided. (See Figure 10)

b. Angled Bracket Installation

NOTE: For angled bracket mounting, refer to specifications outlined by Diagram

A for mounting distances in the “Angled Lamp Mounting Bracket Specifications”

in section III.

i. Remove the two hex nuts and angled bracket from included bagged

hardware.

ii. Install the angled bracket and secure to the unit base with the hex nuts

provided. (See Figure 11) The angle bracket may be mounted in 4

positions allowing the bulb to either be angled up and down or left to

right, depending upon duct design. (Figures A-D)

NOTE: Be sure to note location of lamp hole in bracket relative to unit

base.

LAMP INSTALLATION

This unit is listed for use with Field Controls’ lamps ONLY. You will need to determine

proper lamp selection based on duct size and desired configuration. (Refer to

configuration table on page 6 of this manual)

16. Remove tag and alcohol from lamp. Wipe off lamp being sure not to touch lamp

with bare hands. The oils in your hands may cause the lamp to prematurely

expire.

17. Insert lamp through hole in bracket until lamp is snug against the bracket. (See

Figure 12)

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

Figure 10

Figure 11

Figure 12

Figure A Figure B Figure C Figure D

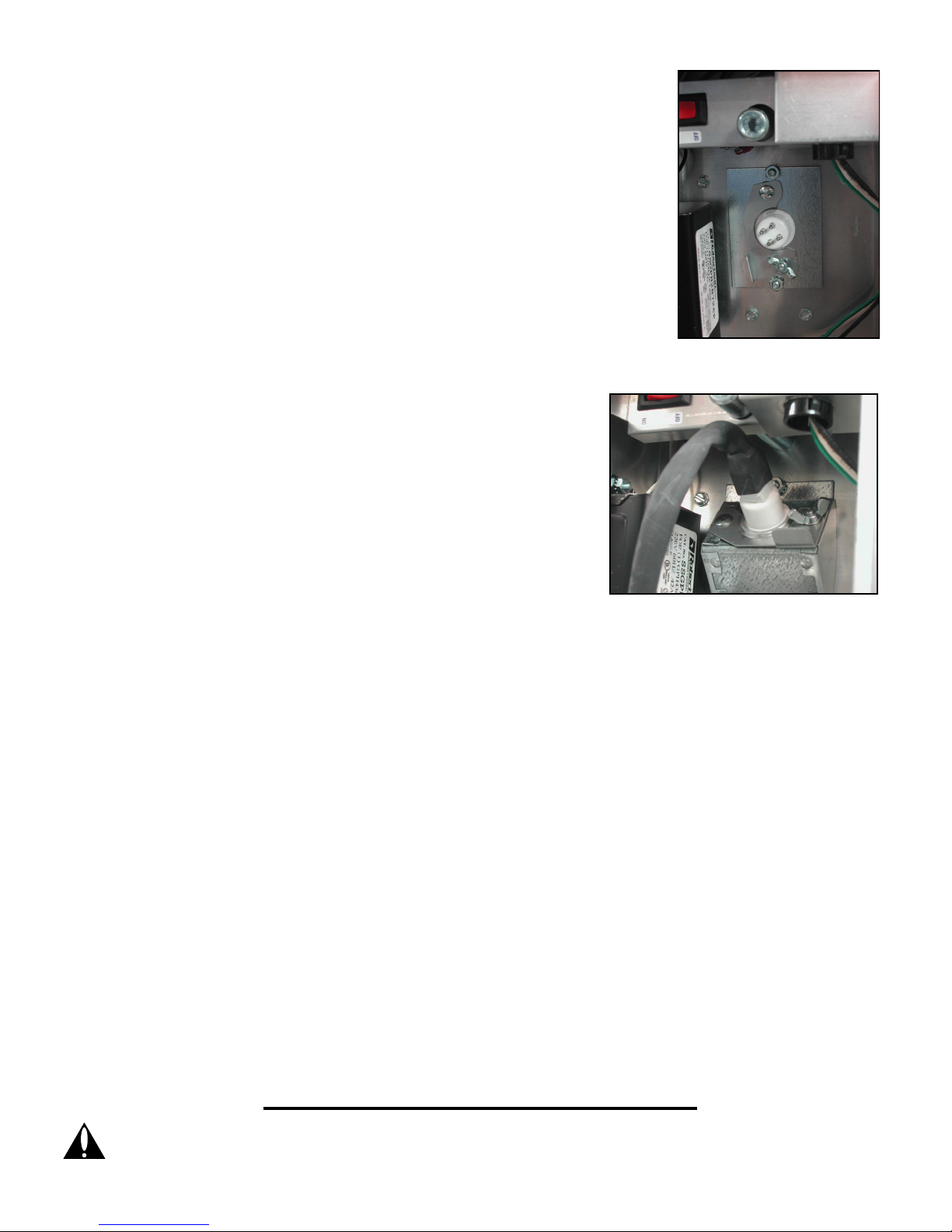

Page 5

18. Swing securing bracket over end of lamp and hand-tighten the provided wing

nut on stud. (See Figure 13)

19. Plug ballast plug into end of lamp and reconnect power supply. (See

Figure 14)

20. Flip the red power switch to the on position. (Light on switch should be

on indicating power.)

21. Look through view port to be sure lamp is working. You should see a blue glow. (The view port is covered with a

plastic lens that blocks the UVC rays.)

22. If the lamp is not glowing, make sure the wiring is correct and that the ballast is plugged in securely to lamp. If

lamp still does not glow, contact technical support at 1-252-522-3031 for further assistance.

23. After unit has been found to be working properly, note date of installation on inside cover, close cover and engage

latch. Apply supplied wire tie to latch or other locking mechanism to provide safety.

Figure 13

Figure 14

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

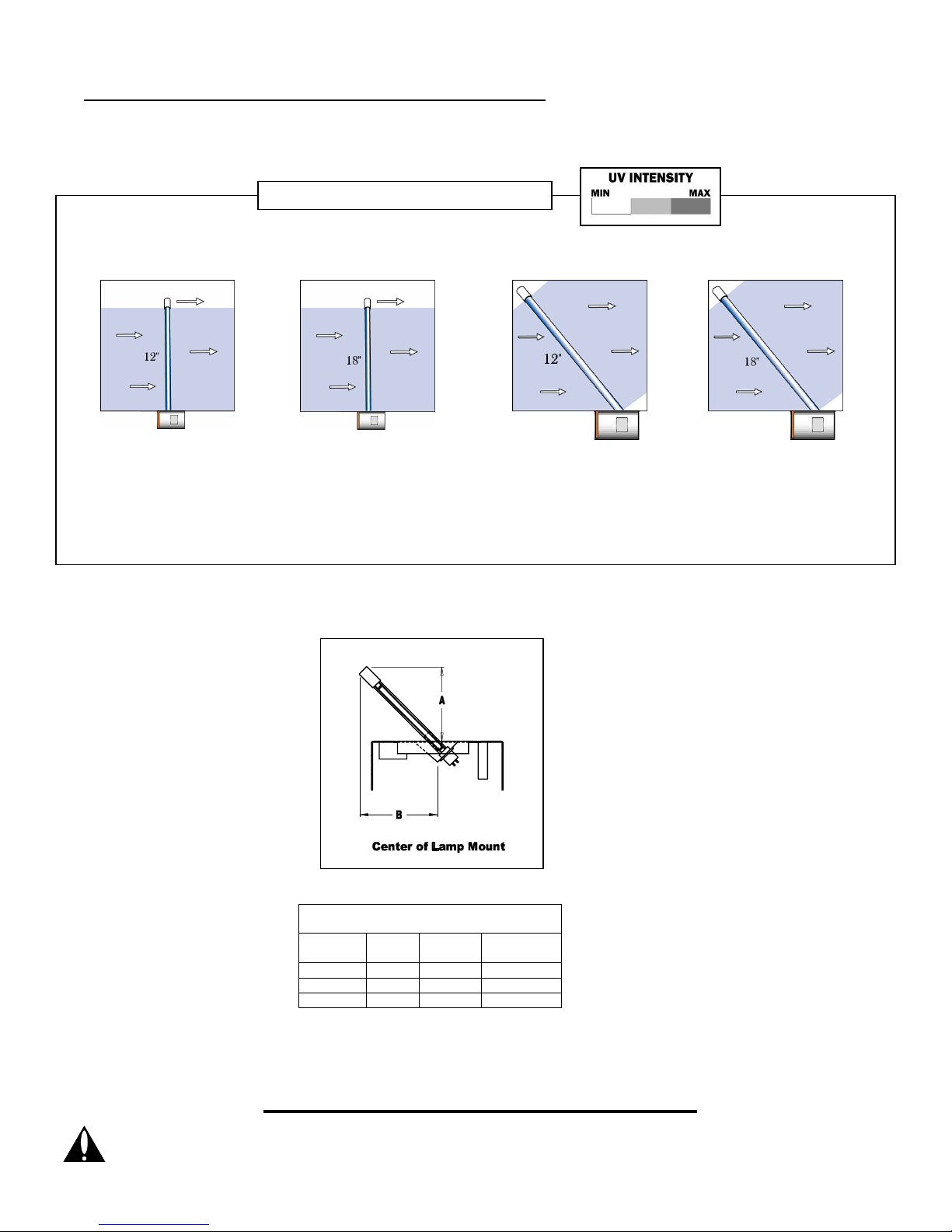

Page 6

III. BULB MOUNTING BRACKET SELECTION AND INSTALLATION

The UV-AIRETM units come with an angled mounting bracket and flat mounting bracket to position the bulb either

straight or at an angle. Choose one or the other bracket method best suited for your needs. Refer to the

configurations chart below when making your selection.

ANGLED LAMP MOUNTING BRACKET SPECIFICATIONS

Use the specifications below to determine allowable clearances for proper mounting of the UV-Aire™ unit on the duct.

LAMP OFFSET DIMENSIONS

Lamp

Length A B

Lamp Part

No.

12” 8-1/2 6-1/2 46365401

18” 13-1/2 10-5/16 46365402

28” 21-3/8 16-1/4 46365403

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

Standard 90° Installation

(Flat Bracket)

(Fits a minimum 18” Duct)

Patent Pending 45°

Installation

(Angled Bracket)

(Fits a minimum 14” Duct)

UV-Aire™ Configurations

Diagram A

Good Better

Standard 90° Installation

(Flat Bracket)

(Fits a minimum 12” Duct)

Patent Pending 45°

Installation

(Angled Bracket)

(Fits a minimum 8” Duct)

Page 7

IV. MAINTENANCE

1. Inspect and clean lamp at least every 6 months.

2. Replace your UV-Aire™ Air Purifying System lamp once a year to maintain the lamps maximum output intensity.

The lamp should operate continuously for maximum lamp life and light effectiveness.

V. REPLACEMENT PROCEDURE

VERY IMPORTANT: Turn switch on unit to ‘OFF’ position and disconnect from power source.

1. Remove wire tie or locking mechanism from latch on unit.

2. Unplug ballast plug from end of lamp.

3. Remove the wing nut on securing bracket. Swing out securing bracket to clear lamp.

4. Slide lamp out carefully.

NOTE: When replacing the lamp, always wipe off lamp before installing.

5. Replace lamp following the appropriate procedure based on bracket selection in the installation section.

6. UV lamps contain a small amount of mercury, like a typical fluorescent lamp. Check with your local waste

management authority for local disposal or recycling requirements. According to the EPA’s Universal Waste

Rule, these types of lamps may be disposed of into household waste

7. After replacing lamp, make sure a new Lamp Replacement Label (supplied with lamp replacement) is applied to

the housing and dated with the date of installation.

8. Replace wire tie or locking mechanism to latch.

VI. TROUBLESHOOTING GUIDE

1. If unit does not light up replace bulb.

2. If unit still does not light up after replacing bulb, replace ballast.

VII. REPLACEMENT PARTS LIST

Lamp Length LAMP

(Field Controls Part Number)

BALLAST

(Field Controls Part Number)

12” 46365401 46365506

18” 46365402 46365506

28” 46365403 46365506

For replacement parts, contact your local heating service company. Any questions, please contact Field Controls at:

Phone: 252-522-3031 Fax: 252-522-0214 Email: [email protected]

WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause

ermanent eye damage or blindness. Never operate the UV-Aire™ Air Purifying System out of the plenum.

void touching the glass portion of the lamp with your hands.

Page 8

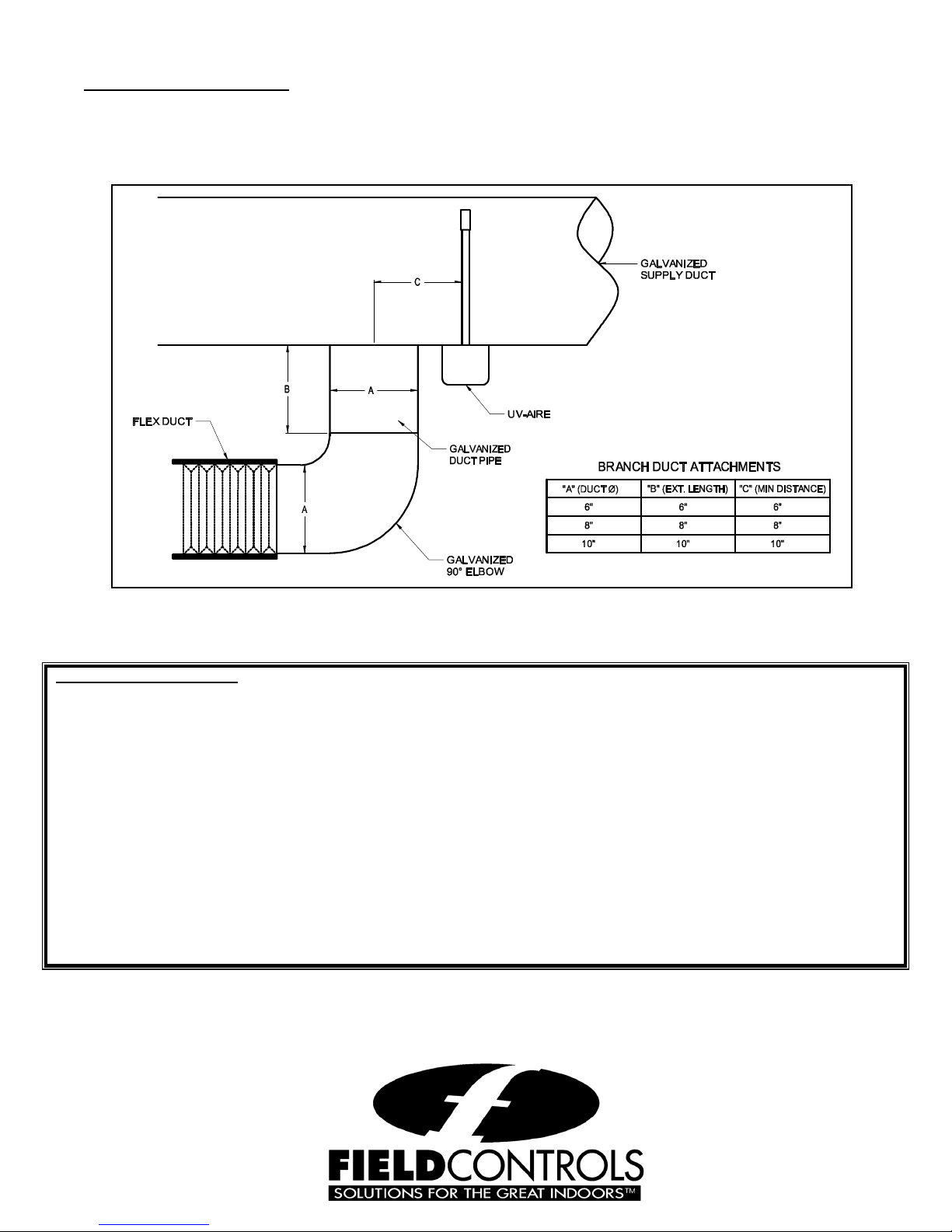

VIII. FLEX DUCT INSTALLATION

For installations on duct systems with a metallic main duct and flex duct branches, follow the instructions in figure 15

below.

WARRANTY INFORMATION

ONE YEAR LIMITED WARRANTY (excluding lamps, which have a 90 day warranty, from day of installation)

The products of The Field Controls Co. are warranted to be free from defects in material and workmanship under normal use for five years from date of

manufacture. In the event of malfunction or failure of this product, the purchaser shall properly package the entire unit and ship it PREPAID with return address to

the address listed below. At the time of request for warranty service, the purchaser must present proof of purchase documentation which includes the date of

purchase (for example, a receipt or sales slip). If the malfunction or failure is a result of defects covered by this warranty, Field will, at its option, repair the product

or replace it and return it to the purchaser.

This warranty is limited to the original retail purchaser and is not transferable. The warranty does not cover damage due to accidents, abuse, tampering or misuse,

nor does it cover damage resulting from service persons other than Field. Field’s liability under this warranty is expressly limited to the repair, replacement, or

refund of the invoice price of products which prove to be defective in material or workmanship within a period of ninety days from date of purchase. Field’s

obligation to repair or replace defective products or refund of invoice price constitutes agreed and liquidated damages for any breach of warranty by Field.

FIELD’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT WITH THE EXCEPTION OF

DAMAGES RESULTING FROM FIELD’S FAILURE TO COMPLY WITH FEDERAL OR STATE WARRANTY LAW. FIELD SHALL NOT BE LIABLE FOR ANY

INCIDENTAL OR CONSEQUENTIAL DAMAGES, WHETHER DIRECT OR INDIRECT.

THIS WARRANTY IS EXPRESSLY GRANTED IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states may not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above

limitations or exclusions may not apply to you. This warranty gives you specific rights and you may also have other rights which vary from state to state.

In the event you have any questions concerning the use and care of your Field product or concerning service under this warranty or otherwise, please write: The

Field Controls, L.L.C. 2630 Airport Rd., Kinston, N.C. 28504.

The health aspects associated with the use of these products and their ability to aid in disinfecting of environmental air have not been investigated by UL.

P/N 46427300 Rev D 04/03

Figure 15

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Field Controls Purificateur d'air

Field Controls

Field Controls Healthy Home System Manuel du propriétaire

Field Controls

Field Controls UV-Aire UV-18X Manuel utilisateur

Field Controls

Field Controls Healthy Home System Duo-2000 Instructions d'installation et d'utilisation

Field Controls

Field Controls FC8-2025HS Manuel utilisateur

Field Controls

Field Controls UV-Aire UV-18X Manuel utilisateur

Field Controls

Field Controls UV-AIRE UV-1500C Manuel utilisateur

Field Controls

Field Controls 46453400 Manuel utilisateur

Field Controls

Field Controls UV-Aire Air Purifying System UV-500C Manuel utilisateur

Field Controls

Field Controls UV-AIRE UV-1500C Manuel utilisateur

Field Controls

Field Controls FORM42 Manuel utilisateur

Field Controls

Field Controls 46377000 Manuel utilisateur

Field Controls

Field Controls UV-AIRE UV-18 Manuel utilisateur

Field Controls

Field Controls Trio Pro Manuel utilisateur

Field Controls

Field Controls TRIO Plus S Manuel utilisateur

Field Controls

Field Controls Solution For Great Indoors 24v Manuel utilisateur

Field Controls

Field Controls UV-AIRE UV-12 Manuel utilisateur

Field Controls

Field Controls Trio Pro Manuel utilisateur

Field Controls

Field Controls Healthy Home System Duo-2000 Manuel utilisateur

Field Controls

Field Controls Trio Plus Manuel utilisateur

Field Controls

Field Controls Trio Plus Manuel utilisateur

Field Controls

Field Controls 46520200 Manuel utilisateur

Field Controls

Field Controls Cube Manuel utilisateur

Field Controls

Field Controls 46512300 Manuel utilisateur

Field Controls

Field Controls FC8-1400 Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur
