Dear Customer,

Thank you for choosing Fiat and congratulations on your choice of a Fiat Ducato.

We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.

You are recommended to read it right through before taking to the road for the first time. You will find information, tips and im-

portant warnings regarding the driving of your vehicle to help you derive the maximum from the technological features of your Fi-

at Ducato.

You are recommended to carefully read the warnings and indications, marked with the respective symbols:

personal safety;

vehicle integrity;

environmental protection.

The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:

❒

the Warranty Certificate with terms and conditions for maintaining its validity;

❒

the range of additional services available to Fiat Customers.

Enjoy the read. Happy motoring!

This Owner Handbook describes all the versions of the Fiat Ducato.

As a consequence, you should only consider the information which is related to the engine

and bodywork version of the vehicle you have purchased.

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 1

REFUELLING

Only refuel with automotive diesel conforming to the

European standard EN 590.

The use of other products or mixtures may damage the

engine beyond repair and consequently cause the war-

ranty to be void depending on the damage caused.

STARTING THE ENGINE

Make sure that the handbrake is engaged; set the gearshift

lever to neutral; fully depress the clutch without press-

ing the accelerator, then turn the ignition key to MAR and

wait for the warning lights

and

to go off; turn

the ignition key to AVV and release it as soon as the en-

gine has started.

PARKING ON FLAMMABLE MATERIAL

The catalytic converter develops high temperature dur-

ing operation. Do not park on grass, dry leaves, pine

needles or other flammable material: fire hazard.

RESPECTING THE ENVIRONMENT

The vehicle is fitted with a system that allows continu-

ous diagnosis of the components correlated with emis-

sions to ensure better respect for the environment.

ELECTRICAL ACCESSORIES

If, after buying the vehicle, you decide to add electrical

accessories (with the risk of gradually draining the bat-

tery), visit a Fiat Dealership. They can calculate the over-

all electrical requirement and check that the vehicle elec-

tric system can support the required load.

CODE CARD

Keep it in a safe place, not in the vehicle. Make sure you

have the electronic code with you at all times.

SCHEDULED MAINTENANCE

Correct vehicle servicing is essential for ensuring it stays

in tip-top condition and safeguards its safety features, its

environmental friendliness and low running costs for

a long time to come.

THE OWNER HANDBOOK CONTAINS…

... important information, advise and warnings for a cor-

rect use, driving safety and maintenance of your vehi-

cle over time. Pay special attention to the symbols

(personal safety)

(protecting the environment) !(risk

of serious damage to the vehicle).

VERY IMPORTANT



쇵

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 2

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

DASHBOARD AND CONTROLS

DASHBOARD

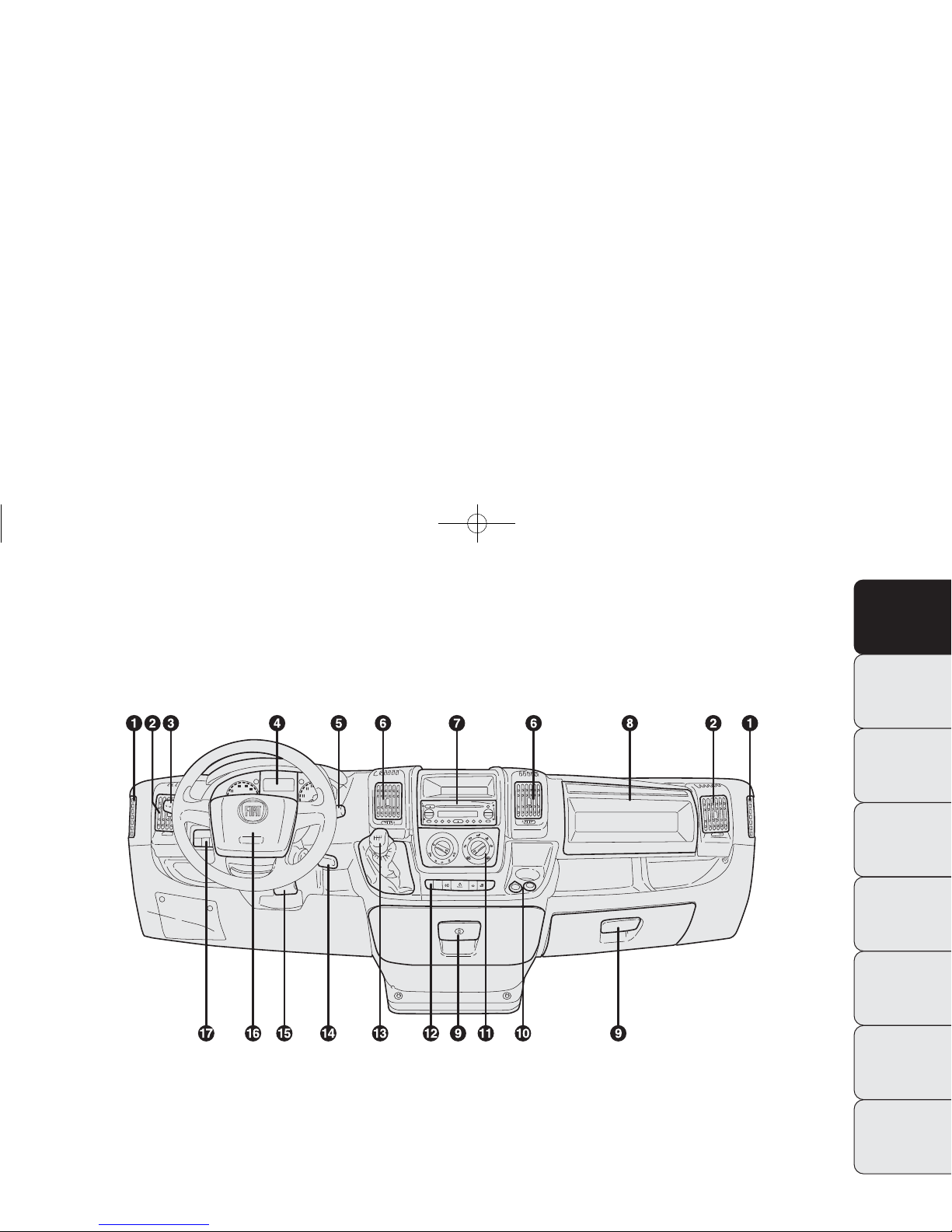

The presence and position of the controls, instruments and gauges may vary depending on the version.

1. Fixed side air – vents – 2. Adjustable side air vents – 3. Left steering column stalk: external lights – 4. Instrument and

warning light panel – 5. Right steering column stalk: windscreen wiper controls, rear window wiper, trip computer

– 6. Adjustable central air vents – 7. Car radio (for versions/markets, where provided) – 8. Passenger side glove com-

partment/front air bag (for versions/markets, where provided) – 9. glove compartment – 10. Cigar lighter/12 V socket

– 11. HVAC controls – 12. Controls on dashboard – 13. Gear lever – 14. Ignition device – 15. Steering wheel adjust-

ment lever – 16. Driver side front airbag – 17. Control plate: lamp/headlamp alignment adjustment/digital display/

multifunction display.

F0N0320m

fig. 1

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 3

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

F0N0002m

fig. 2

THE FIAT CODE SYSTEM

This is an electrical engine locking system which increas-

es protection against attempted theft of the vehicle. It is

automatically activated when the ignition key is extracted.

Each key contains an electronic device which modulates

the signal emitted during ignition by an antenna built in the

ignition device. This signal is the ‘password’ which changes

at each ignition and which the control unit uses to recog-

nise the key and enable ignition.

OPERATION

Each time the car is started by turning the ignition key to

MAR, the Fiat CODE system control unit sends an ac-

knowledgement code to the engine management control

unit to deactivate the inhibitor.

The code is sent only if the Fiat CODE system control unit

has recognised the code transmitted from the key.

Each time the ignition key is turned to STOP, the Fiat

CODE system deactivates the functions of the engine man-

agement control unit.

If the code is not recognised correctly during ignition,

the

warning light comes on in the instrument panel

accompanied by the related message on the display (see

section “Warning lights and messages”).

SYMBOLS

Special coloured plates have been attached near or on some

of the components of your vehicle. These plates bear sym-

bols that draw your attention to the precautions required

when handling the component in question.

The plate summarising the symbols used can be found

under the bonnet, fig. 2.

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 4

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

THE KEYS

CODE CARD Fig. 3

The vehicle is delivered with two copies of the ignition key

and with the CODE card which bears the following:

A the electronic code;

B he mechanical key code to be given to the Fiat Deal-

ership when ordering duplicate keys.

IMPORTANT In order to ensure complete efficiency of

the electronic devices inside the keys, they should never

be exposed to direct sunlight.

In this case turn the key to STOP and then to MAR; if the

lock persists try again with the spare set of keys. Contact

a Fiat Dealership if you still cannot start the engine.

IMPORTANT Each key has its own code which must be

stored by the system electronic control unit. Contact the

Fiat Dealership to have new keys (up to eight) stored with

the code.

Warning light

comes on when driving

❒

If the warning light

turns on, this means that the

system is running a self-test (for example for a voltage

drop).

❒

If the warning light

stays on, contact a Fiat Dealer-

ship.

The electronic components inside the key

may be damaged if the key is submitted to

sharp knocks.

F0N0003m

fig. 3

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 5

F0N0800m

fig. 4

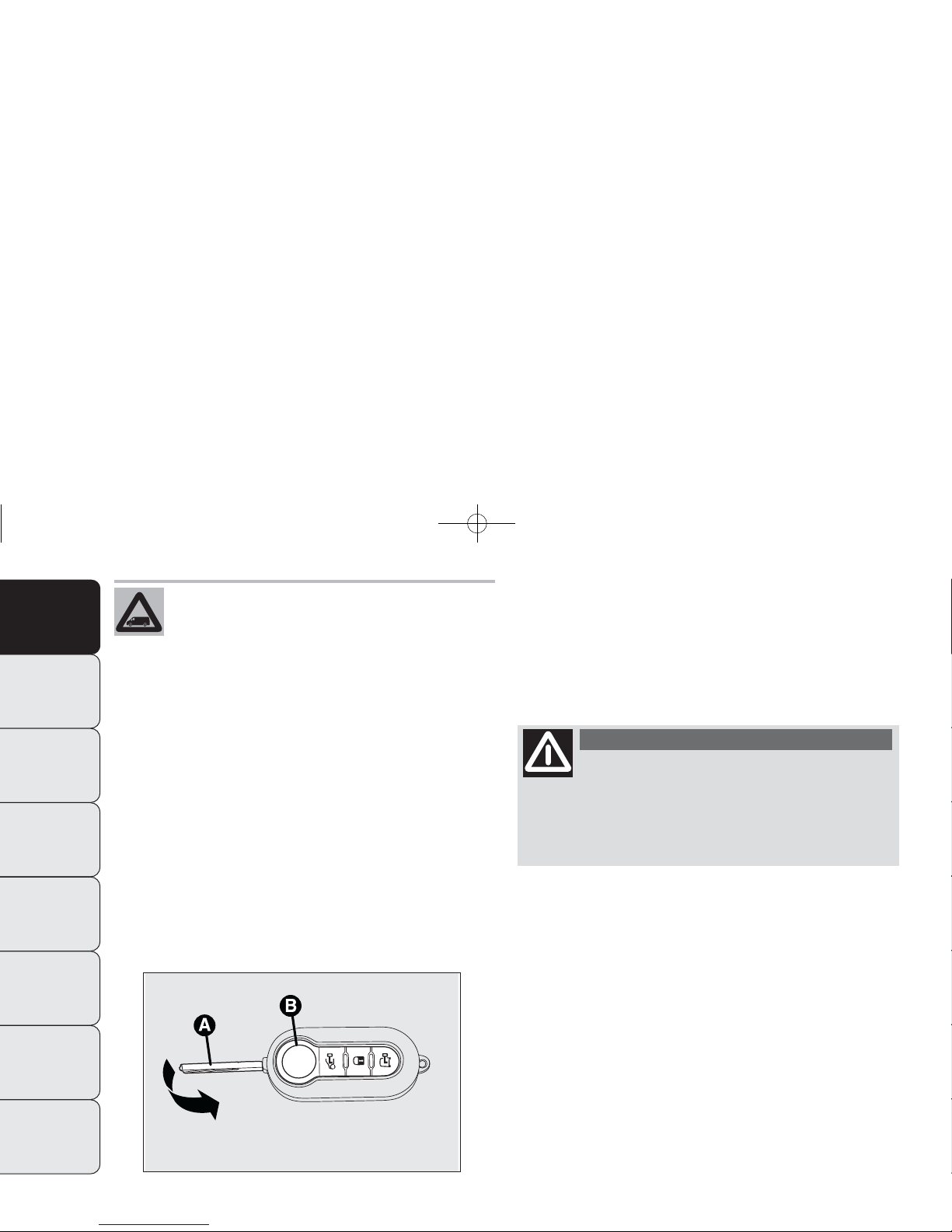

To refit it proceed as follows:

❒

keep button B pressed and move the metal insert A;

❒

release button B and turn the metal insert A until hear-

ing the proper locking click.

KEY WITH REMOTE CONTROL fig. 4

The metal insert A is retractable and it operates:

❒

the ignition switch;

❒

the door locks;

❒

opening and closing of the fuel plug.

To extract the metal insert, press button Band

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

All the keys and the CODE card must be

handed over to the new owner when selling

the vehicle.

Only press button B with the key away

from your body, specifically from your eyes

and from objects which could get damaged (e.g.

your clothes). Do not leave the key unattended, be-

cause someone, a child especially, may accidentally

press the button while handling the key.

WARNING

Button Qis used for unlocking the front doors.

Button Áis used for locking all the doors.

Button Pis used for unlocking the load compartment

doors.

The passenger’s compartment lights will come on for

a preset time when the doors are unlocked.

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 6

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

F0N0801m

fig. 5 F0N0114m

fig. 6

Request for additional remote controls

The system can recognise up to 8 remote controls. Should

a new remote control be necessary, contact a Fiat Deal-

ership and be ready to present the CODE card, a personal

identity document and the vehicle ownership documents.

Some versions are equipped with a key with a remote con-

trol with 2 keys Áand Ëfig. 5.

Button Áis used for locking all the doors;

Button Ëis used for unlocking all the doors.

Dashboard led indications

When locking the doors, led A-fig. 6 switches on for about

3 seconds and than starts flashing (deterrence function).

Once doors are locked, if one or more doors or the tail-

gate are not closed correctly, the led and direction indi-

cators start flashing quickly.

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 7

F0N0802m

fig. 7 F0N0337m

fig. 8

KEY WITHOUT REMOTE CONTROL fig. 8

The metal insert of the key A is fixed.

The key operates:

❒

the ignition switch;

❒

the door locks;

❒

opening and closing of the fuel plug.

Replacing the battery of the key with remote

control fig. 7

To replace the battery, proceed as follows:

❒

press button A and bring the metal insert B to the open

position;

❒

turn the screw C to

using a fine bit screwdriver;

❒

take out the battery case D and replace the battery E,

respecting its polarity;

❒

refit the battery case D inside the key and lock it by

turning the screw C to

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

Used batteries are harmful to the environ-

ment. They should be disposed of, as spec-

ified by law, in the special containers pro-

vided, or take them to the Fiat Dealership, which

will deal with their disposal.

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 8

Type of key

Key without remote

control

Key with remote control

Direction indicators

flashing (only with key

with remote control)

Deterrence led

DASHBOARD

AND CONTROLS

SAFETY

STARTING

AND DRIVING

WARNING LIGHTS

AND MESSAGES

IN AN EMERGENCY

MAINTENANCE

AND CARE

TECHNICAL

SPECIFICATIONS

INDEX

The main functions that can be activated with the keys (with or without remote control) are the following:

Unlocking the

doors

Turn key

anticlockwise

(driver’s side)

Turn key

anticlockwise

(driver’s side)

Briefly press

button

blinks twice

Off

Door closing

from the outside

Turn key

clockwise

(driver’s side)

Turn key

clockwise

(driver’s side)

Briefly press

button

blinks once

Steady for

approximately

3 seconds and then

deterrent blinking

Dead lock

activation

(for versions/

markets,

where provided)

–

Double press

on button

3 blinks

Double

blinking and then

deterrent blinking

Unlocking

of load

compartment

lock

–

Briefly press

button

blinks twice

Deterrent

blinking

IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation is a conse-

quence of a door locking control.

Windows up

(for versions/

markets,

where provided)

–

Hold down

(for more than

2 seconds)

button

blinks once

Deterrent blinking

Windows down

(for versions/

markets,

where provided)

–

Hold down

(for more

than 2 seconds)

button

blinks twice

Off

001-036 DUCATO LUM EN 11-02-2010 13:53 Pagina 9

Autres manuels pour Ducato

Table des matières

Autres manuels Fiat Automobile

Fiat

Fiat 1993 Cinquecento 899 CAT Guide produit

Fiat

Fiat 500L 2017 Manuel utilisateur

Fiat

Fiat Ducato Manuel utilisateur

Fiat

Fiat 124 Spider Abarth 2018 Manuel utilisateur

Fiat

Fiat Ducato Guide de l'utilisateur

Fiat

Fiat 124 Spider 2019 Manuel utilisateur

Fiat

Fiat 500 Abarth Guide de l'utilisateur

Fiat

Fiat Blue&Me 2012 500 Abarth Manuel utilisateur

Fiat

Fiat 500C ABARTH Manuel utilisateur

Fiat

Fiat 1600S CABRIOLET Guide de l'utilisateur

Fiat

Fiat 500 Abarth Guide de l'utilisateur

Fiat

Fiat 500 Abarth Guide de l'utilisateur

Fiat

Fiat 2016 500X Manuel utilisateur

Fiat

Fiat 500 Abarth Manuel utilisateur

Fiat

Fiat Fiat Bravo LPG Manuel utilisateur

Fiat

Fiat Fullback Single cab Manuel utilisateur

Fiat

Fiat PANDA 2016 Guide de l'utilisateur

Fiat

Fiat 124 SPIDER ABARTH 2017 Manuel utilisateur

Fiat

Fiat PUNTO Guide de l'utilisateur

Fiat

Fiat 2013 500 ABARTH Guide de l'utilisateur

Fiat

Fiat 1995 Bravo Manuel utilisateur

Fiat

Fiat Tipo 1988 Manuel utilisateur

Fiat

Fiat 2014 Fiat 500 Guide de l'utilisateur

Fiat

Fiat Blue&Me 2012 500 Abarth Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
