Fiat Ducato Maxi Manuel utilisateur

CAMPERVAN RENTAL

TURKEY

USER MANUAL

(COMFORT PLUS MODEL)

Yeşilbahçe Mah. 1472 Sk. 4B/11 ANTALYA ●Phn :+90 (242) 316 08 30

email: [email protected] www.letsgocamper.com

VEHICLE SPECIFICATIONS - COMFORT (2-4 BERTH)

Vehicle : Fiat

Model : Ducato Maxi

Engine power : 2287cc JTD

Engine Fuel : Euro Diesel

Transmission : Manuel

Vehicle Length : 6363 mm

Vehicle Width : 2050 mm

Bedding for : 4 Adults ( 2 double )

Bed Dimensions: (1.95mx1.35m - Visco) , (1.80mx1.20m)

Toilet : Cassette

Water Tank : 130 lt

Waste Water Tank: 140 lt

Air conditioning: Rear Cabin 220V - Driver Cabin 12V

Fridge / Freezer : 90 lt (12V - 220V) / Yes

Battery : 1 x 100A Gel Battery

Power inverter : 150 Watt

Awning : 4.00m - Fiamma F65 manuel

Break system : ABS

Shower Hot Water Supply: 220 V

Gas Stove : 2 burner

Heating Eberspacher 2 kw: Eberspacher 2 kw

Boiler - Hot Shower: 10lt - 220 V

Gas bottle : 2x3kg

Kettle : 220V

Pillows & Duvets: Yes

Sheets : Yes

Cooking Utensils: Yes

Cutleries : Yes

Road map : Yes

Electronic toll collection system (unlimited): Yes

Electric Water Pump: Yes

Radio/CD/TV/Aux/USB/Bluetooth/SD: Yes / Yes / Yes / Yes / Yes / Yes / Yes

Rear view camera: Yes

Electrical step : Yes

Internal Walk-Through Access: Yes

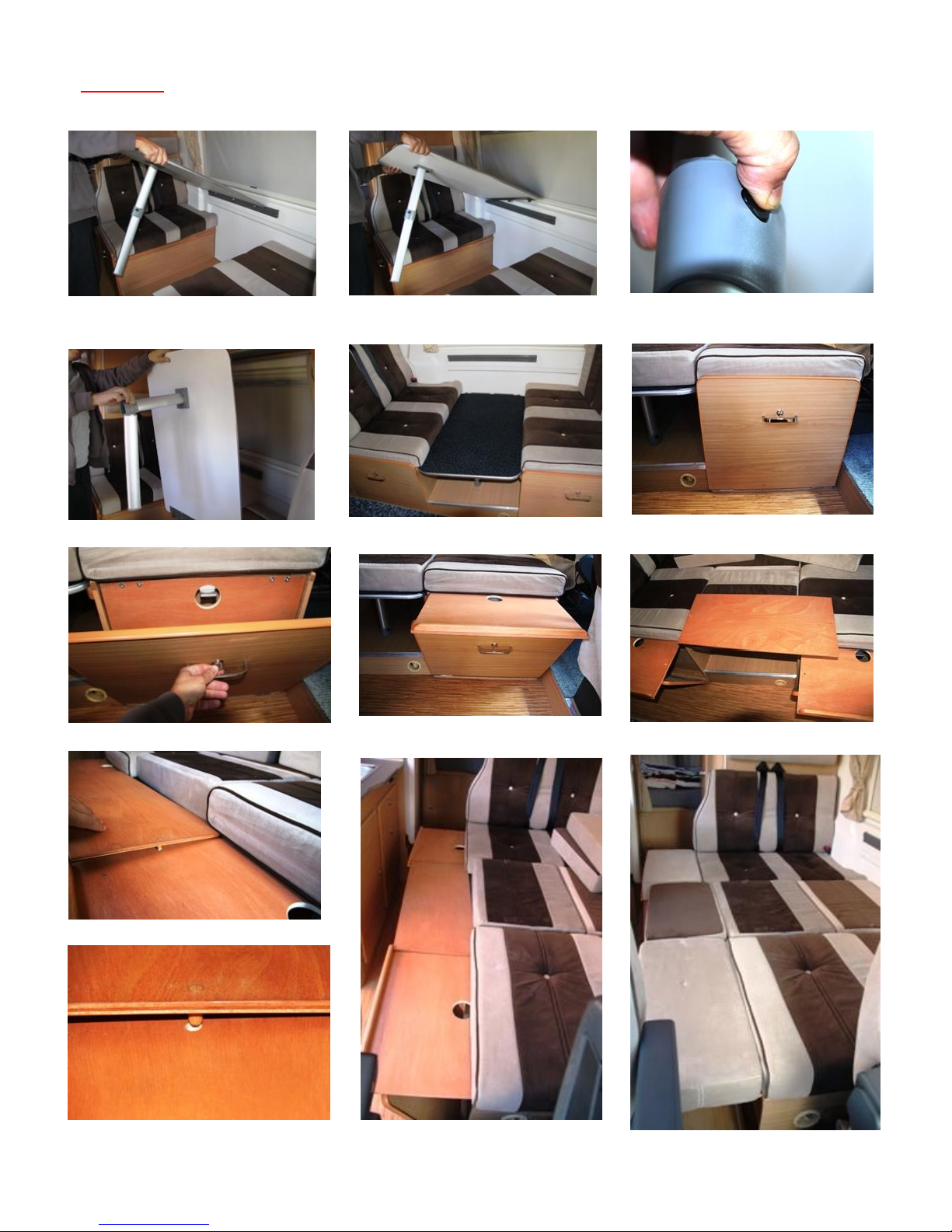

Day Layout Night Layout

Pre-Start Checks

There are a lot of items that need to be safely stowed before driving the vehicle.

Please follow this checklist –it starts at the back, and works forward through the vehicle.

1. Electrical step closed

2. Gas off.

3. Boiler vent cover on.

4. Mains connection cover latched, and cable stowed.

5. Table stowed.

6. Toilet valve closed, and lid down

7. Shower rose on the floor of the cubicle.

8. No loose items on worktop around sink.

9.Sunlight and window closed.

10. Bathroom door closed.

11. Fridge: contents secure and door locked.

12. All cupboard latches fully engaged (in).

13. Work surfaces clear of loose items.

14. Cooker lid down (with anti rattle towel in place).

15. Windows locked (At motorway speed, the wind can rip windows off their hinges)

16. Clean water tank does it need filling?

17. Wastewater tank: Does it need emptying?

18. Toilet: Does it need emptying?

19. Remember the extra length; be prepared to run wide on corners.

Driving a large vehicle

Although it appears big, the van is actually not much wider than an ordinary

car. The biggest difficulty is in judging the extra length.

Steering: The rear wheels are significantly further back from the driver

than in a normal car. As a result it is very easy to turn too soon and have

the rear wheels bump over the kerb, or worse, to scrape the side of the van

against something. The trick is to turn later, running wider on corners and

at junctions.

The seats have height adjustment at the front and back, and the steering

column moves in and out.

There are four mirrors, all separately electrically adjustable. Set the

bottom mirrors so you can see the rear wheels in relation to the curb on

one side, and the white line at the centre of the road.

Reversing: Ask your passenger to walk ahead to guide you. Tell them to

stand where they can see you in the mirrors, so you can see them –and

avoid running them over(!).

Remember to use all six gears.

Passengers must remain seated with seat belts fastened whenever the

vehicle is moving.

The Height (2.7m) is written on a label at the top of the windscreen

remember the extra height.

Parking: the vehicle is too tall to fit in most multi-storey car parks, and

longer than most on-street parking bays

Height: 2,650mm, Width: 2,050mm, Length: 5,995mm, Max Gross Weight: 3500kg

There is a control panel above the passenger’s head.

No Smoking

There is no smoking inside the van. We have also had problems when smokers have

stood outside the door or under the awning. It seems the wind has taken the smoke

into the van where it has adhered to the soft furnishings leaving a very unpleasant

odour for the next users. Smokers tend to under estimate how pervasive cigarette

smoke is.

Fire Prevention

Frying pan or grill fires are probably the greatest risk in a caravan.

Don’t try and carry a burning pan outside as the flames may blow back onto your arms.

Use a wet tea towel.

Cover flames entirely.

Switch off heat, and leave covered until cool.

• There is a small fire extinguisher under the driver’s seat and inside the first air kit bag in the

luggage room.

Gas

Under the cooker is the gas compartment.

The gas is switched on and off using a valve

on the cylinder.

The gas must be off when driving, and it is

illegal to have it on in petrol filling stations and

ferries.

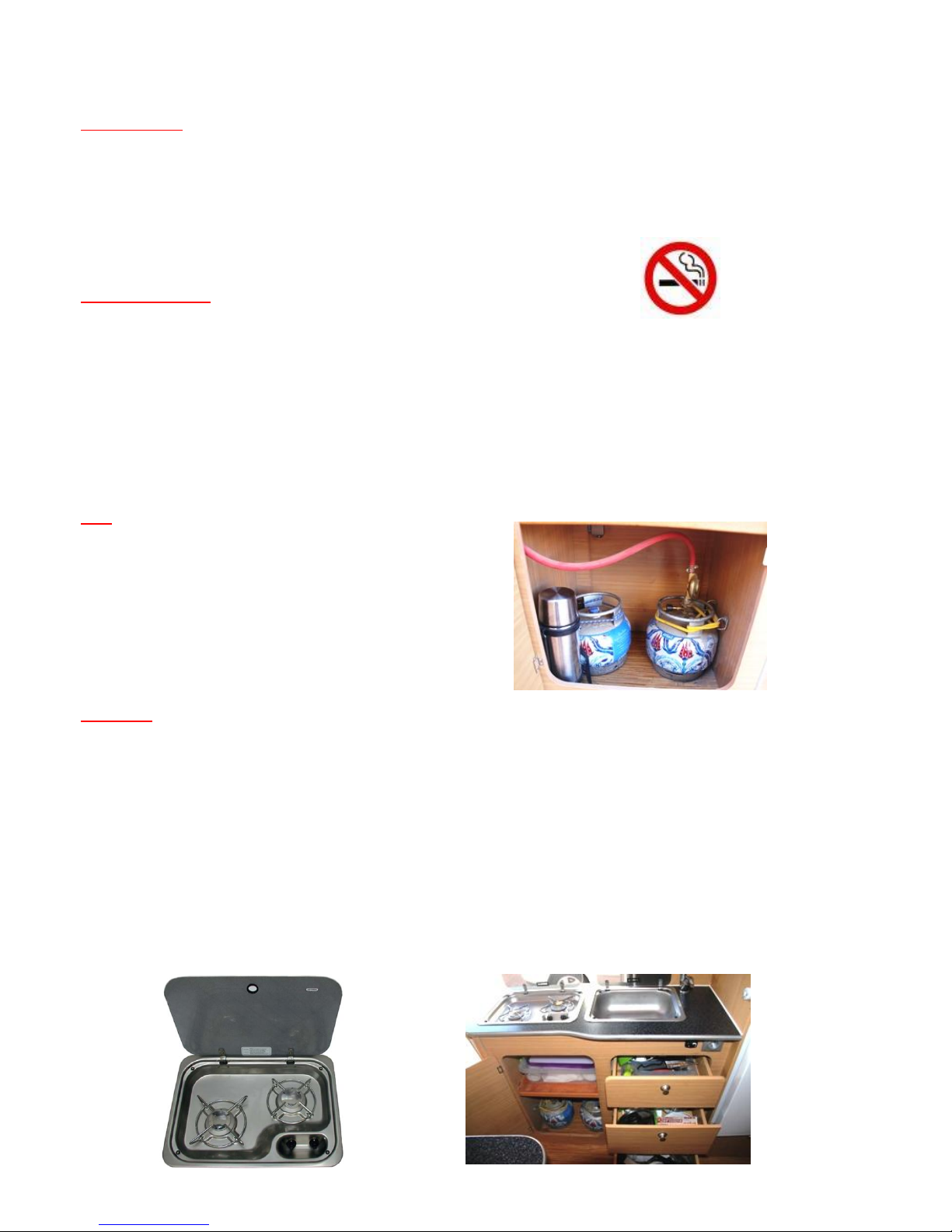

COOKER

The lid of the cooker should be always raised before use, and not lowered until the hob

has cooled.

1. Open the gas-bottle valve.

2. Turn the control knob of the relevant burner from the off-position (0-mark),

anticlockwise to maximum. (High flame).

3. Push the knob in and hold it in this position.

4. Ignite the burner with a match or other suitable ignition device.

5. If the burner ignites the knob can be released after approximately 10 seconds.

6. The knob may now be set to the required burner position.

Front Bed

Central Heating

Hot air is blown out of vents at floor level from Eberspacher Airtronic D2

diesel-fuelled heater. The temperature is adjusted using a thermostat.

Fuel is taken from same diesel tank as the engine.

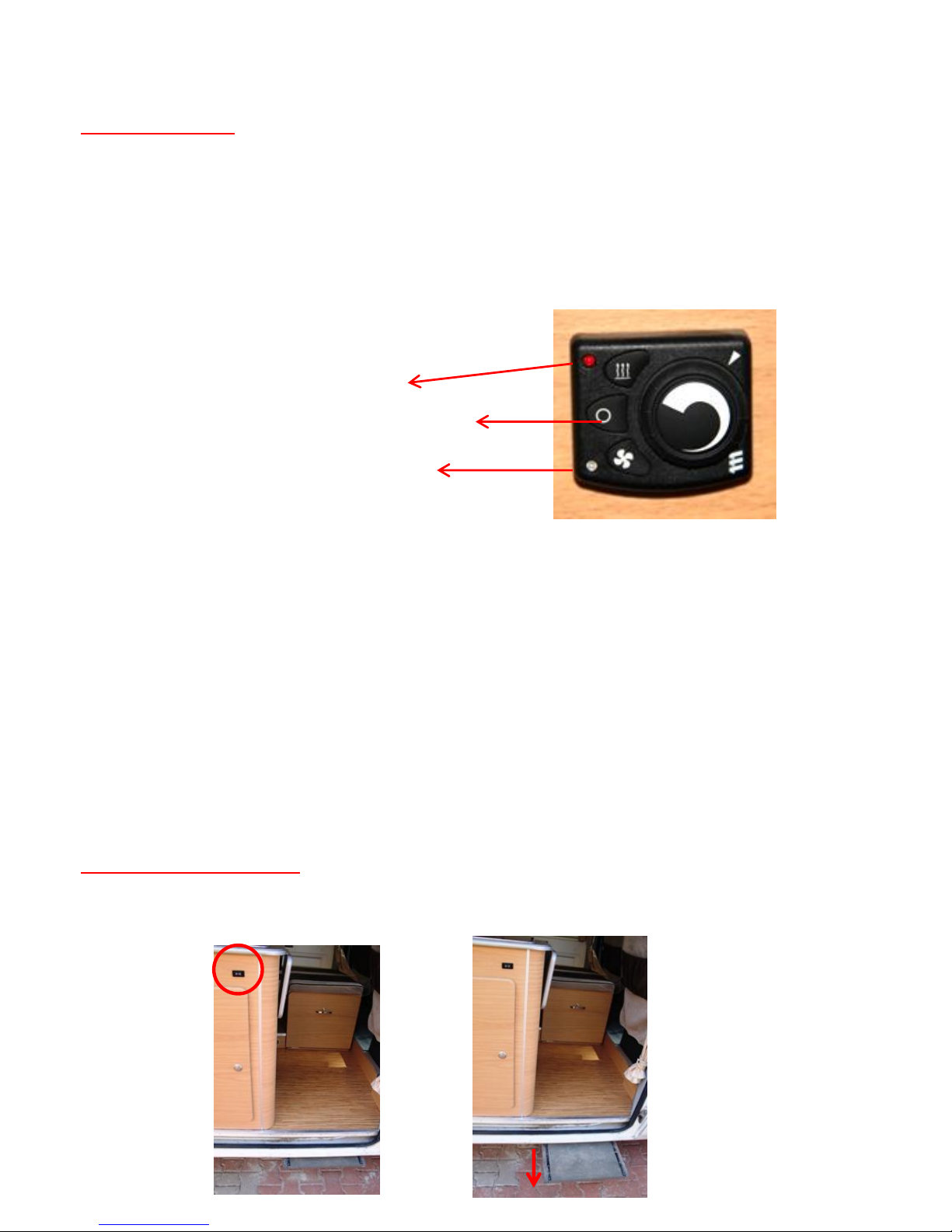

Temperature preselection control knob

• Left-hand end stop approx. 8°C

- small amount of heat

• Right-hand end stop approx. 34°C

- large amount of heat

Heater

Red LED - Operation check for heater

Switch off (not in combination with mini clock)

Ventilator

Blue LED - operation check for ventilator

Stand-Alone Mini-Controller

Start Heater - Heating Mode

Use the button to start the heater in heating mode (continuous operation). You can adjust

the required temperature with the control knob . If the heater is in heating mode, the red LED

lights up as a check.

Start Heater - Ventilation Mode

Use the button to start the heater in ventilation mode (continuous operation). The control

knob has no function in ventilation mode. If the heater is in ventilation mode, the blue LED

lights up as a check.

Switch off Heater

Use the button to switch off the heater. Heater or ventilation mode is terminated and the

corresponding LED goes out.

Heating mode is terminated with after run.

Electrically Operated Step

The step is controlled by a switch revealed when the sliding door is opened. Keep the

step swept free of grit to avoid it jamming on retraction.

Water Tanks

The van has storage tanks for clean water and waste “grey” water. Grey water is

exclusively what has gone down the drains of the sinks or shower. The toilet is a

completely different system.

Clean water is not suitable for drinking without boiling. A separate bottle of drinking

water should be carried for that purpose.

The clean water tank is filled through a filler on the right side of the vehicle, using a

hose stored in the luggage compartment.

Water is electrically pumped from the tank to the taps, shower, and toilet flush.

Water tank levels are indicated on the electrical control panel.

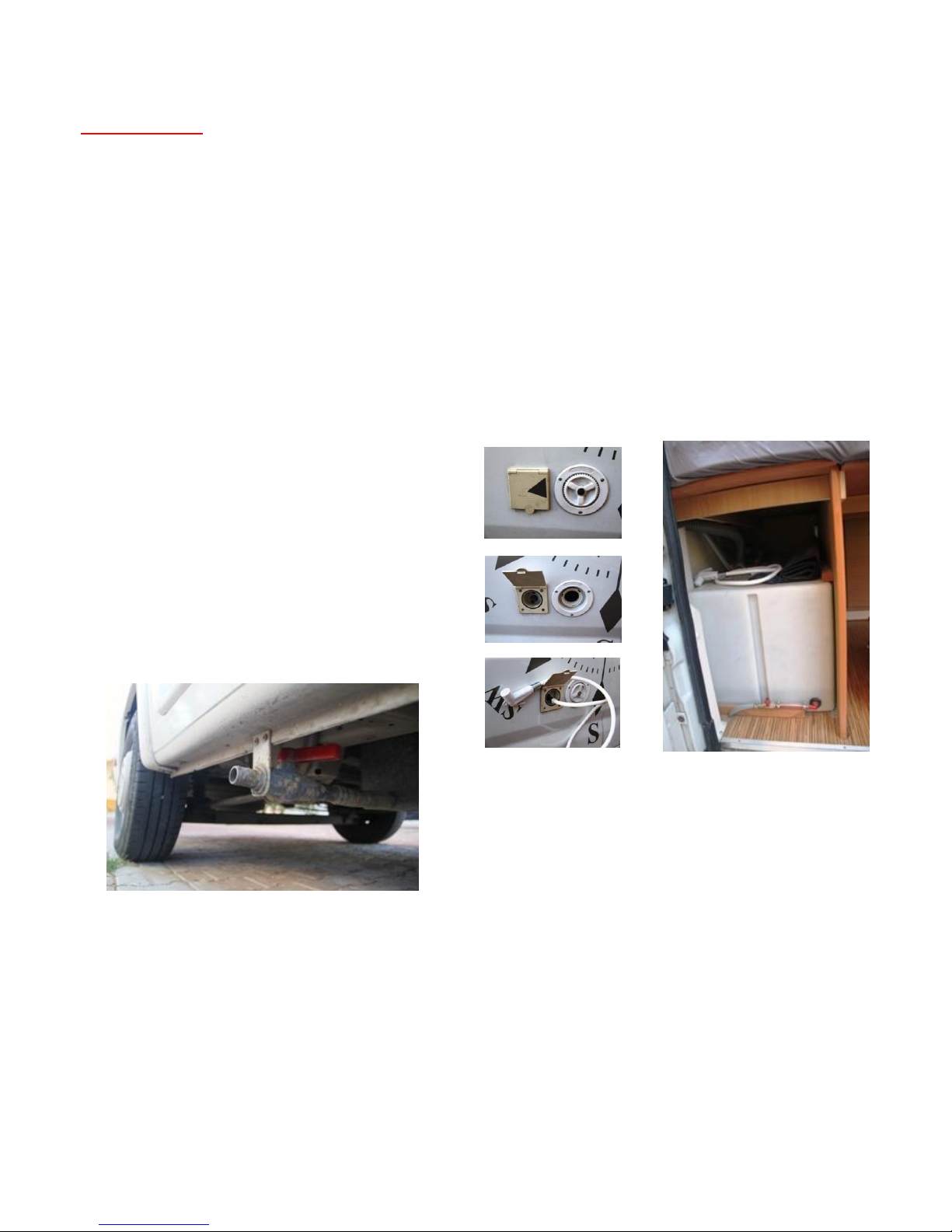

Empty the waste-water tank over a

designated drainage point. The outlet is

roughly in-board of the boiler vent, and it

drains best if the vehicle is level or facing

downhill. Pull the handle as shown.

Try to avoid putting fat and solid

material down the drain. It accumulates

in the tank and causes bad smells.

Electrics

The van has an additional “leisure battery” which feeds all the appliances in the living

area:- interior lights, water pump, electrical outlets, fridge, control panel, toilet flush.

It also has a 16amp mains input on the left side. This is connected using the 25 metre long

cable stowed in the luggage compartment.

Blinds

The windows and roof lights all

have blinds forprivacy at night,

and to exclude the heat from

the sun during the day.

The side windows in the living

area generally have fly-screens

that roll down from the top,

and blackout blinds that roll up

from the bottom. The springs on the upward moving blinds are

quite strong, and it is actually easier to first pull down the fly

screen and hook it onto the blind.

Raising the blind is then assisted by the spring on the flyscreen.

Squeeze the side buttons to move the blind.

The roof-lights have similar opposing blinds and fly-screens,
