Festo VTEM Instructions d'utilisation et d'installation

Motion Terminal

VTEM

Description

Motion App #06

ECO drive

8071825

2017-12

[8071827]

VTEM

2Festo – VTEM-MA06-EN – 2017-12 –

Translation of the original instructions

VTEM-MA06-EN

Firefox®is a registered trademark of its respective trademark holder in certain countries.

VTEM

Festo – VTEM-MA06-EN – 2017-12 – English 3

Table of Contents – VTEM

1 About this document 4.....................................................................

1.1 Further applicable documents 4..............................................................

1.2 Target group 4............................................................................

1.3 Product version 4.........................................................................

2 Function 5...............................................................................

2.1 Functional description 5....................................................................

2.1.1 Definition of the direction of movement / position of the drive 5.............................

2.1.2 Supply air and exhaust air 6..........................................................

2.2 Sensors required 6........................................................................

2.2.1 Allocation of the sensors 6...........................................................

2.3 Diagnostic messages and error elimination 6...................................................

2.4 System parameters used 7..................................................................

2.5 Application parameters used 7...............................................................

2.6 Defaults 7................................................................................

2.6.1 Motion App adjustment (app option) 7.................................................

2.6.2 Control of the Motion App (app control) 7...............................................

2.6.3 Setpoint value 2 8..................................................................

2.7 Return values 8...........................................................................

2.7.1 Status of the Motion App (app state) 8.................................................

2.7.2 Actual value 1, actual value 2 8........................................................

A Technical appendix 10......................................................................

A.1 Technical data 10...........................................................................

1 About this document

4Festo – VTEM-MA06-EN – 2017-12 – English

1 About this document

This document describes the functions and parameterisation of the Motion App specified on the title page. Informa

tion that is relevant to understanding the functions, as well as the steps and procedures that are required for carry

ing out parameterisation are described in other documents (è1.1 Further applicable documents).

1.1 Further applicable documents

Document Table of contents

Instructions for mounting Motion Terminal CPX, VTEM

(CPX_VTEM)

Instructions and important notes for mounting Motion

Terminal VTEM with connected CPX terminal

Instructions for use of Motion Terminal VTEM

(VTEM)

Instructions and important notes on handling,

installation, commissioning and maintenance of Motion

Terminal VTEM

Description of Motion Terminal VTEM,

function and parameterisation

(VTEM)

Detailed description of Motion Terminal VTEM, as well

as its function and parameterisation

CPX system description

(P.BE-CPX-SYS-…)

Information on the complete system of the CPX terminal

Tab. 1.1

For all available product documentation èwww.festo.com/pk

1.2 Target group

This document is intended for qualified personnel. Experience with electrical and pneumatic control systems is re

quired in order to understand this documentation.

1.3 Product version

This document refers to the following product versions:

Product Version

VTEM-… Motion Terminal VTEM from Revision 01

CTMM-S1-C Controller of Motion Terminal VTEM from Revision 01

Firmware Firmware of the CTMM controller from Version 4.0.2

VEVM-S1-27-… Valve for Motion Terminal VTEM from Revision 01

CTMM-S1-D-8E-M8-3 Digital input module for Motion Terminal VTEM from Revision 01

CTMM-S1-A-8E-A-M8-4 Analogue input module for Motion Terminal VTEM from Revision 01

Browser Firefox from Version 38

Tab. 1.2

The product version can be ascertained from the [System] [Information] page in the WebConfig interface of

the Motion Terminal.

Note

There may be an updated version of this document for these or later product versions.

 Check whether a corresponding version of this document is available (èwww.festo.com/sp).

2 Function

Festo – VTEM-MA06-EN – 2017-12 – English 5

2 Function

Motion App ID Motion App designation Motion App pictogram

06 ECO drive

Tab. 2.1

The ID of the Motion App must be transferred via the “valve mode” range of the process data (bits 5 … 0

in byte 0 (PDO)) in order to operate the Motion App on a valve (èDescription of Motion Terminal VTEM,

function and parameterisation).

2.1 Functional description

This Motion App enables energy-efficient cylinder movements, in which the speed is controlled by solely throttling

the supply air. Supply air flow control is specified by the user. The exhaust air flow control valve is fully open and

cannot be adjusted. The supply air side is blocked when the end position is reached, whereby the compressed air is

shut off and the current pressure head is maintained. If the drive leaves the end position due to leakage, it is actively

re-pressurised.

Note

The same restrictions apply for Motion App 06 as for conventional supply air flow control.

– The drive only has a low load rigidity and is heavily dependent on friction.

– Pneumatic cushioning has practically no effect in the end position (no pressure on the exhaust side).

 Observe the max. permissible impact energy of the drive.

 Provide external cushioning if necessary.

Note

The cylinder can move extremely quickly due to the fully opened exhaust.

 First, adjust the supply air value by making very small adjustments to the opening of the supply air

flow control.

 Exercise caution when making larger adjustments to the opening of the supply air flow control.

 Exercise caution when dealing with large loads.

 Only use the Motion App when the drive is in a horizontal mounting position.

Note

If the setting of the supply air flow control is very low, it can result in a jerky movement of the piston rod

(breakaway behaviour). In combination with larger loads, this can result in the end position being

reached too quickly and to hazards occurring.

 Provide external cushioning.

2.1.1 Definition of the direction of movement / position of the drive

The direction of movement and position of the drives that are controlled via the Motion Terminal are

generally described in this document and on the WebConfig interface with the terms “advance”

or “advanced” and “retract” or “retracted”, and all relate to piston rod cylinders with a piston rod

at one end.

The meaning of the terms can be transferred to other drives based on the pneumatic function.

2 Function

6Festo – VTEM-MA06-EN – 2017-12 – English

Term Port (4) Port (2) Switching position of the valve

Advance/advanced Pressurised Exhausted 14

Retract/retracted Exhausted Pressurised 12

Tab. 2.2

2.1.2 Supply air and exhaust air

The terms “supply air” and “exhaust air” are not permanently assigned to the working air ports, but refer to the re

spective active movement.

Movement Supply air through port Exhaust air through port

Advance (4) (2)

Retract (2) (4)

Tab. 2.3

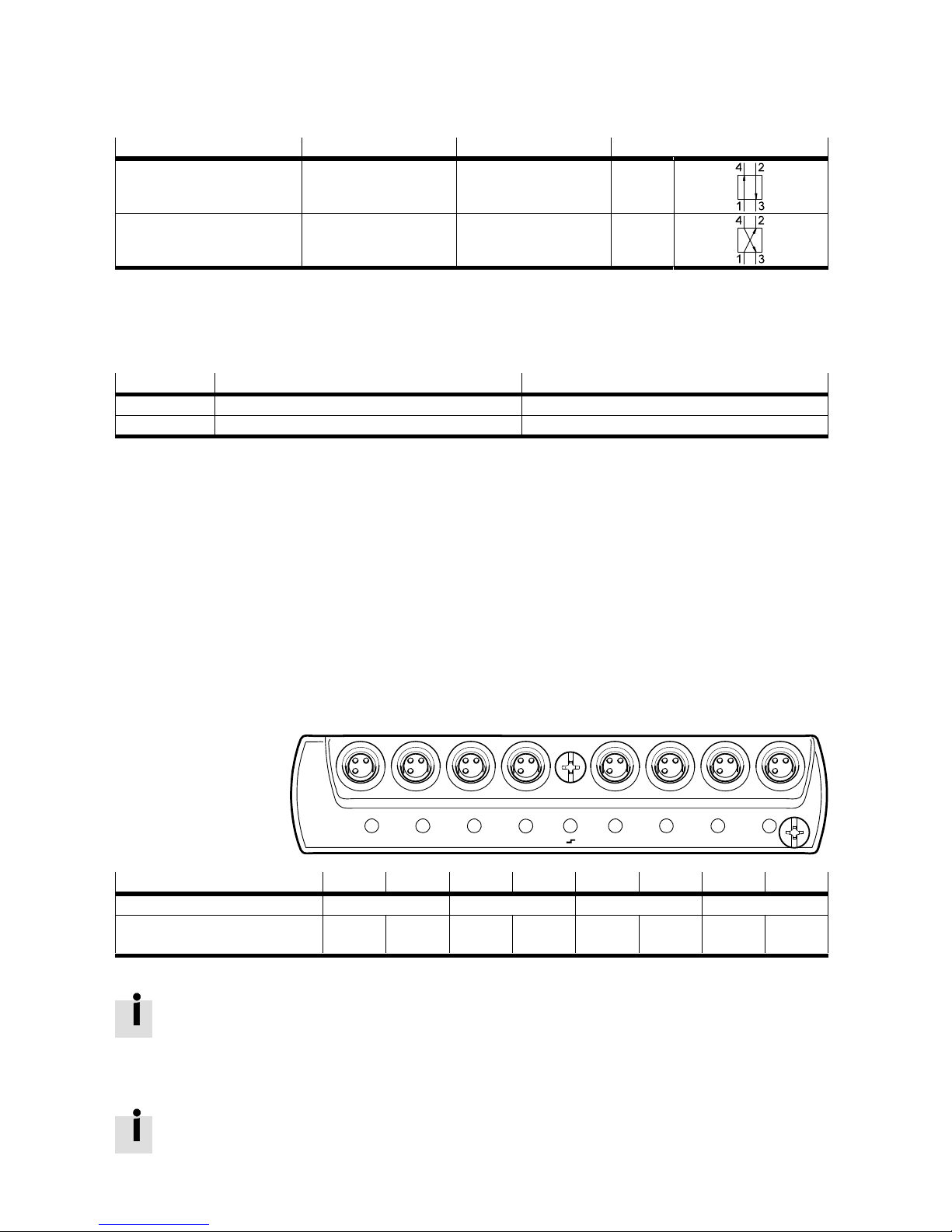

2.2 Sensors required

The Motion App requires proximity sensors to detect the end positions of the drive.

The sensors must be positioned on the drive in such a way that they switch when the end position is reached.

2.2.1 Allocation of the sensors

The sensors are connected to the digital input module CTMM of the Motion Terminal. The inputs of the input mod

ules are thereby permanently assigned to the slots of the valves. The slots are numbered sequentially from left to

right, starting at the right of the controller with Slot 0.

– The inputs with even numbers are used for detecting the end position “retracted” ((2) pressurised, (4) ex

hausted, switching position 12).

– The inputs with odd numbers are used for detecting the end position “advanced” ((4) pressurised, (2) ex

hausted, switching position 14).

Inputs 01234567

Valve on slot 0123

End position at switching

position

12 14 12 14 12 14 12 14

Tab. 2.4

For Motion Terminals with more than 4 valves, Motion Apps that require input signals to function are op

erated only on valves on the first 4 slots from the left.

2.3 Diagnostic messages and error elimination

For information regarding VTEM diagnostic messages and error elimination èDescription of function and

parameterisation for Motion Terminal VTEM

2 Function

Festo – VTEM-MA06-EN – 2017-12 – English 7

2.4 System parameters used

None

2.5 Application parameters used

None

2.6 Defaults

The structure of the process data is described in the description “Function and parameterisation

of Motion Terminal VTEM”.

2.6.1 Motion App adjustment (app option)

Not used.

2.6.2 Control of the Motion App (app control)

Switching status of the air ports

The switching status at the air ports (2) and (4) of the valve is controlled with bits 7 … 6 in byte 0 (PDO).

PDO byte 0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Possible switching statuses:

– Closed (G)

– Pressurised (B)

– Exhausted (E)

Function Switching

status

Replacement

symbol1)

Byte 0 Dec.

(4) (2) Bit 7 Bit 6

Stopping blocked G G 0 0 0

Advance B E 0 1 1

Retract E B 1 0 2

Exhaust E E 1 1 3

1) The symbol used in this column replaces the full bridge in the circuit diagram of valve VEVM and thus represents the function in a switched

state of the valve at the corresponding setpoint value (right-hand column).

Tab. 2.5

2 Function

8Festo – VTEM-MA06-EN – 2017-12 – English

2.6.3 Setpoint value 2

Degree of opening of the supply air flow control

The degree of opening of the supply air flow control can be adjusted within a range of 0.01 … 100 %

(è2.1 Functional description).

The throttle point is adjusted via bytes 5 … 4 (PDO).

PDO byte 5 PDO byte 4

Function Range of values Digit value Digit range Data type Byte (PDO)

Supply air 0.01 … 100 % 0.01 % 1 … 10000 × 0.01 % 16 bit signed integer 5 … 4

Tab. 2.6

2.7 Return values

2.7.1 Status of the Motion App (app state)

Status of the digital inputs (end position detection)

The status of the inputs of digital input module CTMM-…-D-…, which are assigned to the currently used valve

(è2.2.1 Allocation of the sensors), is represented via bits 2 and 0 in byte 1 (PDI).

PDI byte 1

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Position Bit 2 Bit 1 Bit 0

Status at the odd numbered input

(Corresponds to the position “Advance end position reached”1))

Status at the even numbered input

(Corresponds to the position “Retract end position reached”2))

1) (4) pressurised, (2) exhausted; switching position 14

2) (2) pressurised, (4) exhausted; switching position 12

Tab. 2.7

Warning

The presence of warnings in the diagnostic memory of the Motion Terminal is represented by bit 7 in byte 1 (PDI).

PDI byte 1

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value Description

0No warning is present.

1There is a warning in the diagnostic memory of the Motion Terminal.

Tab. 2.8

For information regarding handling warnings and errors èDescription “Function and parameterisation of

Motion Terminal VTEM”

2.7.2 Actual value 1, actual value 2

Pressure

The pressure at port (4) and (2) is represented via bytes 5 … 4 and 3 … 2 (PDI).

2 Function

Festo – VTEM-MA06-EN – 2017-12 – English 9

PDI byte 5 PDI byte 4 PDI byte 3 PDI byte 2

(4) (2)

Port Range of values Digit value Digit range Data type Byte (PDI)

(2) –1000 … +32767 mbar 1 mbar –1000 … +32767 × 1 mbar 16 bit signed integer 3 … 2

(4) –1000 … +32767 mbar 1 mbar –1000 … +32767 × 1 mbar 16 bit signed integer 5 … 4

Tab. 2.9

A Technical appendix

10 Festo – VTEM-MA06-EN – 2017-12 – English

A Technical appendix

A.1 Technical data

Not relevant

Autres manuels pour VTEM

Table des matières

Autres manuels Festo Terminal tactile

Festo

Festo Compact Performance CPV GE-IP-8 Series Manuel de la liste des pièces

Festo

Festo CPA10VI Manuel utilisateur

Festo

Festo CPV GE-ASI-8E8A-Z M8 Series Manuel de la liste des pièces

Festo

Festo IFB05-03 Manuel utilisateur

Festo

Festo VTEM Manuel utilisateur

Festo

Festo CPV -VI Series Manuel utilisateur

Festo

Festo CPX-SF34 Manuel de la liste des pièces

Festo

Festo CPX Series Manuel utilisateur

Festo

Festo CPV GEASI-4E4A Series Manuel de la liste des pièces

Festo

Festo CPA VI-MP Series Manuel de la liste des pièces

Festo

Festo CPV-SC Series Manuel utilisateur

Festo

Festo CPX-FB14 Manuel utilisateur

Festo

Festo CPV ASI-4E3A-Z Series Manuel de la liste des pièces

Festo

Festo MPA-S Manuel utilisateur

Festo

Festo CDSA-D3-RV Mode d’emploi

Festo

Festo VTEM Instructions d'utilisation et d'installation

Festo

Festo VTSA-44-MP Series Manuel utilisateur

Festo

Festo VTSA-F-CB Manuel utilisateur

Festo

Festo VNIA-01-ZR Series Manuel de la liste des pièces

Festo

Festo CPV-GE-ASI-8E6A-Z Series Manuel de la liste des pièces

Festo

Festo CPX Guide de l'utilisateur

Festo

Festo CPV GE-ASI Series Manuel de la liste des pièces

Festo

Festo CPV10-GE-ASI-4E3A-Z M8 Manuel de la liste des pièces

Festo

Festo CPX Series Manuel utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
