Fermax MEET DIGITAL VIDEO PANEL Manuel utilisateur

KIN PANEL

ru. tu.

GUÍA INICIO RÁPIDA

QUICK START GUIDE

GUIDE DE MISE EN MARCHE RAPIDE

SCHNELLSTARTANLEITUNG

КРАТКОЕ РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

4GUIA RAP INST PLACA KIN Cod. 970188d V09_21

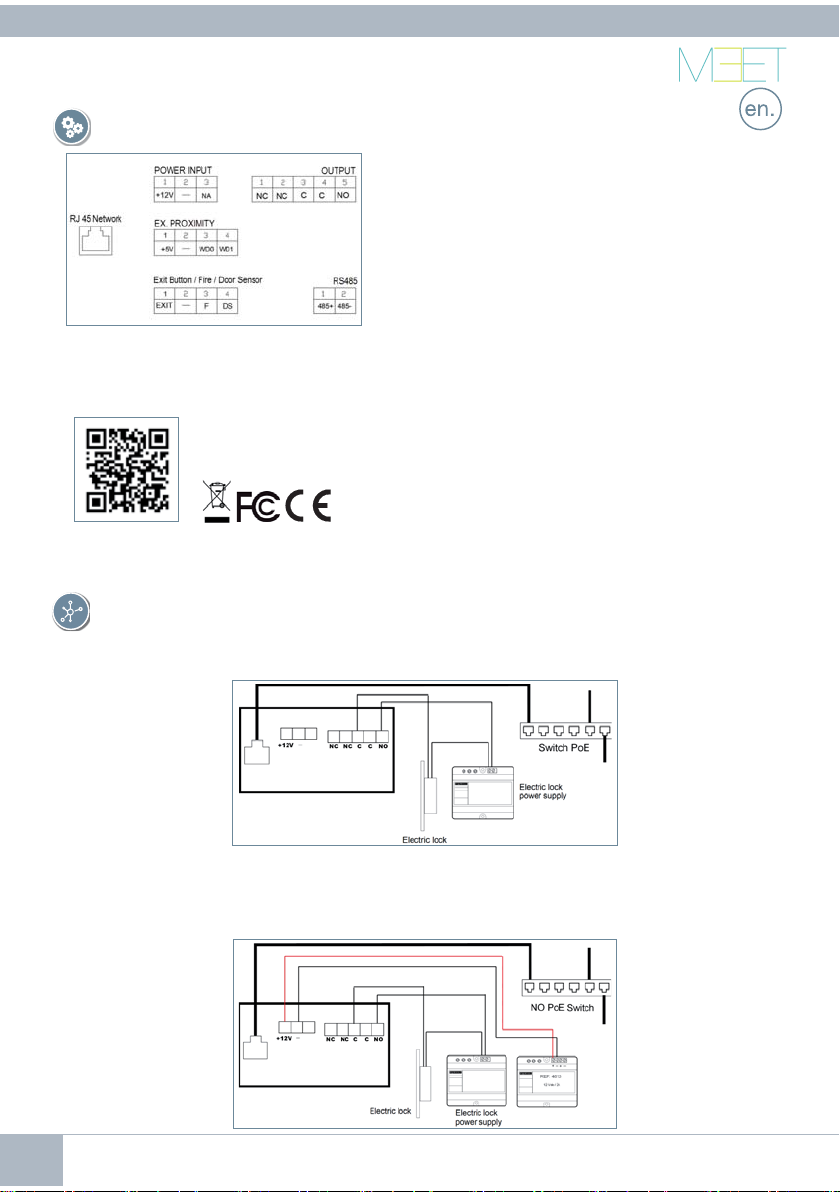

BASIC DIAGRAMS

KIN PANEL INSTALLATION QUICK GUIDE

CONNECTIONS

Further information at meet.fermax.com

POWER INPUT: 12 Vdc power supply for the cases

where no LAN PoE is available.

OUTPUT: Electric lock control relay output.

• NC: Normally closed contact.

• NO: Normally opened contact.

• C: Common.

NOTE: NC & C contacts are internally duplicated.

EX PROXIMITY:

• (WD0-WD1) Wiegand input/output.

• (+5V, -) 5 Vdc auxiliar output.

EXIT BUTTON /FIRE / DOOR SENSOR:

• (EXIT, -) Connections for indoor button.

• (FIRE, -) Input for ﬁre alarm & block doors

unlock contacts.

• (DS, -) Connection for door opened sensor.

RS485: Output for Ref.1491 / Ref.1490 / Ref.1494 /

Ref.9545 module.

RJ 45 NETWORK: RJ 45 LAN connection.

Basic diagram using Switch PoE.

Use a power supply adapted to the electric lock voltage & current.

Basic diagram using no PoE switch

Supply the panel by means of a FERMAX Ref. 4813 (12 Vdc 2A) power supply.

Use a power supply adapted to the electric lock voltage & current.

Do not power the panel and the electric lock from the same power supply.

GUIA RAP INST PLACA KIN

BASIC PROGRAMMING FROM A PC

• Panel programming is done exclusively by means of a

PC connected to the same LAN, through of a web browser

(Chrome preferably), accessing the IP of the panel.

• Default IP is: 10.1.0.1.

• The PC must have an IP of the same range as the IP of the

panel.

Example: In the case that the IP of the panel is 10.1.0.1, the IP of

the PC have to be of type 10.X.X.X with a subnet mask 255.0.0.0

To login, identify yourself with

the username and password.

Default value:

• Username: admin

• Password: 123456

• Assign, as a minimum, the parameters indicated in the following table.

• It is necessary to carry out a previous planning of the installation, to deﬁne the parameters

to assign to each device.

GENERAL

• Panel type: GENERAL, BLOCK or 1W PANEL

• Panel number: 1-999

• Device number (panels in the same block):1-99

• Language: Choose from the 10 available

languages.

• SIP divert mode: PARALLEL CALL

Conﬁrm with SAVE

NETWORK

Indicate the network parameters assigned to this panel:

• Panel IP address

• Subnet mask

• Gateway

• DNS

Conﬁrm with SAVE

ON-SCREEN INFORMATION

2. The screen will display

information about panel

settings:

• Firmware version

• GENERAL settings

• Serial number

• IP address

• MAC

1. Dial 9999, followed

by the telephone icon

It is possible to get basic information on the equipment conﬁguration through the screen.

www.fermax.com

Avd. Tres Cruces, 133

46017 Valencia

Spain

Contacto: [email protected]

Para más información, visitar www.fermax.com

Contact: [email protected]

For extended information, visit www.fermax.com

Kontakt: [email protected]

Für weitere Information siehe www.fermax.com

Contact : [email protected]

Pour de plus amples renseignements, rendez-vous sur www.fermax.com

Контакты: [email protected]

дополнительной информацией обращайтесь на www.fermax.com
