USER’S QUICK GUIDE: DUOX PLUS VEO MONITOR
USER’S QUICK GUIDE: DUOX PLUS VEO MONITOR
Cod. 970143Ic V05_23

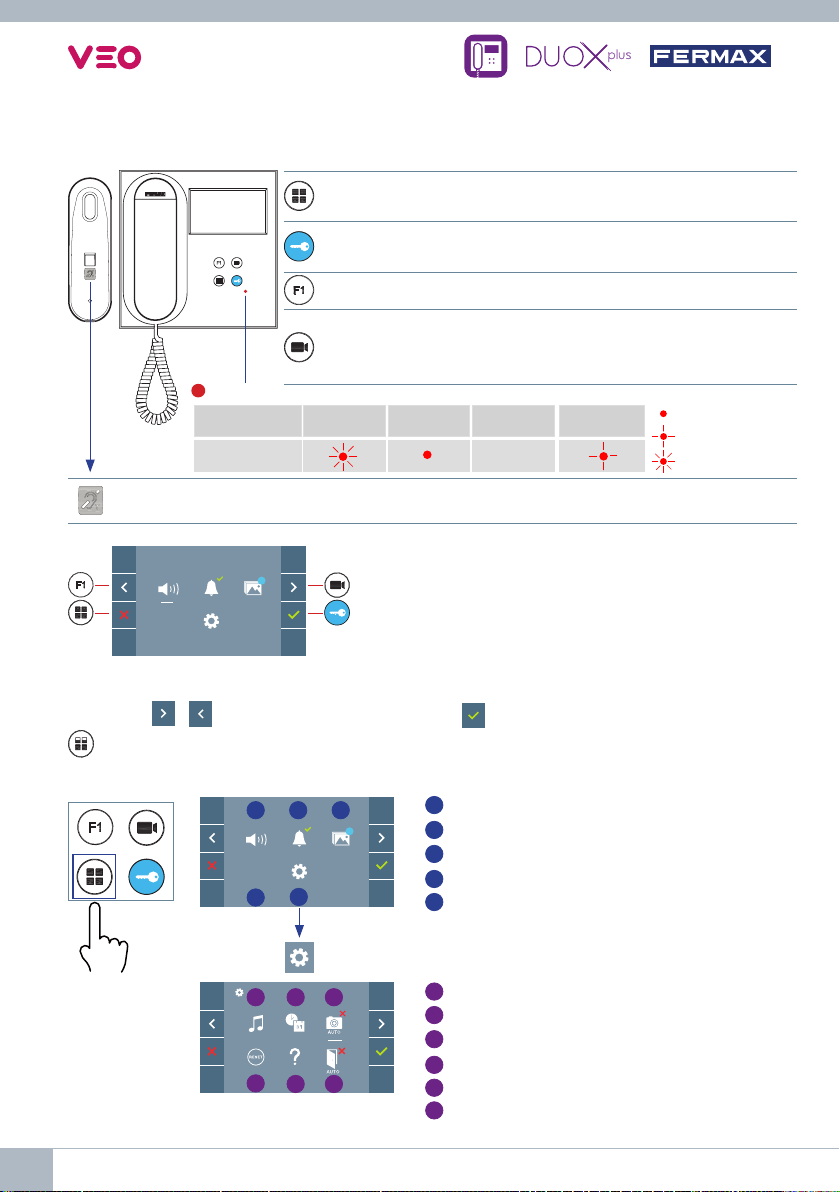

CONTROL BUTTONS / LED
Digital menu for internal parameter settings and configuration.
(When the monitor has already been programmed)
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Auxiliary function, (contact your installer).
In standby, press and it displays the option of auto-starting with
different panels. By sequentially pressing Panel 0, Panel 1, General
Panel, (depending on the available panels).
VEO monitor incorporates an OSD menu that is managed
via the monitor´s push buttons. The icons displayed are
managed with the corresponding buttons located on the
monitor.
The white line at the bottom of the icon indicates the function that is currently in effect.
Select with / the desired icon and confirm with .
USER MENU
F2
99
F2
99
1 2
45
3
Induction loop label. Located at the internal part of the receiver. (Depending on the model).
1 2
45
3
6

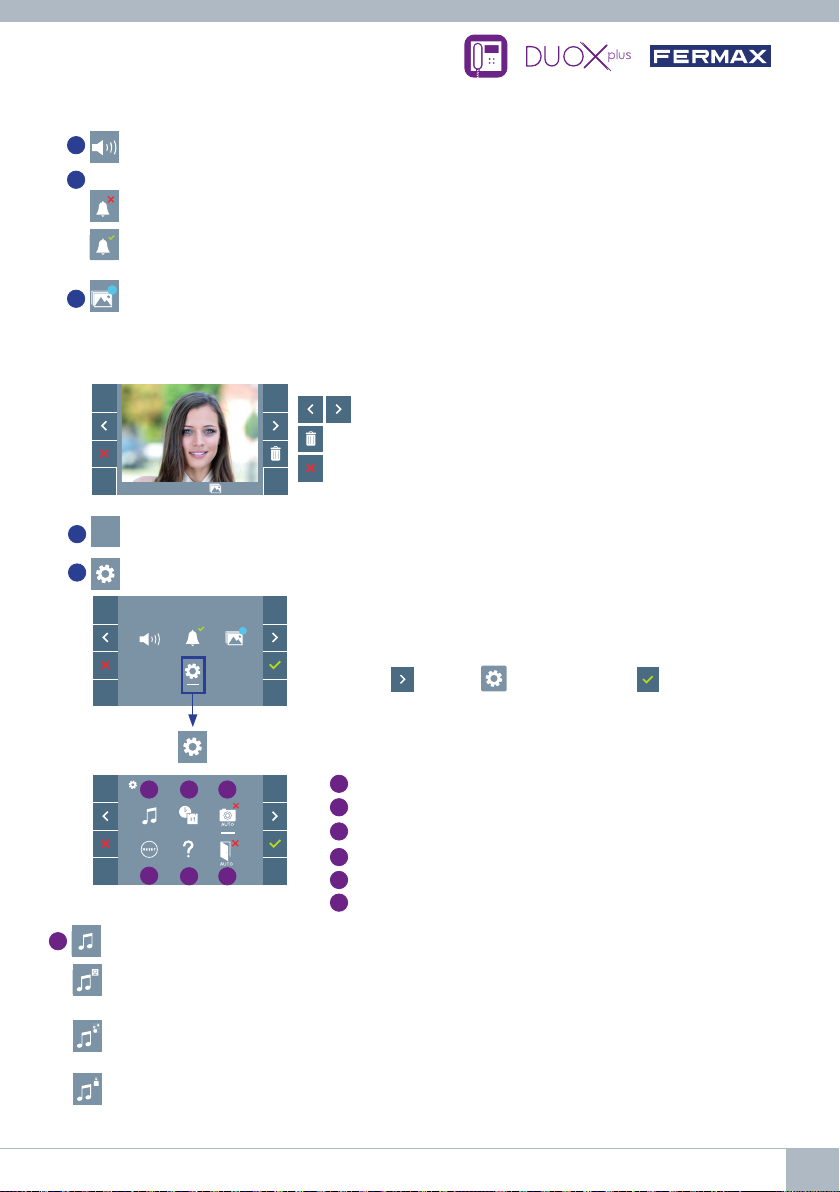

USER PARAMETER SETTINGS
Not
programmed
Standby Call
Called
Operation
LED
Do not
Disturb Mode
Red
Switched on
Slow blinking
Fast blinking
Red Led
1
1Monitor volume settings
2Do Not Disturb function
3Display images
4F2 Function
5User parameter settings
1Melody selection
2Date and time settings
3Enable/Disable image capture
4User Reset
5User help
6Enable/Disable Doormatic
To perform a quick reboot of the terminal, press and hold the menu button for 10 seconds.
USER’S QUICK GUIDE: DUOX PLUS VEO MONITOR
1Monitor volume settings. Upon a call or doorbell activation.
2Do Not Disturb function:
: The call is not heard.
: The call is heard, (by default normal operation is selected).
399 Display images:
To display the varios photos taken with the date, time and the photo number.
When a call is made from the outdoor panel, a photo is automatically taken 5 seconds later and stored
in the memory.
T
he image capture function must be pre-selected
, see screen «USER PARAMETER
SETTINGS», (option 3).
F2
99
Within the USER MENU, selecting the option «USER PARAMETER
SETTINGS» will acces a new screen corresponding to the various
configuration parameters.
Select with the icon and confirm with .
4F2 F2 Function (extra function, check with your installer).
5User parameter settings
20/01/2018 12:37 130/149
: To clear images.
: To cancel and go to the previous screen.
: To select/view the photos stored.
1 2
45
3
6
USER PARAMETER SETTINGS
USER MENU
2
USER PARAMETER SETTINGS
1Melody selection
2Date and time settings
3Enable/Disable image capture
4User Reset
5User help
6Enable/Disable Doormatic
1Melody selection:
:Panel melody selection: It can be changed the melody that you hear on the monitor when a
call is made from outdoors. Ringtones 2 and 5 repeat the tone 4 times.
: Selection of the melody for the doorbell : Panel melody selection: The melody that will ring
upon doorbell activation, if it has been connected to monitor, can be changed.
: Concierge melody selection: It can be changed the melody that you hear on the monitor when
the concierge calls that monitor.
USER’S QUICK GUIDE: DUOX PLUS VEO MONITOR
Notication icons for a date not set:
User Menu Screen Communication screen Image viewer screen
Image Viewer
_ _ : _ _ 01/01/2017 00:00 130 / 149
F2
_ _ : _ _
99

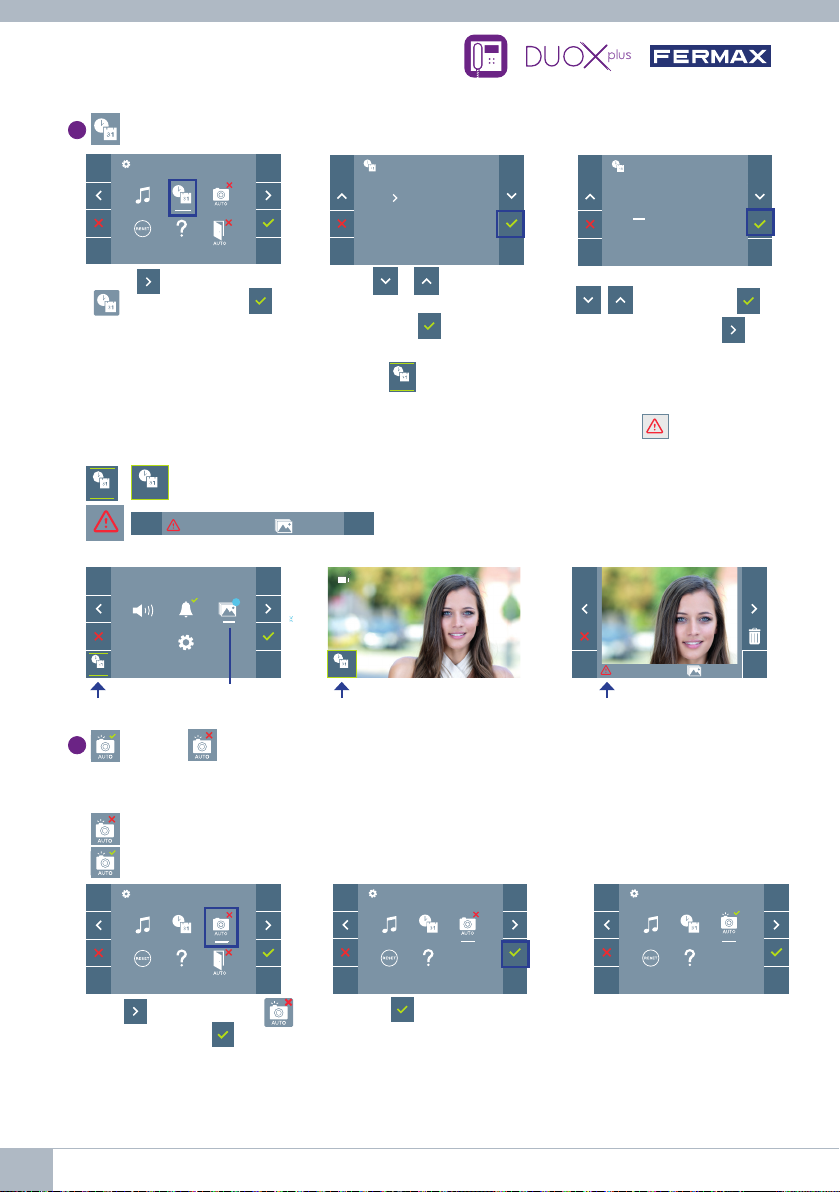

3Enable / Disable image capture
The monitor can take an automatic picture within 5 seconds of receiving a call from an outdoor
panel.
: The image capture function not selected, (by default).
: The image capture function selected.
123
With select the icon
and confirm with .
Press to activate/
deactivate the function.
_ _ : _ _
31/01/2019 00:00 130 / 149
2Date and time settings
With select the icon
and confirm with .
With select the
date format. Once selected
confirm with .
Select the date and hour with
and confirm . To
browse the settings .
123
31/01/2019
01/31/2019
2019/01/31
07/09/2019 13:55
Date not set: 31/01/2019 (default). The icon
_ _ : _ _
appears indicating that the date is not correct (default
date). Upon losing power, it returns to the default date.
Note: If an image is captured with the date not yet set, the following icon appears .
_ _ : _ _
3
Notice: According to the European Union legislation about data protection ((EU) 2016/679), the capture of
images may be restricted. This feature is deactivated by default in all monitors, although can be activated at
your own responsibility. Furthermore, the legislation may force to place a sign next to door stations, indicating
that monitors can capture images. You can download it at https://www.fermax.com/intl/en/corporate/utilities.html.
USER’S QUICK GUIDE: DUOX PLUS VEO MONITOR

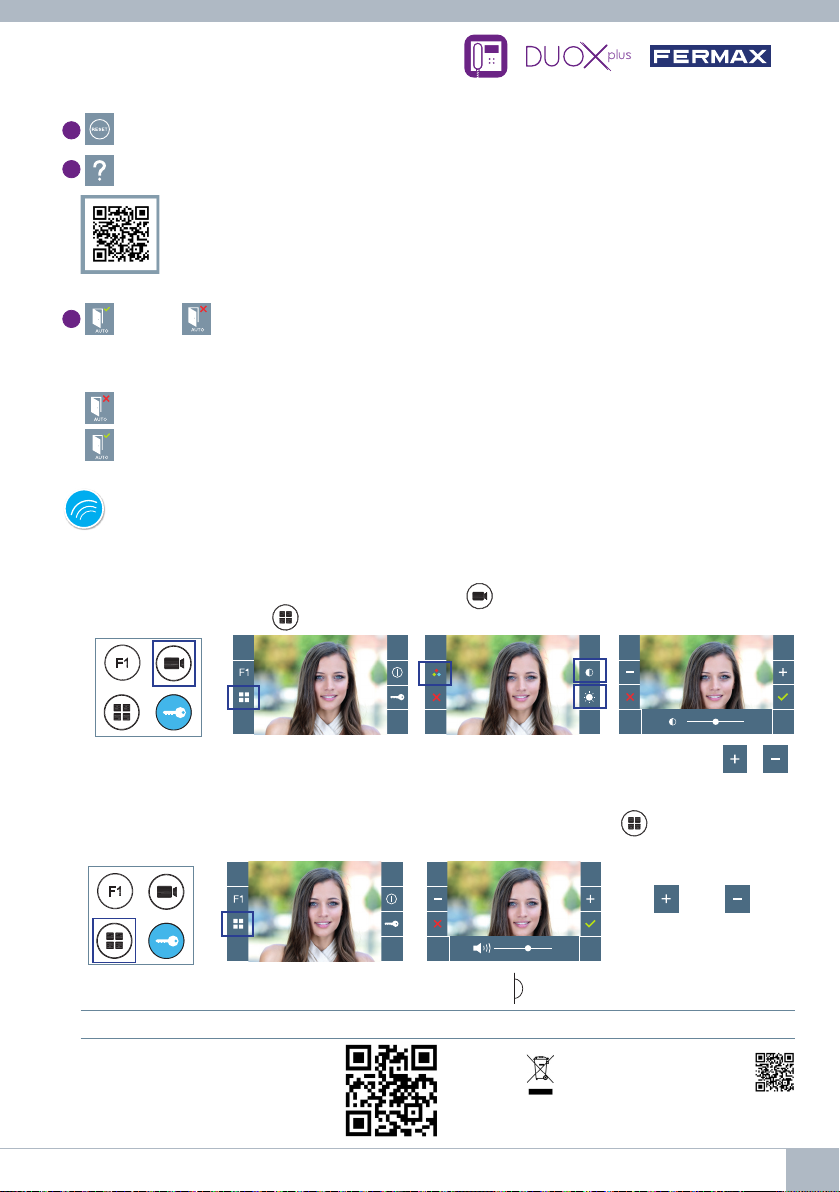

1. MONITOR SETTINGS
SETTINGS
MANUAL FULL MONITOR
With an image on the monitor, by pressing the button , or upon receiving a call without establish
communication, press the key to show the video settings.
VIDEO SETTINGS
AUDIO SETTINGS
While the audio channel is open, (established communication), press the button and a menu
screen appears for this setting.
Seleccionar la opción del ajuste e ir aumentando o decrementando con y .
2 3 4
Increase or decrease
with and , until
obtaining the desired
regulation.
2 3
1
Image viewer screen
4User Reset: Reset the user’s configuration parameters.
5User help
QR code that allows access to a promotional link that explains in detail the digital DUOX
PLUS system that Fermax has created.
6Enable / Disable Doormatic
Option that allows automatic door opening when a call is made.
T
he function must be pre-selected
, check with your installer, (depending on configuration).
: Doormatic
function
not selected, (by default).
: Doormatic
function
selected.
Notice: Maximum conversation time: 90 seconds.
1
4
Notice: The adjustment potentiometer can be used as well.
For more information, visit www.fermax.com
The device you have purchased is identied
under Directive 2012/19/EU on waste electrical
and electronic equipment. More info:
