1. Important Safety Instructions

1. Read all instructions before use.

2. Save these instructions for later use.

3. Follow all warnings and instructions

marked on the proudct.

4. Unplug this product before cleaning.

Clean with a damp cloth using a mild

soap and water solution. (Do not use

abrasives or petroleum products.)

5. Place this product as close as possible to

power source for quick and easy

unplugging.

6. Do not use this product near water.

7. This product should never be placed near

or over a radiator or heat source.

8. Operate from the type power source

indicated on the marking label. If you are

not sure of the type of power available,

consult your dealer or local electric

company.

9. Do not allow anything to rest on the power

cord. Do not place this product where

people may walk on the cord.

10. If an extension cord is used with this

product, make sure that the total of the

ampere ratings on the products plugged

into the extension cord do not exceed the

extension cord ampere rating. Also, make

sure that the total of all products plugged

into the wall outlet does not exceed 15 amps.

11. Do not attempt to service this product

yourself, as opening or removing covers

may expose you to dangerous live parts

or other risks.

12. Unplug this product and refer servicing to

qualified personnel under the following

conditions:

A) When the power cord or plug is damaged

or frayed.

B) If liquid has been spilled on the product.

C) If the product has been exposed to rain.

D) If the product does not operate normally

when the operating instructions are

followed.

E) If the product has been dropped or

the casing has been damaged.

13. Keep out of reach of children.

14. This shredder should be operated only with an

operator in attendance.

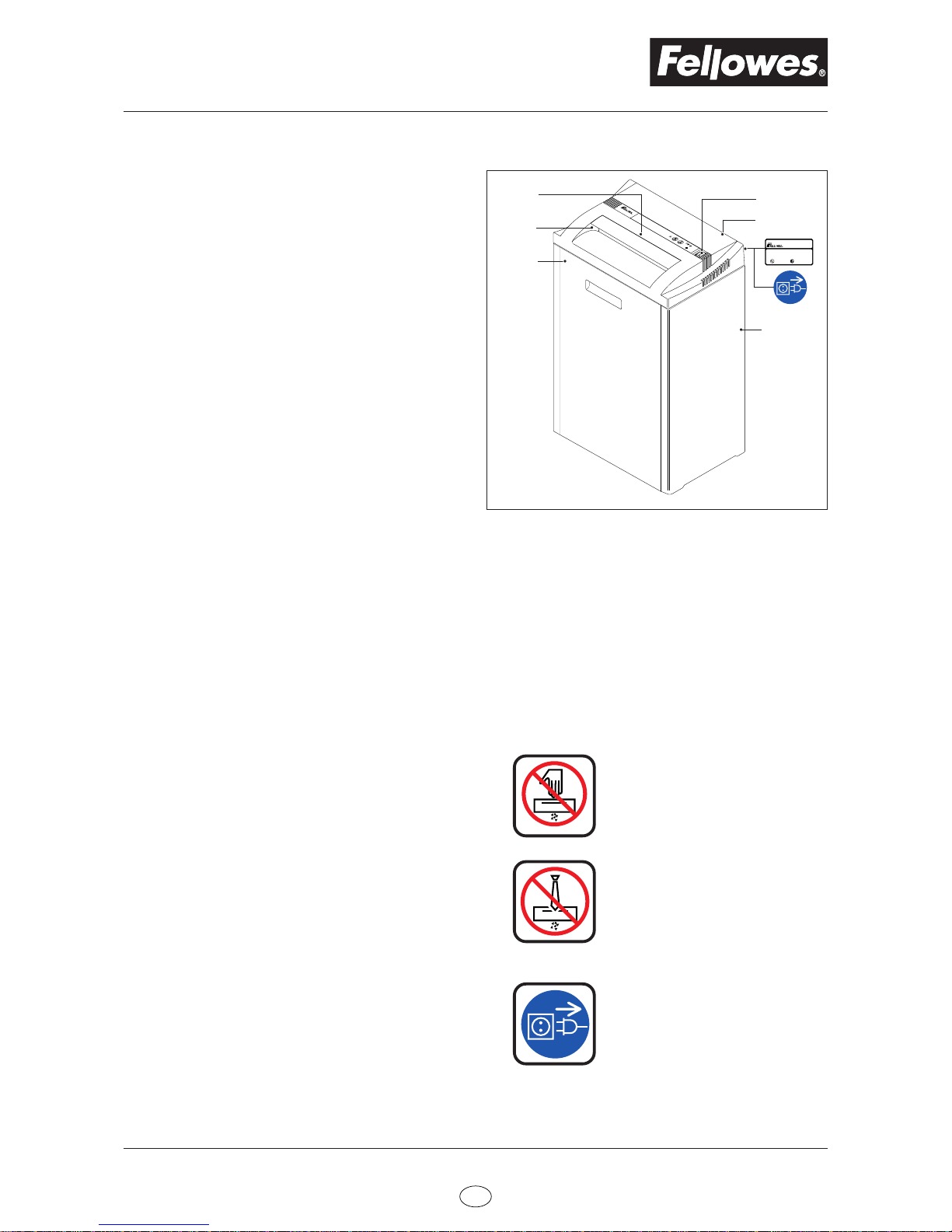

2. Parts Identification

1. Rocker switch

2. Cover

3. Serial label

4. Caution label

5. Cabinet

6. Waste container

7. Paper feed opening

8. Automatic start stop control

3. Caution

Never insert hand, fingers or any

foreign objects into the feed

opening.

Serious injury may result.

Keep all loose articles of

clothing, ties, jewelery, long hair

or other loose objects away from

feed opening.

Injury may result.

Always turn off and unplug the

machine before moving,

servicing, cleaning or any other

conduct other than normal

operation.

Serious injury may result.

USA

POWERSHRED 320

Fellowes Manufacturing Co.

1789 Norwood Avenue

Itasca, IL 60143 USA

Model:

Serial #:

Voltage: Motor:

Current: Manufactured:

120

Paper shredder 120 CC

Edition 11/00 1.598.999.100 5

4. Technical Specifications

Model 120 Model 120CC

Cutting style Strip cut Cross cut

Shred size 5/32" 5/32" x 1"

(3.9 mm) (3.9 x 30 mm)

Security rating DIN 32757–1 23

Sheet capacity -

8-1/2" x 11" - 20 lb. 12 8

A4, 70g/m2(16 lb.) 14 10

Speed 20FPM 22FPM

(80 mm/s) (90 mm/s)

Entry width approx. 93/4" approx. 93/4"

(240 mm) (240 mm)

**Motor power 2/3 H.P. 2/3 H.P.

(270 W) (270 W)

Input voltage 100 V, 50 Hz 100 V, 50 Hz

(Depending on country) 115V, 60 Hz 115V, 60 Hz

220/240V, 50 Hz 220/240V, 50 Hz

Dimensions 143/4" x 10" x 211/2" (375 x 250 x 550 mm)

Weight 241/4lbs. (11 kg)

Waste container volume 7.6 gallons (29 liters)

Noise level 53 dB in idle – 59 - 63 dB under load

USA

*Paper DIN 19307 SM 4a – 70

** for the maximum number of sheets

120

120 CC Paper shredder

6 1.598.999.100 Edition 11/00

Switching equipment ON

– Press rocker switch to pos. (1)

• Controller switch locks in "on" position.

• Equipment is ready for operation

(standby).

– Feed paper

• The shredding process is started by

automatic start stop control in the paper

feed opening. Insert paper and

shredding begins automatically.

• When the shredding is complete, the

cutting system automatically stops

after approx. 3 seconds.

Switching equipment OFF

– Press rocker switch to pos. (3)

•switch resets to center position and

stops the cutting system.

5. Supplies

– Bags for cut material

(Packed in dispenser carton, 50 or 100 bags

to a roll depending on size. For bag informa-

tion, see label on inside of the waste container.

If label is missing, contact Fellowes or your

local Fellowes dealer for the stock number of

the bag that fits your machine.)

– Cutting block oil for cross-cut units

Stock # 35250.

6. Installation

– The paper shredder is supplied ready for

operation.

– Operate this product only from the type of

power source indicated on the marking label.

– Install the paper shredder so that the plug is

easily accessible.

– Shredder must be operated in upright position

only.

– Set up paper shredder so that the ventilation

slots are unobstructed. To ensure sufficient

ventilation of the shredder a minimum distance

of 4" (10 cm) to the wall or to the furniture must

be maintained.

7. Operation

Read operating instructions before

operating the shredder.

Insert plug in power outlet.

To avoid motor overload, the paper

shredders may cut out automatically

after approx. 20 minutes of continuous

operation.

USA

120

Paper shredder 120 CC

Edition 11/00 1.598.999.100 7

8. Checklist for Inoperative Machine

If the equipment does not work properly, please

check the following points first:

– Is the plug inserted ?

– Is the switch turned on ?

– Is waste container pushed in properly ?

– Is waste container full ?

Empty container

– Is there a paper jam in the shredder ?

See Malfunctions

– Is the motor overheated ?

Switch machine off and allow motor to

cool down for approximately 15–20 min.

If none of the above applies and the equipment still

does not run, please contact the appropriate

customer service department.

9. Malfunctions

Paper jam

• Press rocker switch to center position

(2) to stop the cutting system.

• Press and hold down rocker switch in

pos. (3) to reverse the cutting system

and back out jammed material

(paper is pushed out)

Caution!

Do not

press rocker switch alternately

forwards/backwards in pos. (1 and 3)

• Remove excess paper.

• Return switch to pos. (1) and continue

shredding in smaller quantities so as

not to jam the machine further.

USA

Door contact interrupted

– Paper shredder switches off automati-

cally. Press rocker switch to center (2)

position.

• Check whether cut material container is

properly pushed into bottom frame.

• Return switch to "on" position (1) and

continue shredding.

Cut material container full

– Paper shredder switches off automati-

cally.

• Press rocker switch to center (2)

position.

• Empty cut material container or

exchange cut material bag.

• Return switch to "on" position (1) and

continue shredding.

10. Maintenance

(Cross cut unit only)

– When tearing capacity drops or the noise

increases:

• Spray special cutting block oil onto

cutting system.

• Run cutting system forward (1) and

backward (3) several times without

feeding paper.

• Continue shredding.

120

120 CC Paper shredder

8 1.598.999.100 Edition 11/00

12. Customer Service

United States

Fellowes Manufacturing Co.

1789 Norwood Avenue

Itasca, IL 60143

Tel.: 1-800-955-0959

Canada

Fellowes Manufacturing of Canada Ltd.

2750 John Street

Markham, Ontario L3R 2W4

Tel.: 1-800-665-4339

United Kingdom

Fellowes Manufacturing UK Ltd.

Doncaster Road

Kirk Sandall

Doncaster, South Yorkshire DN3 1HT

Tel.: 01302-885 331

Australia

Fellowes Manufacturing (Australia) Pty.Ltd.

10 Fellowes Court

Tullamarine, Victoria 3043

Tel.: (03) 9330-3211 in Melbourne

1-800-331-177 outside Melbourne

Nederland

Fellowes

P.O. Box 180

4130 Ed Vianen

Nederland

Tel.: 0347-377988

Germany

Fellowes GmbH

Dieselstraße 27

D-30827 Garbsen

Tel.: 05131-49770

France

Fellowes Lynx S.A.

194 allée de la Croix des Hormes

69250 Montanay

Tel.: 33-72-08-25-50

11. Warranty

FELLOWES®POWERSHRED LIMITED

WARRANTY

1 year

on all parts and labor

5 years

parts and labor on cutting cylinders

Fellowes®warrants this product to be free from

defects in material and workmanship for a

period of one year from the date of purchase by

the original consumer. At it's option, Fellowes®

will repair or replace without charge for material

or labor, any component found to be defective

during the warranty period. Additionally, the

cutting cylinders are warranted for 5 years from

the original purchase date and will be replaced

without charge for material or labor if found by

Fellowes®to be defective.

Warranty Exclusions

The parties agree that the buyer's sole and

exclusive remedy against Fellowes®shall be for

the repair or replacement of defective parts as

provided herein. The buyer agrees that no

other remedy (including, but not limited to,

incidental or consequential damages for lost

profits, lost sales, injury to property or any other

incidental or consequential loss) shall be

available to him. This warranty shall NOT apply

and is void under the following circumstances:

1. When this product or any part thereof has been

subjected to accident, alteration, abuse, or

misuse.

2. When the original Model and Serial Number

Plate has been altered, effaced or removed.

3. When repair or service covered under this

warranty (other than routine maintenance

(as described in the

Owner's Manual

) has been

performed by personnel without the express

written consent of Fellowes®.

4. When the product has been used pursuant to

any verbal or written rental, lease or loan

agreement.

THIS WARRANTY DESCRIBED HEREIN SHALL

BE IN LIEU OF ANY OTHER WARRANTY,

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. ANY REPRESENTA-

TIONS OR PROMISES INCONSISTENT WITH OR

IN ADDITION TO THIS WARRANTY ARE

UNAUTHORIZED AND SHALL NOT BE BINDING

UPON FELLOWES.

USA

Autres manuels pour 120

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fellowes destructeur de papier

Fellowes

Fellowes Powershred 46Ms Manuel utilisateur

Fellowes

Fellowes AutoMax 100M Manuel utilisateur

Fellowes

Fellowes POWERSHRED P-58Cs Manuel utilisateur

Fellowes

Fellowes DM 1200 CT Manuel utilisateur

Fellowes

Fellowes 225Ci Manuel utilisateur

Fellowes

Fellowes POWERSHRED 59Cb Manuel utilisateur

Fellowes

Fellowes POWERSHRED 62MC Manuel utilisateur

Fellowes

Fellowes POWERSHRED 3140S Manuel de service

Fellowes

Fellowes 2331S Manuel utilisateur

Fellowes

Fellowes OD1500 Manuel utilisateur

Fellowes

Fellowes Powershred 4200CC Manuel utilisateur

Fellowes

Fellowes POWERSHRED PS-12Cs Manuel utilisateur

Fellowes

Fellowes POWERSHRED P-58Cs Manuel utilisateur

Fellowes

Fellowes S50 P500 Manuel utilisateur

Fellowes

Fellowes POWERSHRED 325Ci Manuel utilisateur

Fellowes

Fellowes POWERSHRED Shredmate Manuel utilisateur

Fellowes

Fellowes Powershred C-320C Manuel utilisateur

Fellowes

Fellowes POWERSHRED 425Ci Manuel utilisateur

Fellowes

Fellowes Powershred W11C Manuel utilisateur

Fellowes

Fellowes DS-16Ci Manuel utilisateur

Fellowes

Fellowes Powershred FS 3 Manuel utilisateur

Fellowes

Fellowes POWERSHRED 480 Manuel utilisateur

Fellowes

Fellowes ShredStik II Manuel utilisateur

Fellowes

Fellowes Powershred 94MC Manuel utilisateur

Manuels destructeur de papier populaires d'autres marques

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Mode d’emploi

GBC

GBC ShredMaster CC055 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Rexel

Rexel Optimum AutoFeed+ 45X Manuel utilisateur

Martin Yale

Martin Yale 227284S1 Manuel utilisateur

Bonsaii

Bonsaii DocShred C223-A Manuel utilisateur

HSM

HSM Pure 740 max Manuel utilisateur

TRU RED

TRU RED TR-BMC20A Manuel utilisateur

GBC

GBC SHREDMASTER 1236SE Manuel utilisateur

Gude

Gude GH 2600 P Manuel utilisateur

Ativa

Ativa DQ80M Manuel utilisateur

Q-Connect

Q-Connect Q8CC Manuel utilisateur

Olivetti

Olivetti Privacy 5000C Guide de démarrage rapide

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Dahle

Dahle paperSAFE 22022 Manuel utilisateur

Formax

Formax OnSite FD 87 Manuel utilisateur

GEHA

GEHA Home & Office S7 CD Manuel utilisateur
