FeiYu Tech AK2000S Manuel utilisateur

3-Axis Stabilized Handheld Gimbal for Camera

Instruction

EN V 1.1

Catalogue

1. Product Overview ……………………………………………… 2

2. Start to Use ……………………………………………………… 4

2.1 Charging ……………………………………………………………………… 4

2.2 Position Lock ………………………………………………………………… 4

2.3 Camera Installation ………………………………………………………… 5

2.4 Gimbal Balancing …………………………………………………………… 6

2.5 Power ON/OFF ……………………………………………………………… 8

3. Function operation ……………………………………………… 8

3.1 Mode/Function Introduction ……………………………………………… 8

3.2 Button Operation …………………………………………………………… 10

3.3 USB Port ……………………………………………………………………… 12

3.4 Touch Screen ………………………………………………………………… 13

3.5 Modes Setting ……………………………………………………………… 14

3.6 Motion-timelapse Mode …………………………………………………… 17

3.7 Initialization ………………………………………………………………… 19

3.8 Manual Lock ………………………………………………………………… 20

4. Feiyu ON App …………………………………………………… 21

4.1 Download the Feiyu ON App ……………………………………………… 21

4.2 App Connecting ……………………………………………………………… 21

4.3 Firmware Upgrade ………………………………………………………… 22

5. Accessories ……………………………………………………… 23

5.1 Tripod ………………………………………………………………………… 23

5.2 Versatile Arm ………………………………………………………………… 23

5.3 Brushless Follow Focus …………………………………………………… 24

5.4 Hyperlink Remote Controller ……………………………………………… 24

5.5 Extension Rod ……………………………………………………………… 25

5.6 Multifunctional Bracket …………………………………………………… 26

5.7 Wireless MIC Kit ……………………………………………………………… 26

6. Speci󽗉cations …………………………………………………… 29

Compatible Cameras for Reference …………………………… 30

Disclaimer …………………………………………………………… 32

www.feiyu-tech.com 12

Introduction

AK2000S is a professional 3-axis stabilized handheld gimbal for DSLR and

mirrorless camera. It is compatible with popular DSLR and mirrorless cameras

on the market. Its detachable versatile arm handle, makes it available to be

supporting by single hand and low angle shooting, and is allowed to mounted on

tripod and other adaptor.

AK2000S is designed with function button and LCD touch screen, which can

switch the gimbal working mode, control the rotation and the parameters

setting by one hand. The camera shutter cable is equipped for controlling the

photography, video recording and focus following directly at handle.

Suggestion

Feiyu AK2000S includes below information, please read

the information before using the gimbal:

1. Quick start guide

2. Online instruction

3. Tutorial

The tutorial videos can be watched at FeiyuTech official

website or scan the QR code.

https://www.feiyu-tech.com/play/

Feiyu ON App

Scan the QR code to download the app,

or search for Feiyu ON in the App Store or

Google Play.

* Requires iOS 9.0 or above, Android 6.0 or

above.

www.feiyu-tech.com 2

1. Product Overview

* This product does not include the camera.

www.feiyu-tech.com 32

www.feiyu-tech.com 4

2. Start to Use

TIPS

1) Please mount the camera and balance it before Power ON.

2) When the battery is low, please charge the gimbal.

3) When not in use for a long time, power o󽗈 the gimbal.

2.1 Charging

Please fully charge the battery before power on the gimbal for the 󽗉rst

time.

Open the USB rubber cover. Connect the USB 2.0 to Type-C (C01) cable to charge.

Quick charge is available. It takes only 1.5 hour to fully charge.

2.2 Position Lock

Each rotating axis has a position lock for convenient balancing and storage. Be

sure to unlock the position locks before using the gimbal.

www.feiyu-tech.com 54

2.3 Camera Installation

Make sure the battery and memory card are installed before camera installation.

Step 1: Mount quick release plate ① on 󽗉xed plate ②, lock it. Loosen the ARCA

quick release plate safety lock ③, take out ARCA quick release plate ④.

Step 2: Mount camera on ARCA quick release plate ④.

Step 3: Insert ARCA quick release plate directly into quick release plate ①, tighten

the safety lock ③ for ARCA quick release plate.

Step 4: Install lens holder ⑤ to support lens, and tighten the thumb screw.

www.feiyu-tech.com 6

2.4 Gimbal Balancing

For ideal shooting effects, balancing the gimbal is necessary, and accurate

balance will o󽗈er longer battery life.

TIPS

1) Before balancing the gimbal, please lock the gimbal at the balanced

lock status, and the lens cover should be removed from the camera and

the memory card needs to be inserted to the camera to complete all the

connections to ensure that the camera is ready for shooting.

2) During balancing the gimbal, make sure the camera and gimbal are all

powered o󽗈.

3) If it is needed to add accessories after the balance is completed, gimbal

needs to be re-balanced again.

2.4.1 Balance Tilt Axis

(1) a. Unlock the tilt axis position lock ①, turn the camera lens upwards, and

check the gravity center of camera.

b. Loosen the sliding arm lock screw ②, slide the sliding arm ③ to balance the

camera.

c. Tighten the sliding arm lock screw ② , when the camera lens keeps upwards

that means balanced.

(2) a. Place the camera lens forwards, check the gravity center of camera.

b. Unlock the quick release plate safety lock ①, adjust camera position until it

can stay stable at any angles.

c. Lock the safety lock ①. Tilt the camera up or down, if it stays stable, it means

balanced.

www.feiyu-tech.com 76

2.4.2 Balance Roll Axis

a. Tighten the tilt axis position lock ①, unlock the roll axis position lock ②, check

gravity center of camera.

b. Loosen the cross arm lock screw ③, slide cross arm ④ to balance the camera

position.

c. Tighten the cross arm lock screw ③, and tilt the camera to the left or right, if it

stays stable, it means balanced.

2.4.3 Balance Pan Axis

a. Tighten the roll axis position lock ① after balanced tilt axis and roll axis. Unlock

pan axis position lock ②, loosen vertical arm lock screw ③.

b. Hold the handle aslant to 15°~ 20°, check the camera's movement. (Roll axis

will point down if not balanced)

c. Slide vertical arm ④ to balance it until the camera stays there at any angles,

balance succeeded.

d. Tighten the vertical arm lock screw ③.

www.feiyu-tech.com 8

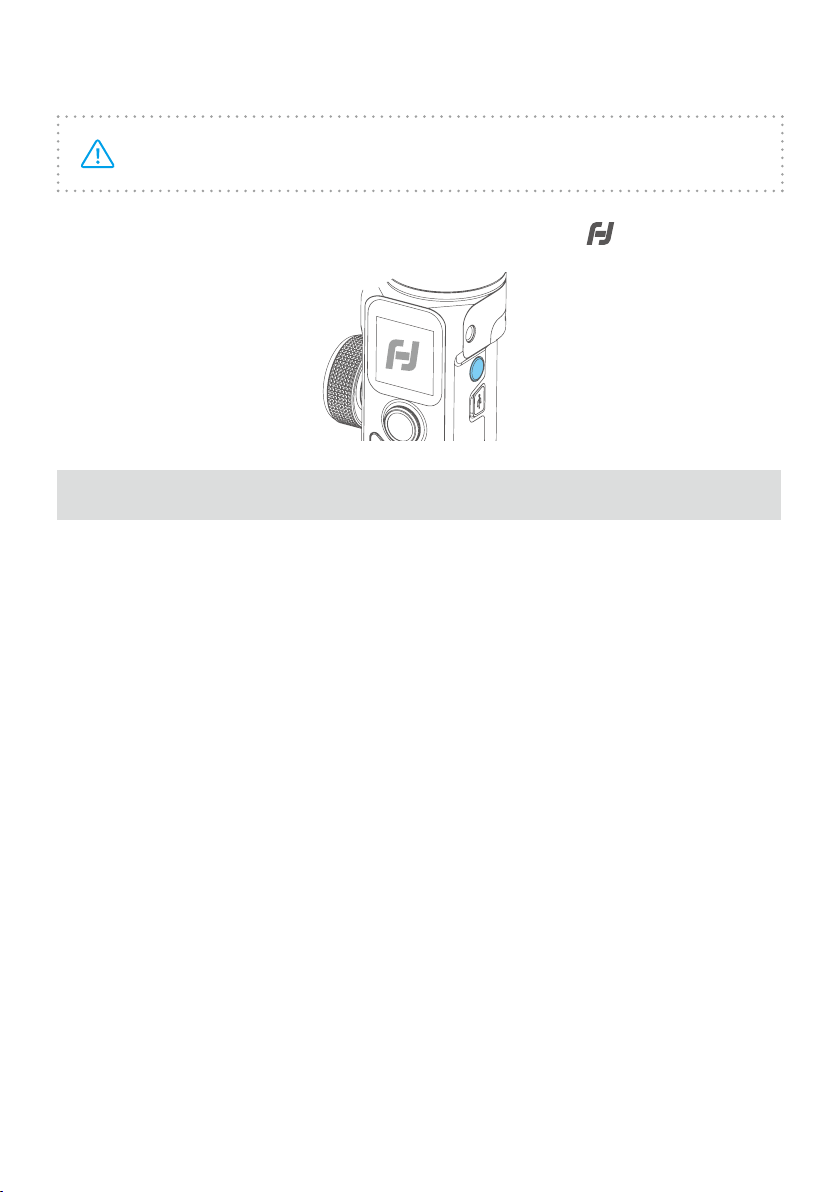

2.5 Power ON/OFF

Be sure to unlock the position lock before using the gimbal.

Long press power button, release the button until it shows on display.

3. Function operation

3.1 Mode/Function Introduction

① Pan Mode (Default mode)

The roll and tilt direction are 󽗉xed, and the camera moves according to the left-

right movements of the user's hand.

② Follow Mode

The roll direction is 󽗉xed, and the camera moves according to the left-right or up-

down movements of the user's hand.

③ All follow Mode

The camera moves according to the user's hand.

④ Lock Mode

The orientation of the camera is 󽗉xed.

⑤ Reset

Return to Pan Mode, 3-axis return to initial position.
