Fein AFSC 1.7Q Guide de configuration
AFSC 1.7Q; AFSC 18QSL
Repair instructions
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 1of 33
AFSC 1.7Q; AFSC 18QSL
Contents
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 2of 33
1. Models described
2. Technical data
3. Notes and requirements
4. Tools required
5. Lubricants and auxiliary substances required
6. Removal
7. Fitting
8. Troubleshooting
9. Connection diagram
AFSC 1.7Q; AFSC 18QSL
1. Models described
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 3of 33
These repair instructions describe how to repair the following models:
Model Order number
AFSC 1.7Q 7 129 18 .. .. .
AFSC 18QSL 7 129 27 .. .. .
AFSC 1.7Q; AFSC 18QSL
2. Technical data
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 4of 33
Technical data
All the technical data can be found in the operating instructions for the model.
Tests
Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides).
Lubricants / Auxiliary substances
The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet
(Customer Service → Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
AFSC 1.7Q; AFSC 18QSL
3. Notes and requirements
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 5of 33
Please note
These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and
electrical training.
Only use original FEIN spare parts.
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in
serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when
commissioning.
The German Equipment and Product Safety Act [ProdSG] applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed.
AFSC 1.7Q; AFSC 18QSL
4. Tools required
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 6of 33
Standard tools Special tools
Outer puller 60x50 mm Drawing-off socket cap 6 41 04 150 00 8
Arbor press Chuck cone 16 mm 6 41 07 016 00 1
Punch 5 mm; 6 mm Press-in fixture 6 41 22 127 00 0
Hot air gun Assembly aid 6 41 22 122 00 0
Sleeve 6 mm inner diameter
16 mm outer diameter
34 mm inner diameter
42 mm outer diameter
56 mm inner diameter
70 mm outer diameter
Extractor tool 6 41 14 038 01 0
Soldering station
Vice
Torx T15; T20
Blade
Circlip pliers
Slotted screwdriver
AFSC 1.7Q; AFSC 18QSL
5. Lubricants and auxiliary substances required
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 7of 33
Lubricants
Grease 0 40 128 0300 0 4 g Tool head
AFSC 1.7Q; AFSC 18QSL
6. Removal
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 8of 33
Removing the motor housing
1. Cut through the type plate.
2. Unscrew the seven screws (1).
3. Remove half of the motor housing (2).
4. Remove the pressure piece (3).
5. Remove all components from the motor housing.
Tools:
- Blade
- Torx T15
1
2
3
AFSC 1.7Q; AFSC 18QSL
6. Removal
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 9of 33
Removing the motor housing
1. Remove the four pressure pieces (1).
1
AFSC 1.7Q; AFSC 18QSL
6. Removal
C-SC_CSSM
Version 1.0
2017-05-08
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 33

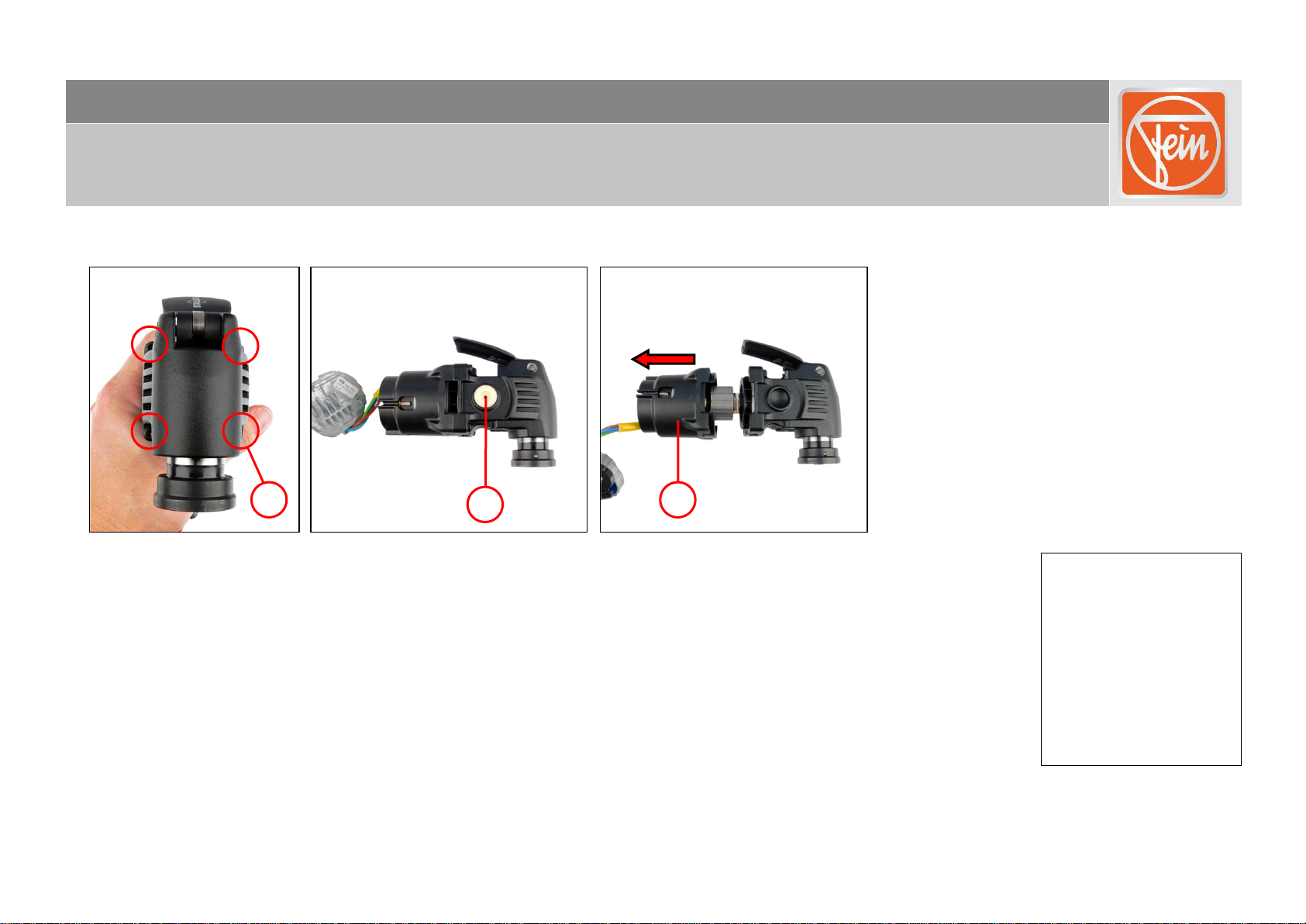

Removing the stator
1. Unscrew the four screws (1).
2. Remove the pressure piece (2) [both sides].
3. Remove the housing (3).
Tools:
- Torx T20
3
1
2
