Fein CCG 18-115 BL Guide de configuration

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

Repair instructions

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 1of 38

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

Contents

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 2of 38

1. Models described

2. Technical data

3. Notes and requirements

4. Tools required

5. Lubricants and auxiliary substances required

6. Removal

7. Fitting

8. Connection diagram

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

1. Models described

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 3of 38

These repair instructions describe how to repair the following models:

Model Order number

CCG 18-115 BL 7 120 01 .. .. .

CCG 18-125 BL 7 120 02 .. .. .

CCG 18-115 BLPD 7 120 03 .. .. .

CCG 18-125 BLPD 7 120 04 .. .. .

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

2. Technical data

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 4of 38

Technical data

All the technical data can be found in the operating instructions for the model.

Test data

Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides).

Lubricants

The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →Repair Guides).

Lists of spare parts

Lists of spare parts and exploded views are available online at www.fein.com

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

3. Notes and requirements

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 5of 38

Please note

These instructions are only intended for persons with suitable technical training. It is assumed that the reader has mechanical and

electrical training.

Only use original FEIN spare parts.

Provisions

Please note that power tools may only be repaired, maintained and checked by a trained electrician, as improper repair can result in

serious risks to the user.

The provisions set out in DIN VDE 0701-0702 should be observed after repairs.

The relevant accident prevention regulations of the employer’s liability insurance associations are to be observed when

commissioning.

The German Equipment and Product Safety Act [ProdSG] applies for correct use.

Outside Germany, the regulations applicable in the relevant country must be observed.

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

4. Tools required

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 6of 38

Standard tools

Special tools

Plastic hammer Drawing-off socket cap 6 41 04 150 00 8

Slotted screwdriver (small) Chuck cone 19 mm 6 41 07 019 00 7

Torx screwdriver T15; T20 Chuck cone 26 mm 6 41 07 026 00 0

Punch 6 mm Drawing-off plate 6 41 02 069 00 7

Arbor press Pipe 6 41 01 002 00 4

Circlip pliers

Blade

Sleeve

•35 mm inner diameter

45 mm inner diameter

•14 mm inner diameter

19 mm outer diameter

•30 mm inner diameter

42 mm outer diameter

•15 mm inner diameter

20 mm outer diameter

•15 mm inner diameter

27 mm outer diameter

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

4. Tools required

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 7of 38

Standard tools

Sleeve

•13 mm inner diameter

26 mm inner diameter

•8 mm inner diameter

19 mm outer diameter

2x square support L= 80 mm; H= 17 mm

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

5. Lubricants and auxiliary substances required

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 8of 38

Lubricants

Grease 0 40 101 01 00 4 21 g Gearbox

Auxiliary substances

Loctite 573 Washer

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

6. Removal

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 9of 38

Removing the housing

1. Cut through the type plate (1).

2. Cut through the information sign (2).

3. Unscrew the seven screws (3).

Tools:

- Blade

- Torx T15

CCG 18-115 BL; CCG 18-115 BLPD; CCG 18-125 BL; CCG 18-125 BLPD

6. Removal

C-SC_CSSM

Version 1.0

2017-12-12

FEIN retains all rights of disposal, such as copying and circulation.

Page 10 of 38

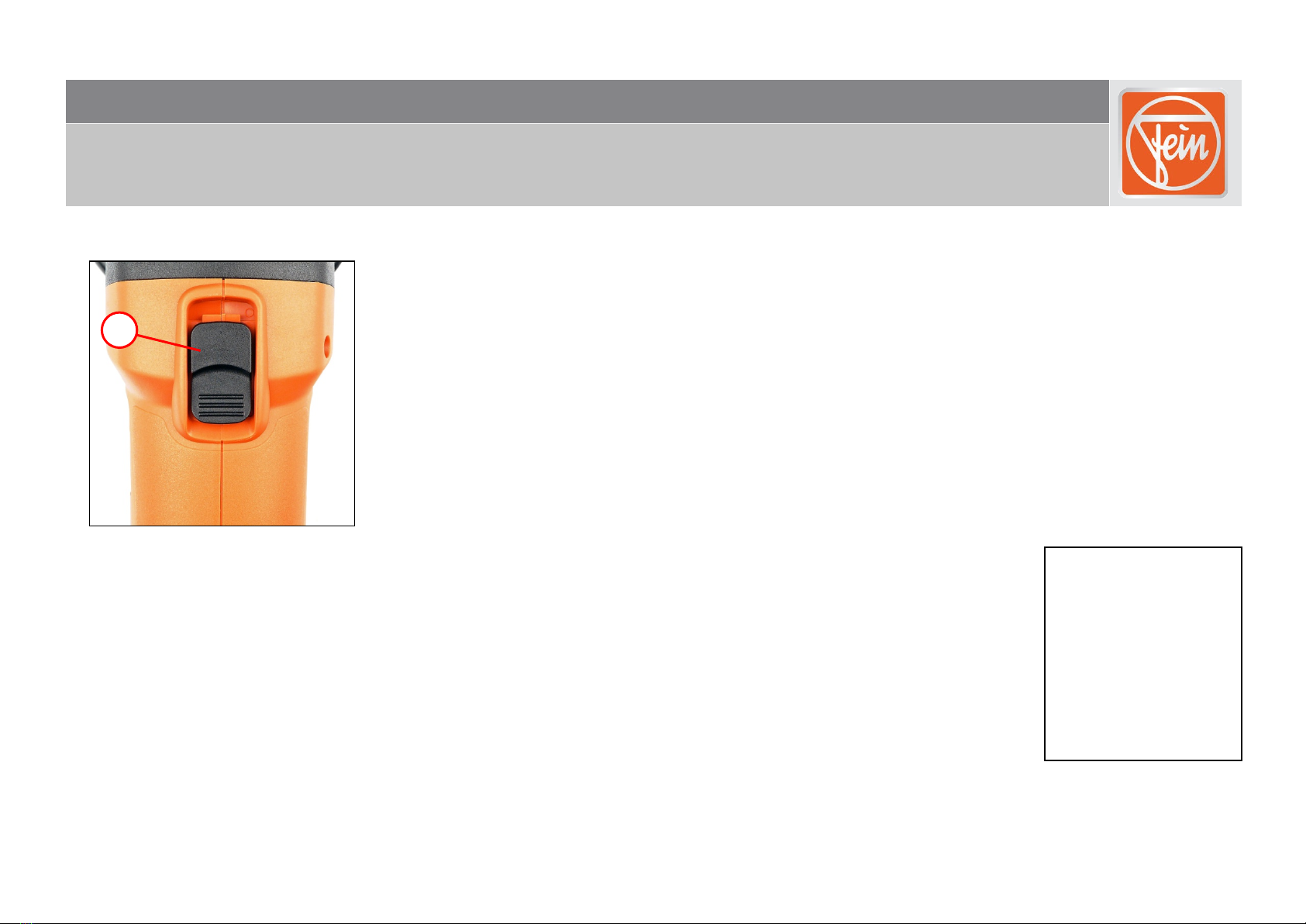

Removing the housing (applies to: CCG 18-115 BL; CCG 18-125 BL)

1. Remove the switch (1). Tools:

- Slotted screwdriver
