feedback TS2020 Manuel du produit
1
TS2020 TERMINAL (FAMS)
Installation and Maintenance Guide
MAN053-12
Septe ber 2014
2
MAN053
This document provides the relevant information
for installing and maintaining a TS2020 terminal
3
INTRODUCTION 4
MOUNTING 5
POSITIONING 6
GENERAL INFORMATION 7
IMPORTA T SAFETY I FORMATIO 9
POWER REQUIREME T 9
CONNECTING THE POWER 10
CONNECTING THE TERMINAL TO THE NETWORK 11
INTERFACES 12
CONNECTING THE TERMINAL TO OTHER EQUIPMENT 13
EXTER AL READERS 13
RELAY CO ECTIO 13
I PUT CO ECTIO S 14
SERIAL EQUIPME T 14
COMMISSIONING THE TERMINAL 15
TERMI AL STARTUP 15
DISCOVERY 15
DIAG OSTICS 16
OTHER DIAG OSTICS 17
MEDIA TEST 17
I ITIALISE MEMORY 18
CARE AND MAINTENANCE 19
BOARD REMOVAL 19
MEDIA PREPARATIO 19
BATTERY CARE 20
GE ERAL CLEA I G 20
FINGERPRINT READER 21
FI GERPRI T READER ESSE TIALS 21
FI GERPRI T MAI TE A CE 22
DEFAULT CONFIGURATION 24
SPECIFICATION 25
CONTACT 26
CONTENTS
4

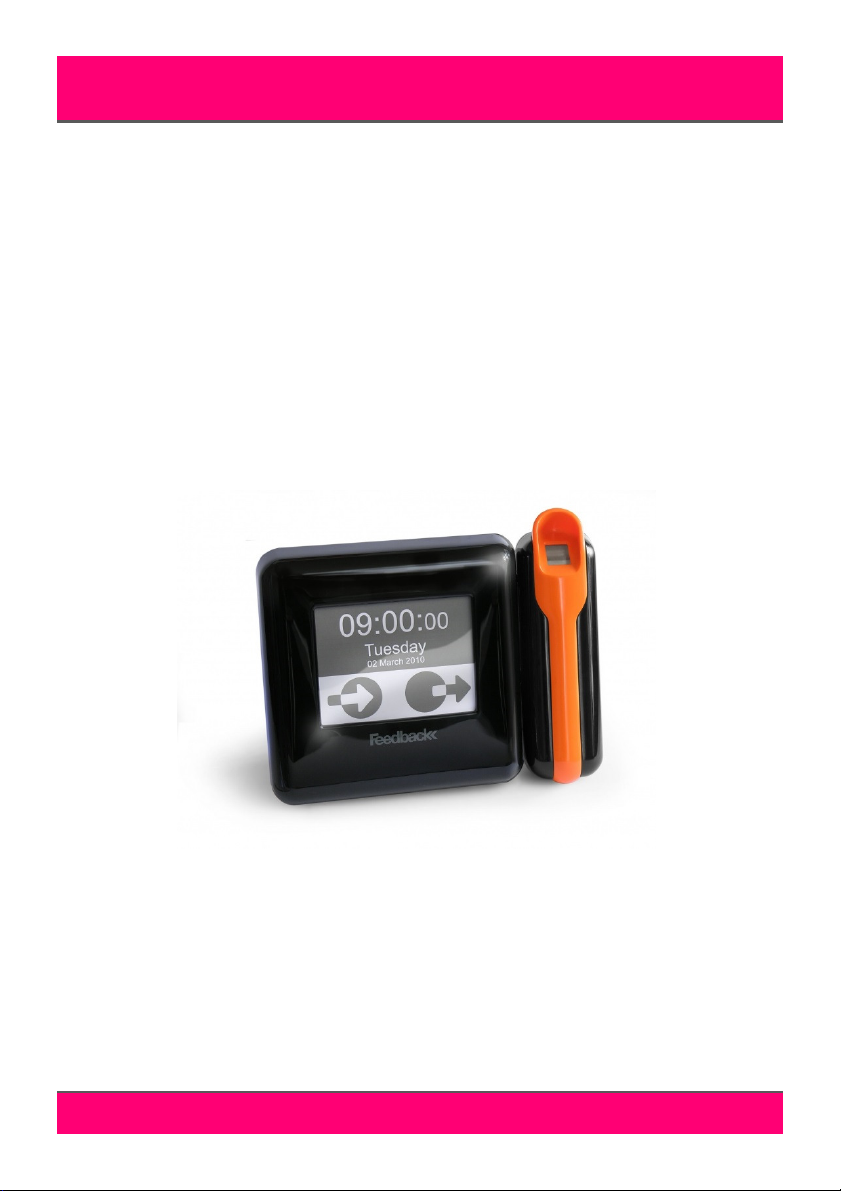

Drawing on our many years of experience, we have created a Terminal which is smart
enough for any office and robust enough for a factory or hospital.
The TS2020 Terminal range provides a solid foundation for accurate, reliable data cap-
ture that is fundamental to any chosen system.
This manual guides you through the installation, setup and maintenance of the terminal.
INTRODUCTION
5

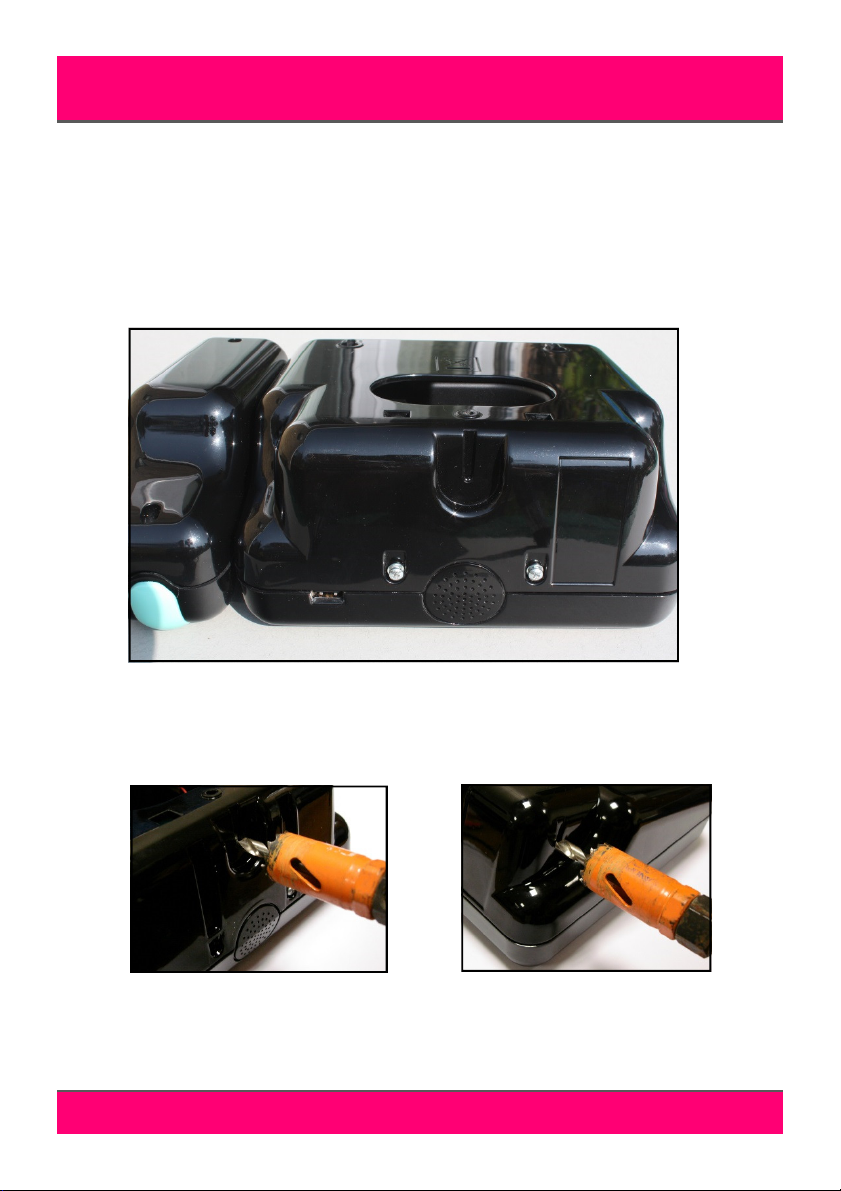

Site the TS2020 terminal indoors and away from extremes of heat, dust, vibration and
fumes. It should be protected from excessive condensation, hosing and direct sunlight.
Choose a location that allows room for normal use and access for maintenance.
The TS2020 terminal is fixed to a vertical mounting surface through the three holes in the
rear of the case using the screws supplied. The upper pair are keyhole type whilst the
lower one is a standard screw hole.
Cable entry into the terminal comes through the space at the rear or through the cut-outs,
one on the bottom of the rear case and one either side. These are used by drilling holes
through the case. These will accept standard 20mm conduit fittings.
Maximum dimensions: 251mm W, 188mm H, 104mm D.
MOUNTING
6

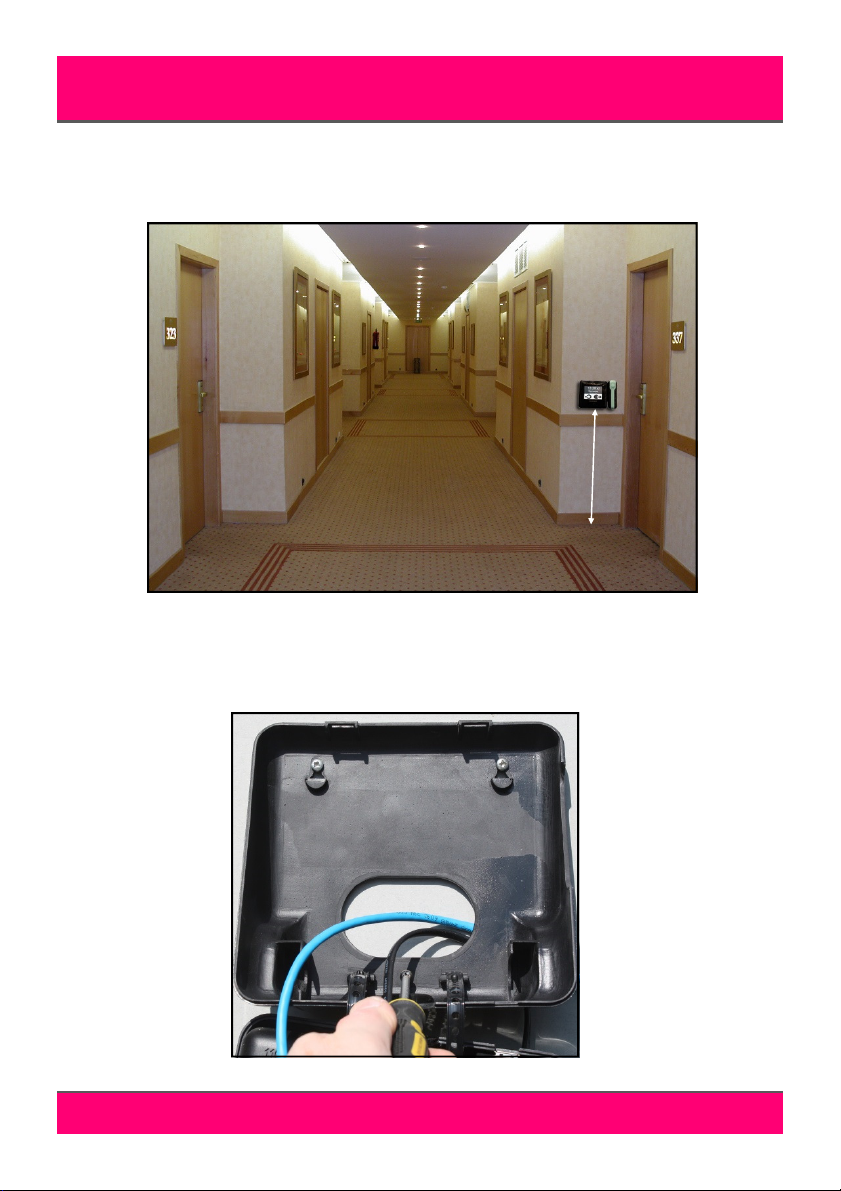

The TS2020 terminal should be mounted approx 1.17m from floor level. The exact posi-
tion may well be determined by other factors (accessibility, lighting and reflection).
The fingerprint option is possibly the most critical of positioning. For correct reading of
employees fingers, a terminal should not be too low or too high otherwise inconsistent
reading is a possibility due to peoples different heights. (please see separate section,
FINGERPRINT READER)
POSITIONING
1.17
7

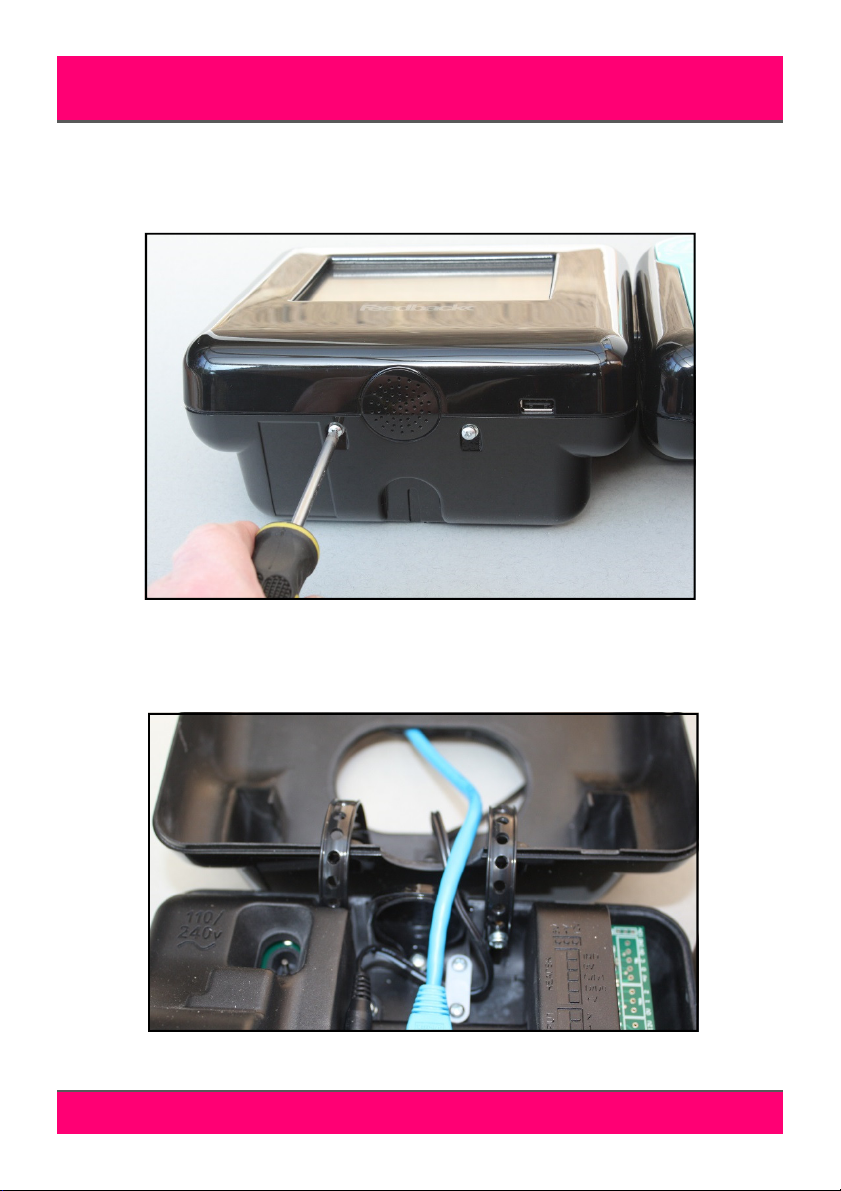

Once removed from its packaging lay the TS2020 on a flat surface. Undo the two screws
on the bottom of the terminal with a cross head screw driver to separate the front from the
back.
The front hinges outwards and is attached at the top edge. Carefully remove the front by
pulling outwards from the bottom edge. The front and back are secured together by plas-
tic straps.
GENERAL INFORMATION
8

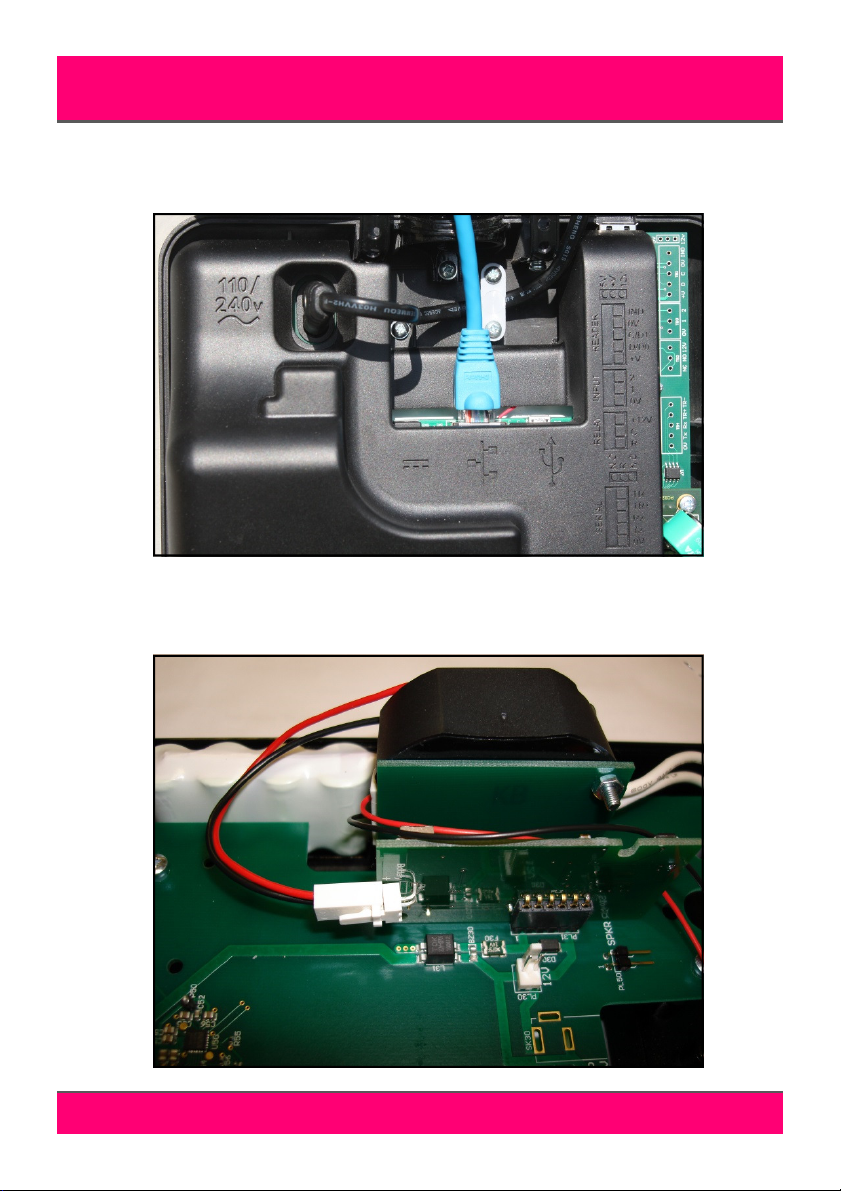

The TS2020 series internal circuit board is protected by a plastic cover. All connection
points are left open for easy access and are clearly indicated.
This should normally not need to be removed. However, housed beneath this are the
UPS power supply (if fitted) and battery. Any maintenance or work carried out on these
will require the plastic cover to be removed by unscrewing it from the case.
GENERAL INFORMATION
9
IMPORTANT SAFETY INFORMATION
This TS2020 terminal has been designed to meet international safety standards but, like
any electrical equipment, care must be taken if safety is to be assured. read these safety
instructions before installation and operation of the terminal. Retain this installation guide
for future use.
DO insure that all the electrical connections (including power
connections and interconnections between pieces of equipment) are
properly made in accordance with the manufacturers instructions.
The equip ent ust be earthed.
DO consult your dealer if you are in any doubt about
installation, operation or safety of the equipment.
DO remember that some equipment continues to operate after
mains power has been removed, because of an internal battery. In
such cases a qualified Service Engineer must disconnect the
battery before attempting to service the equipment.
DO NOT continue to operate the equipment if you are in any
doubt about it working normally
DO NOT remove any cover fastenings unless you are qualified
to do so. Even then isolate from the power connection before you
start.
DO NOT allow the equipment to be exposed to rain or moisture
other than permitted by the equipment's specification.
DO NOT attempt to service any battery fitted to the equipment.
If the battery fitted to the circuit board is faulty, return the complete
circuit board to an approved Service Centre. Removable batteries
may be replaced by a qualified Service Engineer
WARNING To comply with international safety standards the a.c. supply must be
routed via an easily accessible isolating device. This device must have a contact gap of
at least 3mm (three millimetres) and should break both Live and eutral conductors
simultaneously. If the eutral conductor can be reliably identified the device may be in
the Live conductor only.
POWER REQUIREMENT... The TS2020 terminal is either supplied with an exter-
nal 12V power supply, an internal 12V 6W supply with an external mains connection or is
PoE (Power over Ethernet). The power supply is overload protected and the terminal
includes circuit protection against over-voltage and reverse connection.
GENERAL INFORMATION
10

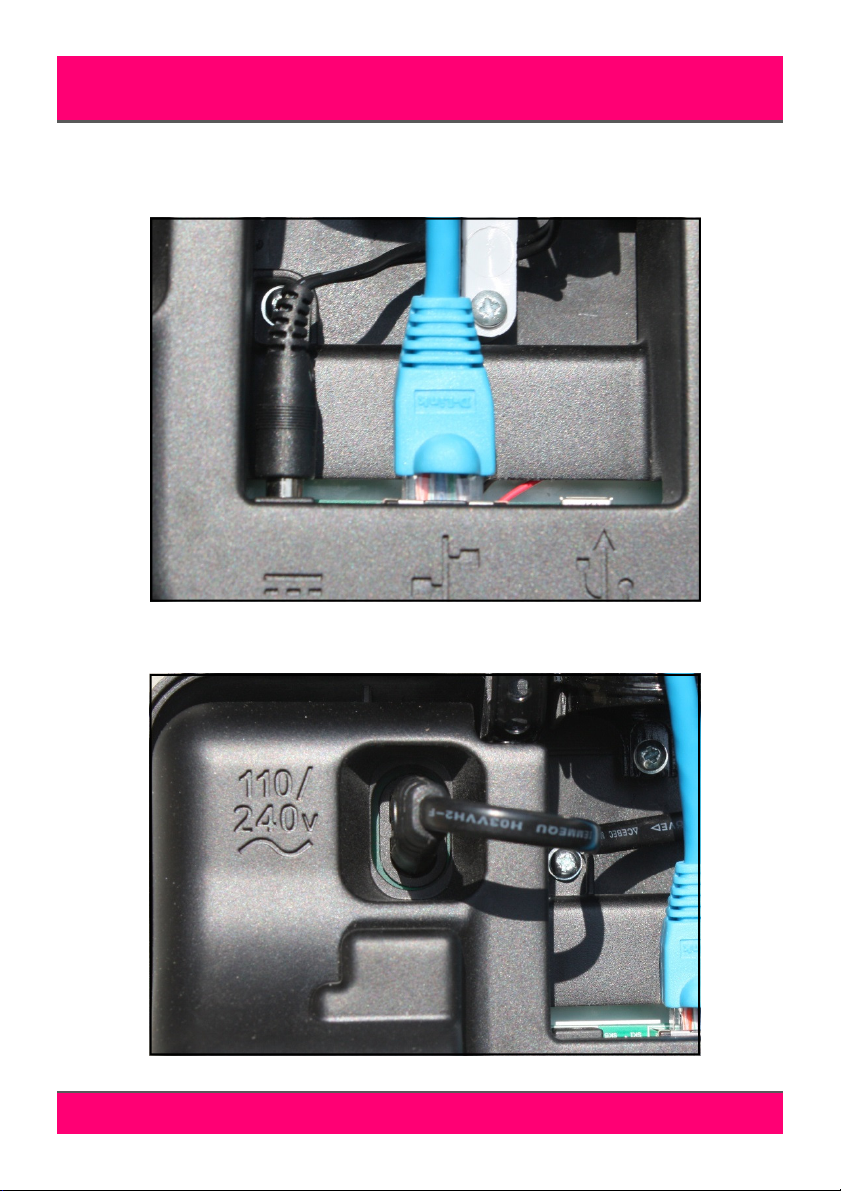

There are three power options for the TS2020 series dependent upon the model.
A 12V external power supply, an internal mains power supply (with UPS option) or PoE.
Power leads can be held in place with the clamp situated at the bottom of the case.
CONNECTING THE POWER
