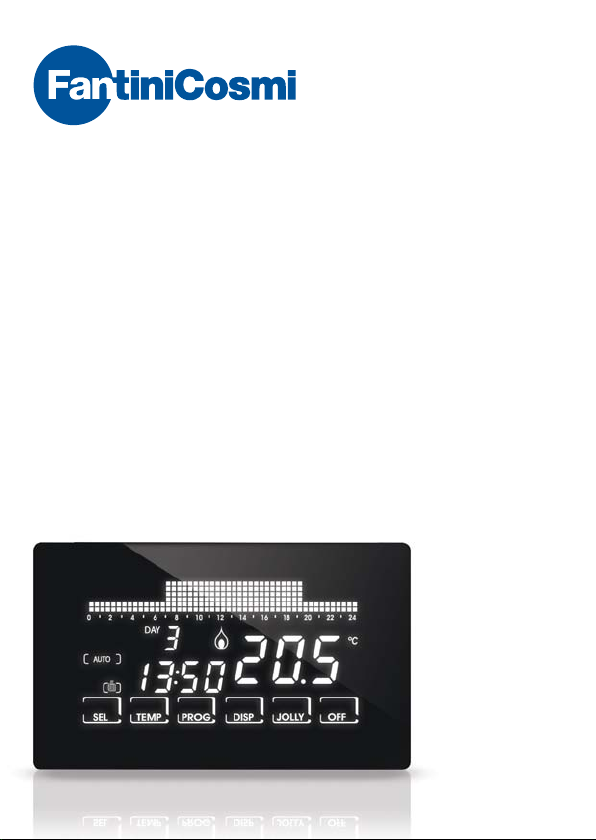

WEEKLY PROGRAMMABLE THERMOSTAT WITH
TOUCHSCREEN
Intellicomfort
2
CONTENTS OF PACKAGE
1 chronothermostat
2 screws
1 user manual
INSTALLATION ...................................................................................
ELECTRICAL CONNECTIONS ............................................................
BUFFER BATTERY FUNCTION ..........................................................
MAINTENANCE .................................................................................
QUICK GUIDE FOR PROGRAMMING .................................................
description of keys/display .......................................................
setting time and date ................................................................
operating programs ..................................................................
settable temperatures ..............................................................
setting operating programs ......................................................
FUNCTIONS IN DETAIL ......................................................................
available programs ...................................................................
settable temperatures ..............................................................
advanced keys and functions ....................................................
TECHNICAL FEATURES .....................................................................
p. 3
p. 4
p. 4
p. 5
p. 5
p. 5
p. 6
p. 6
p. 7
p. 8
p. 11
p. 11
p. 13
p. 14
p. 22
INDEX
Intellicomfort
CH193
3
INSTALLATION
1
The CH193 chronothermostat must be installed in a 3-module recessed box, in the
middle of the apartment, preferably 1.5 m off the ground.
PERFORM THE FOLLOWING
OPERATIONS:
Act on the master switch on the electric
panel to cut power to the electrical system;
Connect the two wires of the boiler to
terminals 1-2 of chronothermostat;
Connect the two power cables L-N;
Screw the frame onto the box using the
provided screws, paying attention to the
indicated assembly direction;
Switch the electric system back on;
Insert the thermostat body in the frame
fixed to the wall.
1
2
3
4
5
6
Intellicomfort
4

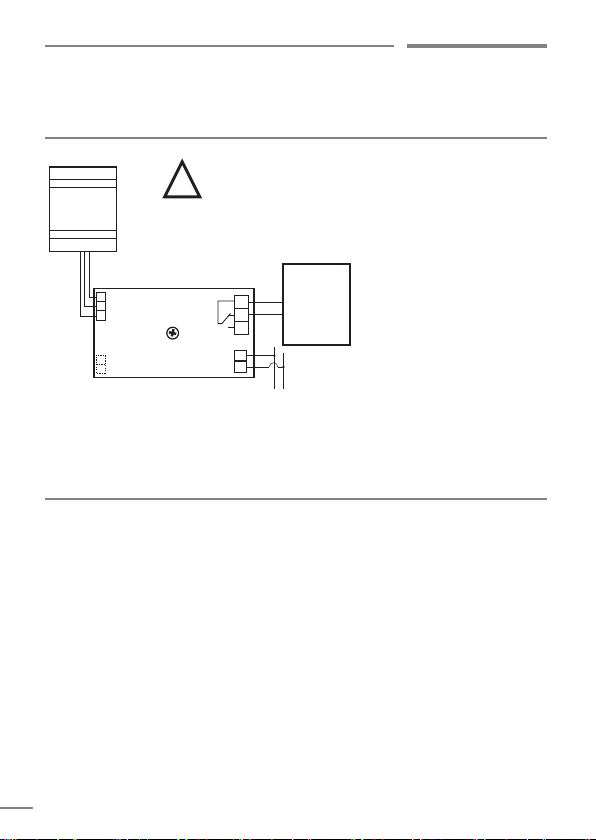

ELECTRICAL CONNECTIONS
2
BUFFER BATTERY FUNCTION
3
During black-outs, the programmed parameters will not be lost as the settings are
stored in a non-volatile memory. Even when there are long power failures, the time/
date remain stored thanks to an internal battery.
ATTENTION: installation must be carried out by
qualified personnel.
!
230V 50Hz
CH193
Sonda
AUX
attivatore
telefonico
CT3M/MA
caldaia
2
L N
1
3
4
2
1
N.B. When CH193 is
disconnected, the boiler
contact remains in its current
position.
Unscrew the lid to connect the
auxiliary probe.
Use compatible Fantini Cosmi
probes:
EC18 external probe
EC19 floor probe
EC20 room probe
boiler
Probe
AUX
CT3M/MA
telephone
activator
Intellicomfort
CH193
5
MAINTENANCE
Use only a soft cotton cloth to clean the chronothermostat without any detergent.
Do not use paper tissue to clean the screen.
KEYBOARD BLOCK
To make sure you don’t change any settings on the chronothermostat unintentionally
while cleaning, enable the keyboard block by pressing the middle of the display for
5 seconds. The text “BLOCKED” appears on the display when the keyboard has
been blocked. The keys will re-enable automatically after 30 seconds.
4
ENTER
0 2 4 6 10 12 14 16 18 20 22 248
PROGTEMP
SEL DISP JOLLY OFF
COPY
F
QUICK GUIDE FOR PROGRAMMING
5
DESCRIPTION OF KEYS/DISPLAY
The chronothermostat is equipped with 6 keys, the function of which varies
depending on the situation. It is described by the symbol which appears on the
display next to the key.
N.B.: to switch on the display, press in the middle; if no other keys are pressed, the
display switches off after 2 seconds; if other keys are pressed, the display will switch
off after remaining idle when the time set in the parameter LIGHT ON expires (see
Chap. 6 CONFIG. PG03).
touch keys
winter relay ON
summer relay ON
room temperature
Celsius / Fahrenheit
graphical section:
messages,
hourly temperature
profile
low battery symbol
day of the week
programs
summer/winter time
Intellicomfort
6
OPERATING PROGRAMS
The CH193 chronothermostat has different operating modes, called programs:
“AUTO” WEEKLY PROGRAM:
one of the four programmable temperatures can
be associated to each half hour for each day of
the week. This is the program displayed when the
chronothermostat is switched on and is generally the
one most used.
“HOLIDAY” DAILY PROGRAM:
Like in the AUTO program, you may select one of the
4 programmable temperatures for each half hour, but
the identical sequence will be repeated every day.
SEL TEMP PROG DISP JOLLY OFF
HOLIDAY
SETTING TIME AND DATE
After the device switches on, press the key
PROG
briefly: the text “Setup” is displayed;
now press to enter the “Hours” page. Set
the hour by pressing and . Then press
to go to the “Minutes” setting.
Again press to select, in order, the Year,
Month and Day.
Pressing again allows you to choose
whether to disable automatic change of
summer/winter time: initially this function is
active can but can be deactivated by pressing “NO” using the keys and .
Pressing allows you to go back to the previous page.
To exit the Setup menu, press
ENTER
.
ENTER
Intellicomfort
CH193
7
“JOLLY” TEMPORARY PROGRAM:
you may choose to hold a certain temperature for a
certain number of hours, after which it will go back to
the previously active program.
“MAN” MANUAL PROGRAM:
the chronothermostat maintains a fixed temperature,
for an unlimited amount of time until another program
is selected.
SYSTEM OFF OR WITH ANTIFREEZE PROGRAM “OFF/ANTIFREEZE”:
the system remains off or else maintains a very low
temperature (from 2 to 7°C) to prevent the fluid in the
heating system from freezing.
MAN
JOLLY
SETTABLE TEMPERATURES
Four different temperatures can be set and one can be selected for each half hour
of the day in the AUTO and HOLIDAY programs. Three of these temperatures (T1,
T2 and T3) can have values from 2° to 40°C, while the fourth, T antifreeze (TA), can
range from 2° to 7°C, or be set at “OFF” (system off). The manual program has
its specific temperature (TMan), like the JOLLY program (Tj), which are set in the
respective screens and can range from 2° to 40°C.
The ANTIFREEZE/OFF program, on the other hand, follows the temperature TA
which, as we have said, can range from 2° to 7°C; or else, it can be set at “OFF”,
switching the plant completely off.
Intellicomfort
8
ENTER
SETTING OPERATING PROGRAMS
PROGRAM SELECTION
press
SEL
to select, in cyclical sequence, the
different operating programs: AUTO -> MAN -> OFF
-> HOLIDAY.
PLEASE NOTE: the JOLLY temporary program is
not included in the program sequence, but can be
selected directly by pressing the JOLLY key.
SETTING THE TEMPERATURES
press
TEMP
in the AUTO, HOLIDAY and OFF
programs to change the value of the 4 programmable
temperatures: when you press
TEMP
several times,
the values T1, T2, T3, Ta appear in sequence; stop at
the T you want to change and use the arrow keys
and to increase or decrease the temperature by
a tenth of degree at a time. Press to go back to the initial status.
Remember that T1 will always be less than T2, and T2 than T3.
Pressing
TEMP
in the JOLLY program allows you to modify its temperature using
the keys and . Press to go back to the page displaying the hours, allowing
you to modify them using and .
The MAN program allows you to modify the fixed temperature TMan using the keys
and .
EDITING CURRENT DATE AND TIME
Press
PROG
briefly to enter the “SETUP” menu.
Using and allows you to modify: winter/
summer, hours, minutes, year, month, day,
summer time.
These values can be changed
using the keys and .
Intellicomfort
CH193
9
CUSTOMISATION OF WEEKLY “AUTO”
PROGRAMMING AND DAILY “HOLIDAY”
PROGRAMMING
Keep the key
PROG
pressed until the text
“Config” is displayed. This menu allows you to
program the weekly profiles (AUTO program) and
daily profiles (HOLIDAY program) and to set the
advanced functions (see the following paragraphs for their description).
PLEASE NOTE: if the text “Setup” appears instead of “Config”, you did not press
the key long enough and you must press
ENTER
to go back to the normal operating
condition and try again.
When you enter the “Config” menu, a page appears which allows you to choose the
desired temperature (T1/T2/T3/Ta) for each half hour of the indicated day (from 1 to
7 indicating the days from Monday to Sunday).
PLEASE NOTE: T1/T2/T3/Ta are displayed on the right of the screen with the
symbols
Pressing and allows you to move one half hour at a time to the right or to
the left.
Pressing and allows you to go from one programmed temperature to another.
Pressing
PROG
(briefly) switches you to the next day (DAY 1 -> 2 -> 3 -> 4 -> 5 -> 6
-> 7 -> H).
Press
COPY
to copy the temperature profile of the current day on the following day.
After H (profile of the Holiday daily program) you go to the Correction parameter
page.
Then pressing
ENTER
from the Correction page allows you to the exit the “Config”
menu.
N.B.: press at the start of day 1 to go right to the Correction page.
COPY
PROG
000
Intellicomfort
10
“JOLLY” PROGRAM SETTING
In all programs, except MAN, pressing the key
JOLLY
selects the temporary
program: this program allows you to define the desired temperature and its
duration in hours (up to a maximum of 240, so to say 10 days).
For example, you may want to keep a lower temperature during the entire weekend
when no one is home.
When you enter this program, you may modify the duration, which initially is one
hour, and increase the number of hours by pressing , or decrease them by
pressing .
Pressing
TEMP
allows you to view and modify temperature Tj, again using the keys
and .
Pressing sends you back to view the duration of the JOLLY program.
When this time elapses, you go back to the initial program.
“OFF/ANTIFREEZE” PROGRAM SETTING
Pressing
OFF
from any program switches the chronothermostat to the off/
antifreeze status. The antifreeze temperature (Ta) can be programmed by pressing
TEMP
, from OFF (boiler always off) to an interval between 2.0 and 7.0°C, using the
arrow keys and .
Go back to the OFF status by pressing .
Pressing OFF again sends you back to the previous operating status.
ALTERNATIVE DISPLAYS
Other information can be viewed in the AUTO and HOLIDAY programs in place of the
temperature profile, by pressing the key
DISP
several times.
The first time it is pressed the programmed temperature for the current half
hour appears, the second time it displays the date, the third time it displays the
temperature of the external probe and the fourth time it goes back to the initial
temperature profile.
Table des matières
Autres manuels Fantini Cosmi Thermostat
Fantini Cosmi
Fantini Cosmi C63 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH121 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi Intellicomfort+ CH180RF Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH180RFWIFI Manuel utilisateur
Fantini Cosmi
Fantini Cosmi C68 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH150RF Manuel utilisateur
Fantini Cosmi
Fantini Cosmi Intellicomfort CH180 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi O81RF Manuel utilisateur
Fantini Cosmi
Fantini Cosmi C61 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi Intellitherm C57 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH115TS Manuel utilisateur
Fantini Cosmi
Fantini Cosmi Intellitherm C58 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH193WIFI Manuel utilisateur
Fantini Cosmi
Fantini Cosmi C60 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH150TS Series Manuel utilisateur
Fantini Cosmi
Fantini Cosmi C801 Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH140GSM Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH130ARR Manuel utilisateur
Fantini Cosmi
Fantini Cosmi EVWC8R Manuel utilisateur
Fantini Cosmi
Fantini Cosmi CH150 Manuel utilisateur
Manuels Thermostat populaires d'autres marques
EWELLY
EWELLY EW-181 Manuel utilisateur
Prolon
Prolon T1100 Instructions d'installation
Computherm
Computherm Q20 Manuel utilisateur
Heatmiser
Heatmiser neoStat Manuel utilisateur
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur
