Fantec DB-ALU2e Manuel utilisateur

FANTEC DB-ALU2e

3.5” Aluminum enclosure

USER MANUAL

Package contents: FANTEC DB-ALU2e, USB Cable 2.0, e-Sata Cable,

CD, Stand, Screws, Power Adapter, HDD fixing Pad, Rubber feet

Hardware Installation Guide

STEP1: Open the enclosure. You will see the internal structure of the

enclosure.

STEP2: Push the HDD towards the electronic board and make sure the

SATA connector is well connected.

1

STEP3: Screw the HDD on the tray tightly or use the HDD fixing Pad.

STEP4: Close the enclosure and screw the rear cover back.

The assembling process is accomplished.

You can use the stand for vertical positioning. If you want to use the device horizontally,

please mount the enclosed rubber feet at the bottom of the case.

2

HDD Formatting Guide

- New hard disks have to be formatted, before you can use them.

- Connect the FANTEC DB-ALU2e via USB 2.0 or e-Sata on your PC.

- Then turn the power on.

STEP1: Right-click on “My Computer” icon and select the ”Manage”

column.

STEP2: Select “Disk Management” and you will see your External HDD

showed “Unallocated”.

3

STEP3: Right-click on the “Unallocated” block and select

“New Partition”.

STEP4: The “New Partition Wizard” will appear. Please follow the

instruction of the wizard to complete.

4

STEP5: When partitioning is completed, the external HDD will be

recognized as a “New Volume”.

5

STEP6: Double-click “My Computer”. You will see the new volume

appears on your PC.

Backup Software

Install the software:

1. Double click the icon to install the software on your computer. The

Software is compatible with Windows 2000/XP/Vista/ 7.

Note: The software can be found on the Driver CD.

2. Click [Next]Æ[Next]Æ[Install]Æ[Finish] to execute the software

installation.

Create a Backup:

1. To open the software double click the “Cabinet” icon.

2. On the top right site you can change the language and layout.

6

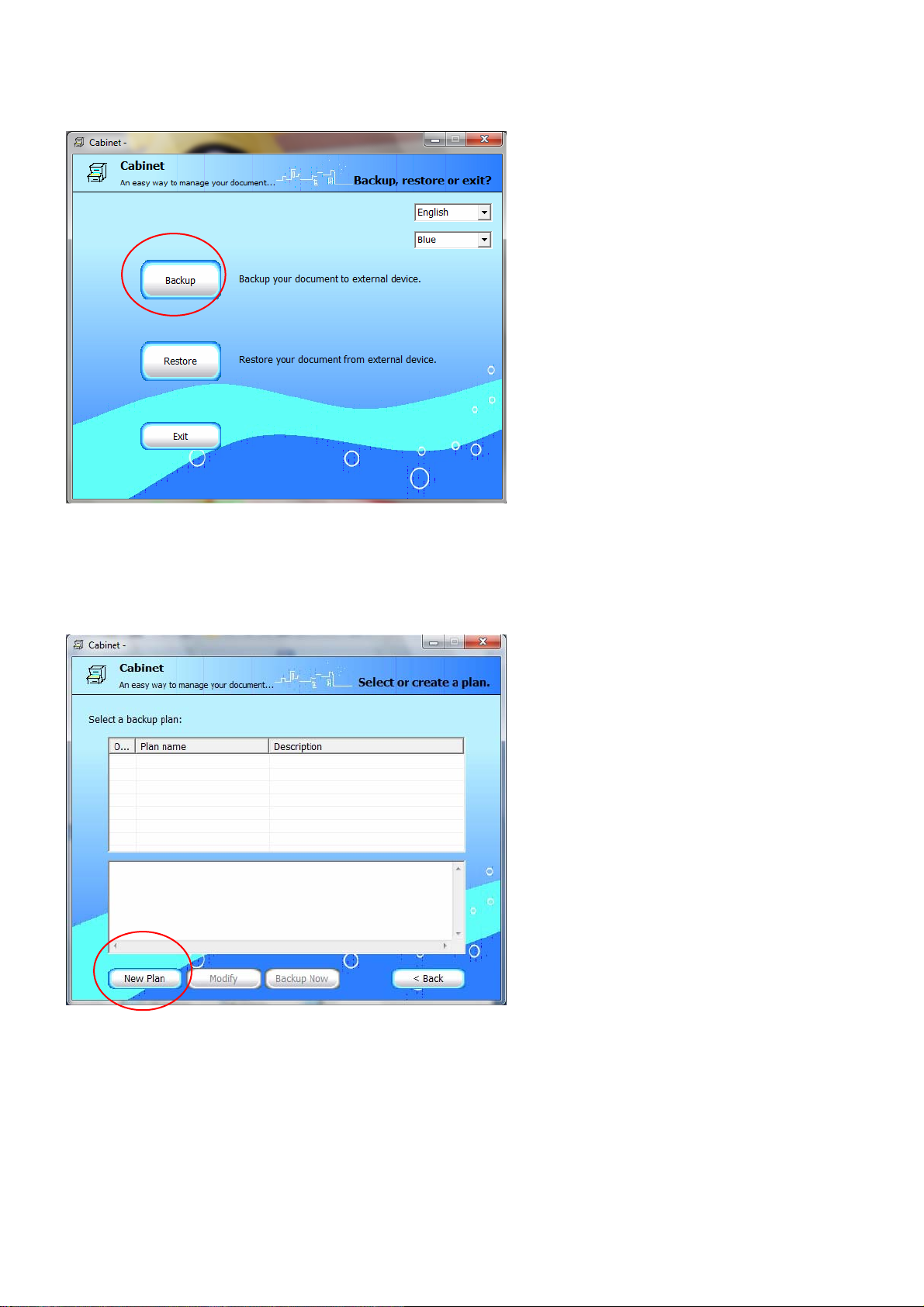

3. Click Backup to start a backup function.

4. To create a backup plan, click on [New Plan]

7

5. On the left side, please select the folders/files that should be saved.

On the right side you can choose the backup drive.

Click [Next] to go ahead.

6. Here you can see a list about all selected backup files.

Click [Next] to go ahead.

8

7. Please enter a name for the backup. Optional it’s possible to encrypt

the backup. For one touch backup button function, enable the OTB

function. Click [Next] to finish the backup settings.

8. Now you can see the Backup profile.

9
