Fantasea Blue Ray Tray Instruction Manual

Fantasea Blue Ray Tray (Cat. No. 2040, 2045, 2050)

Instruction Manual

For Illustration- Blue Ray Double Tray with Housing

Fantasea Blue Ray Tray Instruction Manual

The Fantasea Blue Ray Tray allows integrating different components in an underwater

photo system, including the camera housing, arms, strobes, lights, lens holders and more.

Made from anodized aluminum, this sturdy tray was designed for optimal functionality and

ease of operation. The Fantasea Blue Ray Tray is compatible with almost all compact digital

housings.

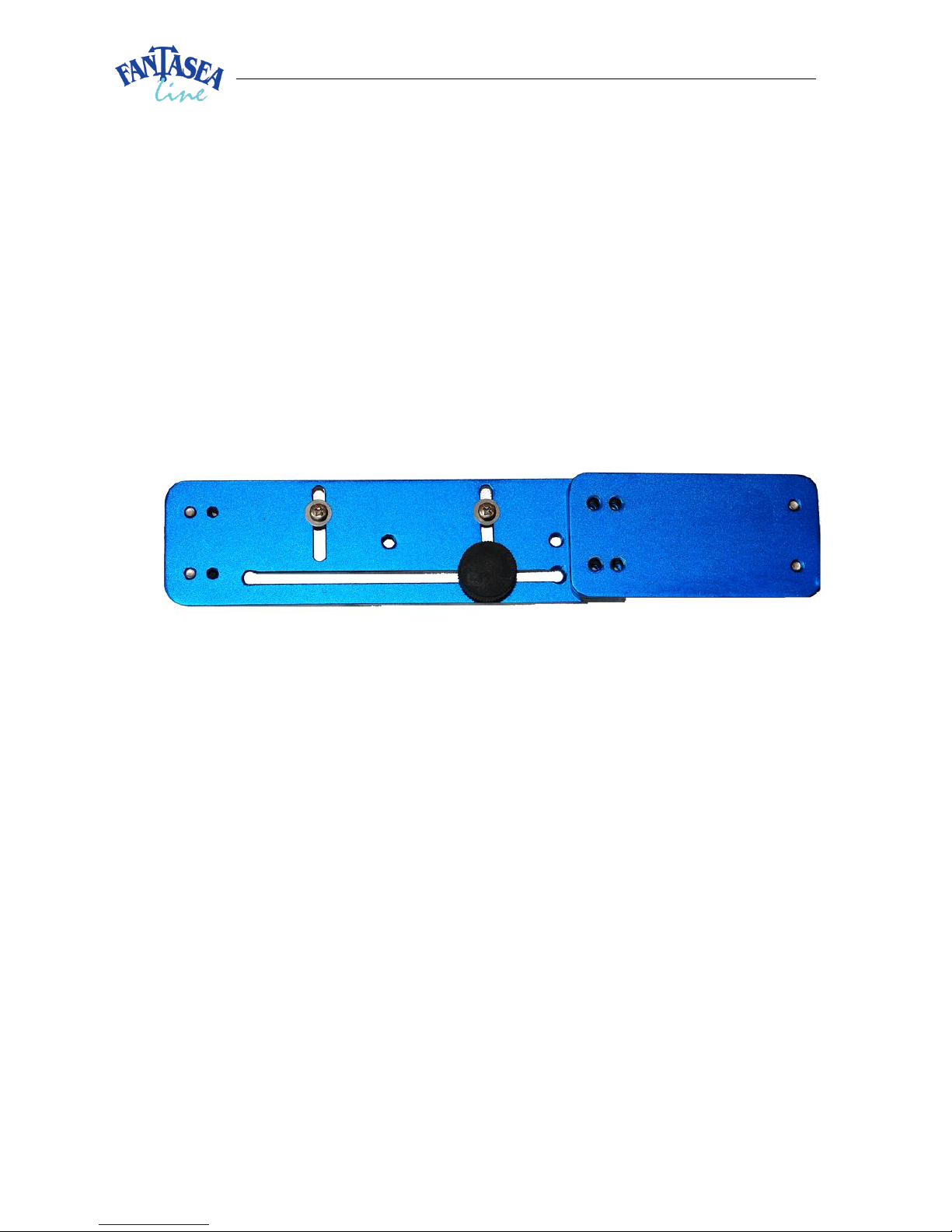

Blue Ray Tray Components

Blue Ray Tray Extension Components (optional)

Screws for

Ikelite Housings

Camera Housing

Mounting Screw

T1 Connector

for arm attachment

Stopper Bar

Mounting Screw Holes

for Ikelite housings

Screw Holes for

Blue Ray Extension

Blue Ray

Extension Plate

Extension

Screws

Extension

Spacer

Fantasea Blue Ray Tray Instruction Manual

Instructions for Use

1. Mounting the Camera Housing on the Blue Ray Tray

Important

Notice!

1. If your Blue Ray Tray includes an extension, it should be assembled

prior to mounting the housing on the tray. Please refer to section #3

for further instructions.

2. If you own an Ikelite housing, please refer to section #2, which

consists of special instructions for mounting Ikelite housings on the

Blue Ray Tray.

a. Using a screwdriver, slightly loosen the two stopper screws at the bottom of the tray,

just enough to allow gliding the stopper back and forth on the tray. There is no need to

completely remove the screws for this purpose.

b. Move the stopper all the way to the back of the tray, as far away as possible from the

mounting screw (image #1).

c. With the top of the tray and black T1 Connector facing up, hold the camera housing

above the tray, so that the mounting screw hole at the bottom of the housing is

aligned with the mounting screw featured on the tray.

d. Make sure that the stopper is positioned behind the support legs featured at the

bottom of the camera housing. If the stopper cannot be positioned behind the housing

support legs, glide it forward in order to position it between the housing mounting

screw hole and support legs.

e. Insert the mounting screw featured on the tray into the mounting screw hole featured

at the bottom of the camera housing. Slightly screw it in, leaving it loose enough to

allow gliding the housing left and right on the tray.

f. It is recommended to position the camera housing on the right side of the tray, as far

away as possible from the Flex Arm that will be mounted on the T1 Connector

featured on the left. This will allow for easier operation of the system, as well as for

the external flash to be positioned further away from the camera lens.

Image #1

Fantasea Blue Ray Tray Instruction Manual

At the same time, all housing support legs must be in contact with the tray stopper in

order for the housing to remain within a fixed position on the tray.

Therefore, glide the housing with the mounting screw attached to it towards the right

side of the tray, till the most right housing support leg is about to reach the right end

of the stopper.

g. Tighten the tray mounting screw to the camera housing.

h. Glide the tray stopper towards the support legs of the housing. If the stopper is

positioned behind the support legs, move it forward towards the legs. If it is positioned

in front of them, move it backwards. Note that in order for the housing to remain

within a fixed position on the tray, it is important that the tray stopper is pushed

against the housing support legs. Therefore, the stopper should be positioned as close

as possible to the legs, allowing for maximum friction.

i. Once the tray stopper has been properly positioned, tighten the two stopper screws at

the bottom of the tray using a screwdriver.

j. The instructions above are relevant for almost all compact camera housings. In case

you own a camera housing that cannot be mounted on the tray following the

instructions provided above, please contact us at [email protected] for any special

parts that might be required in order to mount your housing on the tray.

2. Mounting an Ikelite Camera Housing on the Blue Ray Tray

a. Prior to mounting an Ikelite camera housing on the tray, the tray stopper and

mounting screw should be removed from the tray.

i. Removing the Stopper- Unscrew the two screws at the bottom of the tray

stopper using a screwdriver, and then remove the stopper from the tray.

ii.Removing the Mounting Screw- Glide the mounting screw all the way to the left

or right ends of the slot it is installed through. Unscrew the mounting screw

through the thread featured at the ends of this slot (image #2).In order to avoid

causing any damage to the threads of the screw or tray, make sure to hold the

mounting screw at a 90 degrees vertical angle when unscrewing it.

Image #2

Fantasea Blue Ray Tray Instruction Manual

b. With the top of the tray and black T1 Connector facing up, hold the Ikelite camera

housing above the tray so the two mounting screw holes featured at the bottom of the

housing are aligned with the two Ikelite-housing-dedicated screw holes found on the

tray.

c. Install the two Ikelite-housing-dedicated screws included in the kit.

i. Make sure that the two washers included with this kit are installed on the

screws.

ii.Insert the screws from the bottom of the tray through the aligned screw holes

featured on the tray and housing (image #3).

iii.Tighten the screws to ensure the housing remains within a fixed position on the

tray.

3. Installing the Blue Ray Tray Extension (optional)

Installing the optional Blue Ray Tray Extension enables mounting a second arm on the

tray, thereby integrating additional accessories in the system, such as external flashes,

lights and more.

a. Hold the tray with its bottom facing up, so the black T1 Connector is facing down.

b. Place the black spacer on the end of the tray, opposite the end which features the

black T1 Connector. When properly held and placed, the black spacer is positioned on

top of one end of the tray, while the black T1 Connector is featured at the bottom of

the other end of it (image #4).

Image #3

Image #4

Fantasea Blue Ray Tray Instruction Manual

c. Align the 4 screw holes featured at the end of the tray with those found on the black

spacer.

d. Place the blue extension on top of the spacer, so that the T1 Connector featured on

the blue extension is facing down and the 4 screw holes are aligned with the screw

holes of the black spacer. The set of 4 screw holes featured on the tray, black spacer

and extension should now be aligned (image #5).

e. Insert the 4 screws included with the extension kit through the dedicated aligned

screw holes, starting from the extension and proceeding through the spacer and

tray.

f. Tighten the screws to complete the installation of the Blue Ray Extension.

g. Return to section #1 for instructions regarding mounting the camera housing on the

Blue Ray Tray.

4. Mounting Flex Arms on the Blue Ray Tray

a. The Flex Arm features a T1 Mount at the bottom of the arm that was designed to be

attached to the T1 Connector featured on the tray.

b. Glide the T1 Mount of the Flex Arm on the T1 Connector featured on the tray (image

#6) till they are perfectly aligned (image #7).If you encounter any resistance, slightly

loosen the screw featured on the bottom of the Flex Arm so it doesn’t get in the

way.

c. Tighten the screw featured on the T1 Mount in order to lock the arm on the tray.

d. In order to ensure that the arm is completely locked, try to push it out of the tray by

gliding the Flex Arm T1 Mount out of the T1 Connector. If the Flex Arm comes out,

repeat the steps listed above and make sure that the T1 Mount and T1 Connector

are perfectly aligned when tightening the screw.

Image #5

Fantasea Blue Ray Tray Instruction Manual

e. The Y-S Mount featured on top of the Flex Arm enables mounting a wide

variety of external flashes, LED Lights, focus lights, video lights and other

accessories which feature a Y-S Connector.

Fantasea Products Consumer Limited Warranty

“Fantasea” warrants this Fantasea Line branded product against defects in

materials and workmanship under reasonable use for a period of ONE (1) YEAR,

(two years, where required by law as determined by the origin of the authorized

dealer). This warranty is effective from the date of retail purchase from Fantasea

or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty

Period”). This warranty does not cover any commercial use of the product. If a

product defect arises and a valid claim is received within the Warranty Period, at

its option, Fantasea, or its authorized service facilities will either (1) repair the

product defect at no charge, (2) exchange the product with a product that is new

or which has been manufactured from new or serviceable used parts and is at

least functionally equivalent to the original product. The warranty will not extend

beyond the original warranty period.

Your Fantasea Product should be registered within 30 days of purchase. You

must keep the proof of purchase which indicates the date on which the purchase

was made; as you may be required to show proof of purchase if you need

warranty service. The following conditions apply: 1. This warranty extends to the

original purchaser only. It is not assignable or transferable. 2. The warranty does

not cover damage resulting from misuse, abuse, negligence, or accidents. Proper

maintenance of the Product is the responsibility of the owner. 3. The warranty

Image #6

Image #7

Fantasea Blue Ray Tray Instruction Manual

does not cover damage directly or indirectly resulting from the use of

unauthorized replacement parts or service performed by unauthorized facilities.

4. This warranty does not cover any damage to any other product used in

conjunction with the Fantasea product, including cameras and lenses, and

resulting from any defect in the product materials or workmanship. 5. The cost of

sending the product back to Fantasea or its authorized service facilities is the

responsibility of the customer. 6. The warranty does not cover any incidental

damages resulting from any defects in the product. This expressly includes any

travel reimbursements or any other costs associated with the purchaser’s

optional use of the product. The conditions of this warranty are expressly in lieu

of all other expressed warranties, including the payment of consequential or

incidental damages for the breach of any warranty. Please register your product

on line at this URL: http://www.fantasea.com/registration.

www.fantasea.com/contactFor further information, please contact us at

www.fantasea.comor visit our website
