TLP Pro 520M • Setup Guide

Overview

The Extron TLP Pro 520M is a 5 inch wall mounted touchpanel with an 800x480 capacitive glass touchscreen that can be

mounted in both portrait and landscape orientations. It is ideal for any AV application requiring a compact touchpanel with exible

mounting options and a fully customizable interface. This guide provides instructions for experienced installers to mount and

install a TLPPro 520M touchpanel. For more complete instructions, see the TLPPro 520M User Guide, at www.extron.com.

Setup Checklist

Get Ready

Download and install the latest version of the following software:

Global Configurator Professional or Global Configurator Plus — for setting up and conguring the control processor and

touchpanel.

GUI Designer — for designing layouts for Extron TouchLink®Pro touchpanels and third party touch interfaces.

Both software programs are available from www.extron.com.

Obtain the following network information from your network administrator:

DHCP status (on or off). If DHCP is off, you will also require

IP address Subnet mask Gateway

User name — by default these are either admin or user.

Passwords — by default these are either extron (for admin) or the eld is left blank (for user).

Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION: Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply

section of the TLP Pro 520M User Guide or the IPL Pro User Guide.

ATTENTION: Ne branchez pas les écrans tactiles ou les contrôleurs avant d’avoir lu la mise en garde dans la section

«sources d’alimentation» du TLP Pro 520M UserGuide ou du IPLProUserGuide.

Mount the units. There are several mounting options for TouchLink Pro touchpanels (see Mounting below).

Connect cables to the touchpanels.

Connect the power cords and power on all devices.

Set up the Touchpanels for Network Communication

Connect the PC that you will use for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.

Use the Setup Menu (see page 4) or the Toolbelt feature of Global Congurator Professional or Global Congurator Plus to

set the DHCP status and, if necessary, the IP address, subnet mask, gateway, and related settings for the touchpanel.

Conﬁgure the Touchpanels

The Global Conﬁgurator Professional Help File, the Global Conﬁgurator Plus Help File, and the GUI Designer Help File provide

step‑by‑step instructions and more detailed information. The Global Congurator Professional and Global Congurator Plus help

les include an introduction to the software and sections on how to start a project and conguration.

Mounting

The TLP Pro 520M can be mounted in both landscape and portrait orientations. Bezels for mounting in the landscape orientation

are provided with the touchpanel. Bezels for mounting in the portrait orientation must be purchased separately.

Optional mounting kits, which must be purchased separately, are available. Follow the instructions provided with the kit.

zDesktop mounting — SMB 1 (with the optional SMA-1, which must be purchased separately)

zGlass mounting — GMK 1 (requires the SMB 1, which must be purchased separately)

zRack mounting — RM 1 zBack Box wall mounting — BB 1

TLP Pro 520M • Setup Guide (Continued)

Wall-Mounting or Furniture-Mounting

The touchpanel can also be mounted directly to the wall or directly into furniture, such as a podium or table, without a kit.

ATTENTION: Do not install the TLP Pro 520M in a re resistant rated wall or partition assembly.

ATTENTION: Ne pas installer le TLP Pro 520M dans un mur résistant au feu ou une cloison.

To mount the TLP Pro 520M directly into drywall, follow these steps. The steps are similar if the unit is mounted in furniture (such

as a podium or table).

You will need a marking pen, a wallboard saw or jigsaw, a le or sandpaper, and a Phillips head screwdriver.

1. Use the provided cut‑out template as a guide to mark the wall at a suitable location.

2. Use a wallboard saw or jigsaw to cut away the material within the guidelines drawn in step 1.

ATTENTION: Cut inside the guidelines to maximize the contact between the wallplate adapter and the drywall.

ATTENTION: Couper en suivant le marquage an d’optimiser le contact entre la plaque murale d’adaptation et la

cloison.

3. If there is insulation inside the drywall, remove at least 6inches of the insulation in all directions around the opening. If the

opening is less than 6 inches from a wall stud, remove all the insulation between the opening and the wall stud.

4. Check the size of the opening by inserting the included wallplate adapter into it. If necessary, use a saw, le, or sandpaper to

enlarge the hole.

CAUTION: Smooth the edges of the opening to avoid personal injury during installation and to avoid damage to the

wallplate adapter or cables.

ATTENTION: Limez les bords de l’ouverture an d’éviter toute blessure lors de l’installation et éviter d’endommager la

plaque murale d’adaptation ou les câbles.

5. Use a Phillips head screwdriver to tighten the locking arm screws of the wallplate adapter (see gure 1, 5). As the screws

tighten, the locking arms rotate behind the wall and hold the adapter in place.

ATTENTION: Do not overtighten the screws as this can damage the catches or the wall.

ATTENTION: Ne serrez pas trop les vis au risque d’endommager les attaches ou le mur.

6. Run the cables inside the wall to the hole, leaving enough slack in the cables to connect them to the back of the touchpanel.

7. Plug the cables into the rear panel connectors (see page 4).

zIf required, connect the digital input monitoring port.

zConnect the LAN port to the PoE power injector or a PoE enabled switch.

zIf you use the LAN port only as a network connection, connect a 12 VDC,

1.0 A power supply to the 2‑pole captive screw power input connector.

8. Push excess cables into the wall cavity.

9. Press the touchpanel onto the wall plate adapter

(¢). Four catches, two on each side, hold the

touchpanel in place.

10. Remove the bezel by inserting the provided Extron

pry tool into the notches on the bottom surface

of the bezel (£). The notches are on the bottom

surface of both the landscape and portrait bezels.

11. Attach the touchpanel to the wall plate adapter

with the two Phillips head screws (#4‑40 x ¼”) that

are provided with the touchpanel (¤). For extra

security, these screws can be replaced with two

security screws of the same size (not provided).

12. Replace the bezel by pressing the catches on the

faceplate into the corresponding slots on the front

of the touchpanel.

13. If required, perform the initial conguration, using

the Setup Menu (see page 4). Figure 1. Mounting the TLP Pro 520M

TLP Pro 520M snaps

to wallplate adapter

(2 places on each side).

Tighten screws to

rotate locking arms

and secure wallplate

adapter.

TLP Pro 520M

Mounting

Screws (2)

Remove

Bezel.

Product Category

Front Panel Features

The TLP Pro 520M is shipped with the front panel bezel removed.

CDB

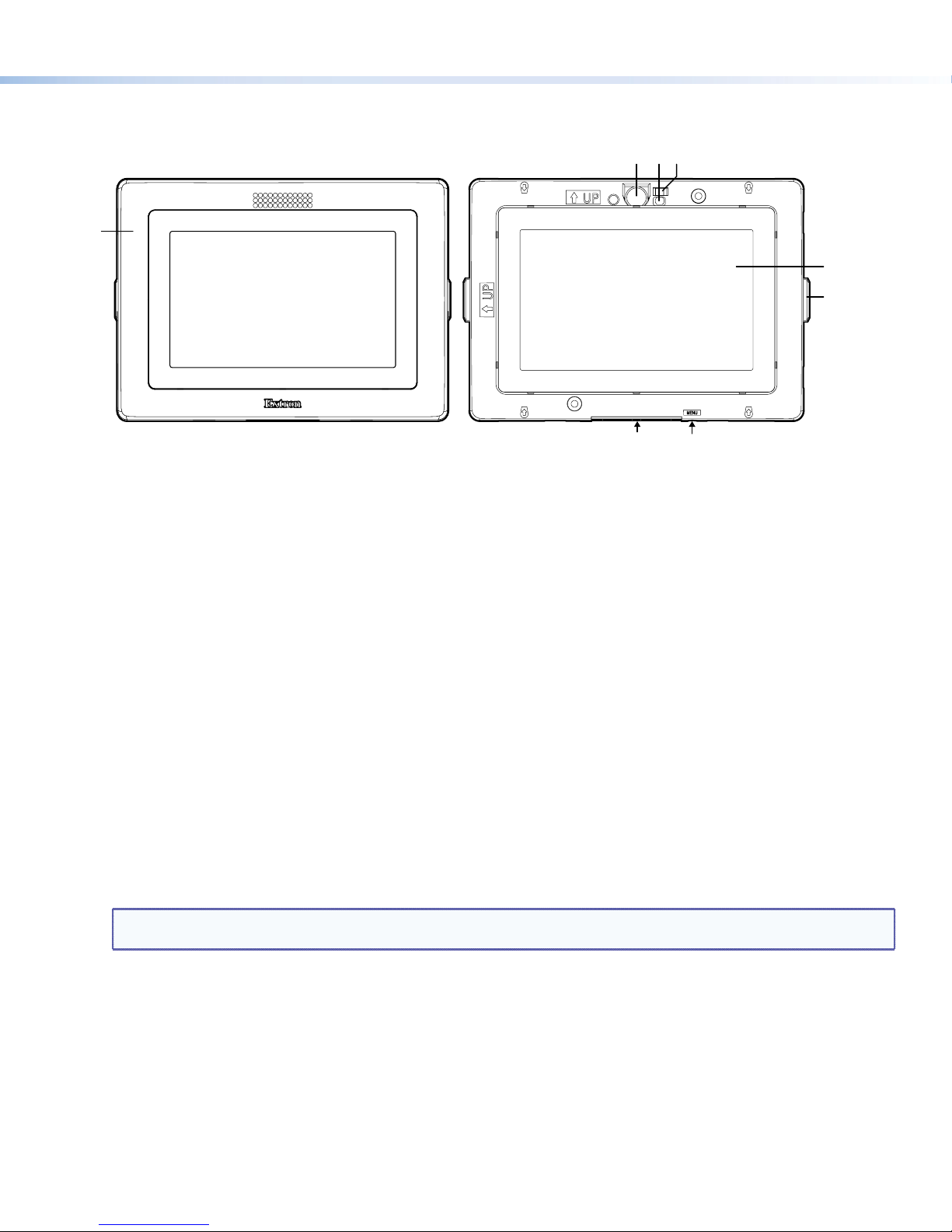

Figure 2. TLP Pro 520M Front Panel with bezel (left) and without bezel (right)

ABezel — the TLP Pro 520M ships with a black front bezel in the landscape orientation.

Use the included removal tool to detach the bezel.

Accessory kits, which must be purchased separately, are available for white bezels and bezels in the portrait orientation.

BCommunication LED — shows the conguration and connection status of the touchpanel:

zUnlit during normal operation (the touchpanel is congured and connected to an IP Link Pro control processor).

zBlinks red if the touchpanel has been congured but is not connected to an IP Link Pro control processor.

zPermanently lit if the touchpanel has not been congured and is not connected to an IP Link Pro control processor.

The indicator can be toggled between enabled and disabled, using the setup menu (see page 4)

CMotion sensor — detects motion between three to ve feet from the touchpanel, and at least 15° from the center axis.

zWhen no motion has been detected for a user‑dened period of time, the touchpanel enters into sleep mode.

zWhen motion is detected by the sensor, the screen display is restored and active.

DAmbient light sensor — monitors ambient light level and adjusts screen brightness, based on the settings congured using

the setup menu (see page 4).

EStatus lights — one on each side can be congured to provide system feedback.

zLight red or green

zBlink or light continuously

FLCD screen — the 5 inch LCD capacitive glass touchscreen has a 800x480 resolution.

GSpeaker — one, placed under the screen, provides audible feedback for the user. The speaker grill is in the bottom surface

of the bezel (see the arrow in gure 2, G).

HMenu button — activates the setup menu (see page4). There is a slot in the bottom surface of the touchpanel, directly under

the Menu text (see the arrow in gure 2, H).

NOTE: The setup menu can also be activated by pressing on the top right and top left corners of the screen

simultaneously for at least 1 second (see Iin gure 2).

68-2153-50 Rev. A

04 14

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Status DisplayAudioAdvanced Exit

Network

Info

Model: TLP Pro 520M

Part Number: 60-1185-02

Firmware

Version: 1.00

PoE Status:On

Network

IP Address:

DHCP:

Host Name:

Off

192.168.254.251

TLP-AB-CD-EF

Display

Resolution:

Project:

Sleep Timer:

800x480

N/A

5 Minutes

Audio

Master Volume:

Master Mute:Off

Advanced

Controller IP:N/A

Project Size:N/A

TLP Pro 520M • Setup Guide (Continued)

Rear Panel Features

Figure 3. TLP Pro 520M Rear Panel

Figure 4. Setup Menu

APower connector — Connect a 12 VDC, 1.0 A power

supply (not included) to this 2‑pole, 3.5 mm captive screw

connector.

ATTENTION: The TLP Pro 520M can use a 12

VDC desktop power supply and is also Power

over Ethernet (PoE 802.3af, class3) compliant. Do

not connect either power supply before reading

the Attention in the Power Supply section of the

TLPPro520 Series User Guide.

ATTENTION: Le TLP Pro 520M peut utiliser une

source d’alimentation externe 12 Vcc, et est

également compatible avec l’alimentation POE

via Ethernet (PoE 802.3af, classe 3). Ne branchez

pas de sources d’alimentation externes avant

d’avoir lu les mises en garde dans la section

«PowerSupply» du TLPPro520 Series User

Guide.

NOTE:

• The TLP Pro 520M ships without a power supply. Either the 12 VDC, 1.0 A power supply or the power injector

must be purchased separately.

• If a 12 VDC and a PoE power injector are both connected to the TLP Pro 520M, the power injector takes

precedence. If a PoE power loss is detected, the touchpanel switches seamlessly to the 12 VDC supply without

needing a system reboot.

BDigital input monitoring port — this two‑pole captive screw port (signal and ground) monitors the voltage level of a system

and triggers an event when the voltage passes the built‑in threshold. The xed pull‑up allows the port to detect a relay

closure or an external voltage pull‑up.

CReset LED— indicates power status and reset status of the device.

DReset button — this recessed button allows the unit to be reset. The TLP Pro 520M has three reset modes that are initiated

by pressing the reset button. For full information about these different modes, see the TLPPro 520 Series User Guide.

ENetwork and Power over Ethernet (PoE) connector — is on the right side of the recessed area. Connect the touchpanel to

the LAN using a twisted pair cable, terminated with an RJ‑45 connector. The connector can also be used with a PoE power

injector (not provided).

An Extron IP Link Pro control processor must also be connected to the same network as the TouchLink Pro touchpanel.

Setup Menu

The setup menu opens when the menu button is pressed (see Front

Panel Features, Hon page 3). They are also activated by pressing on

the top right and top left corners of the screen simultaneously for at least

1 second.

There are ve different screens: Status, (shown in gure 4) Network,

Display, Audio, and Advanced. The screens can be selected by pressing

the appropriate button in the navigation bar at the top of the screen (for

more information, see the TLPPro 520 Series User Guide).

Autres manuels pour TLP Pro 720M

Table des matières

Autres manuels Extron electronics Écran tactile

Extron electronics

Extron electronics TLP Pro 720M Manuel utilisateur

Extron electronics

Extron electronics TLP 700TV Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1230WTG Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 720M Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1230WTG Manuel utilisateur

Extron electronics

Extron electronics Scan Rate Indicator SRI 200 Manuel utilisateur

Extron electronics

Extron electronics TouchLink Series Instructions d'utilisation

Extron electronics

Extron electronics TouchLink TLP 350CV Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1520TG Manuel utilisateur

Extron electronics

Extron electronics TouchLink TLP Pro 1025T Series Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1225MG Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1225TG Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 300M Series Manuel utilisateur

Extron electronics

Extron electronics TouchLink TLP Pro 1020 Series Manuel utilisateur

Extron electronics

Extron electronics TLP 710MV Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 720C Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1225MG Manuel utilisateur

Extron electronics

Extron electronics TouchLink TLP 710TV Manuel utilisateur

Extron electronics

Extron electronics TLP 1000MV Manuel utilisateur

Extron electronics

Extron electronics TLP 700MV Manuel utilisateur

Extron electronics

Extron electronics ZRTP Series Manuel utilisateur

Extron electronics

Extron electronics SMK 2 Manuel utilisateur

Extron electronics

Extron electronics TLP 1000MV Manuel utilisateur

Extron electronics

Extron electronics TLP Pro 1725TG Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
