Setup Guide — YCS SW2 A

The Extron® YCS SW2 A is a two input, dual output

video and audio switcher with transcoding and

auto-input switching capabilities and digital time base

correction (TBC). This guide provides basic instructions

for setting up and operating the switcher.

Installation

Step 1 — Mount the unit

Mount the switcher on a rack shelf, furniture, or a projector pole mount if desired.

Step 2 — Connect video inputs

Connect composite video or S-video source devices to the Video, S-video, or

both input connectors.

Step 3 — Connect video outputs

Connect video output devices to the Video (composite), S-video, or both

output connectors.

Step 4 — Connect audio inputs

a. Wire the RCA input connectors to audio sources as shown

in the diagram at right.

b. Connect the left stereo channels of the audio sources to

one or both white RCA Audio Input connectors.

Connect the right stereo channels of the audio input

sources to one or both red RCA Audio Input connectors.

Step 5 — Connect audio outputs

a. Wire the RCA audio output connectors to audio output devices as

shown in step 4a, above.

b. Connect the left stereo audio channels of the output devices to one

or both white RCA Audio Output connectors.

Connect the right stereo audio channels of the output devices to

one or both red RCA Audio Output connectors.

Step 6 — Wire the power connector (optional)

If using a different external power supply from the one provided with the YCS, wire the

included 2-pin captive screw connector to your power supply as shown below.

C The power supply must not be permanently ﬁxed to the building or similar structures.

The power supply must not be located within environmental air handling spaces or the

wall cavity.

The installation must be in accordance with the applicable provisions of the National

Electrical Code ANSI/NFPA 70, Article 725 and the Canadian Electrical Code,

Part 1, Section 16.

The power supply must be located within the same vicinity as the Extron A/V

processing equipment in an ordinary location, Pollution Degree 2, secured to a podium,

desk, or equipment rack in a dedicated closet. (Continued on reverse side)

Tip (+)

Sleeve ( )

AUDIO

INPUTS OUTPUT

VIDEO

S-VIDEO

INPUTS OUTPUT

SECTION A–A

Ridges

Smooth

Power Supply Output Cord

A A

3/16” (5 mm) Max.

Setup Guide — YCS SW2 A, cont’d

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

www.extron.com

C Always use a power supply speciﬁed by Extron for the YCS SW2 A. Use of

an unauthorized power supply voids all regulatory compliance certiﬁcation

and may cause damage to the supply and the YCS.

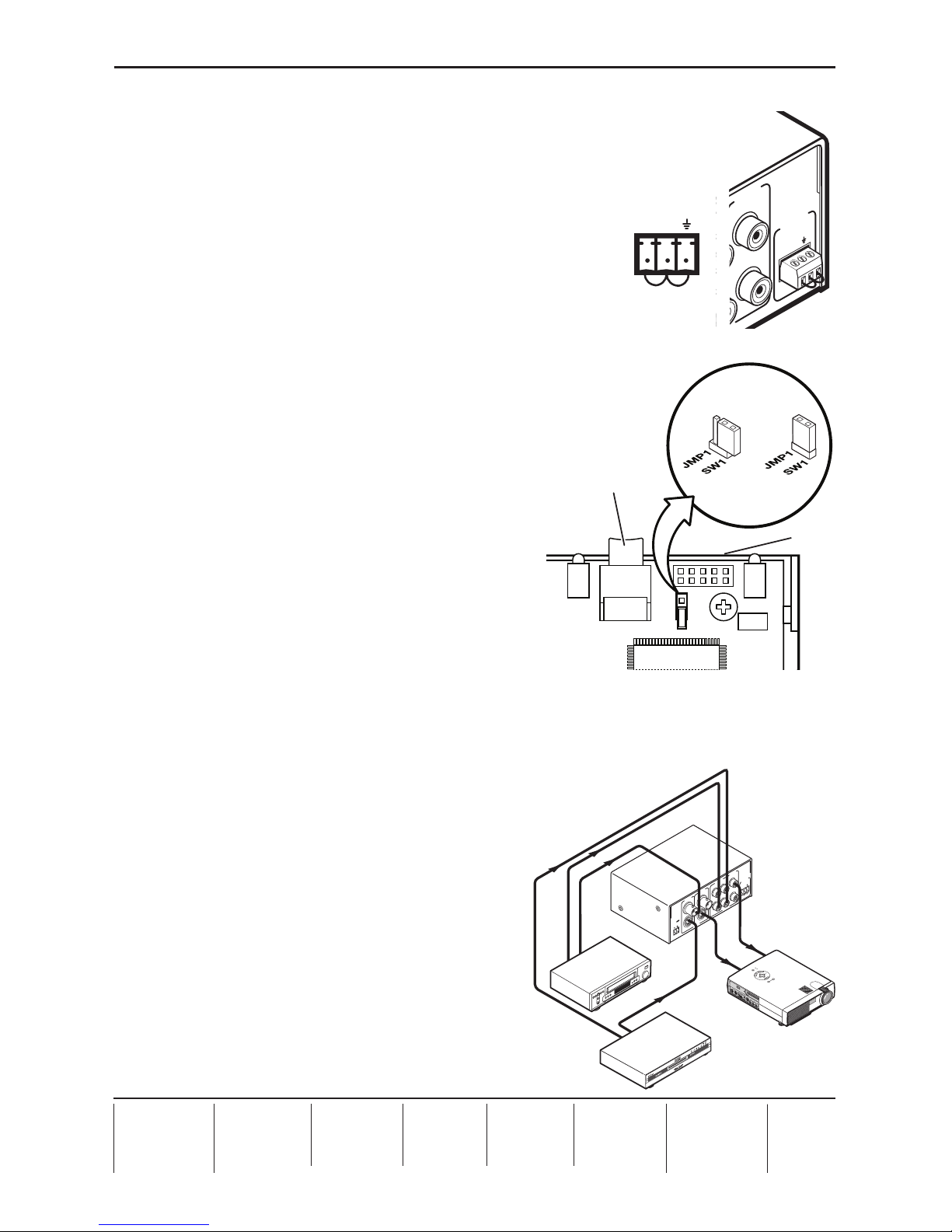

Step 7 — Enable auto-input switching (optional)

To set up the YCS to automatically select the active, connected input:

a. Use two jumper wires to connect pins 1 and 2 and pins 2 and

3 of the provided 3-pin captive screw connector. Tighten the

screws to hold the jumper wires securely in place.

b. Insert the captive screw plug into the Contact/Auto-SW

connector as shown at right.

Step 8 — Enable black and white mode (optional)

To enable the YCS to detect NTSC signals that are black and white only, place the switcher in

black and white mode as follows:

a. Remove the four case screws on the sides of the

unit and lift off the top cover.

b. Locate the jumper at JMP1 and SW1 on the YCS

internal board (behind the front panel buttons).

Place the jumper onto both the SW1 and JMP1

pins.

C When placing the jumper on the two

pins, ensure that the ﬁne wire connecting

the two sleeves of the jumper is at the top

(outside). Do not attempt to force the

pins through the wire.

c. Replace the case cover.

Step 9 — Power on

Apply power to the YCS, the input sources, and the output devices.

Selecting Inputs by Contact Closure

The Contact/Auto-SW connector on the YCS rear panel enables optional remote input

switching via a latching contact closure device (as

an alternative to auto-input switching, described in

step 7, above).

To switch inputs using contact closure:

a. Connect a latching contact closure device to

pins 1, 2, and _ of the Contact/Auto-SW

connector on the rear panel.

b. To select input 1, momentarily short pin 1 to

the _ pin. To select input 2, momentarily short

pin 2 to the _ pin.

Application Diagram

The ﬁgure at right provides an example of how a

YCS SW2 A switcher may be connected.

68-1446-50

Rev. A

02 10

JMP1 J26

CR5

SW1

Front

of Unit

Input 1 Button

VIDEO

VIDEO AUDIO

S-VIDEO

CONTACT

AUTO-SW

POWER

12V

0.4A MAX

INPUTS OUTPUT

INPUTS

OUTPUT

REMOTE

DVD

Projector

VCR

Extron

YCS SW2 A

Transcoding

Switcher with

Audio

Video

Audio

S-video

VIDEO

VIDEO AUDIO

S-VIDEO

CONTACT

AUTO-SW

POWER

12V

0.4A MAX

INPUTS OUTPUT

REMOTE

SELECT

POWER

STATUS

OFF

SOURCE AUTO ADJUST

1 2

CONTACT

AUTO-SW
