Extron electronics USB HUB4 Series Manuel utilisateur

USB HUB4 Series • Setup Guide

This guide provides basic instructions for setting up the

Extron USB HUB4 Series AAP and MAAP.

HUB4 USB MAAP HUB4 USB AAP

ACTIVITY ACTIVITY

USB HUB4 MAAP USB HUB4 AAP

ACTIVITY ACTIVITY

Installation

Step 1 — (Optional) Install the wall box or mounting bracket

If using an electrical wall box or a mounting bracket, install it in the wall or furniture (see

Mounting in the USB HUB4 Series User Guide available at www.extron.com).

Step 2 — Mount the HUB4 onto a mounting frame

Attach the USB HUB4 AAP or USB HUB4 MAAP to an appropriate AAP or MAAP sized

mounting frame, rack space frame, or other Extron architectural product (see Mounting in the

USB HUB4 Series User Guide).

Step 3 — Connect the USB HUB4 to the host computer

For ease of installation, connect the USB HUB4 to the host computer in either of the following

ways:

• Using the Type mini-B USB port: Connect a Type A to

Type mini-B cable (provided) to the USB mini-B port on

the USB HUB4 rear panel.

• Using the green captive screw USB In port: Remove

the Type B or Type mini B terminator from a Type A to B

or Type A to mini-B USB cable and insert the cable wires

into the 5-pole USB In port as shown below and at right.

This method may be necessary if space is limited.

(See Connecting to the captive screw USB port in the

USB HUB4 Series User Guide.)

Wire color Port

Braided shield

V+ (+5 VDC)

Red

S (Shield)

White D- (Data -)

Green D+ (Data +)

Black –(Ground)

NOTE: Choose one of these two methods to connect the HUB4 to the host

computer. Do not connect the host computer to both HUB4 ports at the same time.

USB IN

RWGB

+V D- D+ S

IN OUT

WIRE COLOR

POWER

12V

1.1A MAX

Braided Shield / S

Red / +V

White / D

Green / D+

Black /

USB Cable (6’)

To Host

Computer

USB Port

Type A

USB

Strip 1”to 2”from the outer jacket

of the USB cable to expose the wires.

USB HUB4 AAP

Captive

Screw

USB

Connector

Type mini B

USB Connector

Mounting

Frame

Rear

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility,

and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.

USB HUB4 Series • Setup Guide (Continued)

68-1735-50

Rev. B 06 22

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

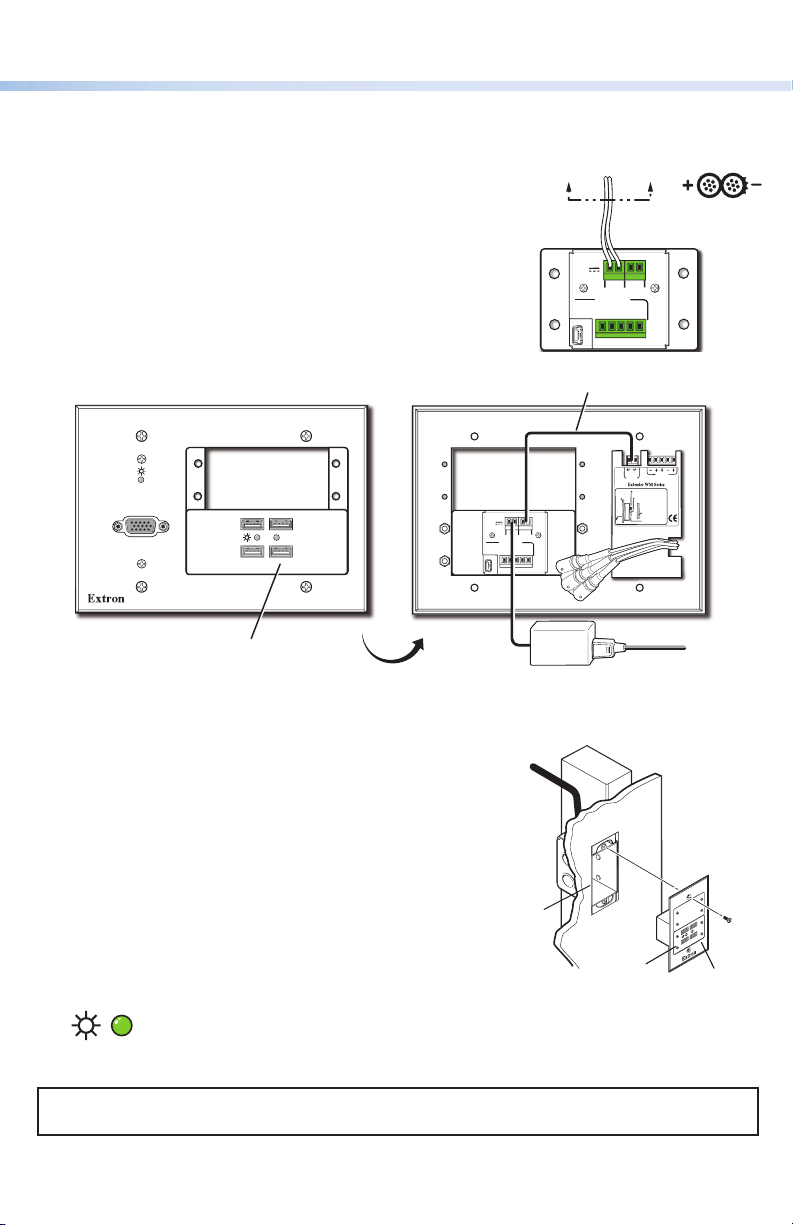

Step 4 — (Optional) Wire power connector

The USB HUB4 can be powered by the host computer.

However, if the USB peripheral devices connected to the

USB HUB4 require more power than the USB HUB4 can

provide, wire an optional Extron PS 1215 1.5 A, 12 VDC

power supply to the 12VDC Power In ports 1 and 2 on the

rear panel, as shown at right.

Connecting additional Extron devices

If using an additional Extron device, such as a WM Series

Extender, with the external power supply, connect the device

power cord to the 12 VDC Power Out ports 3 and 4 (see

image below).

USB IN

RWGB

+V D- D+ S

IN OUT

WIRE COLOR

POWER

12V

1.1A MAX

SECTION A–A

Power Supply

Output cord

Maximum: Maximum peaking

and gain

Medium: Mid-level peaking

and gain

Normal: Unity gain

Circuit

board

Faceplate

www.extron.com

33-612-01 D

02 05

9-18 VDC

Power

Audio

EXTENDER WM AAP

AUDIO IN

USB HUB4 AAP

ACTIVITY

USB IN

RWGB

+V D- D+ S

IN OUT

WIRE COLOR

POWER

12V

1.1A MAX

Rear

Front

Extender WM AAP

USB HUB4 AAP Desktop Powe

Supply

Power Loop Out

Step 5 — (Optional) Mount unit in wall box

If using an electrical box, mount the USB HUB4 and

the attached mounting frame onto the box (see the

image at right). If using a mounting bracket, this step

is not needed.

Step 6 — Connect peripheral devices

Attach the peripheral USB devices to the front panel

USB Type A ports.

Step 7 — Power on

Power on the host computer and the desktop power

supply (if applicable). Check the front panel power

indicator LED to verify that the HUB4 is receiving

power.

Wall opening

flush with

edge of box

Extron

CPM101

Mounting

Frame

Extron

USB HUB4

USB Hub

VTT001MAAP

POWER

USBHUB4 MAAP

ACTIVITY
