TeamWork®601 Kit • Installation Guide

TeamWork 601 Kit

The TeamWork 601 kit consists of an analog and digital video switcher, system controller, Cable Cubby®, and cables packaged

together as a complete system that, in most cases, requires no conguration.

0.5AMAX

POWER

12V

INPUTS

MPS 601

CONTACTIN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI RS-232

13 5

246

T TC G T

C G

GC T TC G T +V

C G

Tx Rx G

OUTPUT

REMOTE

Extron

100-120V 50/60Hz

12A MAX POWER OUTPUT 12A MAX

LAN

COM

IN S G

+5VRX

INPUTIR

LISTED 17TT

AUDIO/VIDEO

APARATUS

Extron

Cable Cubby 1402

Cable Access Enclosure

Regional Sales

120

150 SOUTH

NORTH

EAST

WEST

Extron

MPS 601

Switcher

Extron

IPL T PC1

System Controller

RS-232

Control Cable

HDMI

VGA

Extron

HDMI Pro Cable

HDMI Video

Flat Panel

Display w/ Integrated

Speakers

Extron Show Me Cables

Flat Panel

AC Cord

Contact Closure

& Tally

Regional Sales

120

150 SOUTH

NORTH

EAST

WEST

140

nclosure

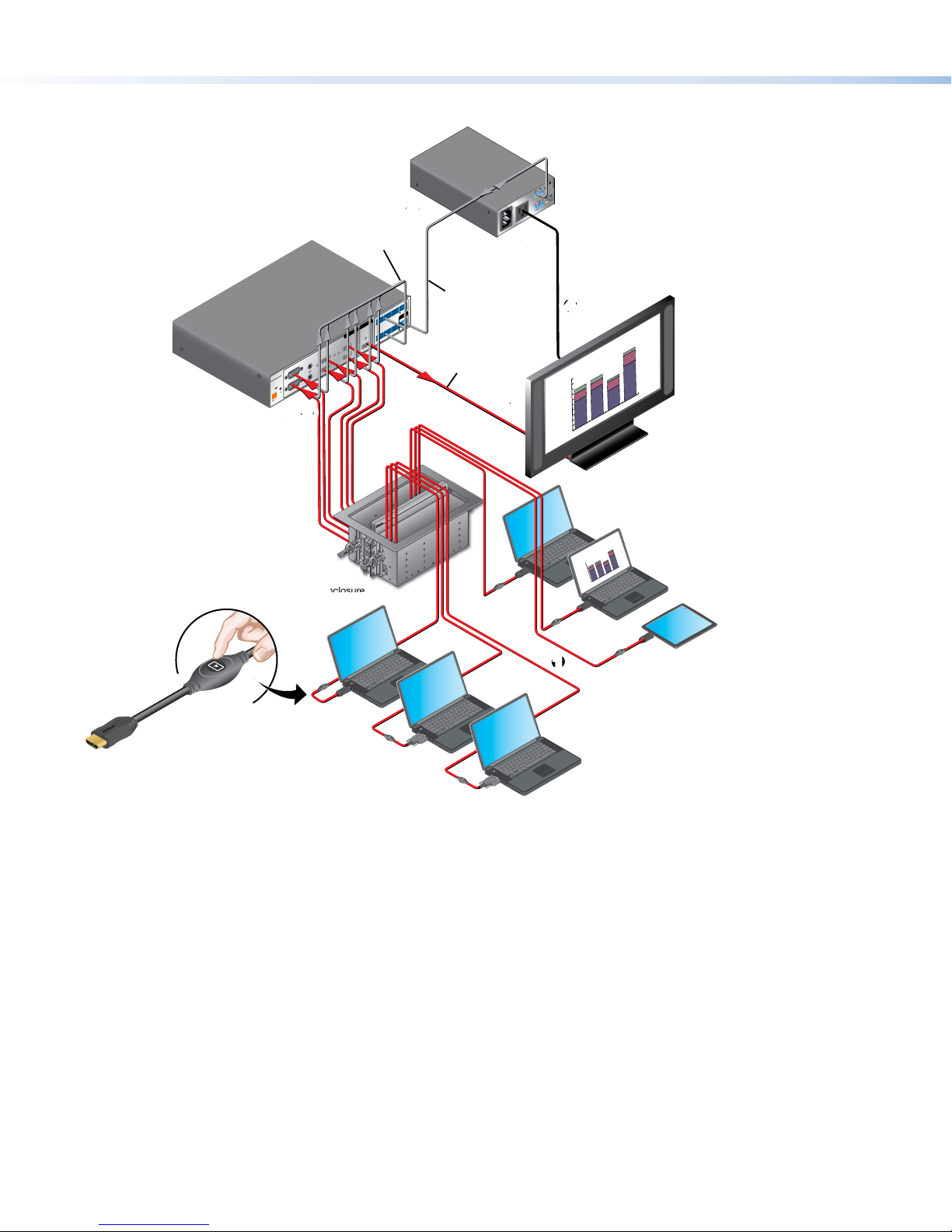

The diagram above shows a typical TeamWork 601 application. Digital or Analog input devices (laptops and a tablet) connect to

the switcher, using Show Me®cables. Analog video is digitized to HDMI output. The Show Me cables allow the user to select the

active input on the switcher.

A control cable connects the RS-232 ports on the switcher and the system controller.

The system controller powers the display on and off. The system controller has been congured so that when a video signal is

detected on any of the switcher inputs, the display is powered on. A 30 second timer is started when no signal is detected on

any of the switcher inputs. If an active source is detected before the timer expires, the display remains on and the timer is reset. If

30seconds pass without an active signal, the system controller powers off the display.

The TeamWork kits work, as described, without further software conguration. To change the behavior or operation of the system,

congure the system controller (see the IPL T PC1/IPL T PC1i User Guide at www.extron.com).

TeamWork 601 Kit • Installation Guide (Continued)

TeamWork 601 Kit Included Parts

TeamWork 601

Video switcher 1 (MPS 601)

2 VGA and 4 HDMI inputs

System controller 1 (IPL T PC1)

Cable Cubby 1402 1

Power modules 2 US modules included

(4 AC outlets total)

HDMI Show Me cables 4

VGA Show Me cables 2

HDMI cable 1

Switcher control cable 1

Installation Guide TeamWork 601 Kit Installation Guide

Display Requirements

The TeamWork system is designed to work with most brands and models of at panel displays available worldwide. Test the

display thoroughly prior to installation or mass deployment of TeamWork systems. For optimum performance, consider the

following when selecting the displays for your TeamWork installation.

Power attributes — The system works by controlling AC power to the display. When the display is in the ON state with an HDMI

input selected, it must be able to power back ON to the same HDMI input when AC power is disconnected and reconnected. If

the display does not behave this way, use an alternate display. Alternatively, you may need to control the display a different way

(for example RS-232, infrared, or via Ethernet) using a different type of Extron control processor.

Sleep mode — If the display has a Sleep Mode feature (sometimes called “auto sleep”), disable it. Many displays have an option

to disable this within the menu settings.

Resolution — The TeamWork systems were designed for use with at panels having an HDMI input connector and having a

native resolution of 1080p. Many consumer and professional displays support 1080p natively.

Audio — Audio from source devices is supported in the TeamWork system by routing it as an embedded audio signal to the

display for playback via integrated speakers. Most displays with HDMI inputs and integrated speakers work this way. Some

professional or commercial grade displays do not have integrated speakers and will not support audio playback. Typically, source

devices with HDMI output connectors embed audio onto the HDMI connector.

NOTES:

• Always check and test compatibility before installation. Some systems may require advanced conguration of the system

controller and require the display to be controlled by RS-232, Ethernet, or Infrared.

• Some displays support a lockout of local buttons. Extron recommends that, after setup, user accessible controls are

locked whenever possible. This ensures the display remains optimized for the TeamWork system.

0.5 A MAX

POWER

12V

INPUTS

MPS 601

CONTACT IN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI RS-232

135

246

TTCG TCG

GCT TCG T+V

Tx Rx G

OUTPUT

REMOTE

12A MAX

POWER OUTPUT 12A MAX

Tx LAN

Rx +5V

INPUT IR

COM

100-120VAC 50/60Hz

IN SG

LISTED 17TT

AUDIO/VIDEO

APARATUS

Ext

ron

GA and

HDMI Swit

cher

Extron

System

Controller

RS-232

Switcher Control

AC Power

1080p Native

Resolution Display

The display should have an

HDMI input and support

embedded audio.

For Audio Playback,

the display should ha

integrated speakers.

Teamwork Systems work

by controlling AC power

to the display.

TeamWork systems require a display that

returns to the previous state when the power

cord is disconnected and then plugged back

in.

How to check if a display is compatible:

1. Apply AC power to the display.

2. Turn the display on.

3. Select the video input.

4. Adjust the volume.

5. Unplug the display (remove AC power).

6. Re-apply AC power to the display.

If the display powers back up (to the on state)

and to the same input and volume level, the

display will work with the TeamWork system.

TeamWork 601 Kit • Installation Guide (Continued)

Installation

Install the AC Power Modules in the Cable Cubby

Detailed instructions are in the Cable Cubby Installation Guide.

Extron recommends the layout shown to the right with the two power modules

diagonally opposite each other and the cable connectivity brackets diagonally

opposite each other.

Slide the power modules in position (1in the gure below, right) and secure them

with the provided #6-32 mounting screws and star washers (2).

WARNING: Risk of electric shock: To ensure good electric grounding,

you must use the star washers with the screws.

AVERTISSEMENT : Risque de choc électrique: An d’assurer une mise à la

terre correcte, vous devez xer les modules d’alimentation au Cable Cubby

à l’aide de vis et de rondelles en étoile.

Install the Cable Pass-through Modules and ShowMe Cables

INPUT

(to sour

ce device)

OUTPUT

(to switcher)

Three-conductor Pigtail

(for contact closure

and tally)

Top

of Cable Cubby

Bottom

of Cable Cubby

Share Button

ATTENTION:

• The end with the button and LED connects to the

input devices and must come out of the top of the

Cable Cubby.

• Le bout avec le bouton et la LED se connecte

aux appareils d’entrée et doit ressortir du haut du

CableCubby.

• The end with the three-conductor pigtail connects

to the switcher and must come out of the bottom of

the Cable Cubby.

• Le bout avec le mini câble à trois conducteurs se

connecte au sélecteur et doit ressortir du bas du

CableCubby.

1. Insert cables into the grommet plate (3) and through the

cable module.

2. Plug any unused holes.

3. Attach the trim plate to the cable module (4).

4. Attach the grommet plate to the bottom of the cable module

(5).

5. Insert the cable pass-through modules into the Cable Cubby

from underneath and secure them in position with the

provided #6-32 mounting screws and star washers.

NOTE: The diagrams on this page show how

to install HDMI Show Me cables in the cable

connectivity brackets. Install VGA or mini

DisplayPort Show Me cables in exactly the same

way.

Slide AC power modules

under the Cable Cubby.

Secure the bracket using

two of the provided star

washers and pan-head

mounting screws.

Attach the Show Me Cable Trim Plate

to the top of the module, using the

provided module screws (4).

Attach the grommet

plate to the bottom

of the module, using

the provided

module screws (4).

3Insert Show Me

Cables into the

grommet plate.

US Model

125V ~ 50-60Hz 12A MAX TOTAL

Power Modules (2)

Cable Pass-through

Modules (2)

Mounting and Placement of System Components

Decide where to install the TeamWork system and where the individual components will be placed.

zPlace the Cable Cubby somewhere that provides easy access for as many users as possible. Ensure that there is ample

space for cables under the table. Ensure that the edge on which the lid opens is correctly oriented.

zPlace the system controller close to the display.

zPlace the MPS 601 switcher close to the Cable Cubby.

Shown mounted with

optional Extron UTS 100/UTS 150

Under Table Shelf System.

Secure Show Me Cable

to Cable Cubby and create a

loop.

HDMI Video to Display

Extron

Cable Cubby

Cable Access Enclosure

HDMI Show Me

Cable

VGA Show Me

Cable

IPL T PC1

100

INPUT

LINK

ACT

POWER

System

Controller

Switcher

Power

Supply

AC Power To Display

MPS 601

MEDIA PRESENTATION SWITCHER

CONFIG

SIGNAL

INPUTS

INPUTS OUTPUT

12 3456

HDCP

1 2 3 4 5 6

AUTO

SWITCH

1080p Native

Resolution Display

Installing the Cable Cubby in the Table

Before cutting the table and installing the Cable Cubby, see the Cable Cubby Installation Guide (see www.extron.com).

ATTENTION:

• Ensure that the orientation of the Cable Cubby and the hole dimensions are correct before cutting the table.

• Assurez vous que la position du CableCubby et les dimensions du trou soient correctes avant de couper la table.

• After installation, secure the cables to avoid them becoming tangled (see the gure above).

• Après l’installation, sécurisez les câbles de façon à éviter qu’ils ne s’emmêlent (voir l’illustration au-dessus).

TeamWork 601 Kit • Installation Guide (Continued)

Cabling

0.5AMAX

POWER

12V

INPUTS

MPS 601

CONTACTIN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI RS-232

13 5

246

T TC G T

C G

GC T TC G T +V

C G

Tx Rx G

OUTPUT

REMOTE

Extron

100-120V 50/60Hz

12A MAX POWER OUTPUT 12A MAX

LAN

COM

IN S G

+5VRX

INPUTIR

LISTED 17TT

AUDIO/VIDEO

APARATUS

Extron

Cable Cubby 1402

Cable Access Enclosure

Regional Sales

120

150 SOUTH

NORTH

EAST

WEST

Extron

MPS 601

Switcher

Extron

IPL T PC1

System Controller

RS-232

Control Cable

HDMI

VGA

Extron

HDMI Pro Cable

HDMI Video

Flat Panel

Display w/ Integrated

Speakers

Extron Show Me Cables

Flat Panel

AC Cord

Contact Closure

& Tally

Regional Sales

120

150 SOUTH

NORTH

EAST

WEST

1402

nclosure

1Connect the Show Me cables to the source devices.

2Connect the Show Me cables to the switcher.

3Connect the switcher to the display.

4Connect the display to the system controller.

5Connect the system controller to the switcher.

6Connect power to the switcher and system controller.

Show Me Cables

The Extron Show Me cables are for use with Extron TeamWork systems. They feature a Share button for remote input source

selection and a control pigtail, which may be wired directly into Extron switchers with contact closure and tally outputs.

HDMI Show Me cable

INPUT

(to source device)

Top of Cable Cubby

OUTPUT

(to switcher)

Bottom of

Cable Cubb

Share Button Three-conductor

pigtail for contact

closure and tally

VGA Show Me cable

INPUT

(to source device)

Top of Cable Cubby

OUTPUT

(to switcher)

Bottom of

Cable Cubb

Share Button Three-conductor

pigtail for contact

closure and tally

Display Port

Show Me cable

INPUT

(to source device)

Top of Cable Cubby

OUTPUT

(to switcher)

Bottom of

Cable Cubb

Share Button Three-conductor

pigtail for contact

closure and tally

Mini Display Port

Show Me cable

INPUT

(to source device)

Top of Cable Cubby

OUTPUT

(to switcher)

Bottom of

Cable Cubb

Share Button Three-conductor

pigtail for contact

closure and tally

Connecting Show Me Cables

1. Connect the input end of the Show Me cable to the source device.

2. Connect the HDMI output to the Extron switcher.

SHOW ME CABL

SWITCHER END

(output)

Male HDMI connector

Three-conductor

pigtail for contact

closure and tally

Extron MPS 601 Switcher

CONTACT IN / TA LLY OUT

135

246

TTCG TCG

GCT TCG TCG

Black

(T)

Red

(C)

Pigtail

Drain wire

(not used)

Male VGA connector

0.5 A MAX

POWER

12V

INPUTS

MPS 601

CONTACT IN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI RS-232

135

246

TTCG TCG

GCT TCG T+V

Tx Rx G

OUTPUT

REMOTE

3. Connect the black (Tally Out) and red (Contact In) pigtail wires as shown above. The number adjacent to the Tally Out and

Contact pins must correspond to the video input on the switcher.

4. Press the Share button to switch the connected source to the main presentation display. Pressing the Share button creates

a momentary contact closure, which triggers the switcher to select the connected source device. If a tally output is available,

the button lights blue.

NOTES:

• The drain wire does not need to be wired to the switcher. The Show Me cables are grounded via the video

connectors.

• Do not connect the Show Me cable to the +V pin on the Extron switcher.

• The source device provides the +5 VDC supply voltage needed to illuminate the Share button. If the source device

does not supply this +5 VDC, the Share button will not illuminate. Some mobile devices do not provide the required

voltage to light up the button.

• Digital Show Me cables support embedded audio and CEC signals.

TeamWork 601 Kit • Installation Guide (Continued)

Connect the Switcher to the Display Device

Connect the switcher HDMI output to the HDMI input of the display device, using the provided cable. Do not use HDMI to DVI

adapters. If necessary, see the user guide for the display device.

Connect the Display to the System Controller

Connect the power cord from the display device to the power output receptacle of the system controller. TeamWork systems work

by controlling the AC power to the display.

Connect the System Controller to the Switcher

Connect the COM port of the system controller to the RS-232 port on the switcher with the provided control cable.

System Controller

(IPL T PC1)

COM

TX +5VRX

Switcher

(MPS 601)

3-pole connecto

(to switcher)

4-pole connector

(to system controller)

Switcher Control Cable

RS-232

Tx Rx G

REMOTE

ATTENTION:

• The two ends of the RS-232 control cable are different. One has a 4-pole connector, the other has a 3-pole connector.

• Les deux terminaisons du câble de contrôle RS-232 sont différentes. L’une a un connecteur 4 pôles, l’autre a un

connecteur 3 pôles.

Connect Power

The system controller uses an internal power supply. Connect the power cord to a wall outlet.

The TeamWork 601 systems use a switcher with a 12 VDC, 1 A power supply, which is provided with the switcher.

ATTENTION:

• Do not power on the MPS 601 switcher until you have read the Attention in the Power Supply section of the

MPS 601 User Guide.

• Ne branchez pas le sélecteur MPA 601 avant d’avoir lu la mise en garde dans la section «sources

d’alimentation» du MPS 601 User Guide.

POWER

12V

0.4A MA

Testing the System

The TeamWork system has been pre-congured so that, once all the connections are made and the devices are all powered on,

there should be no need of further conguration for the system to work. To ensure that the system has been set up correctly,

follow these steps:

1. Power on the equipment

zSource devices

zSwitcher

zSystem controller (IPL T PC1)

2. Press the Power button (1) on the front panel of the system controller.

The LED (2) lights green when power is being supplied to the attached

output device.

3. Turn on the display and conrm that the display is receiving power.

4. Go to the menu for the display and disable the Sleep Mode feature. If

necessary, see the display user guide.

5. Press the power button on the power controller. Ensure the LED goes out

and the display turns off.

6. Connect one of the Show Me cables to a video source, such as a laptop.

7. Press the Show Me button on that cable. If the source device is providing a video signal, the LED on the ShowMe cable lights

blue and the display automatically turns on.

8. Connect a second Show Me cable to a second video source.

9. Repeat step 7 to verify that the second source device is providing a video signal and it is the output signal from the switcher.

When the button on the second Show Me cable is pressed, the LED lights blue and the LED on the rst cable is switched off.

10. Disconnect all the Show Me cables from the source devices.

After about 30 seconds without an input signal, the display should turn off.

11. Connect a Show Me cable to a source device and press the Show Me button on that cable.

As soon as an active video signal is detected, the display should automatically turn on.

Troubleshooting

No Image on the Display:

Cause 1 — There is a problem with the source device:

Solution — Verify the source device is powered on and outputs an active signal.

Cause 2 — Cable connections are incorrect:

Solution — Verify the HDMI output cable from the switcher is connected to the current HDMI input of the display.

Cause 3 — Display is off:

Solution 1 — Verify the display is in the on state.

Solution 2 — The TeamWork system turns the display on and off by controlling the ACpower. If the display has a Sleep Mode

feature, disable this feature to prevent the display from accidentally powering off.

Cause 4 — The display has a problem:

Solution — Verify that the display functions correctly.

Cause 5 — The display cannot show video at the incoming resolution:

Solution — The EDID settings on the switcher may need to be changed. Refer to the MPS 601 User Guide

(see www.extron.com) or contact an Extron Support representative at www.extron.com/company/contactus.aspx.

IPL T PC1

R100

INPUT

LINK

ACT

POWER

TeamWork 601 Kit • Installation Guide (Continued)

68-3254-01 Rev. A

03 18

Show Me Button LEDs Stay Off When Pressed:

Cause 1 — The cable is not plugged into a source device that is producing an active video output signal:

Solution — Verify that the source device is on and producing an active signal.

Cause 2 — Contact or Tally wiring is incorrect:

Solution — See Show Me Cables (page 7) to ensure the contact and tally pins are correctly wired.

Cause 3 — The switcher is not powered on:

Solution — Verify that the switcher is powered on.

Cause 4 — Problem with Show Me cable:

Solution — Try connecting the video source to a different cable. If the second cable works correctly, there may be a problem

with the Show Me cable. Contact an Extron Support representative at www.extron.com/company/contactus.aspx.

Cause 5 — Problem with Switcher:

Solution — If none of the cables work correctly, there may be a problem with the switcher. Contact an Extron Support

representative at www.extron.com/company/contactus.aspx.

Cause 6 — The source device does not output +5V:

Solution — This is a problem with the source device. HDMI specications require pin 18 to carry a +5V output and VGA

specications require pin 9 to carry a +5V output.

The Display Does Not Automatically Turn On:

Cause 1 — Incorrect wiring:

Solution — Verify that the RS-232 communication cable is connected properly between the IPLink controller and Extron

switcher.

Cause 2 — There is no video signal present at Show Me cables:

Solution — Verify that an active signal is present at the input of any of the Show Me cables.

Cause 3 — IPLink conguration is missing or corrupted:

Solution — Contact an Extron Support representative at www.extron.com/company/contactus.aspx.

Cause 4 — Display power is out of sync:

Solution — The display is in standby mode. Turn on the display using the remote or the physical power button.

Cause 5 — Display has sleep mode enabled:

Solution — Go to the menu for the display and disable the sleep mode feature. Turn on the display using the remote or

physical power button.

The Display Stays On and Never Turns Off:

Cause 1 — Video signal is present at Show Me cables:

Solution — Verify that no active signals are present at the inputs of any of the Show Me cables. The TeamWork system is

designed to turn off the Display only when no video signals are present.

Table des matières

Autres manuels Extron electronics Changer

Extron electronics

Extron electronics SVS 100 Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 204 Manuel utilisateur

Extron electronics

Extron electronics DTP T USW 333 Manuel utilisateur

Extron electronics

Extron electronics MPS 601 Manuel utilisateur

Extron electronics

Extron electronics VSW 2VGA A Manuel utilisateur

Extron electronics

Extron electronics System 4xi Manuel utilisateur

Extron electronics

Extron electronics PVS 204SA Plus Instructions d'installation et d'utilisation

Extron electronics

Extron electronics MPS 112 Manuel utilisateur

Extron electronics

Extron electronics IN1608 HDBT Series Manuel utilisateur

Extron electronics

Extron electronics SW8 HD 4K PLUS Manuel utilisateur

Extron electronics

Extron electronics SW4 3G HD-SDI Manuel utilisateur

Extron electronics

Extron electronics SW USB Pro Series Manuel utilisateur

Extron electronics

Extron electronics PoleVault PVS 305SA Manuel utilisateur

Extron electronics

Extron electronics PVS 407D Manuel utilisateur

Extron electronics

Extron electronics ISS 608 Manuel utilisateur

Extron electronics

Extron electronics ISS 506 Series Manuel utilisateur

Extron electronics

Extron electronics XTP T USW 103 Manuel utilisateur

Extron electronics

Extron electronics System 5cr Plus Manuel utilisateur

Extron electronics

Extron electronics TPS150 Manuel utilisateur

Extron electronics

Extron electronics ISS 506 Series Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 212 Manuel utilisateur

Extron electronics

Extron electronics SW HD 4K Series Manuel utilisateur

Extron electronics

Extron electronics MSW 4V rs Manuel utilisateur

Extron electronics

Extron electronics Fiber Matrix 6400 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
