Continued

MTP - Mini TwisTed Pair series

MTP DA4

Four Output MTP - Mini Twisted Pair Distribution Amplifier

unique FeATures

•Input: Female RJ-45 connector

•Output: Four female RJ-45 connectors

MTP DA8

Eight Output MTP - Mini Twisted Pair Distribution Amplifier

unique FeATures

•Input: Female RJ-45 connector

•Output: Eight female RJ-45 connectors

coMMon FeATures

•Splits and buffers input from one twisted pair transmitter to multiple twisted

pair receivers

• Compatible with all Extron VT Series and MTP Series transmitters and receivers

• Global and individual output muting via contact closure

• Supports RGBHV, RGBS, RGsB, component video, S-video, composite video,

and audio

• Compatible with HDTV component video, bi-level or tri-level sync

• Supports audio and unidirectional RS-232 signals

• Rack, under-desk, and projector mountable

• Front panel LED power indicator

• External universal power suplly included — Provides worldwide power compatibility

descriPTion

The MTP DA4 and MTP DA8 Distribution Ampliﬁers are ideal for systems where high resolution

video signals along with audio or control signals must be transmitted long distances to multiple

displays. Each distribution ampliﬁer splits the signal from an Extron Mini Twisted Pair Series

transmitter to multiple MTP Series receivers, enabling the creation of dynamic multi-display

systems and expanding the possibilities for twisted pair based system integration.

The MTP DA4 and MTP DA8 feature video mute control via contact closure for use with a

control system. For example, in a courtroom the judge can select which speciﬁc displays

are receiving a video signal, or mute all displays with a single push of a button. This video

muting feature eliminates the need for additional switching devices or complex control system

command strings.

Each model is compatible with high resolution computer-video signals, HDTV signals with

bi-level or tri-level sync, component video, S-video, composite video, and audio signals. They

can also be used to transmit unidirectional RS-232 serial control signals to send commands

to multiple destinations.

The MTP DA4 and MTP DA8 each accept a single proprietary analog signal from an

Extron MTP Series transmitter over any CAT 5, 5e, or 6 twisted pair cable or with Extron

UTP23SF-4 Enhanced Skew-Free A/V UTP cable, and sends a buffered proprietary analog

signal to four or eight MTP Series receivers. Each model features inputs and outputs on female

RJ-45 connectors.

Compatible Extron Twisted Pair Transmitters and Receivers

Transmitters Receivers Signal Type

MTP T CV MTP R CV Composite Video

MTP T AV

MTP T AV 45 MTP R AV Composite Video & Stereo Audio

MTP T AV RCA MTP R AV RCA Composite Video & Stereo Audio

MTP T SV MTP R SV S-Video

MTP T SVA

MTP T SVA 45 MTP R SVA S-Video & Stereo Audio

MTP T SVA RCA MTP R SVA RCA S-Video & Stereo Audio

MTP T 15HD A

MTP T 15HD A D

MTP T 15HD A AAP

MTP T 15HD A WM

SW MTP T 15HD A Series

MTP RL 15HD A

MTP RL 15HD A SEQ RGBHV & Audio

MTP T 15HD A C7 MTP RL 15HD A C7

MTP RL 15HD A SEQ C7 RGBHV & Audio – for CAT 7

MTP T 15HD RS MTP RL 15HD RS

MTP RL 15HD RS SEQ RGBHV & RS-232

MTP T 15HD RS C7 MTP RL 15HD RS C7

MTP RL 15HD RS SEQ C7 RGBHV & RS-232 – for CAT 7

VTT001 VTR001 RGBHV

Model Version descriPTion PArT #

MTP DA4 Four Outputs ............................................................................................. 60-685-01

MTP DA8 Eight Outputs ............................................................................................ 60-686-01

SHARP

VIDEO

MTPRSV A

OUTPUT

12V

0.5a MAX

OUTPUT

VIDEO

INPUT

12V

0.5aMAX

MTP TSVA RCA

SHARP

VIDEO

MTPRSV A

OUTPUT

INPUT

12V

0.5aMAX

SHARP

VIDEO

MTPRSVA

OUTPUT

12V

0.5aMAX

0.5AMAX

12V

POWER

OUTPUTMUTE

12345678A

INPUT12 3 4 5 6 7 8

OUTPUTS

Extron

MTP DA8

Mini Twisted Pair

Distribution Amplier

Up To

8 Receivers

Extron

MTP T AV RCA

Twisted Pair

Transmitter

DVD

Plasma/LCD Display

Extron

Skew-Free™A/V UTP

Cable

Extron

MTP R AV

Twisted Pair

Receivers

SHARP

VIDEO

MTPRSV A

OUTPUT

INPUT

12V

0.5aMAX

Plasma/LCD Display

www.extron.com

Pricing and speciﬁcations may change without notice.

USA West

+1.714.491.1500 / +800.633.9876

+1.714.491.1517 FAX

USA East

+1.919.863.1794 / +800.633.9876

+1.919.863.1797 FAX

China

+86.21.3760.1568 / +400.883.1568

+86.21.3760.1566 FAX

Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Europe

+31.33.453.4040 / +800.3987.6673

+31.33.453.4050 FAX

Dubai

+971.4.2991800

+971.4.2991880 FAX

Asia

+65.6383.4400 / +800.7339.8766

+65.6383.4664 FAX

www.extron.com

Pricing and speciﬁcations may change without notice.

USA West

+1.714.491.1500 / +800.633.9876

+1.714.491.1517 FAX

USA East

+1.919.863.1794 / +800.633.9876

+1.919.863.1797 FAX

China

+86.21.3760.1568 / +400.883.1568

+86.21.3760.1566 FAX

Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Europe

+31.33.453.4040 / +800.3987.6673

+31.33.453.4050 FAX

Dubai

+971.4.2991800

+971.4.2991880 FAX

Asia

+65.6383.4400 / +800.7339.8766

+65.6383.4664 FAX

MTP DA Series

MTP - Mini TwisTed Pair series

sPeciFicATions

Video

Gain ................................ Unity

Video inPuT SEE TRANSMITTERS’ SPECIFICATIONS

Number / Signal type........... 1 set of proprietary analog signals

Connectors ....................... 1 female RJ-45

Video ouTPuT SEE RECEIVERS’ SPECIFICATIONS

Number / Signal type

MTP DA4 .......................... 4 sets of proprietary analog signals

MTP DA8 .......................... 8 sets of proprietary analog signals

Connectors

MTP DA4 .......................... 4 female RJ-45

MTP DA8 .......................... 8 female RJ-45

Audio

Gain ................................ Unity (0 dB)

Audio inPuT SEE TRANSMITTERS’ SPECIFICATIONS

Number / Signal type........... 1 set of proprietary analog signals

Connectors ....................... 1 female RJ-45

Audio ouTPuT SEE RECEIVERS’ SPECIFICATIONS

Number / Signal type

MTP DA4 .......................... 4 sets of proprietary analog signals

MTP DA8 .......................... 8 sets of proprietary analog signals

Connectors

MTP DA4 .......................... 4 female RJ-45

MTP DA8 .......................... 8 female RJ-45

conTrol / reMoTe

—

disTribuTion AMPliFier

Contact closure (latching)

MTP DA4 .......................... (1) 3.5 mm captive screw connector, 6 pole for contact closure output mute

control

MTP DA8 .......................... (1) 3.5 mm captive screw connector, 10 pole for contact closure output mute

control

Contact closure

pin conﬁgurations

MTP DA4 .......................... 1 = mute output 1, 2 = mute output 2, 3 = mute output 3, 4 = mute output 4,

5 = mute all outputs, 6 = GND

MTP DA8 .......................... 1 = mute output 1, 2 = mute output 2, 3 = mute output 3, 4 = mute output 4,

5 = mute output 5, 6 = mute output 6, 7 = mute output 7, 8 = mute output 8,

9 = mute all outputs, 10 = GND

GenerAl

External power supply ......... 100 VAC to 240 VAC, 50/60 Hz, external

MTP DA4 .......................... 12 VDC, 2 A, regulated

MTP DA8 .......................... 12 VDC, 3 A, regulated

Power input requirements..... 12 VDC, 0.93 A

Temperature / Humidity........ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ............................ Convection, unvented

Rack mount ...................... Yes, with optional 1U, 9.5” deep rack shelf, part #60-190-01 or 60-604-01; or

1U, 6” deep rack shelf, part #60-190-10 or 60-604-10.

Also furniture mountable with optional Under-Desk Mounting Kit #70-077-01 or

projector mountable with optional kit.

Enclosure type ................... Metal

Enclosure dimensions.......... 1.75" H x 8.75" W x 6" D (1U high, half rack wide)

4.4 cm H x 22.2 cm W x 15.2 cm D (Depth excludes connectors.)

Product weight .................. 1.2 lbs (0.5 kg)

Shipping weight ................. 4 lbs (2 kg)

Vibration .......................... ISTA 1A in carton (International Safe Transit Association)

Listings............................ UL, CUL

Compliances ..................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF .............................. 30,000 hours

Warranty .......................... 3 years parts and labor

NOTE: All nominal levels are at ±10%. Speciﬁcations are subject to change without notice.

Autres manuels pour VersaTools MTP DA4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Amplificateur

Extron electronics

Extron electronics NetPA Ultra Series Manuel utilisateur

Extron electronics

Extron electronics NetPA Ultra Series Manuel utilisateur

Extron electronics

Extron electronics AVDA 6 MX DUAL Manuel utilisateur

Extron electronics

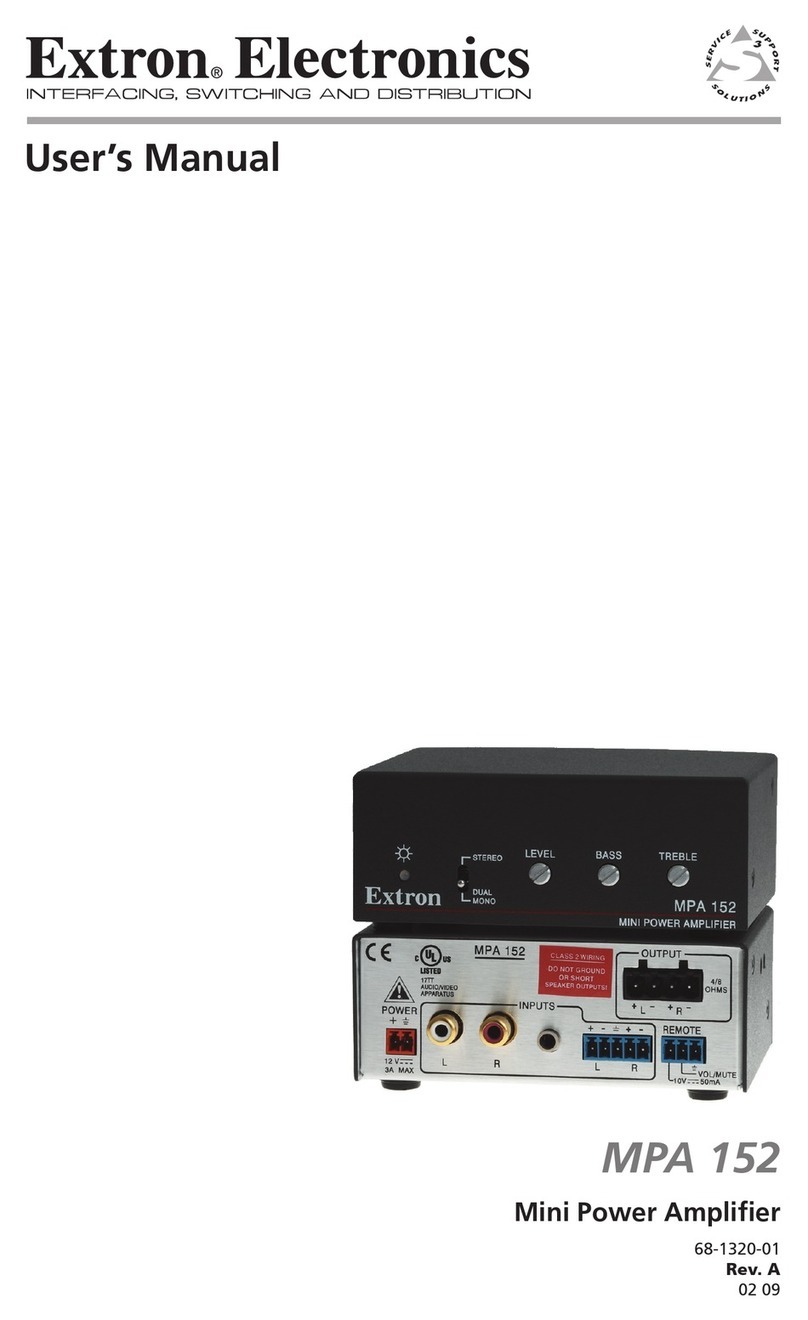

Extron electronics MPA 152 Plus Manuel utilisateur

Extron electronics

Extron electronics FOX DA8 Manuel utilisateur

Extron electronics

Extron electronics XTRA FULL RACK XPA 2002 Manuel utilisateur

Extron electronics

Extron electronics P/2 DA 2 WM/EC Manuel utilisateur

Extron electronics

Extron electronics DA Series Manuel utilisateur

Extron electronics

Extron electronics MDA 5SVA RCA Manuel utilisateur

Extron electronics

Extron electronics XPA 1002 Manuel utilisateur

Extron electronics

Extron electronics MPA 152 MD Manuel utilisateur

Extron electronics

Extron electronics NetPA U 8001 SUB Manuel utilisateur

Extron electronics

Extron electronics CVDA 6 EQ MX Manuel utilisateur

Extron electronics

Extron electronics IN3254 Manuel utilisateur

Extron electronics

Extron electronics ADA 6 Component Manuel utilisateur

Extron electronics

Extron electronics P/2 DA2 Plus Manuel utilisateur

Extron electronics

Extron electronics XPA 2001-70V Manuel utilisateur

Extron electronics

Extron electronics DA 6SV EQ Manuel utilisateur

Extron electronics

Extron electronics MPA 401-70V Manuel utilisateur

Extron electronics

Extron electronics IN3252HR Manuel utilisateur

Extron electronics

Extron electronics Distribution Amplifiers DVI DA4 Plus Manuel utilisateur

Extron electronics

Extron electronics DVI DA Plus Series Manuel utilisateur

Extron electronics

Extron electronics HDMI DA Series Manuel utilisateur

Extron electronics

Extron electronics VersaTools MDA 3V Dual Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
