DA2HD4KPLUS • Setup Guide

Overview

The Extron DA2HD4KPLUS distribution amplier distributes one HDMIinput signal to two outputs simultaneously (at resolutions

up to UHD and 4K@60Hz 4:4:4, following the HDMI2.0b and HDCP2.2 specications. This setup guide provides basic

instructions for installation by an experienced installer. For complete instructions, see the DAHD4KPLUS Series User Guide at

www.extron.com.

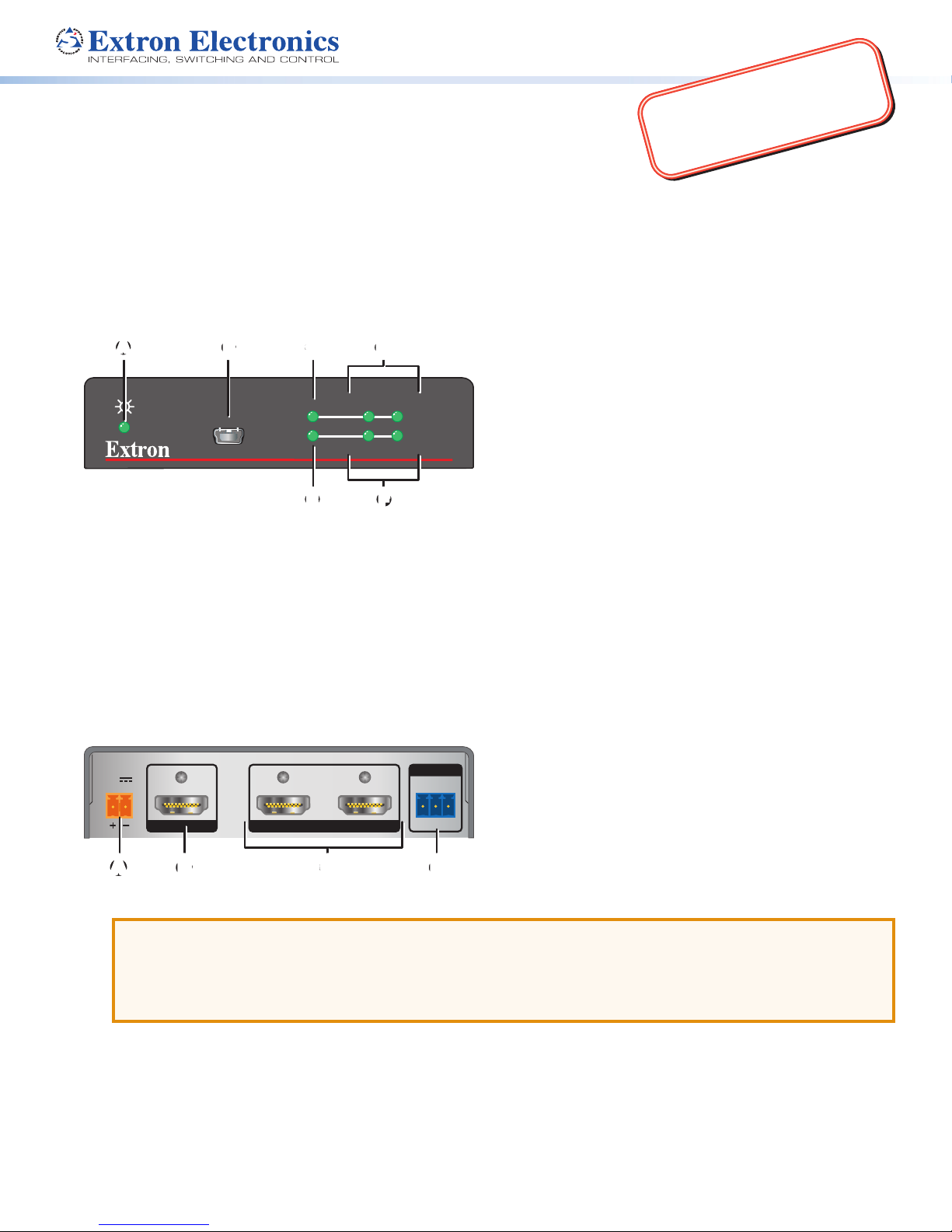

Front Panel

DA2 HD 4K PLUS

CONFIG

INPUT

OUTPUTS

SIGNAL

HDCP

AA BB CC

EE FF

APower status LED — Lights when power is applied to the unit.

BUSB Config port — Used for SIS or PCS to configure, monitor, and update firmware on the unit.

CInput Signal LED — Lights when a TMDS signal is detected on the HDMI input.

DOutput Signal LEDs — Light when HPD is detected from the corresponding sink device and when a TMDS signal is

detected at the input.

EInput HDCP LED — Lights when the source requires HDCP encryption and it has been authenticated with the HDMI input.

FOutput HDCP LEDs — Light when HDCP is authenticated between the DA2HD4KPLUS output and the corresponding sink

device.

Rear Panel

RS-232

Tx Rx G

INPUT

REMOTE

OUTPUTS

POWER

12V

0.4A MAX

AA BB DDCC

APower input — Connect the provided 12 VDC, 0.5 A power supply to this 2-pole 3.5 mm captive screw connector.

ATTENTION:

• Do not connect the power supply before reading the Attention in the Power Supply section of the DAHD4KPLUS

Series User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu les mises en garde dans la section

«PowerSupply» du DAHD4KPLUS Series User Guide.

BHDMI input — Connect a source device to this female HDMI type A input.

CHDMI outputs — Connect up to two display devices to these female HDMI type A outputs.

DRemote RS-232 port — Connect the provided 3-pole captive screw connector for SIS configuration, monitoring, and

firmware updates (Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground). Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity.

68-2880-50 Rev A

10 17

DA2 HD 4K PLUS • Setup Guide (Continued)

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Australia

+61.8.8113.6800

+61.8.8351.2511 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Installation

1. Mount the DA2HD4KPLUS in a suitable location (see www.extron.com for mounting options). Follow the instructions

provided with the mounting kit.

2. If required, connect a control PC to the USB Cong port (see Front Panel, Bon the previous page) or Remote RS-232

port (see Rear Panel Don the previous page). To connect the rear panel Remote RS-232 port to a PC, ensure that the

PC transmit connects to the RS-232 receive and the PC receive connects to the RS-232 transmit (see the diagram below).

Protocol for RS-232 is 9600 baud, 8 bit, no parity, 1 stop bit.

RS-232

Tx Rx G

REMOTE

TransmitReceive

ReceiveTransmit

GroundGround

DB9 Pin Locations

Female

Pin 2 = Rx

Pin 3 = Tx

Pin 5 = G

Computer

DA HD 4K PLUS

NOTE: Use Product Configuration Software (PCS) to configure EDIDMinder®, mute the video signal, mute the audio

signal, adjust the video color bit depth, or monitor the signal and HDCP status (see the Configuration Software section

of the DAHD4KPLUS Series User Guide).

3. Connect the display devices to the rear panel HDMI outputs and power them on.

4. Connect the source device to the rear panel HDMI input.

NOTE: Use the LockIt®HDMI cable lacing brackets provided to secure the HDMI connectors.

Follow these instructions to secure the input and output HDMI connectors to the unit with

the LockIt HDMI lacing brackets provided:

a. Plug the HDMI cable into the rear panel connection (1).

b. Loosen the HDMI connection mounting screw from the panel enough to allow the

LockIt lacing bracket to be placed over it (2). The screw does not have to be

removed.

c. Place the LockIt lacing bracket on the screw and against the HDMI connector, then

tighten the screw to secure the bracket (3).

ATTENTION:

• Do not overtighten the HDMI connection mounting screw. The shield it

fastens to is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage

auquel elle est attachée est très n et peut facilement être dénudé.

d. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as

shown (4).

e. While holding the connector securely against the lacing bracket, tighten the tie wrap, then

remove any excess length.

5. Connect the provided 12 VDC, 1.0 A power supply to the 2-pole captive screw inlet (see the diagram on

the right for to wire the connector).

ATTENTION:

• Do not connect the power supply before reading the Attention in the Power Supply section

of the DAHD4KPLUS Series User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu les mises en garde

dans la section «PowerSupply» du DAHD4KPLUS Series User Guide.

6. Power on the source device.

SECTION A–A

Ridges

Smooth

3/16"

(5 mm) Max.

POWER

12V

0.4A MAX
