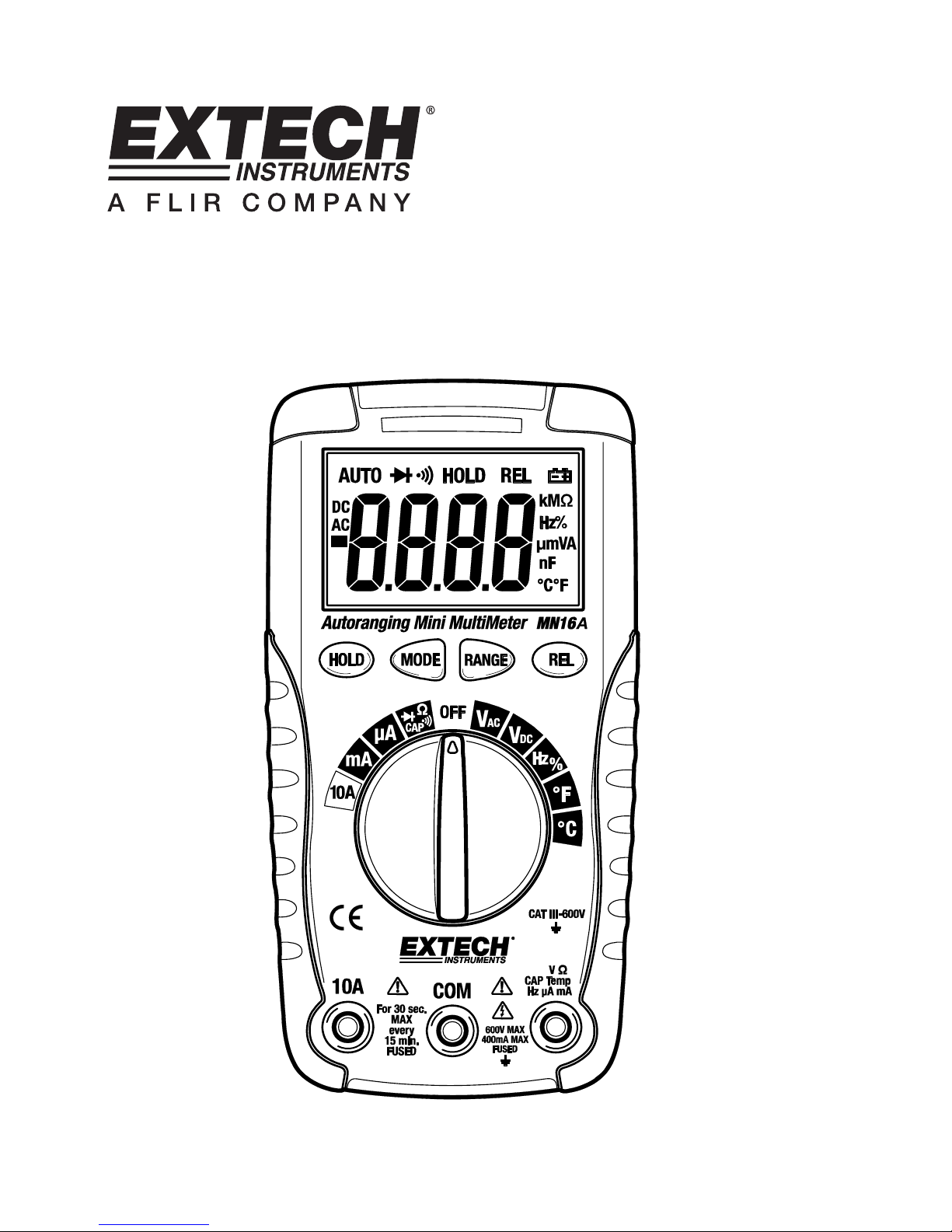

Extech Instruments MN16A Manuel utilisateur

User's Guide

Autoranging Mini Multimeter

Model MN16A

MN16A V1.4 03/12

Introduction

Congratulations on your purchase of the Extech MN16A Autoranging Multimeter. This meter measures

AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, and Continuity plus

Thermocouple Temperature. It features a rugged design for heavy duty use This meter is shipped fully

tested and calibrated and, with proper use, will provide years of reliable service.

Safety

This symbol adjacent to another symbol, terminal or operating device indicates

that the operator must refer to an explanation in the Operating Instructions to

avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds (in this case) 600 VAC or VDC.

This symbol adjacent to one or more terminals identifies them as being associated

with ranges that may, in normal use, be subjected to particularly hazardous

voltages. For maximum safety, the meter and its test leads should not be handled

when these terminals are energized.

This symbol indicates that a device is protected throughout by double insulation or

reinforced insulation.

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which

measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from

the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial use with

permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

WARNING

CAUTION

MAX

600V

MN16A V1.4 03/12

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

•Warning! This is a class A equipment. This equipment can cause interferences in the living

quarters; in this case the operator can be required to carry out adequate measures.

•Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

•This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that the children could swallow. In case a child swallows any of them,

please contact a physician immediately

•Do not leave batteries and packing material lying around unattended; they can be dangerous

for children if they use them as toys

•In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from training

•Expired or damaged batteries can cause cauterization on contact with the skin. Always,

therefore, use suitable hand gloves in such cases

•See that the batteries are not short-circuited. Do not throw batteries into the fire.

MN16A V1.4 03/12

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules listed below

must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 600VDC/AC

mA AC/DC 400mA AC/DC

A AC/DC 10A AC/DC (20A for 30 sec max every 15 min)

Frequency, Resistance, Capacitance,

Diode Test, Continuity, Temperature 250VDC/AC

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the

current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

resistance or diode tests.

6. ALWAYS turn off the power and disconnect the test leads before opening the covers to replace

the fuse or batteries.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place

and fastened securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

MN16A V1.4 03/12

Controls and Jacks

1. 4,000 count LCD display

2. MODE button

3. HOLD button

4. Function switch

5. COM input jack

6. 10A input jack

7. V, Ω, CAP, Temp, Hz, μA and mA input jack

8. REL button

9. RANGE button

10. Battery compartment (rear)

Symbols and Annunciators

•))) Continuity

Diode test

Low Battery

n nano (10-9) (capacitance)

µ micro (10-6) (amps)

m milli (10-3) (volts, amps)

A Amps

k kilo (103) (ohms)

F Farads (capacitance)

M mega (106) (ohms)

Ω Ohms

Hz Hertz (frequency) V Volts

% Percent (duty ratio) REL Relative

AC Alternating current AUTO Autoranging

DC Direct current HOLD Display hold

ºF Degrees Fahrenheit ºC Degrees Centigrade

MN16A V1.4 03/12

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

1. ALWAYS turn the function switch to the OFF position when the meter is not in use.

2. If “OL” appears in the display during a measurement, the value exceeds the range you have

selected. Change to a higher range.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the VDC position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

4. Read the voltage in the display.

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts

inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As

a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the

probe tips are touching the metal contacts inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the VAC position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the neutral side of the circuit.

Touch the red test probe tip to the “hot” side of the circuit.

4. Read the voltage in the display.

MN16A V1.4 03/12

DC CURRENT MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30

seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 4000µA DC;

Set the function switch to the µA position and insert the red test lead banana

plug into the µA jack.

3. For current measurements up to 400mA DC;

Set the function switch to the mA position and insert the red test lead banana

plug into the mA jack.

4. For current measurements up to 10A DC;

Set the function switch to the 10A position and insert the red test lead banana

plug into the 10A jack.

5. Press the MODE button to indicate “DC” on the display.

6. Remove power from the circuit under test, then open the circuit at the point

where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

AC CURRENT MEASUREMENTS

CAUTION: Do not make 20A current measurements for longer than 30 seconds. Exceeding 30

seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 4000µA AC;

Set the function switch to the µA position and insert the red test lead banana

plug into the µA jack.

3. For current measurements up to 400mA AC;

Set the function switch to the mA position and insert the red test lead banana

plug into the mA jack.

4. For current measurements up to 10A AC;

Set the function switch to the 10A position and insert the red test lead banana

plug into the 10A jack.

5. Press the MODE button to indicate “AC” on the display.

6. Remove power from the circuit under test, then open the circuit at the point

where you wish to measure current.

7. Touch the black test probe tip to the negative side of the circuit.

Touch the red test probe tip to the positive side of the circuit.

8. Apply power to the circuit.

9. Read the current in the display.

MN16A V1.4 03/12

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements. Remove the batteries and unplug the line

cords.

1. Set the function switch to the Ωposition.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate “Ω" on the display.

4. Touch the test probe tips across the circuit or part under test.

5. Read the resistance in the display.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits or wires that have

voltage on them.

1. Set the function switch to the position.

2. Insert the black lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Ωjack.

3. Press the MODE button to indicate” "and “Ω”on the display

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than approximately 150Ω, the audible signal will

sound. If the circuit is open, the display will indicate “OL”.

DIODE TEST

1. Set the function switch to the position.

2. Insert the black test lead banana plug into the negative COM jack and the

red test lead banana plug into the positive Vjack.

3. Press the MODE button to indicate and Von the display.

4. Touch the test probes to the diode under test. Forward voltage will typically

indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices

will indicate near 0V and an open device will indicate “OL” in both polarities.

MN16A V1.4 03/12

TEMPERATURE MEASUREMENTS

1. Set the function switch to the ºF or ºC position.

2. Insert the Temperature Probe into the input jacks, making sure to observe the

correct polarity.

3. Touch the Temperature Probe head to the part whose temperature you wish to

measure. Keep the probe touching the part under test until the reading

stabilizes (about 30 seconds).

4. Read the temperature in the display.

Note: The temperature probe is fitted with a type K mini connector. A mini connector to

banana connector adaptor is supplied for connection to the input banana jacks.

CAPACITANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any capacitance measurements. Remove the batteries and unplug the

line cords.

1. Set the rotary function switch to the CAP position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive CAP jack.

3. Press the MODE button to indicate “nF” on the display.

4. Touch the test leads to the capacitor to be tested.

5. Read the capacitance value in the display

FREQUENCY/DUTY CYCLE MEASUREMENTS

1. Set the rotary function switch to the “Hz %” position.

2. Press the MODE button to indicate “Hz” in the display.

3. Insert the black lead banana plug into the negative COM jack

Insert the red test lead banana plug into the positive Hz jack.

4. Touch the test probe tips to the circuit under test.

5. Read the frequency on the display.

6. Press the MODE button again to indicate “%” on the display.

7. Read the duty cycle on the display.

MN16A V1.4 03/12

AUTORANGING/MANUAL RANGE SELECTION

When the meter is first turned on, it automatically goes into Autoranging. This automatically selects

the best range for the measurements being made and is generally the best mode for most

measurements. For measurement situations requiring that a range be manually selected, perform

the following:

1. Press the RANGE button. The “Auto” display indicator will turn off.

2. Press the RANGE key to step through the available ranges. Observe the decimal point and

units displayed until the preferred range is located.

3. To exit the Manual Ranging mode and return to Autoranging, press and hold the RANGE key

for 2 seconds.

Note: Manual ranging does not apply for the Capacitance and Frequency functions.

RELATIVE MODE

The relative measurement feature allows you to make measurements relative to a stored zero

reference value. A reference voltage, current, etc. can be stored and measurements made in

comparison to that value. The displayed value is the difference between the reference value and the

measured value.

1. Perform the measurement as described in the operating instructions.

2. Press the REL button to store (zero) the reading in the display. The "REL" indicator will appear

on the display.

3. The display will now indicate the difference between the stored value and the measured value.

4. Press the REL button to exit the relative mode.

Note: The Relative function does not operate in the Frequency function.

HOLD

The hold function freezes the reading in the display. Press the HOLD key momentarily to activate or

to exit the HOLD function.

AUTO POWER OFF

The auto off feature will turn the meter off after 30 minutes.

LOW BATTERY INDICATION

The icon will appear in the display when the battery voltage becomes low. Replace the battery

when this appears.

Table des matières

Autres manuels Extech Instruments Multimètre

Extech Instruments

Extech Instruments 380942 Manuel utilisateur

Extech Instruments

Extech Instruments 380224 Manuel utilisateur

Extech Instruments

Extech Instruments EX410A Manuel utilisateur

Extech Instruments

Extech Instruments 420 Manuel utilisateur

Extech Instruments

Extech Instruments 45170CM Manuel utilisateur

Extech Instruments

Extech Instruments AUT500 Manuel utilisateur

Extech Instruments

Extech Instruments EX330 Manuel utilisateur

Extech Instruments

Extech Instruments EX411A Manuel utilisateur

Extech Instruments

Extech Instruments EX330 Manuel utilisateur

Extech Instruments

Extech Instruments MultiMaster MM560 Manuel utilisateur

Extech Instruments

Extech Instruments EX310 Manuel utilisateur

Extech Instruments

Extech Instruments 430 Manuel utilisateur

Extech Instruments

Extech Instruments EX410A Manuel utilisateur

Extech Instruments

Extech Instruments MG300 Manuel utilisateur

Extech Instruments

Extech Instruments MO290 Manuel utilisateur

Extech Instruments

Extech Instruments EX350 Manuel utilisateur

Extech Instruments

Extech Instruments PQ3470 Manuel utilisateur

Extech Instruments

Extech Instruments MN45 Manuel utilisateur

Extech Instruments

Extech Instruments MN62 Manuel utilisateur

Extech Instruments

Extech Instruments MN30 Manuel utilisateur

Extech Instruments

Extech Instruments MultiTec MT310 Manuel utilisateur

Extech Instruments

Extech Instruments EX320 Manuel utilisateur

Extech Instruments

Extech Instruments SD750 Manuel utilisateur

Extech Instruments

Extech Instruments EX710 Manuel utilisateur

Manuels Multimètre populaires d'autres marques

Agilent Technologies

Agilent Technologies 34420A Manuel utilisateur

Fluke

Fluke 83 Manuel utilisateur

Hameg

Hameg HM 8012 Manuel utilisateur

Mastech

Mastech MY70 Manuel utilisateur

Steren

Steren MUL-300 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuel utilisateur

PeakTech

PeakTech 4000 Manuel d'utilisation et d'entretien

YOKOGAWA

YOKOGAWA 90050B Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuel utilisateur

Fluke

Fluke 8846A Manuel d'utilisation et d'entretien

Tempo Communications

Tempo Communications MM200 Manuel utilisateur

Elenco Electronics

Elenco Electronics CM-1555 Manuel utilisateur

Mastech

Mastech MS8238C Manuel utilisateur

SDAR

SDAR 830A, 830B, 830D, 830C Manuel utilisateur

RS PRO

RS PRO RS-9519BT Manuel utilisateur

BGS technic

BGS technic 8890 Manuel utilisateur

Amprobe

Amprobe Hexagon 60 Manuel utilisateur
