Extech Instruments AM300 Manuel utilisateur

User's Guide

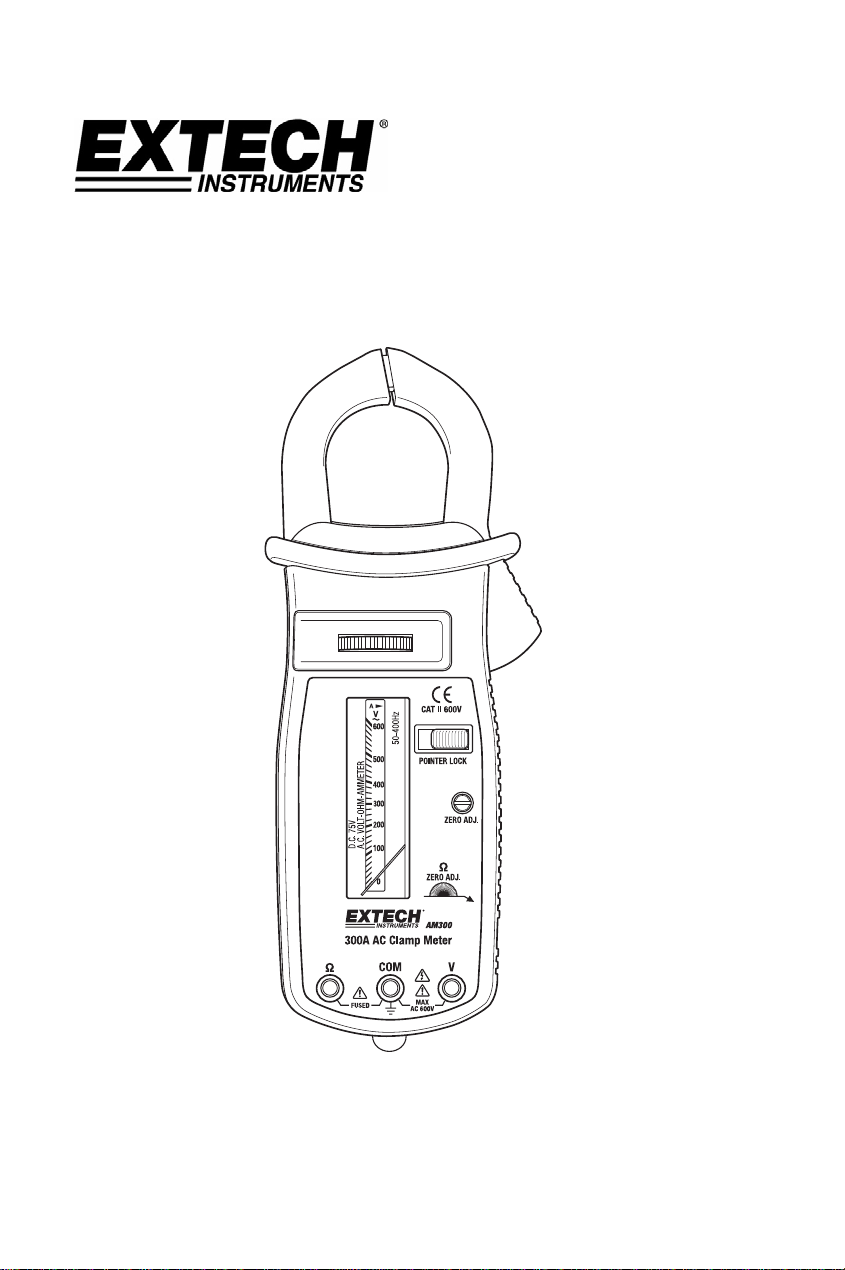

Extech AM300

300A AC Analog Clamp Meter

AM300 V1.1 6/072

Introduction

Congratulations on your purchase of the Extech AM300 Analog Clamp Meter. This device

measure AC Voltage and Current, DC Voltage, and Resistance. This meter is shipped fully

tested and calibrated and, with proper use, will provide years of reliable service.

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer

to the manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous

voltages may be present

Double insulation

SAFETY NOTES

•Do not exceed the maximum allowable input range of any function.

Function Maximum Input

A AC 300A AC

V DC, V AC 600V DC/AC

•Do not apply voltage to meter when resistance function is selected.

•Remove the battery if meter is to be stored for longer than 60 days.

WARNINGS

•Set function switch to the appropriate position before measuring.

•When measuring volts do not switch to current/resistance modes.

•Do not measure current on a circuit whose voltage exceeds 600V.

•When changing ranges always disconnect the test leads from the circuit under test.

CAUTIONS

•Improper use of this meter can cause damage, shock, injury or death. Read and

understand this user manual before operating the meter.

•Always remove the test leads before replacing the battery or fuses.

•Inspect the condition of the test leads and the meter itself for any damage before

operating the meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC

rms or 35VDC. These voltages are considered a shock hazard.

•Always discharge capacitors and remove power from the device under test before

performing Resistance tests.

•Voltage checks on electrical outlets can be difficult and misleading because of the

uncertainty of connection to the recessed electrical contacts. Other means should be

used to ensure that the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

AM300 V1.1 6/073

STANDARDS

PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY

OVERVOLTAGE CATEGORY I

Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in

which measures are taken to limit the transient overvoltages to an appropriate low level.

Note – Examples include protected electronic circuits.

OVERVOLTAGE CATEGORY II

Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be

supplied from the fixed installation.

Note – Examples include household, office, and laboratory appliances.

OVERVOLTAGE CATEGORY III

Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.

Note – Examples include switches in the fixed installation and some equipment for industrial

use with permanent connection to the fixed installation.

OVERVOLTAGE CATEGORY IV

Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation.

Note – Examples include electricity meters and primary over-current protection equipment

AM300 V1.1 6/074

Description

Meter Description

1. Current clamp

2. Clamp opening trigger

3. Function Selector Switch

4. Scale Display

5. POINTER LOCK switch

6. Meter zero adjust

7. Zero ohms adjust

8. COM negative input jack for black test lead

9. OHMS positive input jack for red lead

10. VOLT positive input jack for red lead

Specifications

Function Ranges Accuracy

AC Current

(50/60Hz) 6, 15, 60, 150, and 300A AC ± 3% of Full Scale for 50/60Hz

AC Voltage

(50/60Hz) 300 and 600V AC ± 3% of Full Scale

DC Voltage 75V DC ± 3% of Full Scale

Resistance 2000Ω (20Ωmid-scale) ± 3% of Scale Length

Clamp jaw opening 1.5" (38mm) max.

Display Analog with Zero Adjustment

Input Impedance 240kΩ(75VDC range), 530kΩ(300VAC range, 1MΩ

(600VAC range),

AC bandwidth 50 to 60Hz (50 to 400Hz for 15 through 300ACA ranges)

Ambient conditions Temperature 32 - 104oF (0 - 40oC); Relative Humidity <80%

Operating Altitude 7000ft. (2000m) maximum.

Battery One (1) 1.5V ‘AA’ Battery

Fuse 0.5A / 250V glass fuse (6mm x 30mm); spare fuse supplied

Dimensions & Weight 9.0 x 2.8 x 1.5" (230 x 72 x 37mm); 14.7oz. (416g)

Safety For indoor use and in accordance with the requirements for

double insulation to IEC1010-1 (2001): EN61010-1 (2001)

Overvoltage Category II 600V, Pollution Degree 2.

AM300 V1.1 6/075

Operation

NOTES:Read and understand all Warning and Caution statements in this operation manual prior to using

this meter.

AC Current Measurements

WARNING: Ensure that the test leads are disconnected from the meter before making current clamp

measurements.

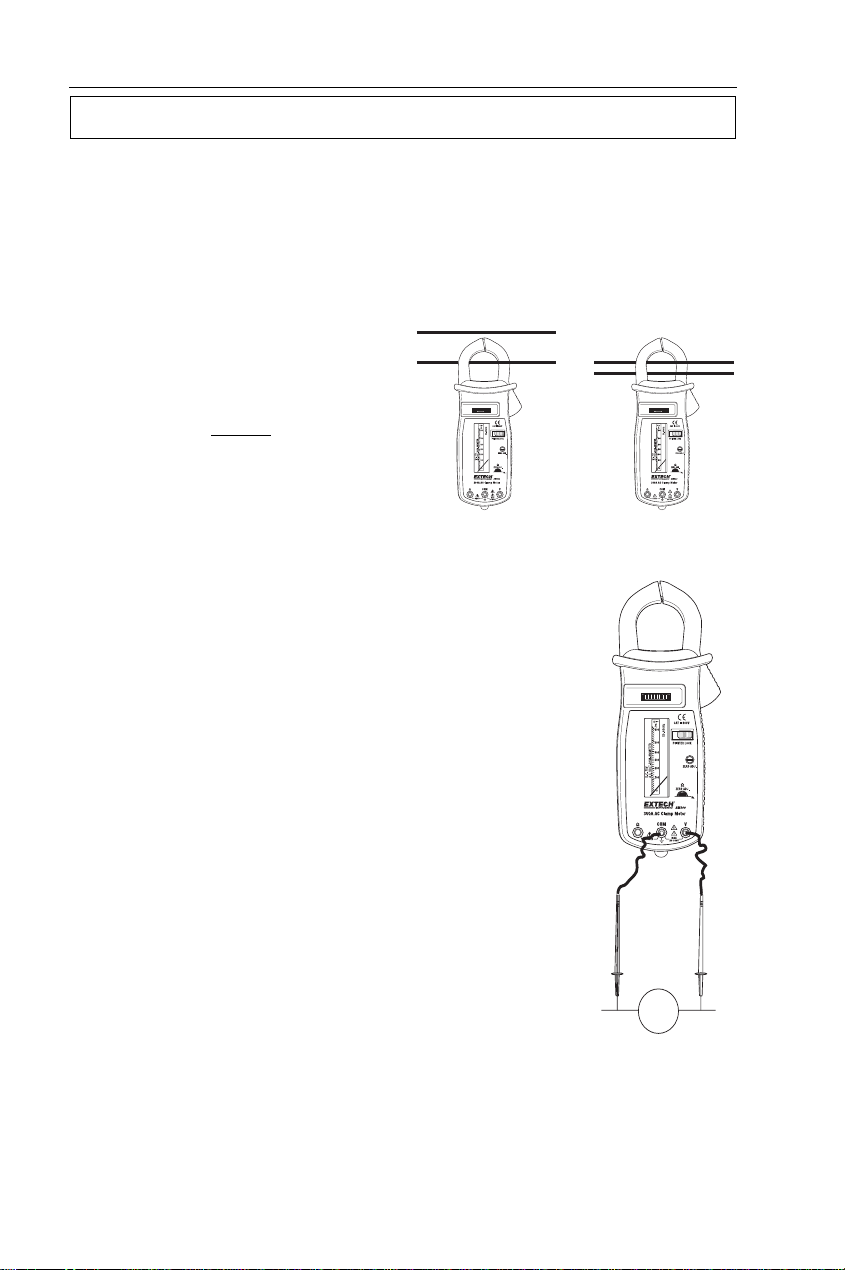

1. Set the scale to the highest range using the function thumbwheel switch. Step

down to the lower ranges as necessary in order to keep the reading in the upper

half of the scale.

2. Ensure that the Pointer Lock switch is set to the right-most position so that the

pointer may freely move.

3. Turn the Zero Adjust screw to zero

the meter display.

4. Press the trigger to open jaw. Fully

enclose only one conductor. For

optimum results, center the

conductor in the jaw.

5. The analog display pointer will

indicate the current reading.

AC/DC Voltage Measurements

1. Insert the black test lead into the negative COM terminal and

the red test lead into the positive Vterminal.

2. Set the display to the highest AC or DC Voltage range using

the thumbwheel switch. Step down to the lower ranges as

necessary in order to keep the reading in the upper half of

the scale.

3. Ensure that the Pointer Lock switch is set to the right-most

position so that the pointer may freely move.

4. Turn the Zero Adjust screw to zero the meter display.

5. Connect the test leads in parallel to the circuit under test.

6. The analog display pointer will indicate the voltage reading.

üÐ

AM300 V1.1 6/076

Resistance Measurements

WARNING: To avoid damage to the meter, do not apply voltage to the meter when

measuring resistance. Ensure that the circuit, device, or component under test is

disconnected from power before measuring resistance.

1. Insert the black test lead into the negative COM terminal and the

red test lead into the OHMS positive terminal.

2. Set the display scale to the OHMS position using the thumbwheel

switch.

3. Ensure that the Pointer Lock switch is set to the right-most

position so that the pointer may freely move.

4. With the test leads open, adjust the meter zero so that the pointer

is over the ∞symbol.

5. Touch the test lead tips together and adjust the 0 Ohms adjust

until the pointer is over the 0 ohms position.

6. Touch the test probe tips across the circuit or component under

test.

7. The analog display pointer will indicate the resistance reading.

Pointer Lock Function

The Pointer Lock switch freezes the pointer’s position and can be used as a ‘data hold’

feature. This feature is useful in dimly lit or hard to reach locations.

Maintenance

WARNING: To avoid electrical shock, disconnect the meter from any circuit and remove the test leads from

the input terminals before opening the case. Do not operate the meter with an open case.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or

solvents. If the meter is not to be used for 60 days or more, remove the battery and store it

separately.

Battery and Fuse Replacement

1. Remove the two (2) Phillips head screws at the rear of the meter.

2. Carefully open the meter housing.

3. Replace the 1.5V ‘AA’ battery if necessary

4. Replace the fuse if necessary with a 0.5A / 250V glass fuse (6mm x 30mm) or

equivalent. Note that a spare fuse is provided inside the meter housing.

5. Close the meter and replace the meter screws securely.

AM300 V1.1 6/077



Support line (781) 890-7440

Technical Support: Extension 200; E-mail: support@extech.com

Repair & Returns: Extension 210; E-mail: repair@extech.com

Product specifications subject to change without notice

For the latest version of this User Guide, Software updates, and other

up-to-the-minute product information, visit our website: www.extech.com

Extech Instruments Corporation, 285 Bear Hill Road, Waltham, MA 02451

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects

in parts and workmanship for one year from date of shipment (a six month limited warranty

applies to sensors and cables). If it should become necessary to return the instrument for

service during or beyond the warranty period, contact the Customer Service Department at

(781) 890-7440 ext. 210 for authorization or visit our website www.extech.com for contact

information. A Return Authorization (RA) number must be issued before any product is

returned to Extech. The sender is responsible for shipping charges, freight, insurance and

proper packaging to prevent damage in transit. This warranty does not apply to defects

resulting from action of the user such as misuse, improper wiring, operation outside of

specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific

purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set

forth above is inclusive and no other warranty, whether written or oral, is expressed or

implied.

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech also

provides NIST certification for most products. Call the Customer Care Department for

information on calibration services available for this product. Extech recommends that

annual calibrations be performed to verify meter performance and accuracy.
