Extech Instruments TH10 Manuel utilisateur

User's Guide

Temperature Datalogger

Model TH10

TH10-EU-EN V1.2 7/12

Introduction

Congratulations on your purchase of the Temperature Datalogger. This datalogger measures and stores up to

32,000 temperature readings. The user can easily set up the logging rate, high/low alarm and start-mode, and

download the stored data by plugging the module into a PC's USB port and running the supplied PC software.

Temperature data can then be graphed, printed, and exported to other applications. The data logger is supplied

with a long-life lithium battery, which can typically allow logging for one year. This meter is shipped fully tested

and calibrated and, with proper use, will provide years of reliable service

Features

Memory for 32,000 readings

Selectable data sampling rate: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr

Status Indication via Yellow LED and Green LED

USB Interface for Set-up and Data Download

User-Programmable Alarm Thresholds for Temperature

Analysis software used to view graph

Long battery life

Description

1. Protective cover

2. USB connector to PC port

3. Start button

4. Temperature sensor

5. Alarm LED (yellow)

6. Record LED (green)

7. Mounting clip

TH10-EU-EN V1.2 7/12

Installing the Software

Install the supplied Windows PC Datalogger Software by placing the supplied program disk in the PC’s CD-ROM

drive. If the installation program does not automatically open and provide on-screen prompts, open and browse

the CD-ROM drive, then find and double-click on the SETUP.EXE file included on the program disk. Follow the

on-screen prompts to complete the installation.

Before running the graphing software, please connect the TH10 to the PC and install the USB Driver software as

described in the software help file.

TH10 LED Status Guide

LEDs Meaning Action

Record Alarm No LEDs flashing

-No logging in process

-No battery found

-Battery completely discharged

Fit battery in place

Replace the battery and

download the data

Record Alarm Green single flash every 10 sec. *

-Logging, no alarm**

Green double flash every 10 sec. *

-Delayed start

To start, Hold the start button

until Green and Yellow LED

flash

Record Alarm Yellow single flash every 10 sec. *

-Logging, low alarm for TEMP

Yellow single flash every 10 sec.

-Logging, high alarm for TEMP

Yellow single flash every 60 sec.

- TH10 memory full

Download data

* To save power, the TH10’s LED flashing cycle can be changed to 20s or 30s via the supplied software.

** To save power, alarm LEDs for temperature can be disabled via the supplied software.

†When the battery is low, all operations will be disabled automatically. NOTE: Logging automatically stops when

the battery weakens (logged data will be retained). The supplied software is required to restart logging and to

download logged data.

Green LED

Yellow LED

TH10-EU-EN V1.2 7/12

Specifications

Overall Range -40 to 70oC (-40 to 158oF)

Accuracy (-40 to -10 and +40 to +70oC) ±2oC

Accuracy (-10 to +40oC) ±1oC

Accuracy (-40 to +14 and 104 to 158oF) ±3.6oF

Temperature

Accuracy (+14 to 104oF) ±1.8oF

Logging rate Selectable sampling interval: From 2 seconds up to 24 hours

Operating temperature -35 to 80oC (-31 to 176oF)

Battery type 3.6V Lithium (1/2 AA) (SAFT LS14250, Tadiran TL-5101 or equivalent)

Battery life 1 year (typ.) depending on logging rate, ambient temperature, & use of Alarm LEDs

Dimensions/Weight 101x25x23mm (4x1x.9”) / 172g (6oz)

TH10-EU-EN V1.2 7/12

Battery Replacement

It is highly recommended that the battery be replaced every 12 months, or prior to logging critical data.

The TH10 does not lose its stored readings when the battery weakens or when the battery is replaced; the data

logging process will however be stopped and cannot be re-started until the battery has been replaced and the

logged data has been downloaded to PC.

Use only 3.6V lithium batteries. Before replacing the battery, remove the datalogger from the PC. Follow

diagrammatic steps 1 through 4 below.

NOTE: Leaving the RHT10 plugged into the PC USB port longer than necessary will cause some of the battery

capacity to be lost.

You, as the end user, are legally bound (Battery ordinance) to return all used batteries and

accumulators; disposal in the household garbage is prohibited!

You can hand over your used batteries / accumulators at collection points in your community or

wherever batteries / accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its

lifecycle

www.extech.com

234

Autres manuels pour TH10

Table des matières

Autres manuels Extech Instruments Enregistreur de données

Extech Instruments

Extech Instruments 380340 Manuel utilisateur

Extech Instruments

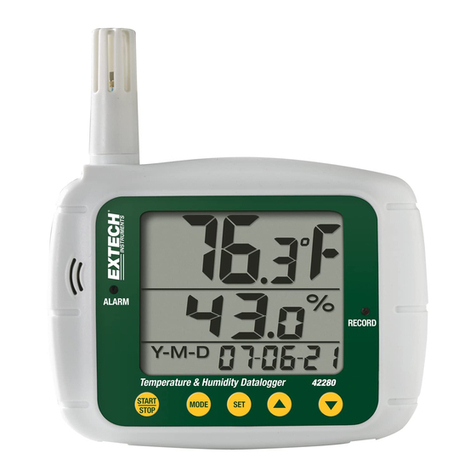

Extech Instruments 42280 Manuel utilisateur
