USER GUIDE

Dual Input True RMS

AC Voltage/Current Datalogger

Model DL160

Additional User Manual translations available at www.extech.com

2DL160-en-US_V1.67/22

Introduction

Congratulations on your purchase of this Dual Input Voltage / Current datalogger. With this

meter, you can monitor and log data (Voltage/Voltage, Current/Current or Voltage/Current)

over long periods of time and then easily transfer the data to a pc for viewing and evaluation.

The LCD display provides real time data, Max/Min data and time information. This meter is

shipped fully tested and calibrated and, with proper use, will provide years of reliable service.

Safety

Warning!

•Do not attempt to make measurement in flammable gaseous areas!

•When testing a non-insulated cable, pay attention to avoid short circuits.

•Do not attempt to use the instrument when your hand is wet!

•Do not input over range during measurements.

•Never open the battery cover during measurements.

•Stop using the instrument when there is any structural defect or exposed metal parts.

•Do not install substitute parts or make modifications on the meter.

•Never replace the battery in moist areas.

•Ensure the meter is disconnected and switch off before opening the battery cover to

replace the battery.

•Do not attempt to place the instrument in high vibration areas.

•Do not expose the meter to direct sunlight, high temperature and high moisture

environment.

•Switch off the meter after use. Remove the AAA batteries when the meter will be stored for

a period of time..

•When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild

detergent only.

3DL160-en-US_V1.67/22

Description and Button Functions

1. LCD Description

Auto power off (does not apply when recording), the meter

will automatically shuts off after 5mins without any button

presses.

REC: Recording status. After the record mode is set up by the

software, press the START/STOP button for more than 4

seconds to begin recording. This icon will be displayed and indicates the meter is recording

data. Press the same button again for more than 4 seconds to stop recording.

Record until full is selected. When the memory is full, the datalogger will stop recording.

Continuous recording is selected. When the memory is full, the data will overwrite the oldest

data.

FULL Memory full and recording has stopped.

Battery status, when completely filled in (black) the battery power is full. When there is only

one section filled in, the battery is exhausted and should be replaced with a new one.

2. AC adaptor Jack

3. ON/OFF Button

4. MAX/MIN: Press the button one time to display the MAX (maximum)

reading. Press again to display the MIN (minimum) reading. A third press

will exit MAX/MIN mode. The meter will automatically exit MAX/MIN mode

in 10 seconds if no button is pressed.

5. CH Input Jacks: Insert the current or voltage sensor to these ports to

measure and record the data.

6. CHANNEL: Select the channel for display on the LCD

7. START/STOP: After the datalogger is setup from the software, press the

START/STOP button for 4 seconds to begin recording. Press the button again for 4 seconds to stop

recording.

Recording cannot be started again until the data is downloaded to the software!

8. USB Port

9. AC Current Clamp Jaw: Clamp the jaws around a single conductor

for AC current measurements to 200A

10. Jaw Opening Trigger

11. CH Plug

12. AC Voltage Probes or Alligator clips

13. Voltage module

14. CH Plug

4DL160-en-US_V1.67/22

Operation

1. Install 4 fresh AAA batteries or connect the AC adaptor.

2. Set-up the datalogger using the software provided.

See the Software Help Guide that comes with the software.

3. Connect either the voltage or current probes, or one of each the bottom of the meter.

4. Connect the voltage test leads or the current probes to the AC source to be measured.

5. Press and Hold the START/STOP button for four seconds to start recording. The “REC” icon

will appear in the display indication that recording has begun.

6. Press and Hold the START/STOP button for four seconds to stop recording. The “REC” icon

will disappear from the display.

NOTE: if you STOP the recording you MUST reprogram the meter with the software before

recording again.

7. Remove the probes from the test circuit, connect the datalogger to a PC and use the

supplied software to download the data.

Voltage Test Leads

Single Phase: Connect one lead to one phase and the other lead to the Neutral line.

Multi phase: Connect one lead to one phase and the other lead to another phase.

Current clamps

Connect the clamp over one lead only and the clamp jaw must fully close in order to measure

correctly.

Note: If the clock does not set to the correct time, replace the 3V button battery internal to the

meter

PC Software

This meter has the capability to connect to and communicate with a PC.

Check the software download page of the website www.extech.com/software for the latest

version of the PC software and its operating system compatibility.

Download and unzip the software. Run ExtechInstaller.exe and then refer to the instructions

provided in the HELP Utility within the software program.

5DL160-en-US_V1.67/22

Specifications

Display Multi-function LCD

Maximum data points 262,144 (Single channel or 131,072 (dual channel)

Channels dual channel, TRMS AC Voltage or Current

Sample rate 1s to 24h selectable

Data output USB port

Current Clamp Jaw opening 0.5” (12.7mm)

Open input indication "LO" appears on the LCD

(also if measured value is less than 10V/10A)

Low battery indication Empty battery symbol appears on the LCD

Power supply 4 AAA Batteries and 1 CR 3V memory button battery

(CR2032 or equivalent)

Battery life 5 days (approximately)

AC Adaptor 9V, 0.5A

Standards , CAT III 600V, for inside use, maximum height

2000 meters

Operating Temperature 32 to 122°F (0 to 50°C)

Operating Humidity <70% RH

Storage temperature: -4°F to 140°F (-20°C to 60°C)

Storage Humidity < 80% relative humidity.

Dimensions 4.5 x 2.5 x 1.3” (114 x 63 x 34mm)

Weight 8.7oz. (248g)

Function Range Accuracy

Voltage (40Hz to 1kHz) 10VAC to 600.0VAC ±2.0%±1V

Current (50/60Hz) 10A to 200.0A ±2.0%±1A

6DL160-en-US_V1.67/22

Two-year Warranty

Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and

workmanship for two years from date of shipment (a six-month limited warranty applies to sensors

and cables). To view the full warranty text please visit:

http://www.extech.com/support/warranties.

Calibration and Repair Services

Teledyne FLIR offers calibration and repair services for the Extech brand products we sell. We

offer NIST traceable calibration for most of our products. Contact us for information on calibration

and repair availability, refer to the contact information below. Annual calibrations should be

performed to verify meter performance and accuracy. Product specifications are subject to change

without notice. Please visit our website for the most up-to-date product information:

www.extech.com.

Contact Customer Support

Customer Support Telephone List: https://support.flir.com/contact

Calibration, Repair, and Returns: repair@extech.com

Technical Support: https://support.flir.com

www.extech.com

This document does not contain any export-controlled information

Table des matières

Autres manuels Extech Instruments Enregistreur de données

Extech Instruments

Extech Instruments RTH10 Manuel utilisateur

Extech Instruments

Extech Instruments CO220 Manuel utilisateur

Extech Instruments

Extech Instruments TH10 Manuel utilisateur

Extech Instruments

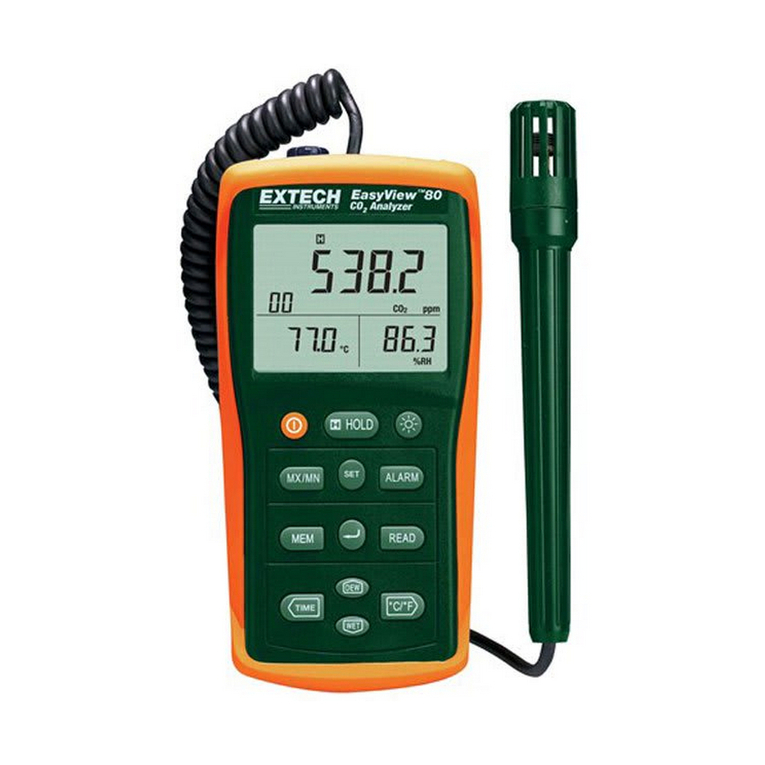

Extech Instruments EA80 Manuel utilisateur
