I2CDriver and I2CMini User Guide 1

Last updated on February 10, 2021

Contents

1 Overview 3

1.1 Features ................................ 3

2 Getting Started 4

3 Software installation 6

3.1 Windows ............................... 6

3.2 Linux .................................. 8

3.3 MacOS ................................ 9

4 APIs 10

4.1 Python 2 and 3 ............................ 10

4.2 C/C++ ................................. 12

5 Using I2CDriver 13

5.1 The display .............................. 13

5.2 The GUI ................................ 15

5.3 The command-line tool i2ccl .................... 19

5.4 Monitor mode ............................. 20

5.5 Capture mode ............................ 20

5.5.1 Command line ........................ 21

5.5.2 GUI .............................. 21

6 Examples 23

I2CDriver and I2CMini User Guide 2

6.1 Color Compass ............................ 23

6.2 Egg Timer ............................... 24

6.3 Take-a-ticket ............................. 24

7 Technical notes 25

7.1 Port names .............................. 25

7.2 Decreasing the USB latency timer ................. 25

7.3 Temperature sensor ......................... 26

7.4 Raw protocol ............................. 27

7.4.1 ?: transmit status info .................... 28

7.4.2 e: echo byte ......................... 29

7.4.3 1: set speed to 100 KHz ................... 29

7.4.4 4: set speed to 400 KHz ................... 30

7.4.5 s: START ........................... 30

7.4.6 0x80-bf : read 1-64 bytes, NACK the ﬁnal byte ...... 30

7.4.7 0xc0-ff : write 1-64 bytes .................. 31

7.4.8 a: read N bytes, ACK every byte .............. 31

7.4.9 p: send STOP ........................ 31

7.4.10 x: reset I2C bus ........................ 32

7.4.11 r: register read ........................ 32

7.4.12 d: scan devices, return 112 status bytes .......... 33

7.4.13 m: enter monitor mode .................... 33

7.4.14 c: enter capture mode .................... 33

7.4.15 b: enter bitbang mode .................... 33

7.4.16 i: leave bitmang, return to I2C mode. ........... 34

7.4.17 u: set pullup control lines .................. 34

7.4.18 : reboot ............................ 34

7.5 Pull-up resistors ........................... 34

7.6 Bitbang mode ............................. 35

7.7 Capture mode ............................ 37

7.8 Speciﬁcations ............................. 39

8 Troubleshooting 40

9 Support information 40

Index 41

I2CDriver and I2CMini User Guide 3

1 Overview

I2CDriver is an easy-to-use, open source tool for controlling I2C devices. It

works with Windows, Mac, and Linux, and has a built-in color screen that shows

a live dashboard of all the I2C activity. It uses a standard FTDI USB serial chip

to talk to the PC, so no special drivers need to be installed. The board includes

a separate 3.3 V supply with voltage and current monitoring.

I2CMini is a reduced-size version of I2CDriver suitable for use in embedded

devices. It is 100% compatible with I2CDriver but lacks a display, current or

voltage monitoring. In every other respect it behaves identically to I2CDriver.

1.1 Features

•Live display: shows you exactly what it’s doing all the time

•Supports all I2C features: 7- and 10-bit I2C addressing, clock stretching,

bus arbitration, and sustained I2C transfers at 400 and 100 kHz

•I2C pullups: programmable I2C pullup resistors, with automatic tuning

•USB voltage monitoring: USB line voltage monitor to detect supply

problems, to 0.01 V

•Target power monitoring: target device high-side current measurement,

to 5 mA

•Three I2C ports: three identical I2C ports, each with power and I2C sig-

nals

•Jumpers: three sets of high-quality color coded 100mm jumpers included

•3.3 V output: output levels are 3.3 V, all are 5 V tolerant

•Sturdy componentry: uses an FTDI USB serial adapter, and Silicon

Labs automotive-grade EFM8 controller

•Open hardware: the design, ﬁrmware and all tools are under BSD li-

cense

•Flexible control: GUI, command-line, C/C++, and Python 2/3 host soft-

ware provided for Windows, Mac, and Linux

I2CDriver and I2CMini User Guide 4

2 Getting Started

When you ﬁrst connect I2CDriver to the USB port, the display blinks white for a

moment then displays the initial status screen:

Connect the three sets of colored hookup wires as shown, following the same

sequence as on the colored label:

GND black signal ground

VCC red 3.3 V supply

SDA blue I2C data

SCL yellow I2C clock

Across the top of the display I2CDriver continuously shows the USB bus voltage

and the current output.

I2CDriver and I2CMini User Guide 5

I2CMini also has a micro USB connector. Its Qwiic connector is polarized; it at-

taches as shown. The color coding for the signals is the same as for I2CDriver.

I2CDriver and I2CMini User Guide 6

3 Software installation

The source for all the I2CDriver software is the repository. Available are:

• a Windows/Mac/Linux GUI

• a Windows/Mac/Linux command-line

• Python 2 and 3 bindings

• Windows/Mac/Linux C/C++ bindings

Installation of the GUI and command-line utilities varies by platform.

3.1 Windows

This installer contains the GUI and command-line utilities.

The GUI shortcut is installed on the desktop:

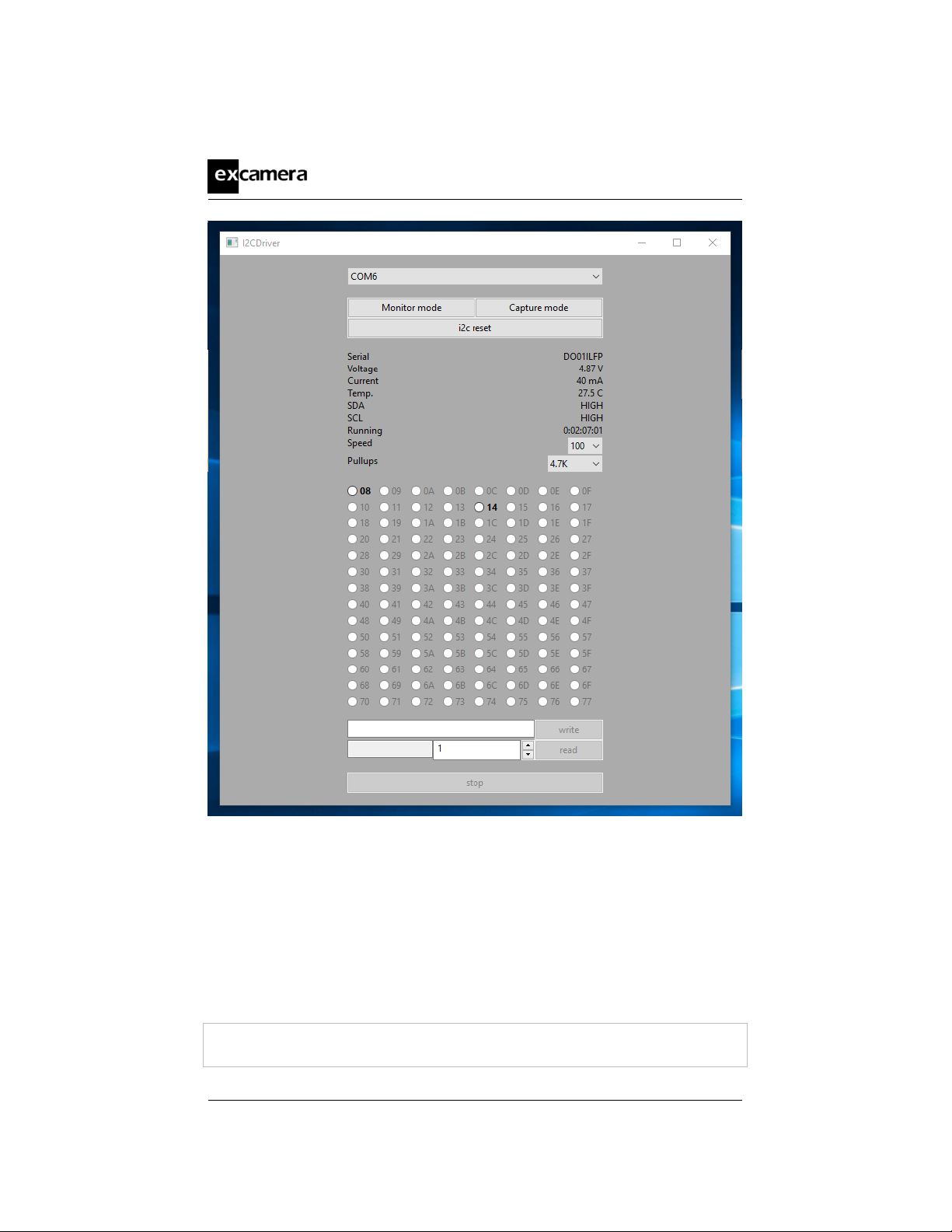

launching it brings up the control window:

I2CDriver and I2CMini User Guide 7

If there is only one serial device, the I2CDriver device should be automatically

selected. If there is more than one device, select its COM port from the pull-

down menu at the top. Once connected, you can select a connected I2C device

and write and read data.

The command line utility i2ccl is also installed, and added to the Windows

PATH. For example to display status information:

c:\>i2ccl COM6 i

uptime 8991 4.957 V 30 mA 25.8 C SDA=1 SCL=1 speed=100 kHz

I2CDriver and I2CMini User Guide 8

The COM port can be found using the MODE command to list connected ports.

You can use the Device Manager or the MODE command to display the available

ports.

The Windows convention for COM10 and above is that they must be preﬁxed by

\\.\, for example:

c:\>i2ccl \\.\COM11 i

See (section 7.1 ”Port names”) for details on how to ﬁx a device to a port

number permanently.

See below for more information on the command-line syntax.

3.2 Linux

The GUI is included in the i2cdriver Python package, compatible with both

Python 2 and 3. To install it, open a shell prompt and do:

sudo pip install i2cdriver

Then run it with

i2cgui.py

For the command-line tool, clone the repository, then do:

cd i2cdriver/c

make -f linux/Makefile

sudo make -f linux/Makefile install

i2ccl /dev/ttyUSB0 i

and you should see something like:

uptime 1651 4.971 V 0 mA 21.2 C SDA=1 SCL=1 speed=100 kHz

I2CDriver and I2CMini User Guide 9

3.3 MacOS

The GUI is included in the i2cdriver Python package, compatible with both

Python 2 and 3. To install it, open a shell prompt and do:

sudo pip install i2cdriver

Then run it with

i2cgui.py

For the command-line tool, clone the repository , then do:

cd i2cdriver/c

make -f linux/Makefile

sudo make -f linux/Makefile install

i2ccl /dev/cu.usbserial-DO00QS8D i

(substituting your actual I2CDriver’s ID for DO00QS8D) and you should see some-

thing like:

uptime 1651 4.971 V 5 mA 21.2 C SDA=1 SCL=1 speed=100 kHz

Note that the port to use is /dev/cu.usbserial-XXXXXXXX, as explained here.

I2CDriver and I2CMini User Guide 10

4 APIs

4.1 Python 2 and 3

The I2CDriver bindings can be installed with pip like this:

pip install i2cdriver

then from Python you can read an LM75B temperature sensor with:

>>> import i2cdriver

>>> i2c = i2cdriver.I2CDriver("/dev/ttyUSB0")

>>> d=i2cdriver.EDS.Temp(i2c)

>>> d.read()

17.875

>>> d.read()

18.0

You can print a bus scan with:

>>> i2c.scan()

-- -- -- -- -- -- -- --

-- -- -- -- 1C -- -- --

-- -- -- -- -- -- -- --

48 -- -- -- -- -- -- --

-- -- -- -- -- -- -- --

68 -- -- -- -- -- -- --

-- -- -- -- -- -- -- --

[28, 72, 104]

The Python GUI (which uses wxPython) can be run with:

python i2cgui.py
