Ewheels EW-18 Manuel utilisateur

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

EW-18 OWNER'S MANUAL

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

THE ELECTRIC TRISCOOTER IS NOT A TOY AND SHOULD NOT

BE OPERATED BY ANY ONE UNDER 12 YEARS OLD.

Safety Instruction (Please take note of the

followings before each ride)

• The maximum weight capacity is 300 lbs.

• Only one person at a time should ride.

• Always wear protective gear including knee and elbow

pads and an approved safety helmet when riding the tri

scooter.

• Before riding be sure to check that all pivot points,

locking buttons, quick releases, and latches are secured

properly.

• The power switch lock must be in the “off” position when

the tri scooter is being charged.

• Do not use the tri scooter when it is raining.

• Do not place the battery near heat or fire.

• Do not expose the charger near water.

• Check if battery is properly charged and installed.

• Charge battery after each use.

• Always ride on dry paved surfaces. Wet and uneven

surfaces are a hazard.

• Sand and loose impediments are your enemy, avoid them.

• Never operate too fast for your skills or condition.

WARNING

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

Please observe and follow these instructions closely as it will insure safe and reliable operation.

1. Remove the EW-18 from it's carton. Start by using the box cutter to cut the banding straps . Once the banding straps

are cut, carefully cut the tape around the box and start removing all the bubble wrap .

2. Place the scooter out of the box with it's contents and review you have all the necessary parts as shown below.

Tools you will need to assemble the EW-18

1. Philips Screwdriver

2. 14mm Socket Wrench or wrench

3. 13mm Socket Wrench or wrench

4.Box Cutter

5. 6mm Allen Wrench

6. 5mm Allen Wrench

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

Please make sure to have the contents listed below and as shown in picture above.

1. Hub Motor

2. Tool Kit

3. Brake Spring

4. Seat Clamp ( 2 pieces)

5. Charger

6. Front Fender

7. Bottom Handle Bar

8. Front Fork

9. Top Handle Bar

10. Scooter Platform

11. Seat Post

12. Seat

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

1. Using the 15mm and 14mm wrenches , loosen up the nut from the bolt.(figure 1)

2. Once you have removed the nut and bolt , Insert the front fork and attach into the scooter platform.(figure 2)

3. After you have attached the fork into the platform, Insert the bolts back in and secure with the nut .(figure2)

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

1. First step will be to grab the bottom handle bar part and insert it on the top of the fork.(figure 1)

2. Once you have place the part into the front fork, you will use the 6mm Allen Wrench to secure the part into place.

Make sure you have the handle bar straight before tightening the bolt .(figure1)

3. After the bottom handle bar part is secure, insert the top handle bar part into the bottom handle bar part and secure

with the clamps .(figure 2)

HANDLE BAR INSTALLATION

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

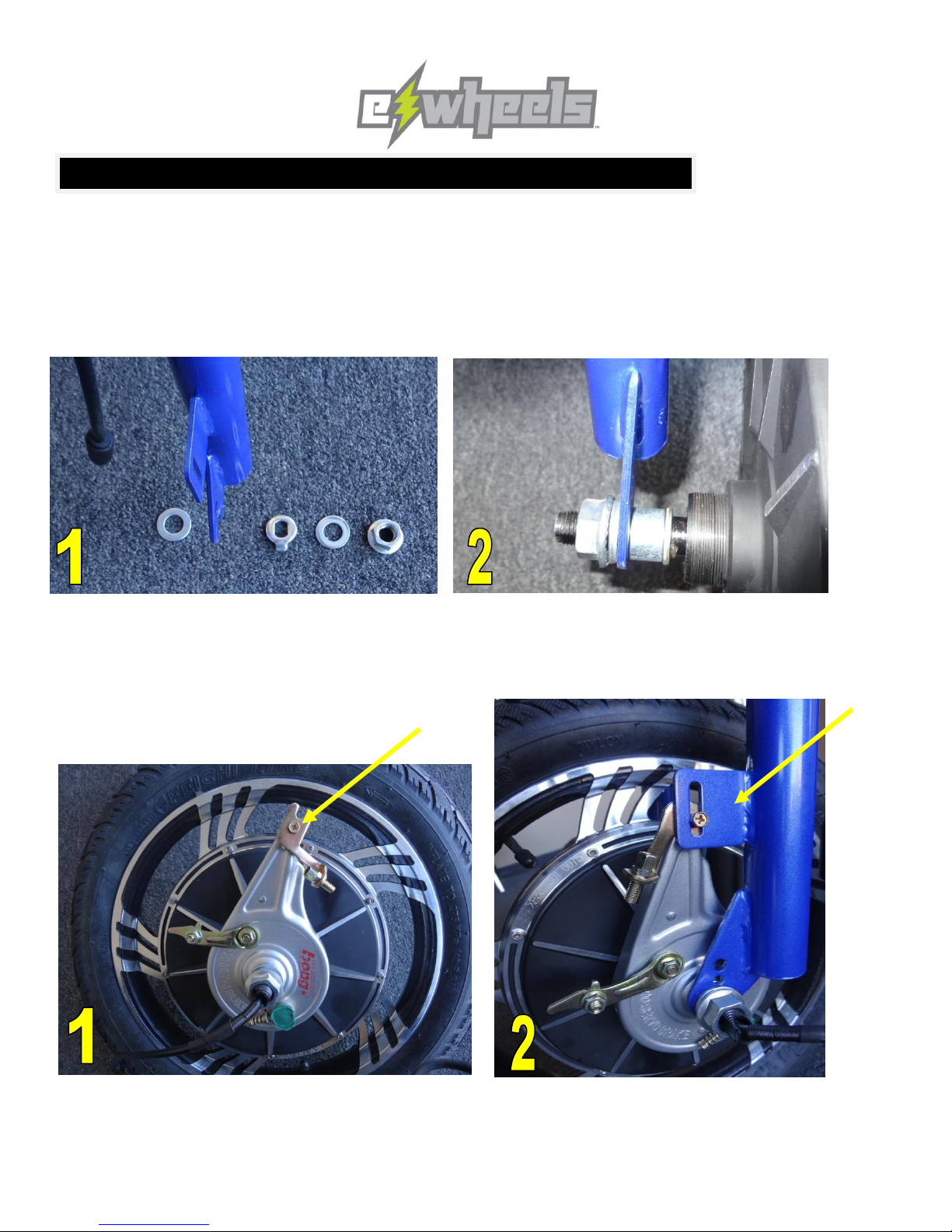

1. Place the Hub Motor into the front fork. Make sure that the side with the brake hub has the washers and nut in the

following sequence: Washer-Fork-Lock Washer-Washer-Nut.(Figure 1) The other side of the hub must have the

Following sequence: Washer-Spacer-Fork-Washer-Nut. (Figure 2)

2.Before you tighten up the nut on the axle, We will need to install the break hub first. Remove the bolt and screw

located on top of the brake hub and place it over the fork attachment.(Figure 1&2)

Front Hub Motor Installation

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

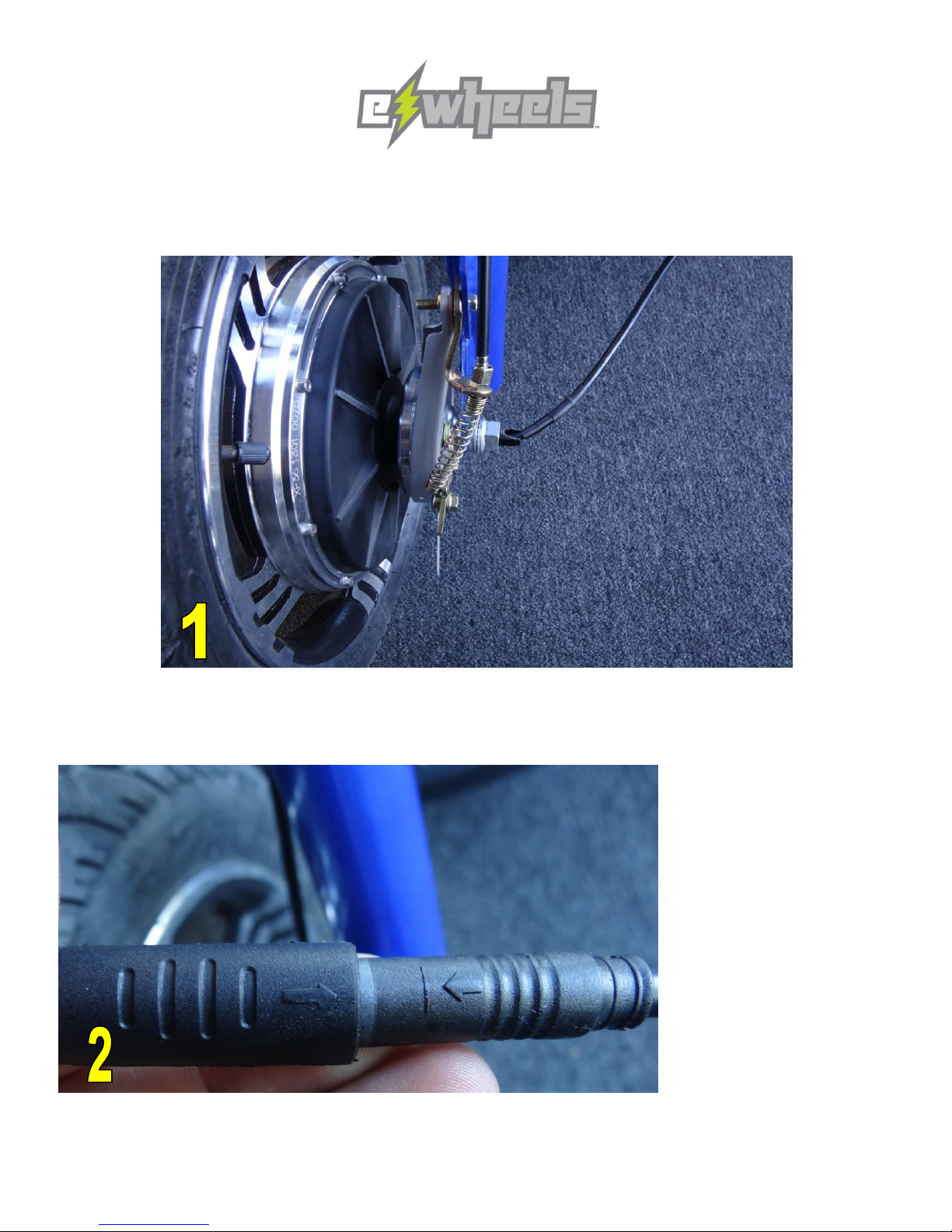

3. Once we have the Hub Motor and Brake Hub in place tighten up the axle nuts and the brake hub screw.

4. Insert the brake cable through the cable holder and the adjusting nut. Make sure you have the brake spring between

the cable holder and the adjusting nut.(Figure 1)

5.Plug the hub motor cable. Make sure the arrows are pointing at each other . (Figure 2)

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

1. Place the seat clamps at each end of seat post .(Figure 1)

2 . Insert seat post into the scooter platform .(Figure 2)

3. Insert seat into seat post.(Figure 3)

Seat installation

Electric Wheels LLC-888-571-2845 (Toll Free)- 15855 N Greenway Hayden Loop -Suite 190, Scottsdale, AZ 85260

Before you ride the tri scooter for the first time, it is advised that the unit is to be fully charged (4-6 hours) and fully

discharged (ride until the battery gauge indicates low battery) for at least three cycles to maximize the efficiency of the

battery. After that, you should continue to charge the battery frequently, at least once every 30 days to prolong the

battery lifespan.

IMPORTANT:

Do not leave the battery uncharged for more than 3 months; otherwise it will greatly reduce the battery lifespan.

TIP FOR BATTERY CARE: Charge the battery after each use!

Option 1:

To charge the batteries, plug the charger into the charger socket located on the rear side of the battery/ controller

compartment. Then plug the charger into a wall outlet.

Option 2: (for professional use only)

Remove the screws from the battery compartment located at the front part of the footboard. Disconnect the wires. Lift

the battery box. Connect the battery and charger using the charger convertible cable. Plug the charger into the wall

outlet.

Once you have completed the initial charge you are ready to ride. Remember, this is not a toy. The tri scooter can reach

speeds up to 15.5 mph depending on the terrain and the weight of the rider. You must wear a helmet and protective

pads. You must also be aware of all local laws and ordinances that govern and/or restrict the use of powered scooters.

The laws and ordinances vary greatly from municipality to municipality. It is your responsibility to know and abide by

your local restrictions. To ride, plug the key into the key ignition and turn the key to the “ON” position. The battery

gauge will illuminate indicating that the battery is in operation. Hold onto the handlebars with both hands. Your left

fingers will control the brakes and your right hand will control the throttle. As you depress the throttle lever with your

hand the speed will increase. Release the thumb throttle and apply the brake to stop the scooter. You will control the

speed of the scooter by using both the throttle and the brake. When the brake handle is squeezed it cuts power to the

throttle. NOTE 1: You may use the balancing wheel (the smaller middle rear wheel) to balance the tri scooter when you

want to ride with the front wheel raised. WARNING: Never try stunts beyond the control of your skills. Never ride too

fast for your skills or condition.

CHARGING THE BATTERY

RIDING THE EW-18
