EVGA 133K8NF41AX Manuel utilisateur

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 1

USER’S MANUAL

FOR

EVGA NFORCE4

MOTHERBOARD

MODELS: 133-K8-NF41-XX

133-K8-NF43-XX

133-K8-NF41/43 MANUAL - REV 1.5 - REV DATE 13 JULY 2005

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 2

Notice:

Specifications and information contained in this documentation are

furnished for informational use only, and are subject to change at any

time without notice, and should not be construed as a commitment by the

manufacturer.

This manual covers the following motherboards from EVGA CORP.

133-K8-NF41-XX

133-K8-NF43-XX

Feature 133-K8-NF41-XX 133-K8-NF43-XX

SLI X

Diagnostic LED X X

8 Channel Audio X X

SATA RAID X (SATA 150/300) X (SATA 150)

GigaLan Ethernet X X

Dual Channel DDR X X

CPU Voltage Control X X

BIOS Flash Protection X X

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 3

TABLE OF CONTENTS

CHAPTER 1 - Introduction to nForce Motherboards 4

1-1 Motherboard Features 4

1-1.1 Special Features of the Motherboard 5

1-2 Specifications 6

1-3 Layout Diagram and Jumper Settings 7

1-3.1 Jumpers, Connectors, Headers, and Sockets 8

CHAPTER 2 - Hardware Installation 10

2-1 Hardware Installation Steps 10

2-2 Checking The Motherboard Jumper Settings 10

Clearing the CMOS RAM 10

Keyboard Power On Function 11

USB Power On Function 11

2-3 Installing The CPU 11

Glossary of Terms 11

2-3-2 About AMD Athlon64 939-pin CPUs 12

2-4 Installing Memory 13

Memory Installation Diagrams 14

2-5 Expansion Cards 15

2-5-1 Procedure For Expansion Card Installation 15

2-5-2 Assigning IRQs For Expansion Cards 15

2-5-3 Interrupt Request Table 16

2-5-4 PCI-Express Slots 16

Diagram of PCI-Express Slot Locations and Functions 16

Table of Standard IRQ Assignments 17

2-5-5 SLI Bridge Installation For NVIDIA SLI Cards (SLI Version Only) 18

2-6 Connectors and Headers 20

2-6-1 Connector Locations 20

2-7 Starting Up Your Computer 28

Beep Code Table 28

CHAPTER 3 - BIOS 29

3-0 Introducting BIOS 29

3-1 Entering BIOS Setup 29

CHAPTER 4 - DRIVER INSTALLATION 30

4-0 Driver Installation 30

4-1 RAID Installation 31

APPENDIX 1 - POST CODES 32

Quick Debug POST Codes 32

Boot Block POST Codes 33

APPENDIX 2 - TRADEMARKS AND NOTICES 34

Copyrights, Trademarks, and Notices 34

FCC Compliance Statement 34

APPENDIX 3 - WARRANTY INFORMATION 35

36APPENDIX 4 - CONTACTING SUPPORT AND OTHER USEFUL INFORMATION

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 4

Chapter 1

Introduction of nForce4Motherboards

1-1 Motherboard Features

Motherboards based on NVIDIA nForce4 single chip technology support the

innovative 64-bit AMD Athlon64 FX and dual core multi-tasking Athlon64 X2

processors with HyperTransport Technology. The SLI version of the motherboard

series delivers leading-edge performance with both of the benefits from 64-bit

multi-tasking dual core AMD processors and NVIDIA Scalable Link Interface

(SLI) Technology with the latest Dual PCI-Express for NVIDIA Dual Graphic

Processing Unit ready platform. Utilizing the 64-bit multi-tasking socket 939

solution and the dual channel PC3200 DDR memory size expandable to 4.0GB,

this motherboard series meets the demands of computing in the future.

These motherboards carry the advanced NVIDIA nForce4 single chip with

1000 MHz HyperTransport system bus of data transferring and provided with

133MHz / 166MHz / 200MHz memory clock frequency for DDR266/DDR333/

DDR400 DDR Module with dual channel capability. The NVIDIA nForce4 single

chipset offers ULTRA ATA 133 and Serial ATA RAID 0, 1, 0+1 functions to

accelerate hard disk drives and guarantee data security without failure in

advanced computing applications.

The motherboard provides Gigabit LAN by using the NVIDIA Giga-LAN

controller which supports 10M/100M/1Gbps data transfer rate and full duplex or

half duplex transportation. The embedded 8-channel AC’97 CODEC is fully

compatible with Sound Blaster ProTM standards and offers you home cinema

quality and complete software compatibility.

Colorful and intuitional placement design of three PCI-Express graphics slots (Two

symmetrical PCI-Express x16 [x8 effective speed] graphics slots in yellow

deliver up to 2Gbyte/sec data transfer rate at each relative direction which is

fully compatible with the latest NVIDIA SLI Technology [this applies to the SLI

version of the motherboard only]). One PCI-Express x16 graphics slot offers

4Gbyte/sec data transfer rate at each relative direction which gets 3.5 times

more bandwidth than AGP 8X and up to 8Gbyte/sec concurrent bandwidth at

full speed to guarantee full operational multi-GPU graphics power and avoid

any possible SLI hardware installation error (SLI version only). One PCI-

Express x1 I/O slot offers 512Mbyte/sec concurrently, over 3.5 times more

bandwidth than PCI at 133Mbyte/sec, tackling the most demanding multimedia

tasks.

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 5

The embedded USB controller has the capability of supporting up to 10 USB

2.0 ports, delivering 480Mb/s bandwidth each.

1-1.1 Special Features of the Motherboard

CPU Thermal Throttling Technology

To prevent increasing heat from damaging the CPU or causing accidental

shutdown while under high workloads, the CPU Thermal Throttling Technology

will force the CPU to enter an idle mode from 87.5% to 12.5% according to

preset CPU operating temperatures in the BIOS (from 40 to 90). When the

system senses the CPU operating temperature reaching the preset value, the

CPU operating bandwidth will be decreased to the preset idle percentage

allowing the processor to cool down. When in throttling mode, a beeper sound

can be optionally selected to indicate it has reduced the CPU performance. (for

detailed settings, please read the BIOS PDF located on the CD)

Debug Port

The embedded Hardware Debug Port offers you a real-time visual system for

monitoring of your hardware. The embedded Debug Port will turn you into a

well trained hardware professional, allowing you to diagnose many hardware

issues. (for details please refer to Appendix A)

CPU Smart Fan

It’s never been a good idea to improve system performance by sacrificing

acoustics. The CPU Smart Fan Noise Management System is the answer to

control those noise levels. The system will automatically increase the fan speed

when the CPU operating load is high, and after the CPU returns to normal

operating condition, the system will slow the fan speed down to allow for a

silent operating environment.

CPU Vcore 7-Shift

The CPU voltage can be adjusted up by 7 steps allowing precise overclocking

for extra computing performance. (For detailed settings, please read the BIOS

PDF located on the CD)

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 6

Spec Description

Design ATX form factor 4 layers PCB size: 30.5x24.4cm

Chipset NVIDIA nForce4 Single Chip Technology

CPU Socket 939

Supports 64bit AMD Athlon64 939-Pin package processors

Support up to 4000+ processor

Future support for future AMD Athlon64 939-pin Dual –Core processors

Memory Sockets 184-pin DDR Module socket x 4

Support 4pcs DDR266/DDR33/DDR400 DDR Modules Expandable to 4.0GB

Support Dual channel function

Expansion Slots PCI-Express x16 slot x 1

PCI-Express x16 (x8 effective) slots x 2 (for SLI version)

PCI-Express x1 slot x 1

32 bit PCI slots x 3

Integrated IDE and

Serial ATA RAID

Two PCI IDE controllers support PCI Bus Mastering, ATA PIO/DMA and the

ULTRA DMA 33/66/100/133 functions that deliver the data transfer rate up to

133 MB/s; Four Serial ATA ports provide 150 MB/sec data transfer rate for Four

Serial ATA Devices and offer RAID 0, 1, 0+1 functions

LAN Integrated NVIDIA Gigabit LAN provides 10Mb/100Mb/ 1Gb /s data transfer

rates

8CH-Audio 8-channel AC’97 Digital Audio controller integrated

Audio driver and utility included

SPDIF-In/ SPDIF-Out Optical support (Cable optional)

BIOS Award 4MB Flash ROM

Multi I/O PS/2 keyboard and PS/2 mouse connectors

Floppy disk drive connector x1

Parallel port x1

Serial port x2

USB2.0 port x 4 and headers x 4 (connecting cable optional)

Audio connector (Line-in, Line-out, MIC/ 8CH Audio)

1-2 Specifications

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 7

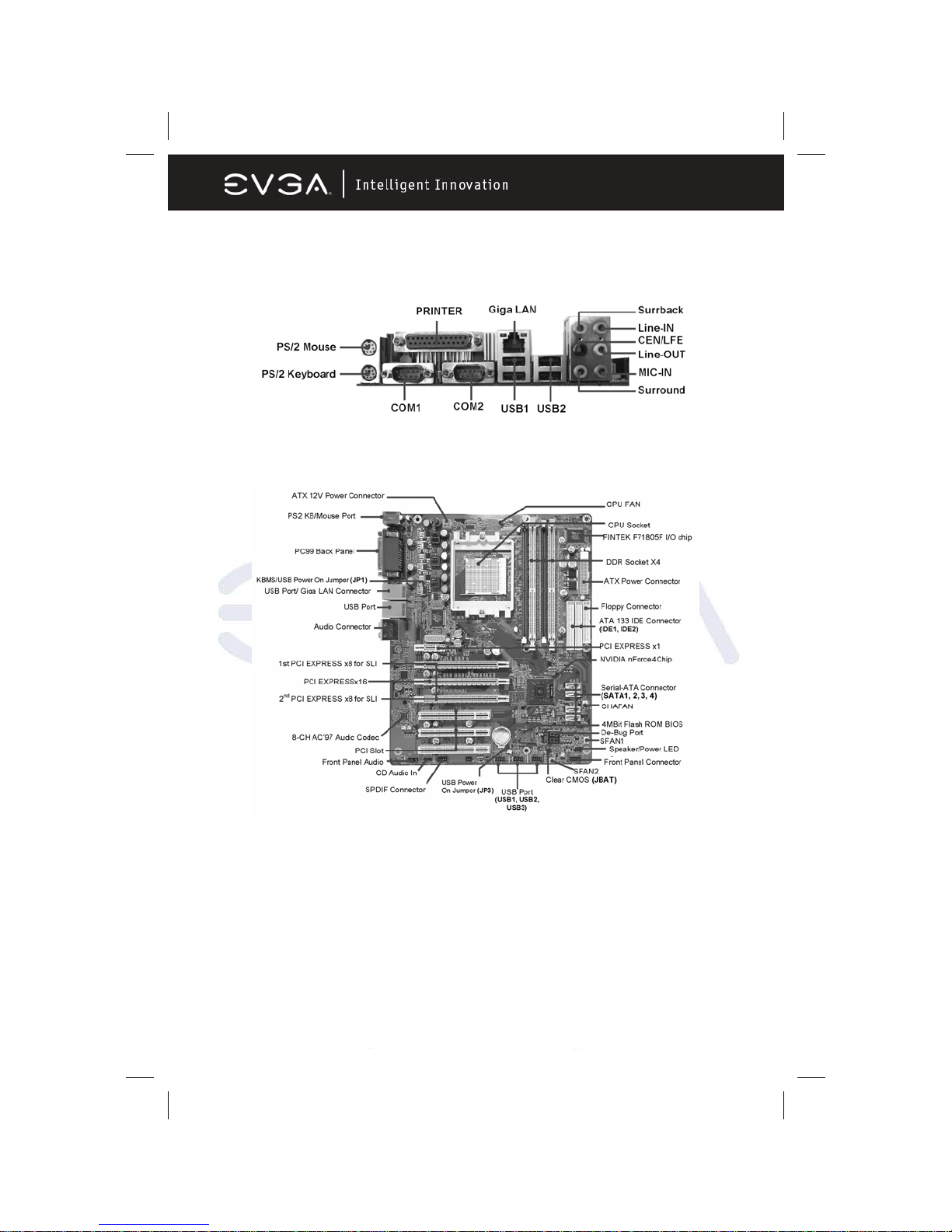

1-3 Layout Diagram & Jumper Settings

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 8

Jumper Name Description

JBAT CMOS RAM Clear 3-pin Block

JP1 Keyboard/USB0,1 Power On

Enabled/Disabled

3-pin Block

JP3 USB Power On Enabled/Disabled 3-pin Block

Connector Name Description

ATXPWR24P ATX Power Connector 24-pin Block

ATX12V ATX 12V Power Connector 4-pin Block

PS2KBMS PS/2 Mouse & PS/2 Keyboard

Connector

6-pin Female

USB/USB1 USB Port Connector 4-pin Connector

USB/LAN1 Giga-LAN Port Connector RJ-45 Connector

PARALLEL Parallel Port Connector 25-pin Female

J1 8-CH Audio Connector 6 jack Connector

COM1/COM2 Serial Port COM1/COM2 Connector 9-pin Connector

FDD Floppy Driver Connector 34-pin Block

IDE1/IDE2 Primary/Secondary IDE Connector 40-pin Block

SATA1~4 Serial ATA IDE Connector 7-pin Connector

Header Name Description

AUDIO SPEAKER, MIC header 9-pin Block

USB2, USB3 USB Port Headers 9-pin Block

SPEAK PC Speaker connector 4-pin Block

PWR LED Power LED 3-pin Block

JW_FP

(Power LED/Reset/

IDE LED/Power

Button)

Front Panel Header

(including Power LED/ IDE activity

LED/Reset switch / Power On Button

lead)

9-pin Block

SFAN1, SFAN2

CPUFAN

FAN Headers 3-pin Block

CDIN CD Audio-In Header 4-pin Block

SPDIF Optical In/Out Header 9-pin Block

1-3.1 JUMPERS, CONNECTORS, HEADERS, AND SOCKETS

EVGA.com Corporation 2900 Saturn St. Suite B, Brea, CA 92821

Phone: 888 / 881-EVGA - 714 / 528-4500 - Fax: 714 / 528-4501

Page 9

Socket/Slot Name Description

ZIF Socket 939 CPU Socket 939-pin mPGAB Athlon64 CPU Socket

DIMM1~4 DDR Module Socket 184-pin DDR Module Socket

PCI1~ PCI3 PCI Slot 32-bit PCI Local Bus Expansion slots

PE1 PCI-Express x1 Slot PCI-Express x1 Expansion Slot

PE3 PCI-Express x16 Slot PCI-Express x16 Expansion Slot

PE2,PE4 PCI-Express x16 Slot PCI-E x 8 Bandwidth for SLI Tech.

1-3.1 JUMPERS, CONNECTORS, HEADERS, AND SOCKETS CONT.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EVGA Carte mère

EVGA

EVGA nForce 112-CK-NF70 Manuel utilisateur

EVGA

EVGA X58 FTW Manuel utilisateur

EVGA

EVGA 141-GT-E770-A1 Manuel utilisateur

EVGA

EVGA X99 Micro2 Manuel utilisateur

EVGA

EVGA 160-LF-E659-KR Manuel utilisateur

EVGA

EVGA P55 LE Manuel utilisateur

EVGA

EVGA nForce 122-YW-E173 Manuel utilisateur

EVGA

EVGA 170-BL-E762 Manuel utilisateur

EVGA

EVGA nForce 750i SLI Manuel utilisateur

EVGA

EVGA 131-GT-E767-KR Manuel utilisateur

EVGA

EVGA Z370 Classified K Manuel utilisateur

EVGA

EVGA 151-IB-E699-KR Manuel utilisateur

EVGA

EVGA EVGA X79 DARK Manuel utilisateur

EVGA

EVGA 730a - nForce Motherboard - ATX Manuel utilisateur

EVGA

EVGA Z87 Manuel du système

EVGA

EVGA X570 FTW Manuel de référence

EVGA

EVGA EVGA X79 DARK Manuel du système

EVGA

EVGA P67 SLI Manuel utilisateur

EVGA

EVGA nForce 3 250 Manuel utilisateur

EVGA

EVGA Z75 SLI Manuel utilisateur

EVGA

EVGA P55 LE Manuel utilisateur

EVGA

EVGA X58 Classified Guide d'installation

EVGA

EVGA Z370 FTW Manuel utilisateur

EVGA

EVGA Z790 DARK K NGP N Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
