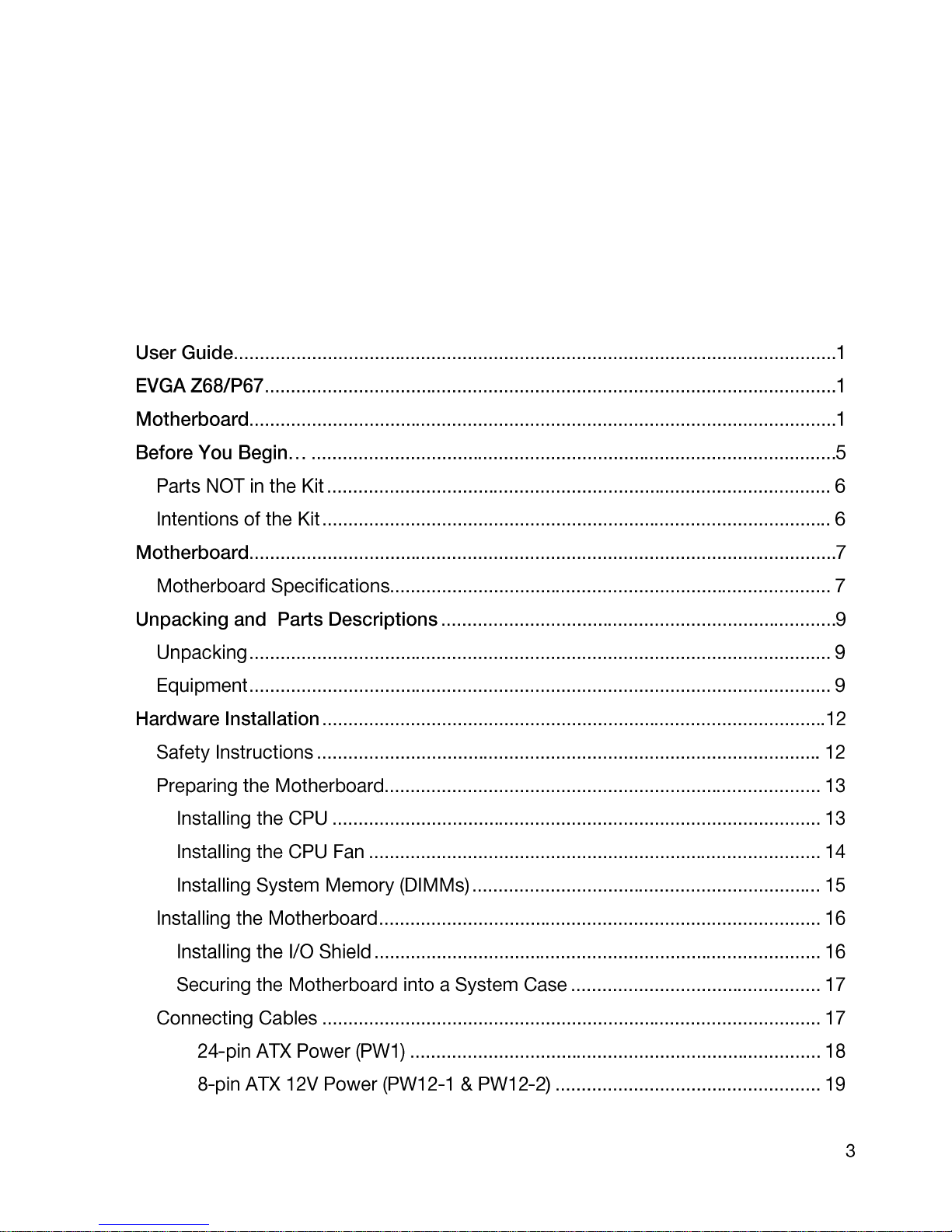

Table of Contents

EVGA Z68/P67 Motherboard

Thank you for purchasing the EVGA Z68/P67 Motherboard. This board is based off

of the new Intel Z68/P67 chipset with native support for SATA III/6G for the

performance you demand, delivered when you need it.

As always this board comes with the added bonus of EVGA’s industry leading 24/7

technical support in case you ever have any issues or questions.

EVGA Z68/P67 Motherboard

This kit contains all the hardware necessary to install and connect your new

EVGA Z68/P67 Motherboard. However, it does not contain the following

items that must be purchased separately to make the motherboard functional.

Intel Socket 1155 Processor

DDR3 System Memory

Socket 775 or 1155/1156 CPU cooler for the processor

PCI Express Graphics Card

Power Supply

EVGA assumes you have purchased all the necessary parts needed to allow for

proper system functionality. For a full list of supported CPU’s on this

motherboard, please visit http://www.evga.com/support/motherboard/.

This kit provides you with the motherboard and all connecting cables necessary

to install the motherboard into a PC case. If you are building a PC, you will use

most of the cables provided in the kit. If however, you are replacing a

motherboard, you will not need many of the cables.

When replacing a motherboard in a PC case, you will need to reinstall an

operating system even though the current Hard Disk Drive may already have

one installed.

EVGA Z68/P67 Motherboard

Size

EATX form factor of 12 inches x 10.3 inches

Microprocessor support

Intel Socket 1155 Processor

Operating systems:

Supports Windows XP/Vista/7 32 and 64 bit

Contains Intel Z68/P67 chipset

System Memory support

Supports Dual channel DDR3-2133+. Officially supports up to 16GBs of

DDR3 memory.

USB 2.0 Ports

Supports hot plug

Supports wake-up from S1 and S3 mode

Supports USB 2.0 protocol up to a 480 Mbps transmission rate

USB 3.0 Ports

Backwards compatible USB 2.0 and USB 1.1 support

Supports transfer speeds up to 5Gbps

EVGA Z68/P67 Motherboard

SATA ports up to 3.0 Gb/s (300 M/s) data transfer rate

SATA ports up to 6.0 Gb/s (600 M/s) data transfer rate

Support for RAID 0, RAID 1, RAID 0+1, RAID5 and RAID 10

ESATA (optional)

Onboard LAN

Supports 10/100/1000 Mbit/sec Ethernet

Onboard IEEE 1394a (Firewire)

Supports hot plug

Onboard Audio

Realtek High-Definition audio

Supports 8-channel audio

Supports Jack-Sensing function

PCI-E Support

PCI-E 2.0 Slots

Low power consumption and power management features

Green Function

Supports ACPI (Advanced Configuration and Power Interface)

Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4

(Suspend to disk - depends on OS), and S5 (soft - off)

Expansion Slots

PCI-E x1 slots

PCI-E x8/x16 slots

EVGA Z68/P67 Motherboard

The EVGA Z68/P67 Motherboard comes with all the necessary cables for

adding a motherboard to a system case. If replacing a motherboard, you may

not need many of these cables.

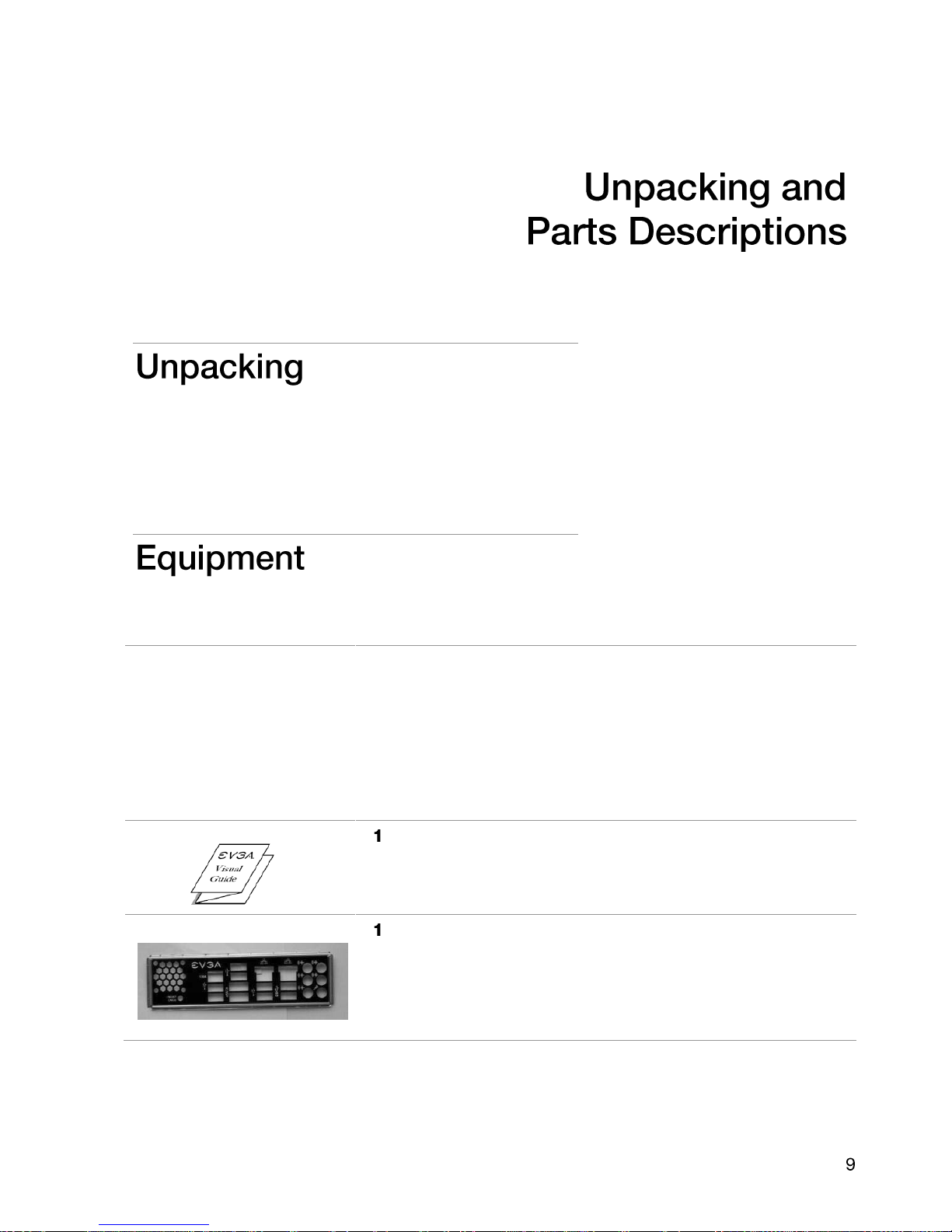

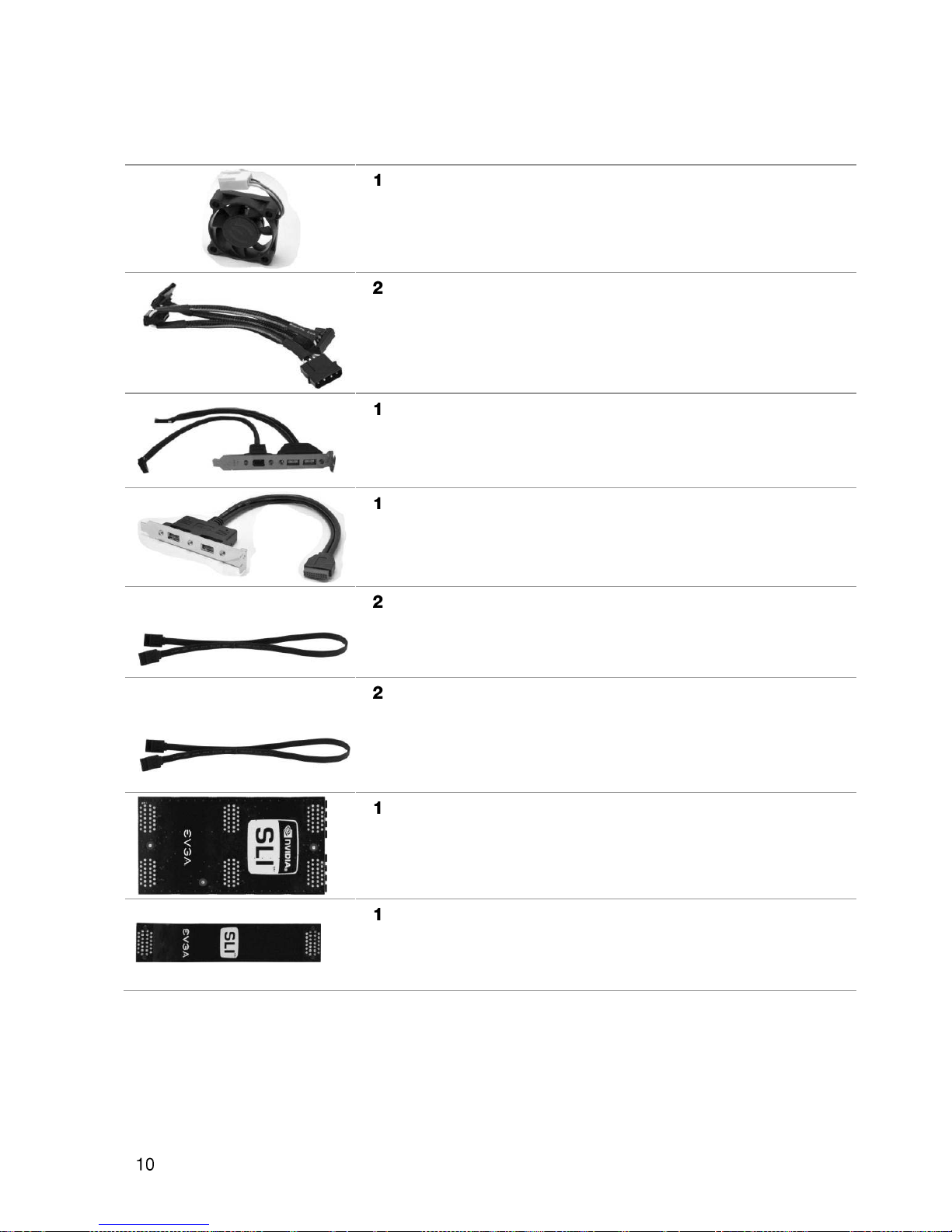

The following accessories are included with the EVGA Z68/P67 Motherboard:

The EVGA Z68/P67 Motherboard

This PCI-E motherboard contains the Intel Z68/P67 chipset and

is SLI-ready.

- Visual Guide

Helps to quickly and visually guide you through the hardware

installation of the motherboard.

- I/O Shield

Installs in the system case to block radio frequency

transmissions, protect internal components from dust, foreign

objects, and aids in proper airflow within the chassis.

EVGA Z68/P67 Motherboard

–I/O Shield Fan (Optional)

Exhausts Air from the IO Shield out of the rear of the case.

Attaches to IO Shield.

- 2-Port SATA Power Cables

Allows a Molex power connector to adapt to a SATA power

connector.

- 2-Port USB 2.0 / 1394a Firewire Bracket

Provides two additional USB ports and 1 additional 1394a

Firewire port to the back panels of the chassis.

–2-Port USB 3.0 Bracket (FTW Model Only)

Allows Addition of 2 USB 3.0 ports by Connecting to the

motherboard header.

–SATA II/3G Data Cables

Used to support the SATA protocol and each one connects a

single drive to the motherboard.

–SATA III/6G Data Cables

Used to support the SATAIII/6G high speed protocol and each

one connects a single drive to the motherboard.

- 3-way SLI Bridge (FTW Model Only)

Bridges three (3) graphics cards together which allows for

3-way SLI.

- 2-way SLI Bridge

Bridges two (2) graphics cards together which allows for

2-way SLI.
