EVGA CLX Series Manuel utilisateur

All-In-One CPU Liquid Cooler with LCD Display

COMPONENT LIST

ACLX 360mm / CLX 280mm / CLX 240mm x1

BLCD Cap with USB Cable x1

CIntel LGA 12XX / 115X Stando (M3 thread) x4

DIntel LGA 17XX Stando (M3 thread) x4

EAM5/AM4 Stando (UNC 6-32 thread) & Collar x4

FIntel Retention Bracket LGA x1

17XX / 12XX / 115X (Pre-installed)

GAMD Retention Bracket x1

AM5 / AM4

HIntel Backplate x1

LGA 17XX / 12XX / 115X

IScrew Nuts (M3 thread) x4

COMPONENT LIST

J30mm & 20mm UNC 6-32 Fan Screw

CLX360: 30mm x12, 20mm x12

CLX280: 30mm x8, 20mm x8

CLX240: 30mm x8, 20mm x8

K5mm UNC 6-32 Screw

CLX 360 : x12

CLX 280 : x8

CLX 240 : x8

NPWM Fan Splitter

CLX 360 : 1-to-3 x1

CLX 280 : 1-to-2 x1

CLX 240 : 1-to-2 x1

LFan Washer

CLX 360 : x12

CLX 280 : x8

CLX 240 : x8

COMPONENT LIST

MEVGA ARGB Fan & Sleeve

CLX360: 120mm x3, Sleeve x12

CLX280: 140mm x2, Sleeve x8

CLX240: 120mm x2, Sleeve x8

O16 Pin 1-to-4 Cable

PHex Key

SATA POWER

MB fan PWM

Fan PWM

Fan ARGB

Install EVGA CLX

Backplate Installation

Install the mounting backplate part on the back of the motherboard if you are using an Intel LGA 17XX,

12XX or 115X socket motherboard. Slide the standos to line up with the cooler mounting holes on your

motherboard.

*Please skip this step for AMD motherboards as you will use the existing motherboard’s backplate.

Standos

Next, screw the stando into the backplate. Fasten the standos to the backplate you installed in the

previous step for LGA 12XX / 115X motherboards part and LGA 17XX motherboards part .

For AMD platforms, remove the stock AMD mounting bracket, keep the original backplate. After aligning the

collars, screw in the stando to the collars and stock AMD Backplate .

*The collars have marked “AM5” and “AM4” on each side, facing up the correct side of collars according

your AMD platform.

Intel LGA 17XX Intel LGA 12XX

Intel LGA 115X

AMD

Intel

Intel LGA 12XX / 115X Stando (M3 thread)

Intel LGA 17XX Stando (M3 thread)

AM5/AM4 Stando (UNC 6-32 thread) & Collar x4

Retention Ring

Make sure the correct retention ring is installed on the pump / cooler. Both Intel and AMD retention rings are

included with your CLX, with the Intel ring preinstalled.

To change the retention ring, push down on ring and turn counter-clockwise to remove the ring from the pump.

Intel Retention Bracket LGA 17XX / 12XX / 115X (Pre-installed)

AMD Retention Bracket AM5 / AM4

Pump Installation

Thermal paste is pre-applied to the contact surface of the pump. Install the pump by aligning the mounting

holes on the retention ring with the standos and lower the pump evenly over the CPU. Secure the

retention ring using screw nuts part .

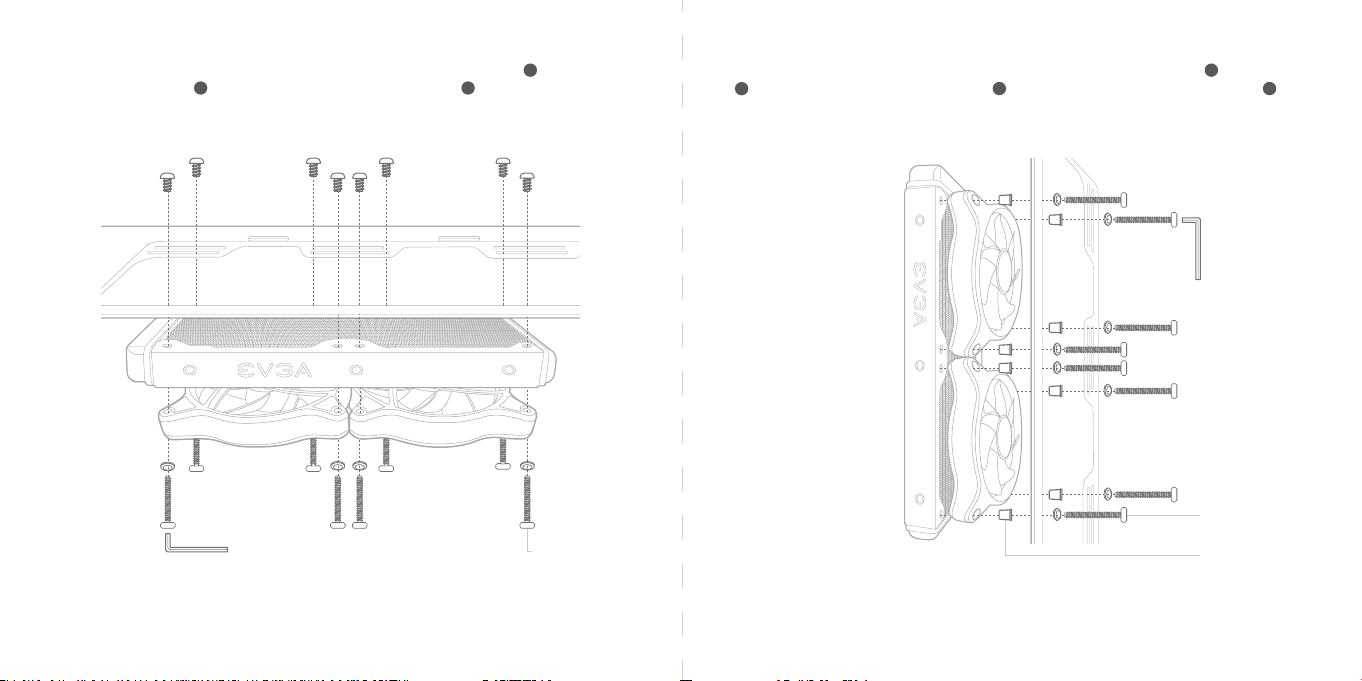

Fans and Radiator Installation

Install fans and radiator according to your system setup and airﬂow design. Use screws to attach the fan

to the radiator, use screws to attach the radiator to the case, and hex key to fasten the screws.

EVGA recommends that the pump should always be below the highest point of the radiator.

Install fans and radiator according to your system setup and airﬂow design. Use screws and fan washers

to attach the fan to the radiator, use screws to attach the radiator to the case, and hex key to

fasten the screws.

EVGA recommends that the pump should always be below the highest point of the radiator.

*Warning – The CLX Cooler is not a passive cooler. Fans must be installed to the radiator for proper operation

of the CLX Cooler, and failure to do so may cause irreparable damage to the pump and other connected

hardware.

*Warning – The CLX Cooler is not a passive cooler. Fans must be installed to the radiator for proper operation

of the CLX Cooler, and failure to do so may cause irreparable damage to the pump and other connected

hardware.

*Install to the top of the case

K P

LK P

*Install to the front of the case

30mm UNC 6-32

Fan Screw

Sleeve

20mm UNC 6-32

Fan Screw

Push the latch to remove the LCD Cap

*Warning – Removing the LCD Cap while your system

is running may cause irrepairable CLX damage.

Install LCD Cap

Align the hooked tab and 3 raised circles below LCD cap to the 3 indents on top of the pump, then gently

press down the LCD cap into the latch to secure it.

Install the USB cable to enable PWM-tuning via CLX software. Connect the cable from the LCD Panel to the

USB 2.0 front panel header on your motherboard.

MB Fan PWM

Fan PWM

Fan ARGB

Install The

LCD CAP

SATA POWER

PSU SATA

USB

CPU Fan

O16 Pin 1-to-4 Cable

Cable Connections

Important Information

EVGA CLX CPU Closed Loop Water Cooling Kit is an AIO (All-In-One) cooling system. With AIO Water Cooling

Systems, you do not need to add any coolant, and the system is completely self-contained. All EVGA CLX

CPU Closed Loop Water Cooling Kits are leak tested at the factory, and are ready to install when received.

Warranty for the EVGA CPU Closed Loop Water Cooling Kit

Your EVGA CLX CPU Closed Loop Water Cooling Kit comes with a 5 (ﬁve) Year Limited Warranty. Refer to

your motherboard’s warranty information before installing the EVGA CLX CPU Closed Loop Water Cooling

Kit. Should you damage your motherboard during the installation process, EVGA will not be held liable for

the physical damage of your EVGA CLX CPU Closed Loop Water Cooling Kit, case, motherboard or any

associated hardware when damage is caused by improper installation.

Full Control with EVGA CLX SoftwareEVGA ARGB Fan

ARGB Cables

FAN PWM Cables

16 Pin 1-to-4 Cable

MB fan PWM

FAN PWM

FAN ARGB

SATA Power

PWM Fan Splitter

Connect cable part to the CLC, then connect the SATA power cable to the SATA power cable from

your power supply.

Connect the MB Fan PWM to the 4pin CPU_FAN or AIO_PUMP header on your motherboard.

Connect cable part to the Fan PWM on cable part then connect the fans to each of the

connectors on cable part .

Connect each of the ARGB from the fans to each other and then connect the end to the Fan ARGB on

cable part .

•

The LCD display orientation can be rotated via “EVGA CLX” software.

Cable Connections

The CLX includes additional cables, part and required for RGB and fan control through the

CLX software.
