EVERFOCUS

1/3” 560 TVL Color Mini Dome Camera

Operation Instructions

Model No. ED350

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within 0℃~ 40℃(32℉ to 104℉) and humidity between

20%~ 80%. The input power source is 12VDC/24VAC.

PREFACE

The ED Series are compact, full functioned CCD Color Indoor Dome Cameras. The stylish

appearance can be applied as per installer's ideal locations on the ceiling. The dome camera

designed with advanced digital processing circuitry for high resolution 1/3" color interline transfer

CCD sensor, it has DIP switch for AGC on/off, BLC on/off. ED vari-focal models use vari focal

auto iris lens for discreet surveillance or close-up viewing and it features with iris LEVEL volume

control for the best viewing quality. ED300 is 520TVL dome camera equipped with simple Day

and Night feature. ED350 is 560TVL high resolution. ED230/330 is day and night IR Dome

camera.

FEATURES

z1/3” Sony super HAD CCD image sensor with approximately 410,000 pixels.

z560 TVL of horizontal resolution.

zRevolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images

and excellent picture quality.

zLow light sensitivity 0.5 lux/F=1.2.

zWide-range automatic electronic shutter: up to 1/100,000.

zManual zoom lens with adjustable viewing range.

zPure Vision Technology.

PACKAGE CONTENTS

zCamera Unit x 1

zManual x 1

zExtension Power Cable x 1

OPTIONALACCESSORIES

•BA-ED- Mounting L-Bracket for ED Series Mini Dome Cameras

•EN220 5.6-inch LCD Test Monitor

SPECIFICATIONS

Pickup Device 1/3'' SONY Super HAD CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec

Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)

Horizontal Resolution 560TVL

Sensitivity 0.5Lux/F=1.2

S/N Ratio Over 48dB(AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type

Vari-focal lens, Auto Iris

f= 2.9~10mm

f=3.8~9.5mm

f=9~22mm

Back Light Comp. ON/OFF Switch

Auto Gain Control ON/OFF Switch

Flickerless ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal Sync

Power Source 12VDC/24VAC

Dimensions 108(O.D) x 80(D) mm ; 4.3"(O.D) x 3.1"(D)

Weight 0.3 kg ; 0.7lbs

Operating Temperature 0°C~40°C ; 32°F~104°F (20%~80% Humidity)

DIMENSIONS

MAJOR PARTS FUNCTIONS

(1) Camera Cover

This cover will protect the camera from dust and damage.

(2) Lens

ED350 and ED300 come with vari-focal lens. ED200, ED230/330 comes with fixed lens. This

Vari-Focal Lens allows users to adjust the Zoom and Focus manually.

(3) Base

The camera unit is set in the dome base when it is shipped from the factory.

(4) Focus Ring

4 5

To set the focus, loosen the Focus ring knob first, then turn the ring toward <∞> or <N> as

necessary. When the focus is obtained as desired, tighten the focus ring knob.

(5) Zoom Ring

Loosen the zoom ring knob, then you can adjust the viewing range. Turn the ring towards <W>

for WIDE or <T> for TELE as necessary. When the setting is finished, tighten the zoom ring

knob.

(6) Power input

Use the connector to connect with 12VDC/24VAC power adaptor.

(7) Video Output BNC Connector

Use the connector to connect with the video in connector of a monitor.

(8) DIP Switch and ALC/Iris adjuster

Use this for detail camera setting including AGC, Backlight Compensation, Flickerless, Iris.

Please see the detail in Camera Setting Section.

(9) Ground Pin

For monitor use. When setting up the camera, connect a monitor to this video output pin and to

the GROUND pin using alligator clip cables, then use the image displayed on the monitor, set the

surveillance angle.

INSTALLATION

This section cover simple steps and detail installation. Please follow instruction for

preventing any unnecessary damage.

Simple Steps:

1. Open Camera Cover

2. Mount Camera on Ceiling

3. Connect power, video

4. Optional Connect to EN220 Test Monitor for field testing (monitor is not included)

5. Adjust Lens

6. Adjust camera setting on Dip Switch

Detail installation:

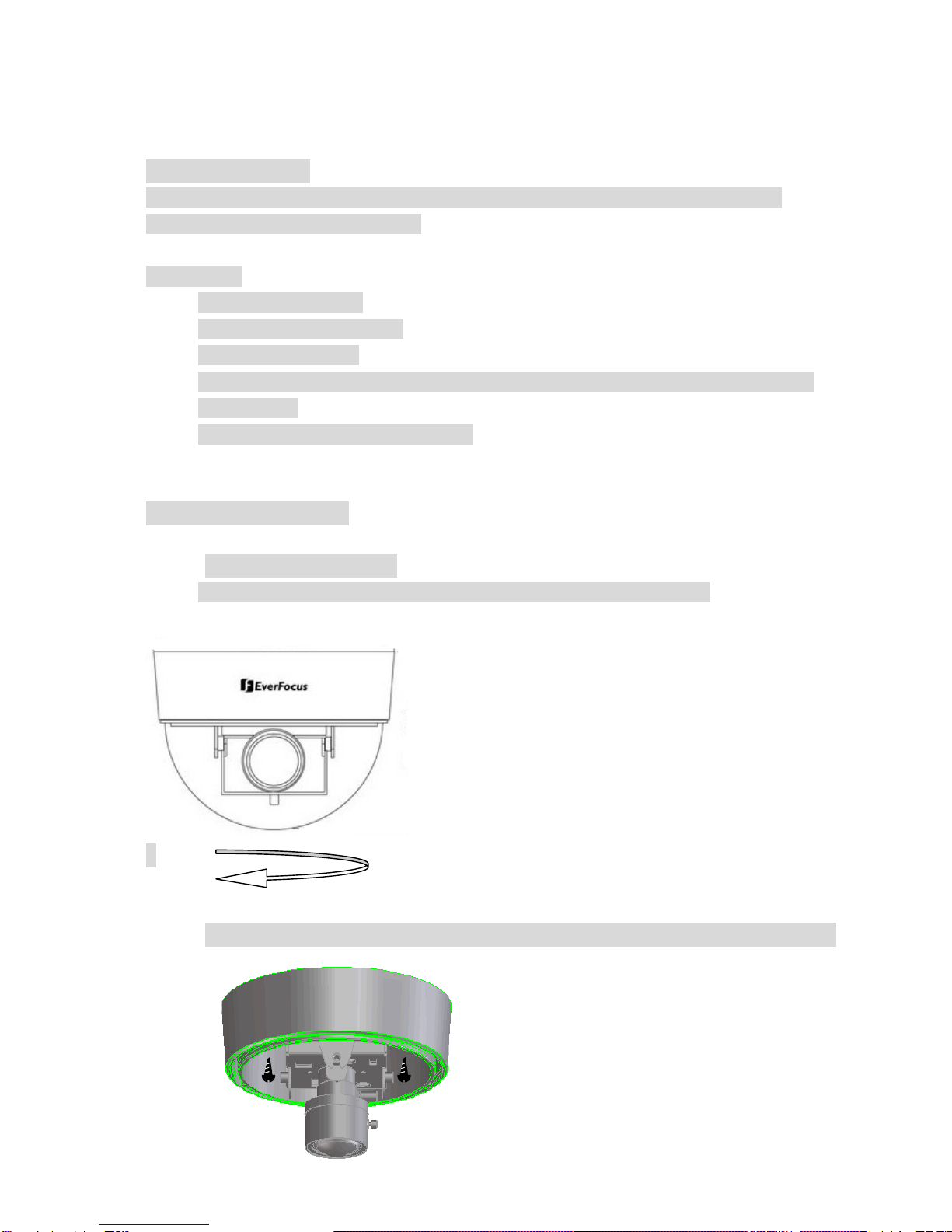

1. Open Camera Cover

Turn Clockwise to open it gently. Be careful not to damage the lens.

2. Mount the camera on ceiling. Refer dimension b for drilling dimension.

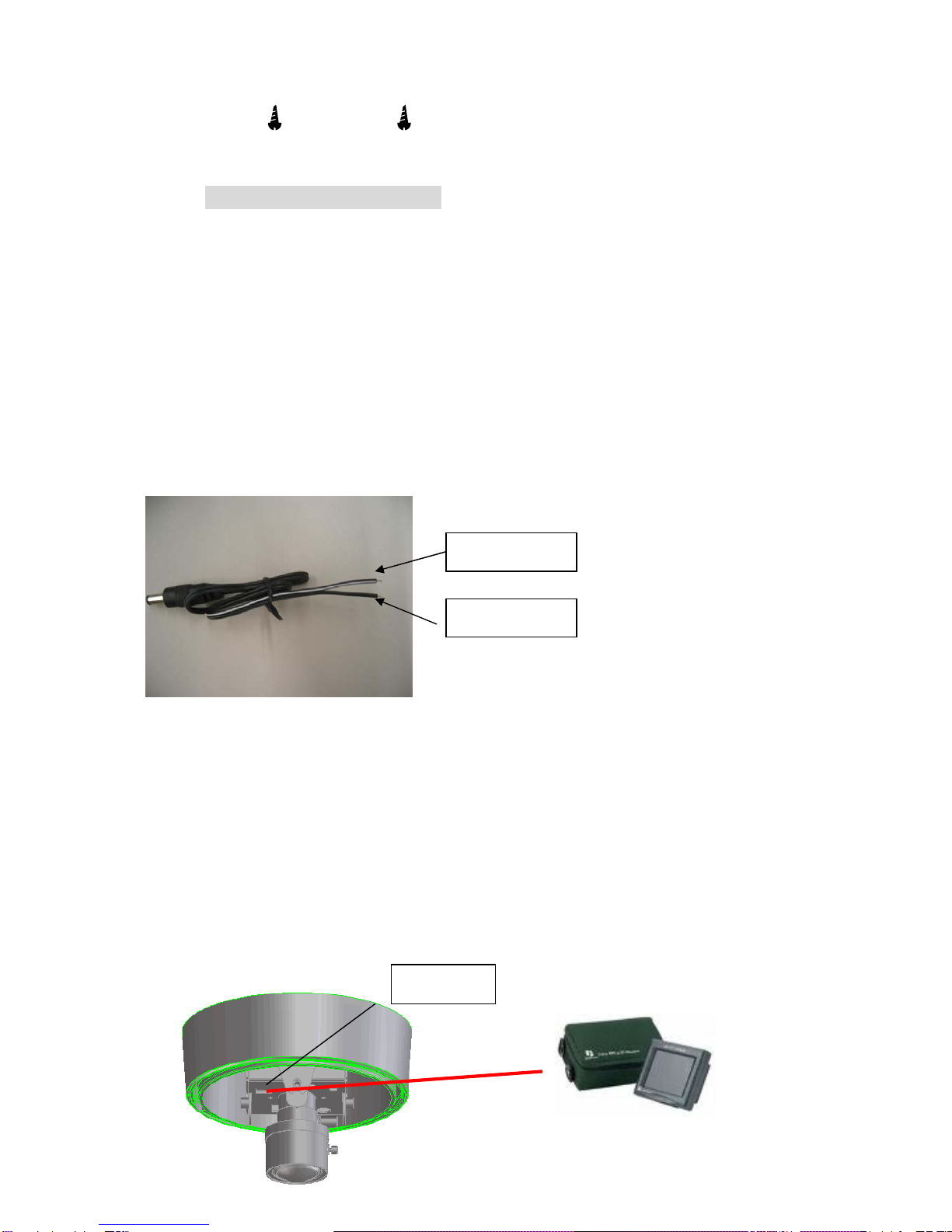

3. Connect Power and Video

a. Connect the BNC connector of the camera to a color monitor, or other video device

through a 75 ohm type coaxial cable with BNC female connector at cable

extension.

b. ED Series support dual power source. Connect either 12VDC or 24VAC regulated

power source to the camera. Please use power extension for connecting to it if the

power adapter cable is not long enough.

Note!! When connect to 12VDC. Please make sure you connect power +,-

correctly. Wrong Connection damage the camera.

c. Connect the audio ( only for model with Audio)

4. Optional Connect to EN220 Test Monitor for field testing (monitor is not

included)

It is highly recommend to use Everfocus Test Monitor to test the camera. Find the

Video testing connector as following. Connect it to testing monitor for field

testing.

White (+)

Black (-)

Video out

5. Zoom and focus adjustments

After the camera was installed, the zoom and focus of the

lens must be adjusted.

1. Loosen the zoom ring knob, and then turn the ring

towards <W>or <T>as necessary to obtain the

desired view range.

W side (Zoom out)

The viewing range will be wider and the subject is

smaller.

T side (Zoom in)

The viewing range will be smaller and the subject is larger.

2. Loosen the focus ring knob, then turn the ring towards <∞>or <N>as necessary to obtain

the clear video image.

3. Repeat steps 1 and 2 until the best image is obtained. Once the lens setting finished, tighten

the zoom ring and the focus ring knobs.
