EPTZ9200/9300 Series Speed Dome

AHD 1080p Outdoor/Indoor PTZ

with True Day/Night and WDR (20x / 30x Optical Zoom)

Quick Installation Guide

Release Date: November, 2015

EPTZ9200/9300 Series

1. Overview

The EPTZ9200/9300 Series comes in two types: outdoor (EPTZ9200/9300) and indoor (EPTZ9200i/9300i).

Outdoor

(EPTZ9200/9300)

Indoor

(EPTZ9200i/9300i)

Item Name

No. Item Name No. Item Name No. Item Name

1 Top Housing 2 Outer Housing 3 Camera Main Body

Packing List

There are 3 boxes that are camera main body with a camera module, top housing with a base board & pin

connector and outer housing with bubble, plus one tool packet in the package. The detail accessories are

listed below:

Standard

1. Camera Main Body x 1

2. Top Housing x1

3. Outer Housing with Bubble x1

4. Tool Packet

Hexagon Wrench x1

Glove x 1 Pair

RS-485 Terminal Block

Desiccant Packs x 3

Note:

Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for possible

future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

EPTZ9200/9300 Series

2. Cables and I/O Terminal Block

Cable Descriptions

Power Cable

An adapter with 24 VAC~ / 3A output provides the power to the EPTZ9200/9300 Series camera. An

extension power line may be needed.

Note:

Different regions may use different ranges for AC voltage. Be sure to check the voltage range in your

area before installing.

Video Cable

A BNC cable is used for connecting an EPTZ9200/9300 Series to a DVR or a monitor. An amplifier may be

needed depending on the distance.

RS-485 Cable

The yellow wire carries RS-485+, and the orange wire carries RS-485-. Connect these wires to the EKB500 or

other control device in order to control the PTZ camera.

I/O Terminal Block

The base board that is inside the top housing connects to power cable, video cable, control cable, alarm

cable and fan. The housing must be removed in order to properly connect the cables. The connectors of

cable names are marked on the board in white text.

There are 4 alarm inputs and 2 alarm outputs available, represented by Pin 1~12. Pin 13 and 14 are video

pins for connecting to video cable. Pin15~16 are RS-485 pin for connecting to keyboard. Pin 17 and 18 are

power pin for connecting to 24 VAC~ po wer.

Orange RS485

24VAC~

(POWER)

VIDEO

Yellow RS485+

EPTZ9200/9300 Series

1-12 Alarm

13-14

Video

15-16

RS485

17-18

24VAC~

EPTZ9200/9300 Series Base Board

Pin Function Pin Function

1 ALM_NO_B (Alarm Output Normal Open B) 10 ALMIN3 (Alarm Input 3)

2 ALM_COM_B (Alarm Output Common B) 11 GND (Ground)

3 ALM_NC_B (Alarm Output Normal Close B) 12 ALMIN4 (Alarm Input 4)

4 ALM_NO_A (Alarm Output Normal Open A) 13 VIDEO+

5 ALM_COM_A (Alarm Output Common A) 14 VIDEO-

6 ALM_NC_A (Alarm Output Normal Close A) 15 RS-485-

7 ALMIN1 (Alarm Input 1) 16 RS-485+

8 GND (Ground) 17 AC24A+

9 ALMIN2 (Alarm Input 2) 18 AC24B-

EPTZ9200/9300 Series

3. Optional Accessories

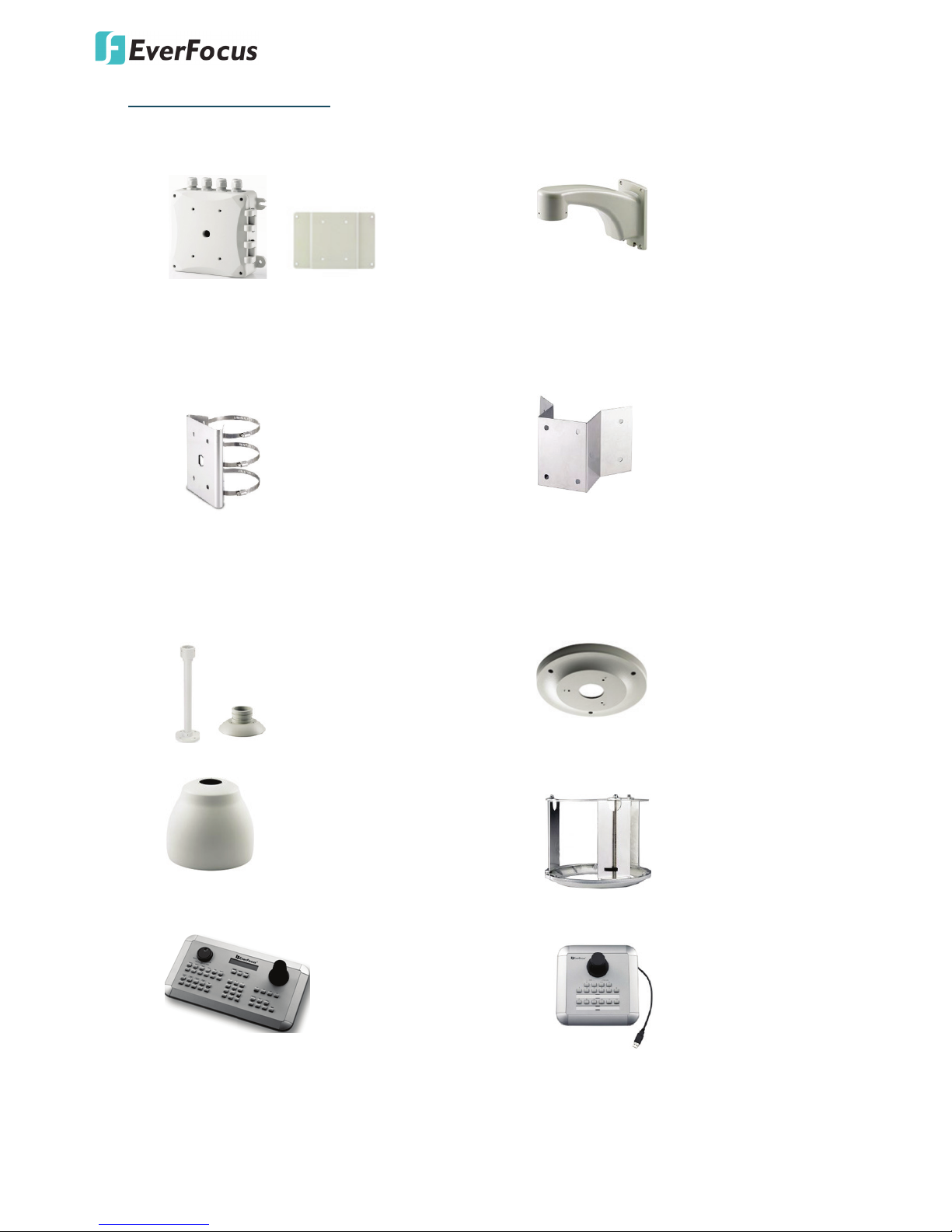

•EPTZ- PBOX (External power connection box)

& adaptor

•Wall mount bracket

•Pole mount adapter

(Used for installing a wall-mount bracket to a

pole, indoors or outdoors.)

•Corner mount adapter

(Used for fixing a wall-mount bracket to a

90° wall corner, indoors or outdoors.)

•Indoor ceiling pendant mount bracket &

adaptor (Used for installing a speed dome

against a ceiling.)

•Indoor concrete ceiling mount adapter

(Used for attaching a speed dome to a

concrete ceiling.)

•Outdoor sunshield

•Indoor in-ceiling mount bracket

•EKB500 (RS-485 Keyboard)

•EKB200 (USB controller keyboard)

EPTZ9200/9300 Series

4. Installation

Replacing the Desiccant Bags

Before installing, replace the 3 desiccant bags inside the top housing. The desiccant bag loses its

effectiveness after you open the camera. To keep the camera’s interior dry, it is highly recommended to

replace the desiccant bags every time when you open the camera.

To replace the desiccant bags:

1. On the Top Housing, slightly press the black plastic socket backward and lift up the base board.

2. Remove the desiccant bags from the top housing.

3. Stick the supplied 3 new desiccant bags inside the top housing. Place back the base board.

Note: Ensure Not to place the desiccant bags under the position of the fan.

Fan

4. Insert the base board into the black plastic socket. The base board should click firmly into position.

Make sure the pin connector on the base board is lined up with the pin connector on the main body

when you press the two together.

EPTZ9200/9300 Series

Initial Setup

To allow the control device, such as a keyboard, to recognize and then control multiple cameras, you need

to set up the ID address for the cameras using the DIP switch on the Camera Main Body. You can also set up

the Protocol, Baud Rate and Video Output Format for the cameras.

Note: Please ensure to turn off the power when setting up the DIP Switch. The new values will only take

effect after restarting the camera.

DIP Switch

Camera Main Body

ID Address

The ID address of the camera should be set to correspond properly with the control device, such as a

keyboard. The eight switches on the right correspond with the binary code of the ID address, allowing up to

256 ID addresses (0 ~ 255) to be set up. Please refer to the sticker on the camera main body or the

following diagram for setting up the ID address. The default ID address is 1.

DIP Switch

Sticker on the Camera Main Body

EPTZ9200/9300 Series

12345678

Switch Address

12345678 2

12345678 3

12345678 4

12345678 5

12345678 6

12345678 7

12345678 8

12345678 9

12345678 10

12345678 11

12345678 12

12345678

Switch Address

12345678 14

12345678 15

12345678 16

12345678 17

12345678 18

12345678 19

12345678 20

12345678 21

12345678 22

12345678 23

12345678 24

12345678 25

12345678 26

12345678 27

12345678 28

12345678 29

12345678 30

12345678 31

12345678

Switch Address

12345678 34

12345678 35

12345678 36

12345678 37

12345678 38

12345678 39

12345678 40

12345678 41

12345678 42

12345678 43

12345678 44

12345678 45

12345678 46

12345678 47

12345678 48

12345678 49

12345678 50

12345678 51

12345678 52

12345678 53

12345678 54

12345678 55

12345678 56

12345678 57

12345678 58

12345678 59

12345678 60

12345678 61

12345678 62

12345678 63

Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address

12345678

Switch Address

12345678 66

12345678 67

12345678 68

12345678 69

12345678 70

12345678 71

12345678 72

12345678 73

12345678 74

12345678 75

12345678 76

12345678

Switch Address

12345678 78

12345678 79

12345678 80

12345678 81

12345678 82

12345678 83

12345678 84

12345678 85

12345678 86

12345678 87

12345678 88

12345678 89

12345678 90

12345678 91

12345678 92

12345678 93

12345678 94

12345678 95

12345678

Switch Address

12345678 98

12345678 99

12345678 100

12345678 101

12345678 102

12345678 103

12345678 104

12345678 105

12345678 106

12345678 107

12345678 108

12345678 109

12345678 110

12345678 111

12345678 112

12345678 113

12345678 114

12345678 115

12345678 116

12345678 117

12345678 118

12345678 119

12345678 120

12345678 121

12345678 122

12345678 123

12345678 124

12345678 125

12345678 126

12345678 127

Switch Address

12345678 0

12345678 32

12345678 64

12345678 96

EPTZ9200/9300 Series

12345678

Switch Address

129

12345678 130

12345678 131

12345678 132

12345678 133

12345678 134

12345678 135

12345678 136

12345678 137

12345678 138

12345678 139

12345678 140

12345678

Switch Address

141

12345678 142

12345678 143

12345678 144

12345678 145

12345678 146

12345678 147

12345678 148

12345678 149

12345678 150

12345678 151

12345678 152

12345678 153

12345678 154

12345678 155

12345678 156

12345678 157

12345678 158

12345678 159

12345678

Switch Address

161

12345678 162

12345678 163

12345678 164

12345678 165

12345678 166

12345678 167

12345678 168

12345678 169

12345678 170

12345678 171

12345678 172

12345678 173

12345678 174

12345678 175

12345678 176

12345678 177

12345678 178

12345678 179

12345678 180

12345678 181

12345678 182

12345678 183

12345678 184

12345678 185

12345678 186

12345678 187

12345678 188

12345678 189

12345678 190

12345678 191

Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address

12345678

Switch Address

193

12345678 194

12345678 195

12345678 196

12345678 197

12345678 198

12345678 199

12345678 200

12345678 201

12345678 202

12345678 203

12345678 204

12345678

Switch Address

205

12345678 206

12345678 207

12345678 208

12345678 209

12345678 210

12345678 211

12345678 212

12345678 213

12345678 214

12345678 215

12345678 216

12345678 217

12345678 218

12345678 219

12345678 220

12345678 221

12345678 222

12345678 223

12345678

Switch Address

225

12345678 226

12345678 227

12345678 228

12345678 229

12345678 230

12345678 231

12345678 232

12345678 233

12345678 234

12345678 235

12345678 236

12345678 237

12345678 238

12345678 239

12345678 240

12345678 241

12345678 242

12345678 243

12345678 244

12345678 245

12345678 246

12345678 247

12345678 248

12345678 249

12345678 250

12345678 251

12345678 252

12345678 253

12345678 254

12345678 255

Switch Address

12345678 160

12345678 192

12345678 224

12345678 128

EPTZ9200/9300 Series

Protocol

The first, second and the third switches on the left are used to set the communication protocol. Please

refer to the sticker on the camera main body for setting up the protocol. The supported protocols are listed

on the sticker. The default protocol is EVF.

DIP Switch

Sticker on the Camera Main Body

Note: If you switch the three protocol switches to ON, the camera will enter a self-test mode.

Baud Rate

The fourth and fifth switches on the left are used to set the baud rate (transmission speed). Please refer to

the sticker on the camera main body for setting up the baud rate. The default baud rate is 9600.

DIP Switch

Sticker on the Camera Main Body

Video Output Format

The sixth and seventh switches on the left are used to set the video output format. Please refer to the

sticker on the camera main body for setting up the video output format. The default video output format is

by OSD (OFF/OFF).

DIP Switch

Sticker on the Camera Main Body

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EverFocus Caméra de sécurité

EverFocus

EverFocus EZH5040 Manuel technique

EverFocus

EverFocus ED Series Manuel utilisateur

EverFocus

EverFocus EDN288MS Manuel utilisateur

EverFocus

EverFocus EPTZ Series Manuel utilisateur

EverFocus

EverFocus EQ650 Manuel utilisateur

EverFocus

EverFocus EDH5201 Manuel utilisateur

EverFocus

EverFocus eZ.HD Series Manuel utilisateur

EverFocus

EverFocus EB200 Manuel utilisateur

EverFocus

EverFocus M116-EZ700-001 Manuel utilisateur

EverFocus

EverFocus EDH5240 Manuel utilisateur

EverFocus

EverFocus ED610 Manuel utilisateur

EverFocus

EverFocus EZH5102 Manuel utilisateur

EverFocus

EverFocus Speed Dome EPTZ1000 Manuel utilisateur

EverFocus

EverFocus EZN268 Manuel utilisateur

EverFocus

EverFocus EHD Series Manuel de formation

EverFocus

EverFocus EBH5241 Manuel technique

EverFocus

EverFocus EHD300N Manuel utilisateur

EverFocus

EverFocus Stainless Steel Series Manuel utilisateur

EverFocus

EverFocus EDN3340 Manuel utilisateur

EverFocus

EverFocus EMD335 Manuel utilisateur

EverFocus

EverFocus Speed Dome EPTZ1000 Manuel utilisateur

EverFocus

EverFocus EZ632e Manuel technique

EverFocus

EverFocus POLESTAR EHN7260 Manuel utilisateur

EverFocus

EverFocus eZ Tracker EFN3320 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
