EverFocus ED Series Manuel utilisateur

ED Series

User’s Manual

and

Operation Instructions

Version 1.1

Notice

This manual is presented to the users of ED series by EverFocus Electronics

Corp. With years of engineering researches, EverFocus has spared all efforts to

provide the high quality products to the worldwide users. For the policy of

continual product improvement, EverFocus reserves the right to make changes to

the product specifications and documentation without notice. All the

components of the products, including accessories, components, and outlook, are

based on the agreements of each deals to satisfy all kinds of users. Please be

advised that every step of operation must follow the instruction of this manual to

keep ED series working under the best condition. Please notice that EverFocus

will not be charged any claims or renewing cases resulted from inappropriate

operation.

Table of Contents

Safety Warning .........................................................................1

Introduction ..............................................................................3

Specification..............................................................................4

Major Parts Names and Functions .........................................5

Installation Instructions...........................................................7

Lens Adjustments .....................................................................8

Adjustments..............................................................................9

1. Do not expose the camera to humidity and dust.

Moisture can damage the camera and cause the danger of electric

shock. If the camera is mounted outdoors, a camera housing is

required. Do not install the camera at where there is greasy

smoke or steam, where the humidity is too high, or where there is a

lot of dust to prevent damages to the camera.

2. Do not disassemble the camera.

Do not disassemble the camera body as it is dangerous and may

cause the damages to the camera. Refer all servicing to qualified

service personnel.

3. Handle the camera with care.

Be careful when handling the camera, do not drop it or subject it

too strong shock or vibration to prevent any damages to it.

4. Do not install the camera near electric or magnetic fields.

Installed the camera away from TV, radio transmitter, magnet,

electric motor, transformer, audio speakers because the magnetic

fields generate from above devices will distort the video image.

Safet

Warnin

5. Do not install the camera in the high temperature environment.

Installed the camera away from stoves, or other heat generating

devices, or where it could be subject to direct sunlight as the high

temperatures could cause deformation, discoloration or other

damages of the camera. Install the camera at where the

temperature range will stay between 0℃to 40℃.

6. Cleaning

Use a soft cloth to remove the dirt from the unit. Use lens tissue

or a cotton tipped applicator and ethanol to clean the camera lens.

The High Resolution Dome Camera Series are compact, full functioned CCD Color

Cameras. Their stylish appearance can be applied as per installer's ideal locations on

the ceiling. The dome camera designed with advanced digital processing curcuitry for

high resolution 1/3" color interline transfer CCD sensor, it has DIP switch for AGC

on/off, BLC on/off. The dome camera uses a vari focal auto iris lens for discreet

surveillance or close-up viewing and it features with iris LEVEL volume control for the

best viewing quality.

Main Features

Excellent High-Res. technology 520 TV lines of Horizontal resolution.

Revolutionary intergrated 10-bit Digital Signal Processor (DSP) delivers excellent

picture quality and performance.

The high sensitivity of 0.5lux/F=1.2 is achieved by using the advanced 1/3”

interline transfer color CCD. (ED350HQ)

The electronic shutter and AGC allow the camera to be used in environment with

varying light levels.

Built-in Vari Focal type, mechanical auto iris lens,or Able to adjust the viewing

range with manual zoom lens. 

With manual PAN/TILT mechanism.

BLC and AGC function on/off switchable.

Compact size: 108(O.D.)mm x 80(D)mm.

System available for NTSC or PAL

Introduction

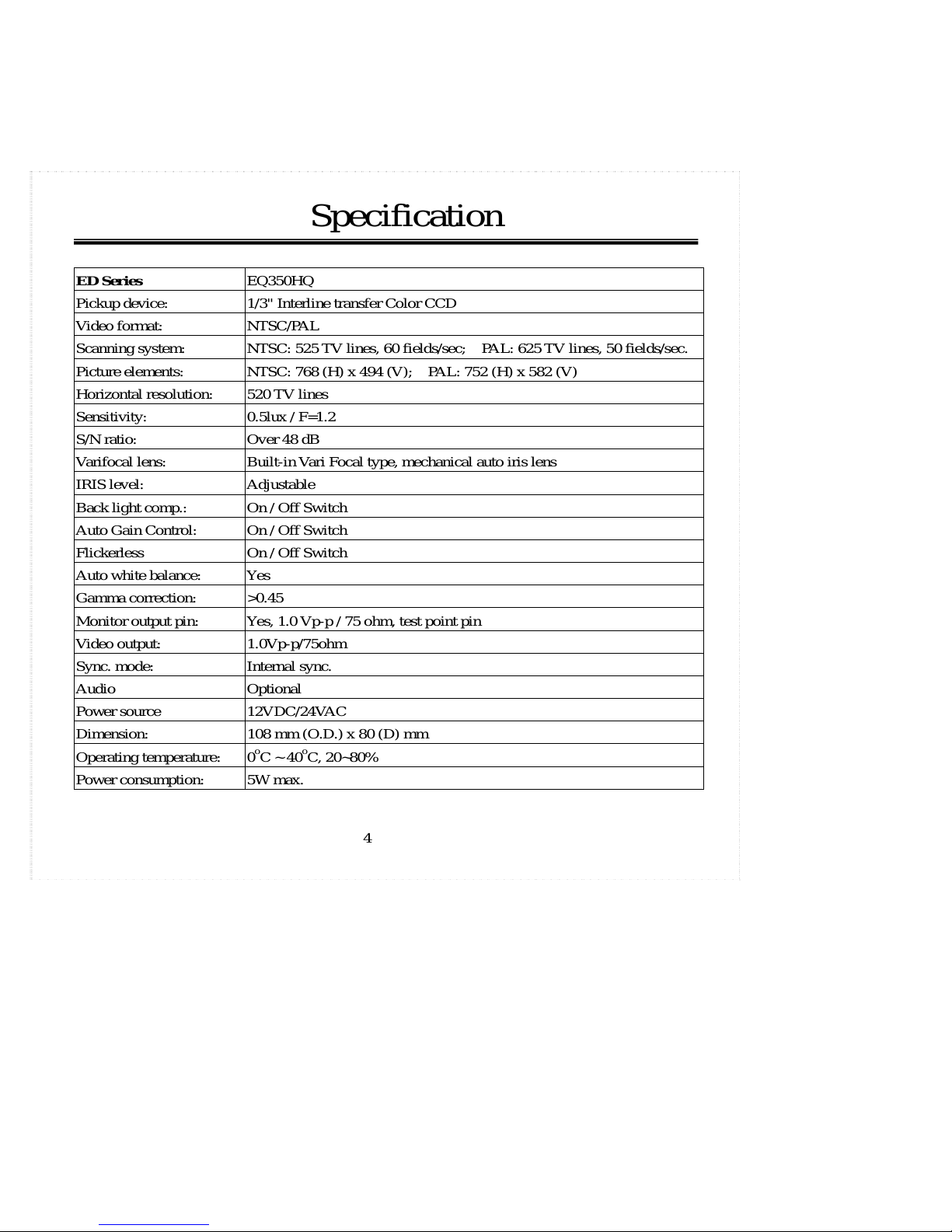

ED Series EQ350HQ

Pickup device: 1/3" Interline transfer Color CCD

Video format: NTSC/PAL

Scanning system: NTSC: 525 TV lines, 60 fields/sec; PAL: 625 TV lines, 50 fields/sec.

Picture elements: NTSC: 768 (H) x 494 (V); PAL: 752 (H) x 582 (V)

Horizontal resolution: 520 TV lines

Sensitivity: 0.5lux / F=1.2

S/N ratio: Over 48 dB

Varifocal lens: Built-in Vari Focal type, mechanical auto iris lens

IRIS level: Adjustable

Back light comp.: On / Off Switch

Auto Gain Control: On / Off Switch

Flickerless On / Off Switch

Auto white balance: Yes

Gamma correction: >0.45

Monitor output pin: Yes, 1.0 Vp-p / 75 ohm, test point pin

Video output: 1.0Vp-p/75ohm

Sync. mode: Internal sync.

Audio Optional

Power source 12VDC/24VAC

Dimension: 108 mm (O.D.) x 80 (D) mm

Operating temperature: 0oC ~ 40oC, 20~80%

Power consumption: 5W max.

ecification

Major Parts Names and Functions

Please reference page 9 (Adjustment)

Domewithoutaudio Domewithaudio

(1) Camera Cover

This cover will protect the camera

from dust and damage.

(

(2) Lens

This Vari-Focal Lens allows users to

adjust the Zoom and Focus manually.

(3) Base

The camera unit is set in the dome

base when it is shipped from the

factory.

(4) Focus Ring

To set the focus, loosen the Focus

ring knob first, then turn the ring

toward <∞> or <N> as necessary.

When the focus is obtained as

desired, tighten the focus ring knob.

(5) Zoom Ring

Loosen the zoom ring knob, then you

can adjust the viewing range. Turn

the ring towards <W> for WIDE or

<T> for TELE as necessary. When

the setting is finished, tighten the

zoom ring knob.

(6) Power input

Use the connector to connect with

12VDC/24VAC power adaptor.

(7) Video Output BNC Connector

Use the connector to connect with the

video in connector of a monitor.

(8) Audio Output RCA Connector

Use the connector to connect with the

audio in connector of a monitor.

1. Remove the plastic dome cover.

2. Lossen the two screws of the supporting bracket to remove the

camera body.

3. Using four screws to fix the camera base on the ceiling.

4. Put the camera body back to the supporting bracket, then tighten the

two screws to fix the camera.

5. Connect the BNC connector of the camera to a color monitor, or

other video device through a 75 ohm type coaxial cable with BNC

female connector at cable extension.

6. Connect the DC12V/AC24V regulated power source of the camera.

7. Connect the audio output connector of the camera(model High

Resolution Dome A) to the audio in connector of the monitor.

NOTE: Be very careful not to scratch or damage the lens while making any kind of

setting.

Installation Instructions
