EverFocus EMB935F Manuel utilisateur

EMB935F

1080p Full HD True Day / Night Outdoor

IP67 Mobile IR Mini Vandal Dome Camera

User’s Manual

Release Date: May, 2018

Precautions

1. Do not install the camera near electric or magnetic fields. Install the camera away from

TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the

electromagnetic fields generated from these devices may distort the video image or

otherwise interfere with camera operation.

2. Never disassemble the camera beyond the recommendations in this manual nor introduce

materials other than those recommended herein. Improper disassembly or introduction of

corrosive materials may result in equipment failure or other damage.

3. Try to avoid facing the camera toward the sun. In some circumstances, direct sunlight may

cause permanent damage to the sensor and/or internal circuits, as well as creating

unbalanced illumination beyond the capability of the camera to compensate.

4. Keep the power cable away from water and other liquids and never touch the power cord

with wet hands. Touching a wet power cord with your hands or touching the power cord

with wet hands may result in electric shock.

5. Never install the camera in areas exposed to oil, gas or solvents. Oil, gas or solvents may

result in equipment failure, electric shock or, in extreme cases, fire.

6. Cleaning. For cameras with interchangeable lenses, do not touch the surface of the sensor

directly with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean

the sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera

body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of any

part of the camera.

7. Do not operate the camera beyond the specified temperature, humidity or power source

ratings. This camera is suitable for indoor operation only. Use the camera at temperatures

within -10°C~50°C (14°F~122°F) and humidity less than 80%; this device is not rated as

submersible. The input power source is 12VDC. Be sure to connect the proper + / - polarity

and voltage, as incorrect polarity or too high a voltage will likely cause the camera to fail,

and such damage is not covered by the warranty.

8. Mounting. Use care in selecting a solid mounting surface which will support the weight of

the camera plus any wind, snow, ice or other loading, and securely attach the camera to the

mounting surface using screws and anchors which will properly support the camera. If

necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional

support for the camera.

Safety Notice

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

ATTENTION! This is a class A product which may cause radio interference in a domestic

environment; in this case, the user may be urged to take adequate measures.

This Product is RoHS compliant.

WEEE

Your EverFocus product is designed and manufactured with high quality materials and

components which can be recycled and reused. This symbol means that electrical and

electronic equipment, at their end-of-life, should be disposed of separately from your

household waste. Please, dispose of this equipment at your local community waste

collection/recycling centre. In the European Union there are separate collection systems

for used electrical and electronic product.

Please, help us to conserve the environment we live in!

EMB935F Outdoor Mobile IR Mini Dome Camera

1. Introduction

1.1 Packing List

1.2 Features

1080p Full HD with high flexibility and performance for astounding image

1080p CMOS sensor, delivering amazing high sensitivity

3.6mm lens to capture the desired field of view

Extended IR range up to 10m / 33ft. with 10 LEDs (Depending on scene IR reflectivity)

D-WDR to improve the visibility under high contrast scene

3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images

even under low light environments

Supports 1080p, 720p & 960H analog signal output, which can be easily switched using

OSD Joystick

Vandal Resistant construction able to withstand intentional damage

IP67 Weather Resistant

Compact size for discreet surveillance

eZ Controller function: Control camera OSD settings and PTZ operation directly from

DVR end

Camera Body x 1 Hexagon Wrench x1

User Manual x 1

Mounting Screw x 4

Bottom Bracket x 1 (order separately)

EMB935F Outdoor Mobile IR Mini Dome Camera

2. Cable Description

No. Name Descriptions

1 Power Cable Connects to a 12VDC power source.

2 Video Output 1080p, 720p and 960H output, using a 75 Ohm BNC-type

coaxial cable.

EMB935F Outdoor Mobile IR Mini Dome Camera

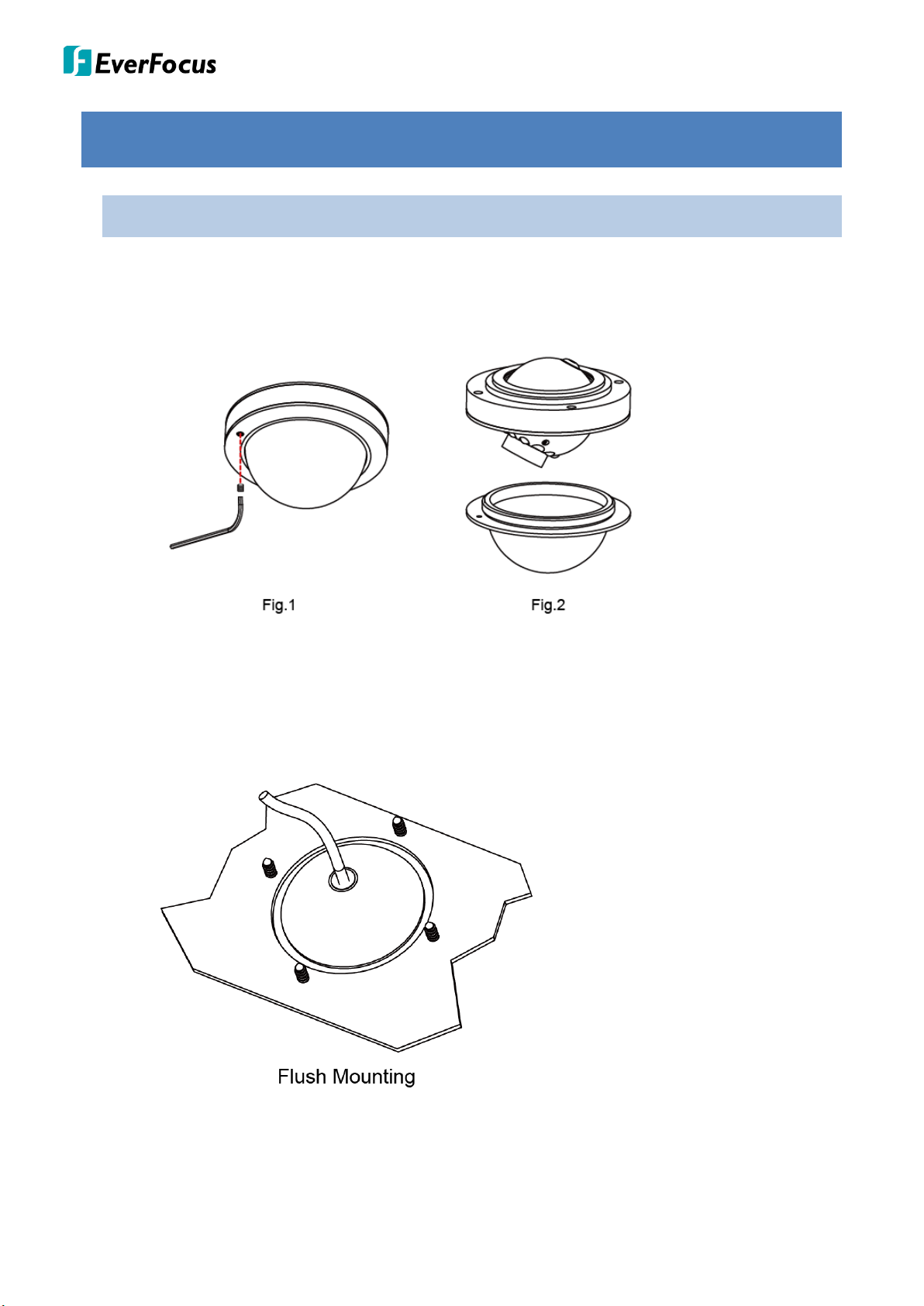

3. Installation

3.1 Installation and Adjustment

1. Loosen the lock screw using the supplied hexagon wrench (Fig.1) and remove the top

cover by rotating counter-clockwise (Fig.2).

2. A. Flush Mounting: Drill the big hole (Φ56mm) on the position where you want to install

the camera, then put the body into the hole and secure the camera using the supplied

four mounting screws.

B. Surface Mounting: the bottom bracket is necessary for surface mounting, please follow

the steps as below:

EMB935F Outdoor Mobile IR Mini Dome Camera

Attach the bottom bracket to the wall or ceiling, secure it using the supplied three

screws.

Fasten the camera body to the bottom bracket using the supplied four screws.

3. Connect the camera to the 12VDC power source while connecting the video-out cable to

the monitor.

4. Loosen the focus-lock screw if the focus sharpness need to be adjusted.

5. After the adjustment is completed, then put the cover back to the camera.

EMB935F Outdoor Mobile IR Mini Dome Camera

4. Specifications

Specifications and designs are subject to change for improving the functionality of this product

without notice.

P/N EMB935F

Pickup Device 1080p Sony CMOS sensor

Video Format NTSC and PAL(can be switched via OSD)

Effective Pixels 1920 (H)x1080(V)

Scanning System Progressive Scan

Sensitivity 0 lux with IR on

Electronic Shutter AUTO/Manual (X30~1/50,000)/FLK

Gamma Correction 0.45

Lens Type 3.6mm Fixed lens

FOV (H x V x D) 82° x 42° x 92°

BLC OFF/HSBLC/BLC Selectable

AGC 0~15 Levels

White Balance ATW/AWC-SET/Special 2/Special 1/MANUAL/AWB

Sync Mode Internal

Day/Night Ext, Auto, Color, B/W

IR LED 10 Units.

IR Distance Up to 10m/33ft. (depending on scene IR reflectivity)

OSD Languages 12-Language

DNR 2DNR/3DNR, Off

DEFOG Off/Auto

D-WDR On/Off

Sens-up Off/On(x30~x2)

Mirror Off, Mirror, V-flip, Rotate

Motion Detection Off/On for 4 selectable zones

Privacy Mask Off/On for 4 selectable zones

Environment IP66 Weather Resistant

Power Source 12VDC

Power Consumption 3W max.

Operating Temperature -10°C~50°C / 14°F~122°F

Humidity Less than 80%

Dimensions 73 x 60mm / 2.87” x 2.36”

Weight 170g / 0.375lb.

Certifications CE / FCC / RoHS / E-Mark

EMB935F Outdoor Mobile IR Mini Dome Camera

EverFocus Electronics Corp.

EverFocus Taiwan:

12F-1, No.79, Sec. 1, Shin-Tai Wu Road,

Hsi-Chih, New Ta ip ei City, Taiwan

TEL: +886 2 2698 2334

FAX: +886 2 2698 3943

www.everfocus.com.tw

marketing@everfocus.com.tw

EverFocus Europe - Germany:

Albert-Einstein-Strasse 1, D-46446

Emmerich, Germany

TEL: +49 2822 93940

FAX: +49 2822 939495

www.everfocus.de

sales@everfocus.de

EverFocus China - Beijing:

Room 609, Technology Trade Building,

Shangdi Information Industry Base,

Haidian District, Beijing 100085, China

TEL: +86 10 6297 3336~39

FAX: +86 10 6297 1423

www.everfocus.com.cn

marketing@everfocus.com.cn

EverFocus China - Shenzhen:

4F, No. 2, D4 Building, Wan Yelong

Industrial Park, Tangtou Road, Shiyan,

Baoan, Shenzhen, Guangdong 518101, China

TEL: +86 755 2765 1313

FAX: +86 755 2765 0337

www.everfocus.com.cn

marketing@everfocus.com.cn

EverFocus USA - California:

1801 Highland Avenue, Unit A, Duarte, CA 91010,

USA

TEL: +1 626 844 8888

FAX: +1 626 844 8838

www.everfocus.com

sales@everfocus.com

EverFocus Japan:

3F Kuramochi, Buildingll 2-2-3 Koto-Bashi,

Sumida-Ku Tokyo, 130-0022, Japan

TEL: +81 3 5625 8188

FAX: +81 3 5625 8189

www.everfocus.co.jp

info@everfocus.co.jp

Your EverFocus product is designed and

manufactured with high quality materials

and components which can be recycled

and reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed ofseparately from

your household waste.

Please, dispose of this equipment at your

local community waste

collection/recycling centre.

In the European Union there are

separate collection systems for used

electrical and electronic product.

Please, help us to conserve the

environment we live in!

Ihr EverFocus Produkt wurde

entwickelt und hergestellt mit

qualitativ hochwertigen Materialien

und Komponenten, die recycelt und

wieder verwendet werden können.

Dieses Symbol bedeutet, dass

elektrische und elektronische Geräte

am Ende ihrer Nutzungsdauer vom

Hausmüll getrennt entsorgt werden

sollen.

Bitte entsorgen Sie dieses Gerät bei

Ihrer örtlichen kommunalen

Sammelstelle oder im Recycling

Centre.

Helfen Sie uns bitte, die Umwelt zu

erhalten, in der wir leben!

Table des matières

Autres manuels EverFocus Caméra de sécurité

EverFocus

EverFocus EHH5200 Manuel utilisateur

EverFocus

EverFocus EHD705 Manuel technique

EverFocus

EverFocus NeVio EAN900 Manuel utilisateur

EverFocus

EverFocus EQ610 Manuel utilisateur

EverFocus

EverFocus EM700 Manuel du propriétaire

EverFocus

EverFocus EZ-PLATECAM2 Manuel utilisateur

EverFocus

EverFocus WDII EQ600 Manuel utilisateur

EverFocus

EverFocus M116-EZ700-001 Manuel utilisateur

EverFocus

EverFocus EHA1280 eZ.HD Series Manuel utilisateur

EverFocus

EverFocus EZ330E Manuel utilisateur

EverFocus

EverFocus ED610 Manuel utilisateur

EverFocus

EverFocus EHA2880 eZ.HD Series Manuel utilisateur

EverFocus

EverFocus ED2250S/P Manuel utilisateur

EverFocus

EverFocus EAN3200 Manuel utilisateur

EverFocus

EverFocus Speed Dome EPTZ3100 Manuel utilisateur

EverFocus

EverFocus ECD900B Manuel utilisateur

EverFocus

EverFocus EBH5201 Manuel technique

EverFocus

EverFocus Weatherproof Long Range IR Camera EZ230E Manuel utilisateur

EverFocus

EverFocus ED300 Series Manuel utilisateur

EverFocus

EverFocus EZH5040 Manuel utilisateur

EverFocus

EverFocus ED710 Manuel du propriétaire

EverFocus

EverFocus POLESTAR EHN7260 Manuel utilisateur

EverFocus

EverFocus EQ350HQ Manuel utilisateur

EverFocus

EverFocus EPN3600 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
