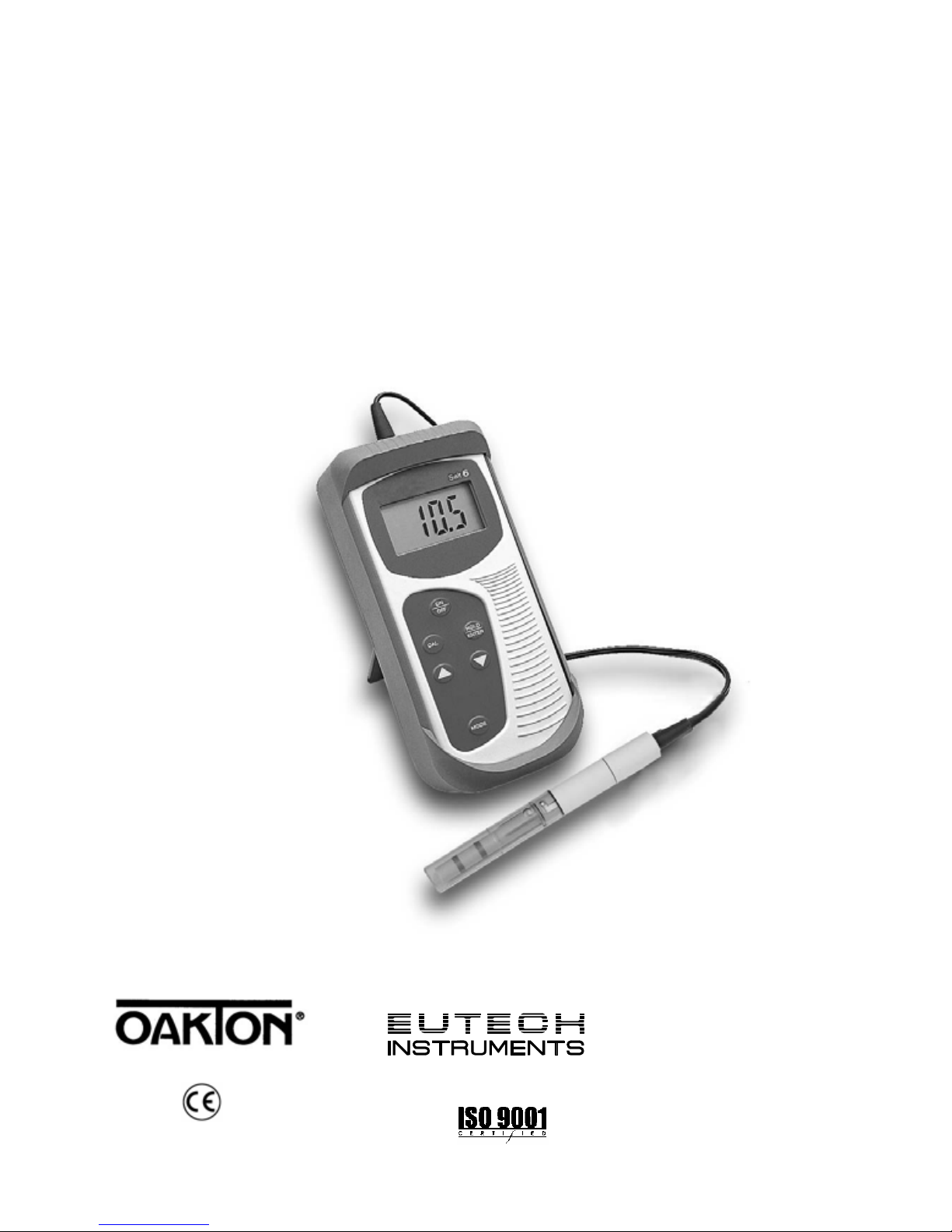

Instruction Manual

Salt 6

Hand-held Salinity Meter

68X243619

Rev 1 01/04

Preface

This manual serves to explain the use of the Salt 6 salinity meter.

It functions in two ways: first as a step by step guide to help you operate the

meter; second, it serves as a handy reference guide.

This manual is written to cover as many anticipated applications of the Salt 6

salinity meter as possible. If there are doubts in the use of this meter, please do

not hesitate to contact the nearest Eutech Instruments/ Oakton Instruments

Authorized Distributor.

Eutech Instruments/ Oakton Instruments will not accept any responsibility for

damage or malfunction to the meter caused by improper use of the instrument.

The information presented in this manual is subjected to change without notice

as improvements are made, and does not represent a commitment on the part

of Eutech Instruments Pte Ltd/ Oakton Instruments.

Eutech Instruments Pte Ltd/ Oakton Instruments

Rev 1 01/04

TABLE OF CONTENTS

1INTRODUCTION 1

2DISPLAY & KEYPAD FUNCTIONS 3

2.1 Display 3

2.2 Keypad 4

3PREPARATION 5

3.1 Inserting & Removing Rubber Boot 5

3.2 Inserting the Batteries 5

3.3 Battery Replacement 6

3.4 Conductivity Electrode Information 6

3.5 Connecting the Probe to Meter 8

3.6 Switching the Meter On 9

3.7 Change Salinity ÙTemperature Measurement Mode 10

4CALIBRATION 11

4.1 Important Information on Meter Calibration 11

4.2 Preparing the Meter for Calibration 12

4.3 Calibration for Salinity (% or ppt) 13

4.4 Temperature Calibration 14

5MEASUREMENT 15

5.1 With Automatic Temperature Compensation (ATC) 15

5.2 Without ATC (Manual Temperature Compensation) 16

5.3 Taking Measurements 17

5.4 HOLD Function 18

6ADVANCED SETUP FUNCTIONS 19

6.1 Advanced Setup Overview 19

6.2 Temperature Coefficient 21

6.3 Normalization Temperature 22

6.4 Selection of ppt or PrSn. (Default being PrSn) 23

6.5 Restore Factory Default Values 24

7PROBE CARE AND MAINTENANCE 25

8TROUBLE-SHOOTING GUIDE 26

9ERROR MESSAGES 27

10 SPECIFICATIONS 29

11 ACCESSORIES 30

12 ADDENDUM 1: CALIBRATION TIPS 31

13 WARRANTY 32

14 RETURN OF ITEMS 33

Instruction Manual Salt 6

1 INTRODUCTION

Thank you for purchasing the Salt 6 Salinity meter. These economy

microprocessor-based handheld meters deliver up to ±0.5% full-scale accuracy.

It has a large custom LCD (Liquid Crystal Display) for clear and easy reading.

The Salt 6 meter measures the amount of Sodium Chloride (NaCl)

concentration either in Percentage (%) or Parts Per Thousand (ppt), and

Temperature (°C).

Your meter includes a conductivity electrode (cell constant K = 1.0) with built-in

temperature sensor (Order Code: EC-CONSEN91B/ 35606-55), a rubber boot,

4 alkaline “AAA” batteries, instruction manual and warranty card.

Please read this manual thoroughly before operating your meter.

To order other accessories and buffer standard solutions, please refer to the

Accessories Section for more information.

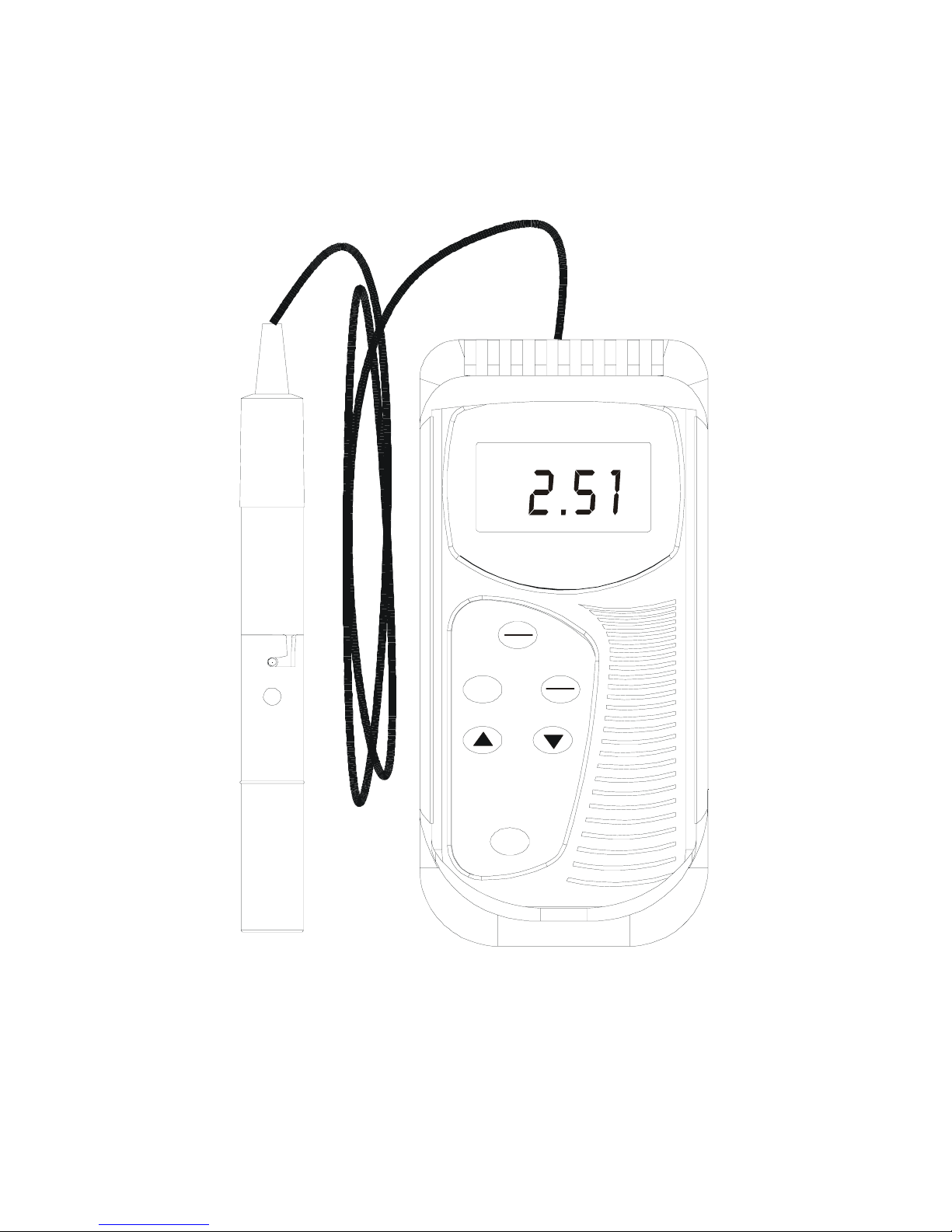

Instruction Manual Salt 6

OFF

HOLD

ENTER

CAL

MODE

Salt

Salinity Meter

Instruction Manual Salt 6

2 DISPLAY & KEYPAD FUNCTIONS

2.1 Display

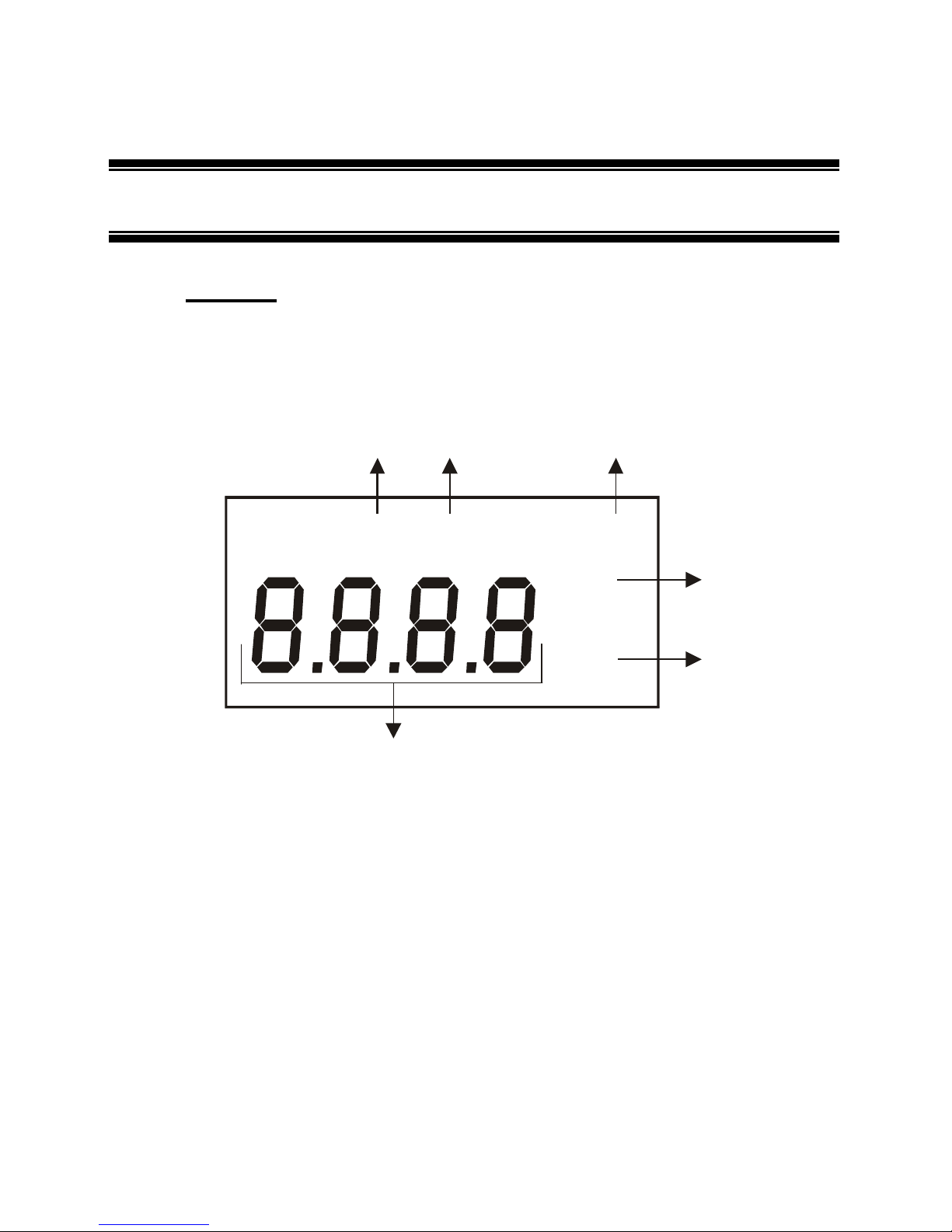

The meter has a large custom LCD that consists of 4-digit segments and

operation annunciators for ppt or %, and °C (Temperature). Other annunciators

include “HO” (when the HOLD function is activated) and “LO” (low battery

condition).

ppt

HO LO %

C°

LCD and Customized Annunciators for Salt 6 salinity meter

1. Primary display 4. Percentage indicator for

Concentration and

Temperature Coefficient.

2. Parts Per Thousand (ppt) 5. Low battery indicator.

3. Temperature indicator 6. Hold (freezed) reading

indicator.

Instruction Manual Salt 6

2.2 Keypad

The Salt 6 salinity meter has 6 keys on its splash-proof keypad; ON/OFF,

HOLD/ENTER CAL, MODE, ▲and ▼keys. Some buttons have several

functions depending on its mode of operation.

OFF

•Powers on and shuts off the meter. Takes you directly into

measurement mode when meter is switched on.

CAL

•Enters into calibration mode for % (or ppt) and Temperature.

•To abort calibration or setup mode without confirming any set

value.

HOLD

ENTER

HOLD: Freezes the measured reading. To activate, press HOLD

key while in measurement mode. To release, press HOLD

key again.

ENTER: Press to confirm values in calibration mode, and to confirm

selections in SETUP mode.

•In Calibration Mode: Press to scroll through calibration values.

•In Setup Mode: Press to scroll through the setup sub-group

programmes.

MODE

•Selects measurement mode for salinity and Temperature.

•When pressed together with ON/OFF key, it will take you into

the SETUP mode. This allows you to customize meter

preferences such as selecting electrode’s normalization

temperature, temperature coefficient factor, and resetting the

meter to factory default.

1) Normalization Temperature

2) Temperature Coefficient Factor

3) Selection of ppt or % measurement mode (ppt or PrSn

4) User reset

Instruction Manual Salt 6

3 PREPARATION

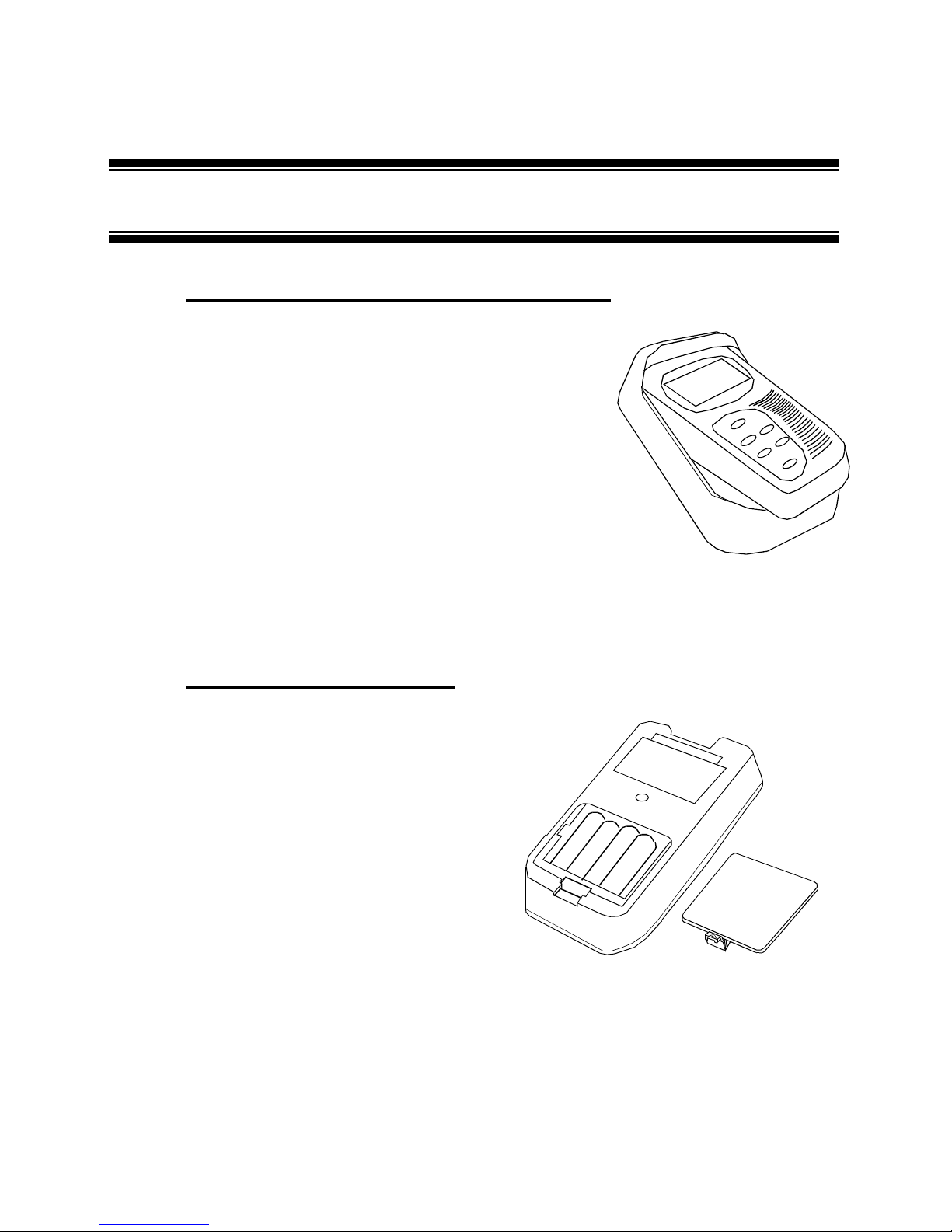

3.1 Inserting & Removing Rubber Boot

1) To remove meter from rubber boot, push

out from the bottom edges of meter until it

is completely out of boot. Ensure that the

cables of Conductivity electrode or

temperature probe are not connected.

2) To insert meter into rubber boot, slide in

from the top of meter before pushing the

bottom edges of meter down to set it into

position. Lift up the stand at the back of

meter for bench top applications if

necessary.

3.2 Inserting the Batteries

The battery compartment is found at the

back of instrument as shown. To open the

battery compartment:

3) Push in the direction of arrow

and lift up the cover.

4) Note the polarity of battery

before inserting into position.

5) After replacement, place cover

back and press down until it

locks tight.

Instruction Manual Salt 6

3.3 Battery Replacement

A “LO” annunciator in the LCD alerts you when battery power is running low.

Replace with the same type as recommended by the manufacturer.

"LO" Battery Condition

Caution: Power off the meter when changing battery.

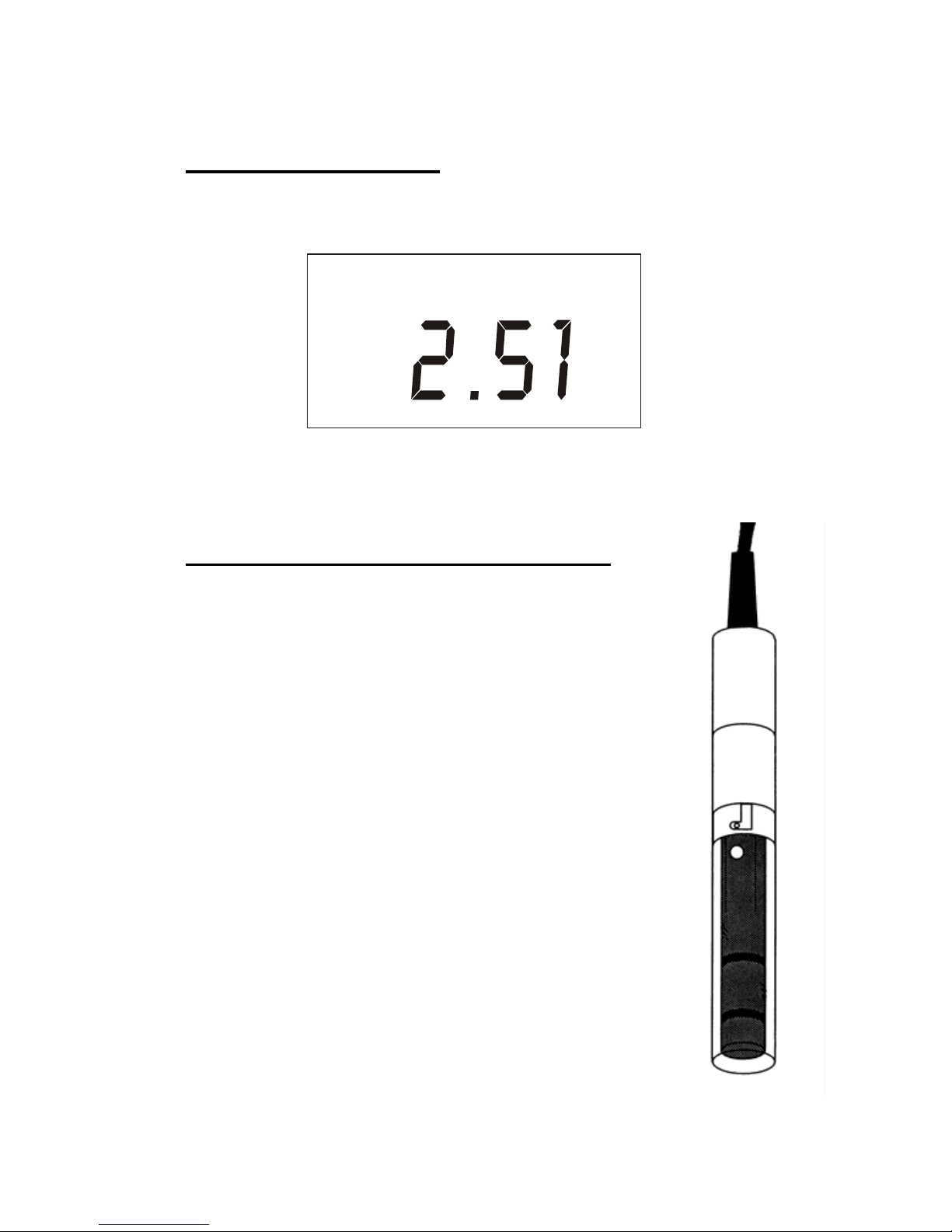

3.4 Conductivity Electrode Information

The Salt 6 salinity hand-held meter is supplied with a

electrode with a BNC connector. This electrode (Order

Part Number: EC-CONSEN91B/ 35606-55) comes with

Stainless Steel rings, cell constant of K = 1.0, and a built-

in temperature sensor for Automatic Temperature

Compensation (ATC). Its specially designed Ultem-body

housing has good chemical resistant properties. It

provides fast temperature response and reduces air

entrapment, which makes it easy to obtain accurate,

stable readings.

The probe materials used which have good chemical

durability include:

1. Polyetherimide (Ultem) – protective probe guard

2. Polybutylterphalate (Valox) – sensor housing

3. Stainless Steel (SS 304) – 2 steel bands
