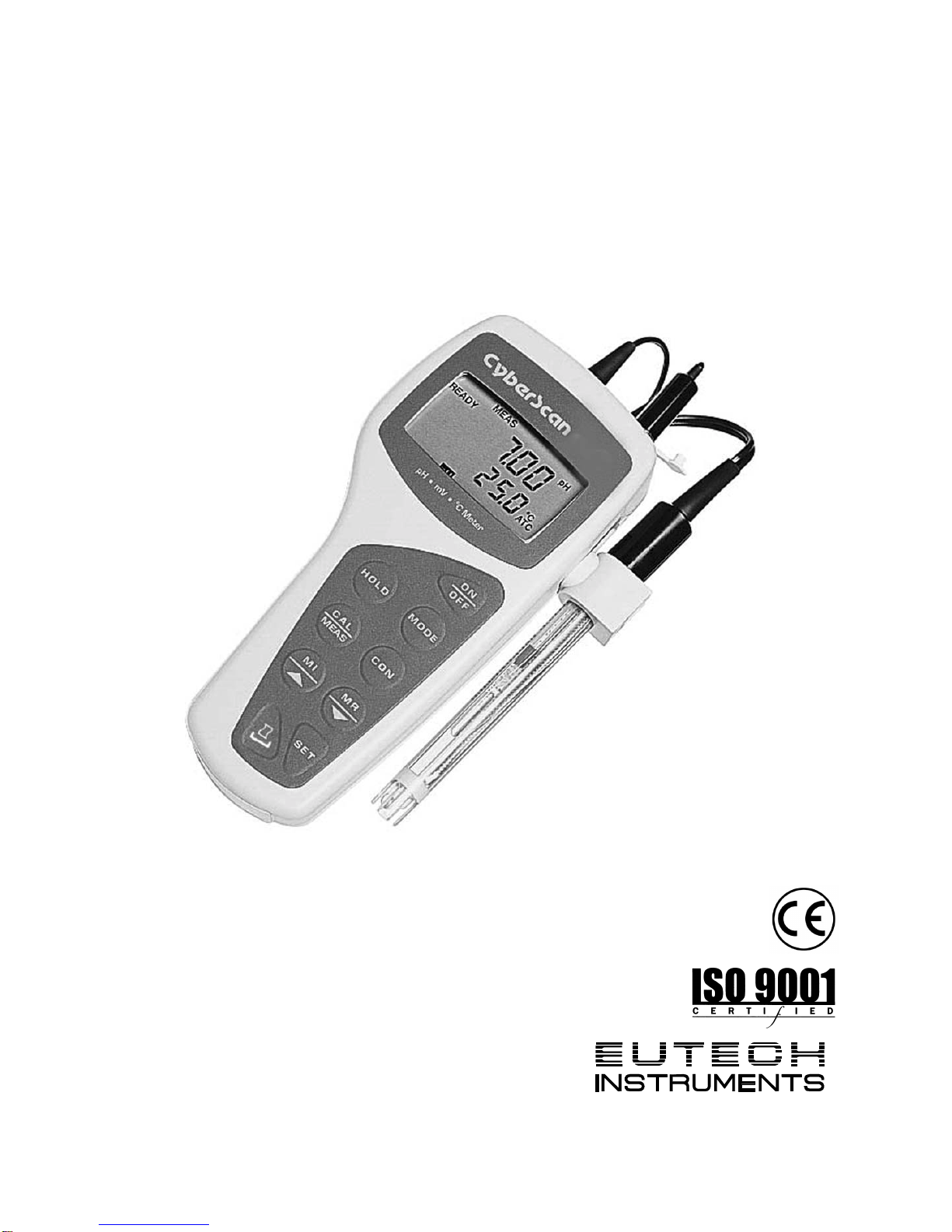

Instruction Manual

CyberScan pH 10 & pH 100

Hand-held pH / mV / Temperature / RS 232 Meter

68X007106 Technology Made Easy ...

09/2001 rev 4

pH 10 Meter

pH/mV/°C

pH 100 Meter

pH/mV/°C/RS 232

PREFACE

This manual serves to explain the use of the Standard CyberScan series hand-held meters. The

models covered are the CyberScan pH 10 and the CyberScan pH 100 hand-held meters.

The manual functions in two ways, firstly as a step by step guide to help the user operate the

meter. Secondly, it serves as a handy reference guide.

This instruction manual is written to cover as many anticipated applications of the CyberScan pH

meters as possible. If there are doubts in the use of the CyberScan pH 10/100 meters, do not

hesitate to contact the nearest Eutech Instruments Authorized Distributor.

Eutech Instruments cannot accept any responsibility for damage or malfunction to the meter

caused by improper use of the instrument.

Remember to fill in the guarantee card and mail it back to your authorized distributor or Eutech

Instruments Pte Ltd (address, contact details, email and homepage information are found on the

back page of this manual).

The information presented in this manual is subject to change without notice as improvements are

made, and does not represent a commitment on the part of the Eutech Instruments Pte Ltd.

Note: Lotus® 1-2-3 is a registered trademark of Lotus Corporation.

Excel ® is a registered trademark of Microsoft Corporation.

Revised in September 2001, revision 4 (version 5).

TABLE OF CONTENTS

1 INTRODUCTION 1

2 DISPLAY AND KEYPAD FUNCTIONS 2

2.1 Display 2

2.2 Keypad 3

3 PREPARATION 5

3.1 Inserting the Batteries 5

3.2 Connecting the pH Electrode, Temperature Probe & Electrode Holder 6

3.3 Connecting the AC/DC Adapter 8

3.4 Connecting the RS232C Cable (Only For CyberScan pH 100) 9

4 CALIBRATION 11

4.1 Preparing the Meter for Calibration 11

4.2 pH Calibration with ATC 12

4.3 pH Calibration (without ATC) 14

4.4 Temperature Calibration 15

4.5 Calibration Procedure for Relative mV Measurements (For pH 100 Only) 17

4.6 Erasing Calibrated Values (For pH 100 only) 18

5 MEASUREMENT 19

5.1 Automatic Temperature Compensation 19

5.2 Manual Temperature Compensation 20

5.3 Taking Measurements 21

6 HOLD FUNCTION 22

7 MEMORY FUNCTION (FOR pH 100 ONLY) 23

7.1 Memory Input 23

7.2 Memory Recall 24

8 PRINT FUNCTION (FOR pH 100 ONLY) 25

8.1 Using the CyberScan pH 100 With The Printer 25

8.2 Sending Data To Computer 26

9 ADVANCED SETUP FUNCTIONS (FOR pH 100 ONLY) 28

9.1 Program 1 – Software Initialization 29

9.2 Program 2 – Electrode Data 30

9.3 Program 3 –Meter Configuration 32

9.4 Program 4 – Communication Setup 34

10 CYBERCOMM PORTABLE - DATA ACQUISITION SOFTWARE

(DAS FOR pH 100 ONLY) 36

10.1 System Requirements 36

10.2 Loading CYBERCOMM PORTABLE 36

10.3 Running CYBERCOMM PORTABLE 42

10.4 Capturing And Printing Data Into Computer Using CYBERCOMM PORTABLE 46

10.5 Trouble-shooting Guide 47

11 ELECTRODE CARE 48

11.1 Electrode Maintenance 48

11.2 Electrode Cleaning 49

11.3 Electrode Activation 49

11.4 Rejuvenation Procedure 49

12 ERROR MESSAGES 51

13 TROUBLE-SHOOTING 52

14 INFORMATION ON pH MEASUREMENT & ELECTRODE 53

14.1 pH Measurements 53

14.2 Use of Standard pH Buffers 54

14.3 Standard pH Buffers 55

15 LIST OF ACCESSORIES 56

15.1 Replacement Meter and Meter accessories 56

15.2 Calibration Solutions 57

15.3 Ion Selective Electrodes (ISE) 57

15.4 pH & ORP Electrodes 58

16 METER SPECIFICATIONS 59

17 ADDENDUM 1: FACTORY DEFAULT SETTINGS (pH 100 ONLY) 60

18 WARRANTY & RETURN OF ITEMS 61

1 INTRODUCTION

Thank you for selecting Eutech Instruments standard CyberScan pH 10/100 meter. These

meters are microprocessor-based instrument and are designed to be handy, capable of

allowing one-hand operation. Each has a large custom dual LCD for clear and easy reading. It

is a unique and intelligent instrument that has the capability to cater to the preferences of the

discerning individual.

Both meters have many user-friendly features – all of which are completely accessible through

the splash-proof membrane keypad. Your meter includes a temperature probe (EC-PHTEM-

01P), electrode holder, built-in meter stand and batteries. Eutech Instruments offer a wide

selection of pH and ORP electrodes. Refer to “Accessories” section for more information.

The basic model is the CyberScan pH 10 which is capable of measuring pH, Temperature,

and millivolt (mV).

The deluxe model is the CyberScan pH 100 which measures pH, Temperature, millivolt (mV)

and relative millivolt (Rel mV). It has many advanced features and allows you to customize the

meter settings. It also has a RS232C port that allows the meter to be connected to a computer

or a printer via a cable for transferring data.

For power requirement, you can either use 4 AAA-sized batteries or an AC/DC power adapter

(sold separately).

Please read this manual thoroughly before operating your meter.

2 DISPLAY AND KEYPAD FUNCTIONS

2.1 Display

The LCD has a primary and secondary display.

•The primary display shows the measured pH or ORP values.

•The secondary display shows the measured temperature.

The display also shows error messages, keypad functions and program functions.

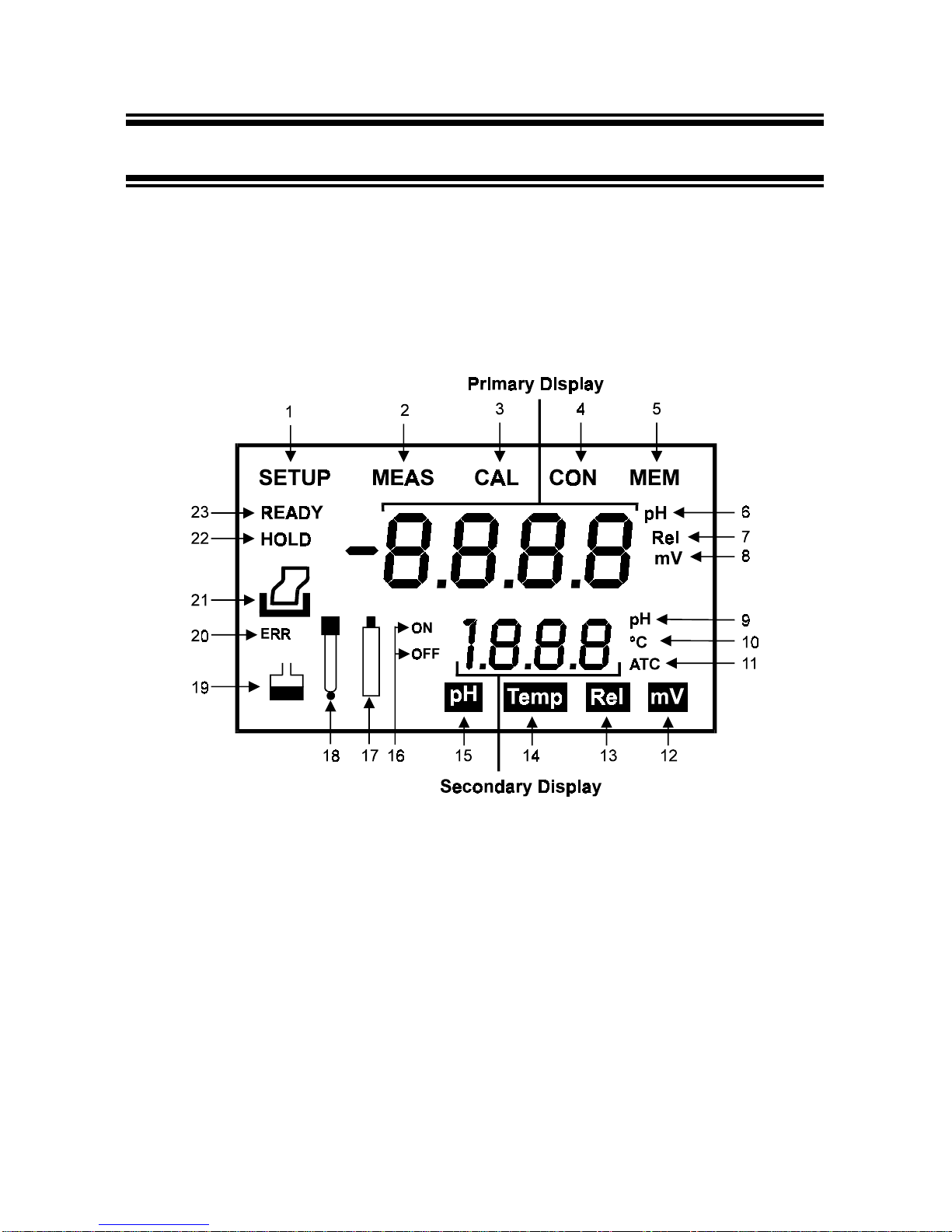

Figure 1: Full LCD Screen

1. SETup mode indicator 9. pH buffer selection indicator 16. ON & OFF indicator

2. MEASurement mode indicator 10. Temperature indicator 17. Low battery indicator

3. CALibration indicator 11. Automatic Temperature

Compensation indicator 18. Probe indicator

4. CONfirm indicator 12. mV measurement mode

indicator 19. Buffer indicator

5. MEMory recall mode indicator

(For pH 100 only)13. Rel mV measurement mode

indicator (For pH 100 only)20. ERRor indicator

6. pH indicator 14. Temperature measurement

mode indicator 21. Printer indicator (For pH 100

only)

7. Relative mV indicator (For pH

100 only)22. HOLD indicator

8. mV indicator

15. pH measurement mode

indicator

23. READY indicator

2.2 Keypad

A large membrane keypad with tactile feedback makes the instrument easy to use. Each

button, when pressed, has a corresponding graphic indicator on the LCD (Figure 1). Some

buttons have several functions depending on its mode of operation.

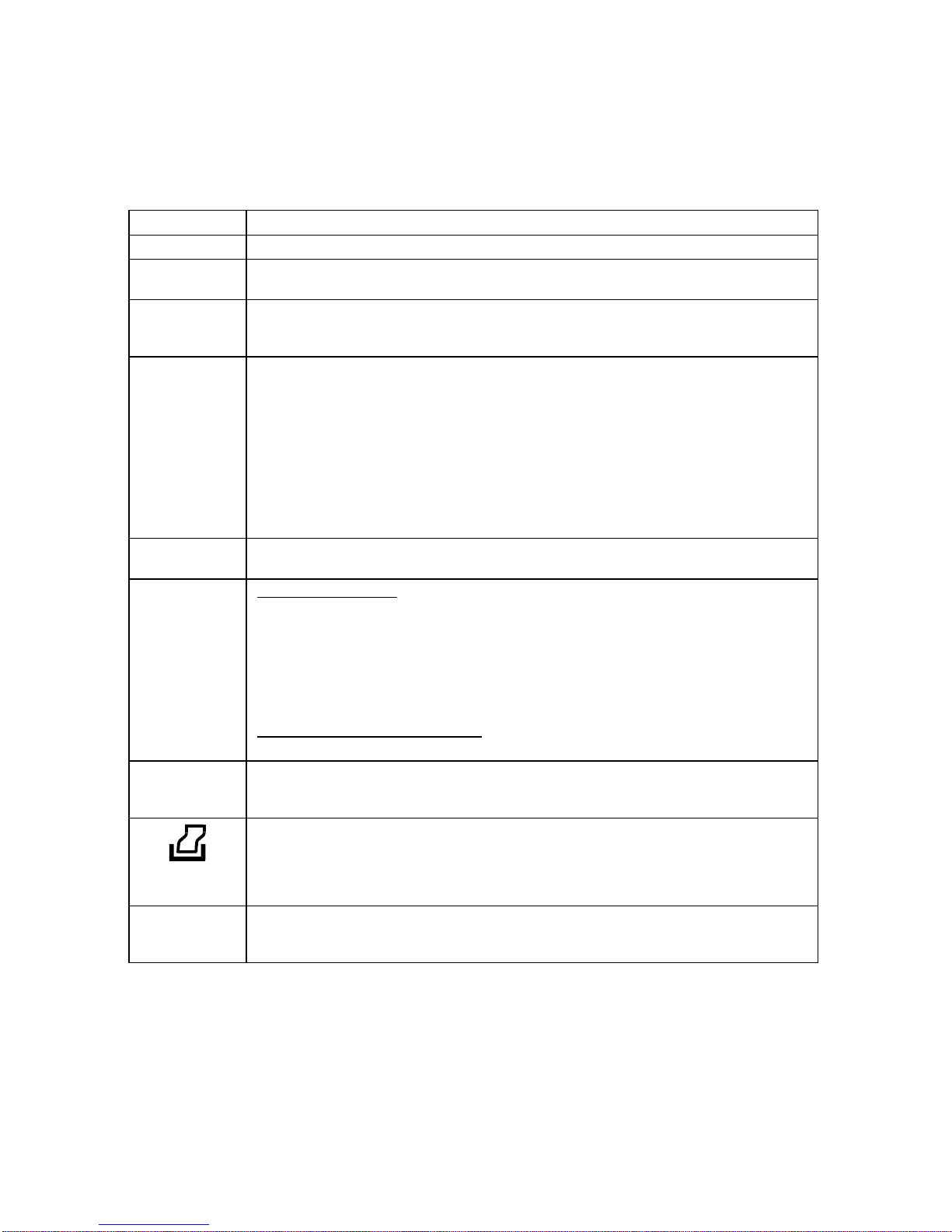

Key Function

ON/OFF Powers on and shuts off the meter. The meter will start in pH measurement mode.

HOLD Freezes the measured reading. To activate, press HOLD while in measurement

mode. To release, press HOLD again.

MODE Selects the measurement parameter. Default is pH measurement. Press MODE to

toggle between pH, Temperature, Rel mV (only pH 100), mV, & back to pH

measurement mode.

CAL/MEAS Toggles between Calibration and Measurement mode.

1. If you are in pH measurement mode, press CAL/MEAS to enter pH calibration

mode.

2. If you are in temperature measurement mode, press CAL/MEAS to enter

temperature calibration mode.

3. If you are in Rel mV (only in pH 100) measurement mode, press CAL/MEAS to

enter Rel mV measurement calibration mode.

While in SETup (only in pH 100) menu, pressing CAL/MEAS takes you out and into

the measurement mode.

CON CONfirm function: Press to confirm values in Calibration mode and to confirm

selections in SETup mode.

!/ "

"In Calibration mode:

1. If you are in pH calibration mode, press !

!or "

"key scrolls up or down the

buffer calibration values.

2. If you are in temperature calibration mode, press !

!or "

"key to adjust

temperature values in °C.

3. If you are in Rel mV (only in pH 100) calibration mode, press !

!or "

"key to

adjust mV values.

In SETUP mode (only in pH 100):

Press !

!or "

"key to scroll through options in each SETup programs.

MI / MR (only

in pH 100)In measurement mode (pH, Rel mV or mV) press MI (memory input) to store values

with its corresponding temperature values in the memory. Press MR (memory recall)

to retrieve data from memory.

(only in pH

100)

Allows you to print current measurement to either the printer or the computer.

SETUP (only

in pH 100)Takes you into the SETUP mode. This mode lets you customize meter preference

and defaults, view calibration, electrode offset data, clear memory, change pH

resolution, and communication protocol setting.

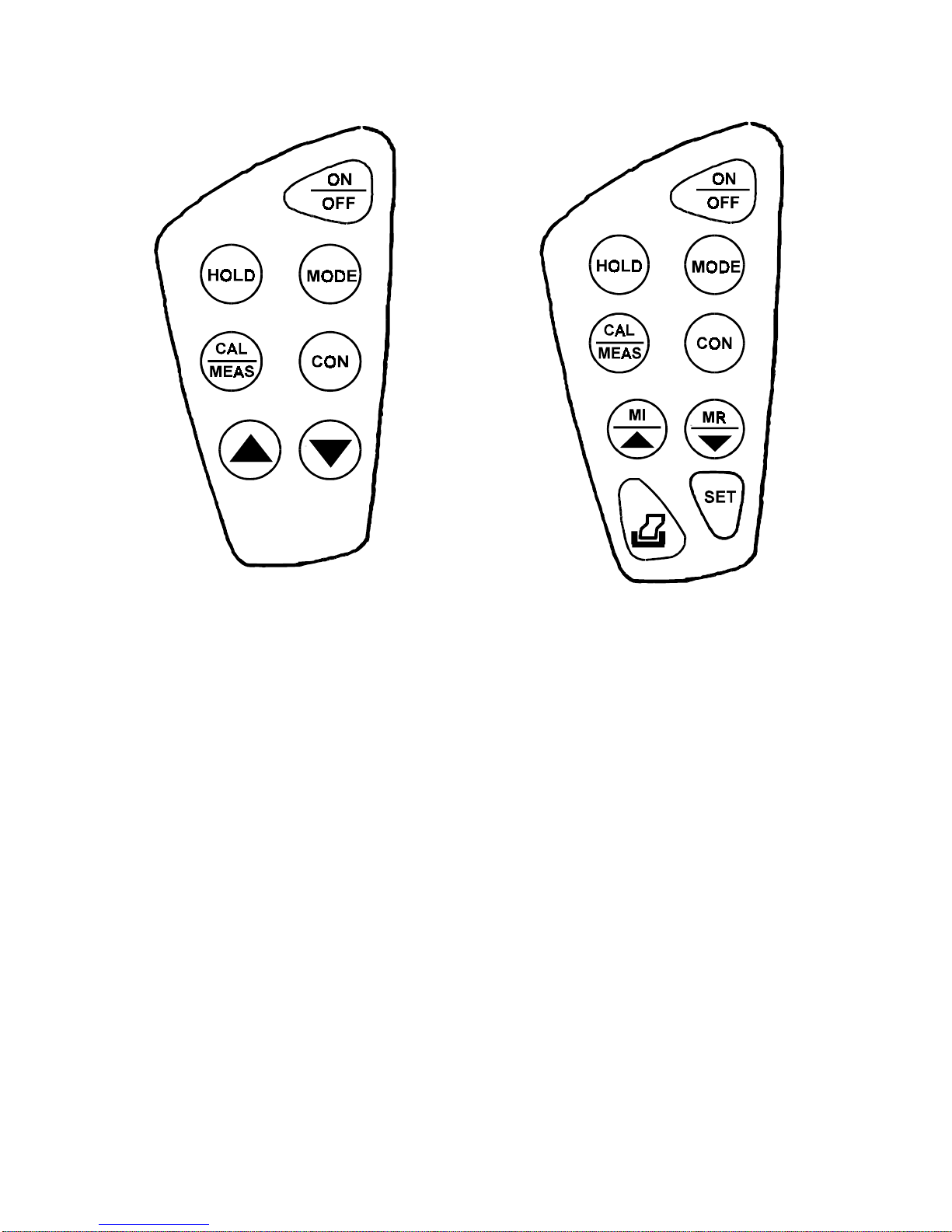

Figure 3: Keypad of pH 100 meter

Figure 2: Keypad of pH 10 meter

3 PREPARATION

3.1 Inserting the Batteries

The CyberScan is packaged with 4 “AAA” alkaline batteries required for operation. To insert

the batteries into the CyberScan, follow the procedure outlined below.

1. Use a Phillips Head screwdriver, remove the two screws (Figure 4) with the hinge closed.

2. Remove the battery cover. Note the polarity and insert the batteries into the battery

compartment correctly (Figure 5).

3. Replace the battery cover into its position and screw back using the two screws removed

earlier.

Your CyberScan hand-held meter is now ready for operation.

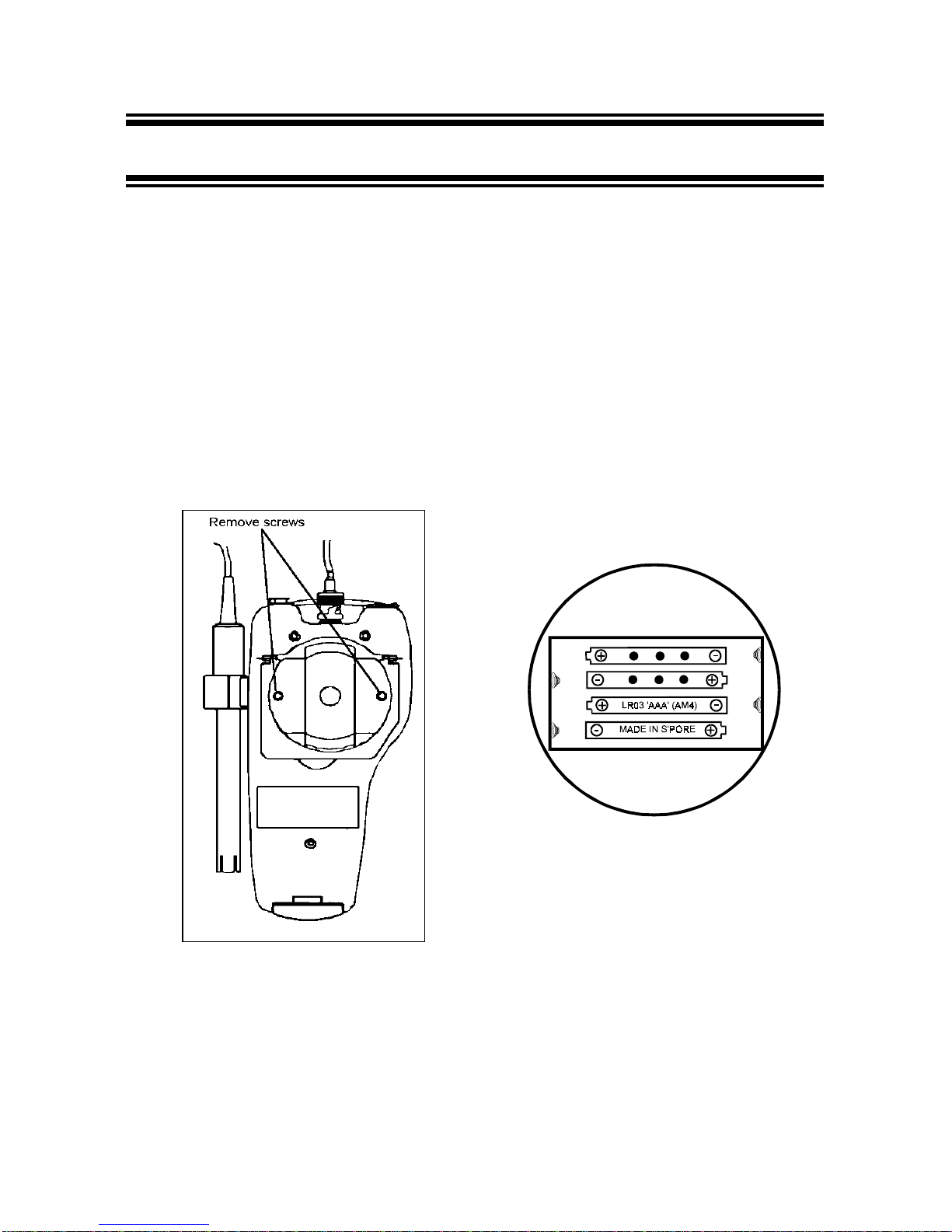

Figure 5: Battery position

Figure 4: Take out battery cover by

removing 2 screws

3.2 Connecting the pH Electrode, Temperature Probe & Electrode Holder

The Eutech Instruments CyberScan pH 10/100 meter uses any standard pH, ORP, or Ion

Selective Electrode (ISE) with a BNC connector. For Automatic Temperature Compensation

(ATC), this meter requires a temperature probe with a phono-jack connector.

NOTE: It is important that water does not get onto the BNC connector. Also avoid touching the

connector with soiled hands.

3.2.1 To connect pH, ORP or ISE electrode

1. Slide the electrode connector of the

electrode over the BNC connector

socket on the meter.

2. Make sure the slots of the connector are

in line with the posts of the socket.

3. Slide the BNC connector of the probe

over (Figure 6).

4. Rotate and push connector clockwise

until it locks.

5. To remove electrode, push and rotate

the connector anti-clockwise.

6. While holding onto the metal part of

the connector, pull it away from the meter.

7. Be careful not to use excessive force.

CAUTION: Do not pull on the probe cord or the probe wires might disconnect.

Refer to “Accessories” section for information on temperature probe and other electrodes.

3.2.2 To connect the temperature probe:

The temperature probe (provided) uses a phono

jack to connect with the socket on the CyberScan.

Insert the jack fully into the socket (Figure 7).

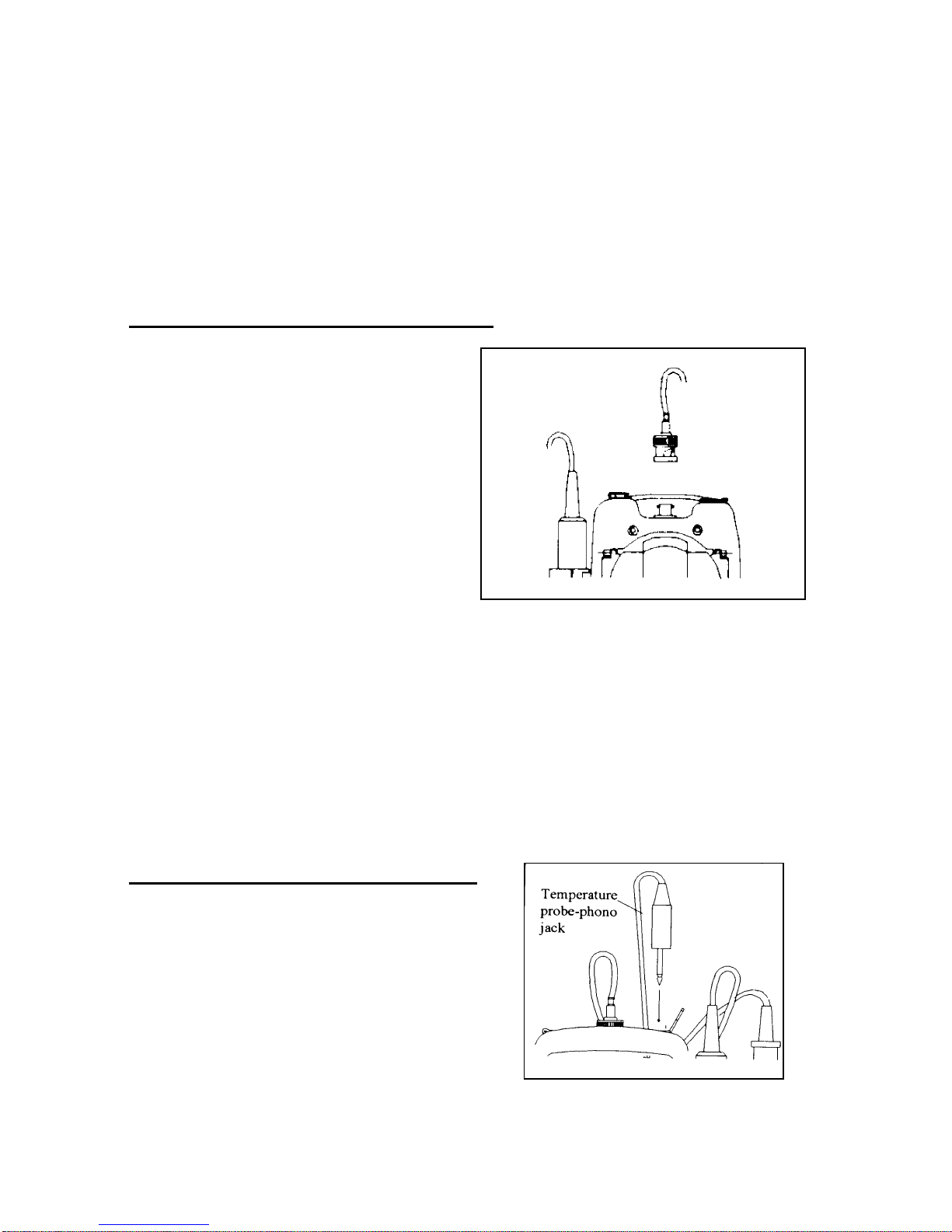

Figure 6: Connect pH or ORP electrode using BNC

Figure 7: Connecting the temperature

probe

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EUTECH INSTRUMENTS Instrument de mesure

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 10002500 PHION METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CyberScan PCD 650 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CON 6 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS COND 6 PLUS Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS SILVERSULFIDE EPOXY Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF CYBERSCAN PD 300 PHDISSOLVED OXYGEN... Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ECTest11 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS Oakton 450 Series Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ECOSCAN DO 6 DO METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS pH 600 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS WATERPROOF CYBERSCAN DO 300 DISSOLVED OXYGEN... Instructions de montage

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS ION 6 PLUS PH ION MV TEMP Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN CON 10 CONDUCTIVITYTDS METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PHION 510 PHION METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PH 1500 PHION METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN CON 510 CONDUCTIVITY BENCH METER Instructions de montage

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS DO 6PLUS DISSOLVED OXYGEN TEMP Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN CON 510 CONDUCTIVITY BENCH METER Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS Oakton TN-100 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS FLUORIDE EPOXY Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PC 10 COMBINATION PHCONDUCTIVITY... Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS PC 700 - REV 3 Manuel utilisateur

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS CYBERSCAN PC 10 COMBINATION PHCONDUCTIVITY... Instructions de montage

EUTECH INSTRUMENTS

EUTECH INSTRUMENTS LEAD EPOXY Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
