Etross ETROSS-8888 Manuel utilisateur

1

ETROSS-8888

GSM

8

PORTS

FWT

(GATEWAY)

USER

’

S

MANUAL

ETROSS

COPYRIGHT

-2009

2'ND

VERSION

All manuals and user guides at all-guides.com

all-guides.com

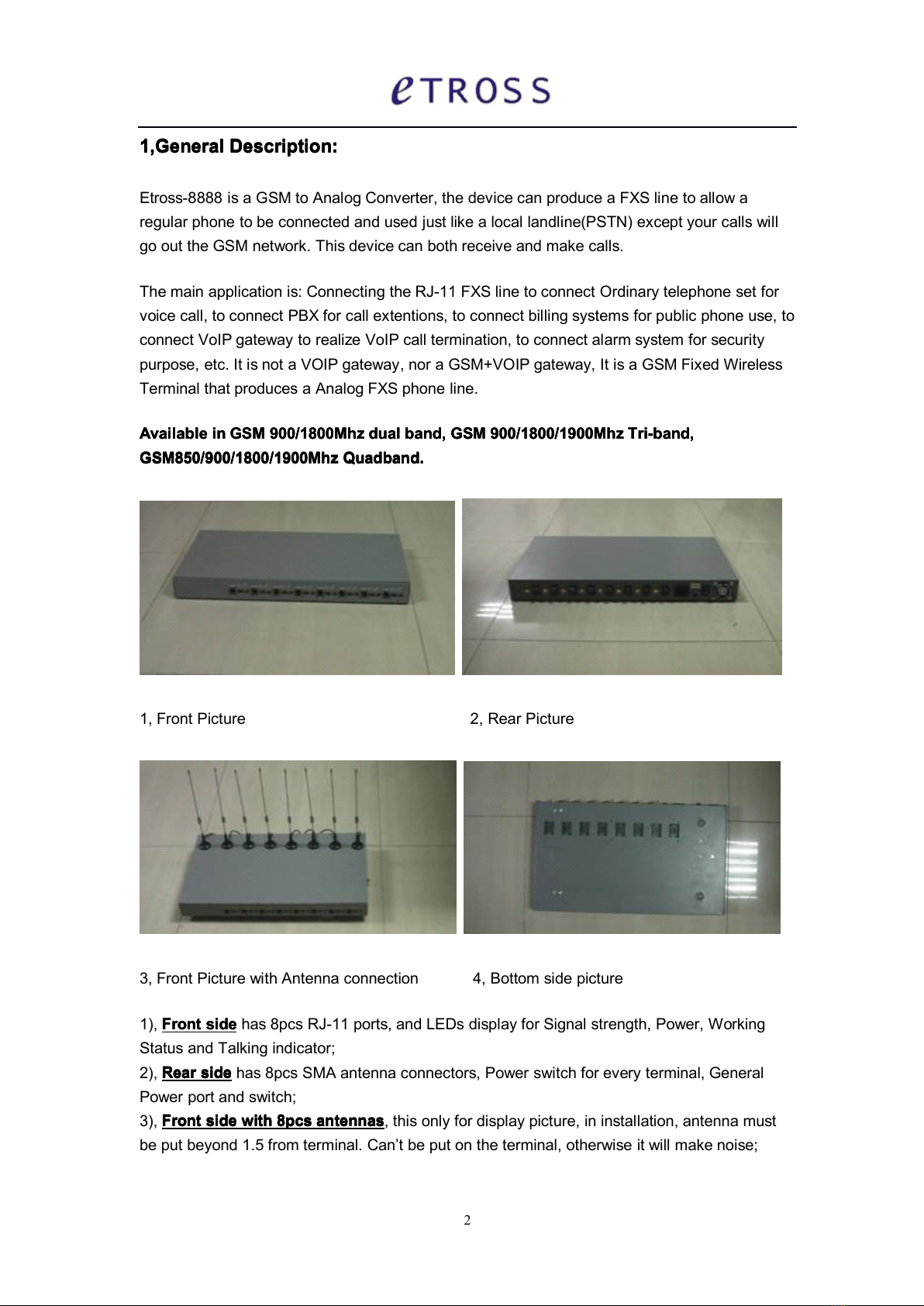

2

1,General

Description:

Etross-8888 is a GSM to Analog Converter , the device can produce a FXS line to allow a

regular phone to be connected and used just like a local landline (PSTN) except your calls will

go out the GSM network. This device can both receive and make calls .

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for

voice call, to connect PBX for call extentions, to connect billing systems for public phone use, to

connect VoIP gateway to realize VoIP call termination, to conn ect alarm system for security

purpose, etc. It is not a VOIP gateway , nor a GSM+VOIP gateway, It is a GSM Fixed Wireless

Terminal that p roduces a Analog FXS phone line .

Available

in

GSM

900/1800Mhz

dual

band,

GSM

900/1800/1900Mhz

Tri-band,

GSM850/900/1800/1900Mhz

Quadband.

1, Front Picture 2, Rear Picture

3, Front Picture with Antenna connection 4, Bottom side picture

1) , Front

Front

side

has 8pcs RJ-11 ports, and LEDs display for Signal strength , Power, Working

Status and Talking indicator;

2) , Rear

Rear

side

has 8pcs SMA antenna connectors, Power switch for every terminal, General

Power port and switch;

3) , Front

Front

side

with

8pcs

antennas

, this only for display picture, in installation, antenna must

be put beyond 1.5 from terminal. Can ’ t be put on the terminal, otherwise it will make noise;

All manuals and user guides at all-guides.com

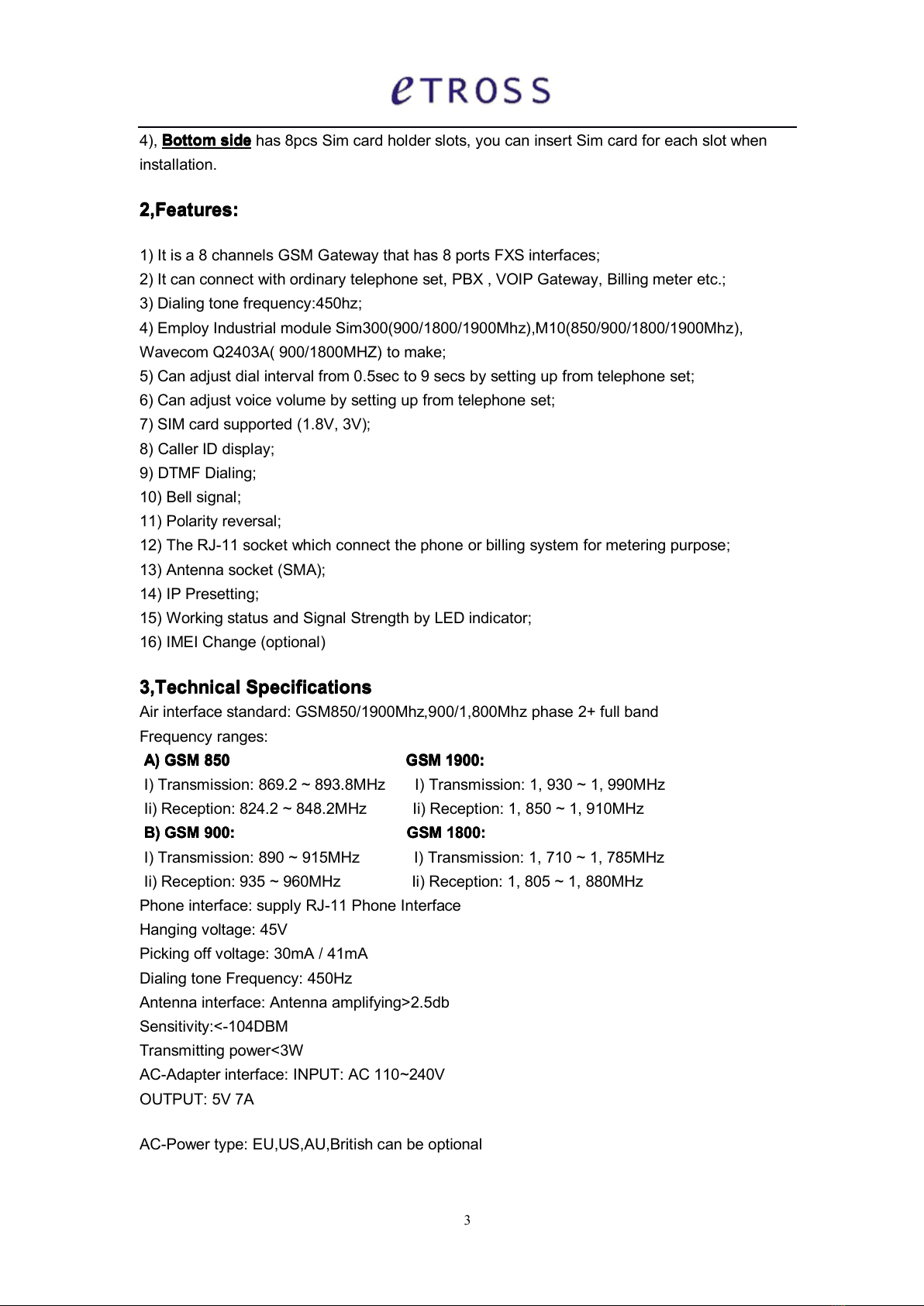

3

4) , Bottom

Bottom

side

has 8pcs Sim card holder slots, you can insert Sim card for each slot when

installation.

2,Fe

atures:

1) It is a 8 channels GSM Gateway that has 8 ports FXS interfaces ;

2) It can connect with ordinary tele phone set, PBX , VOIP Gateway, Billing meter etc. ;

3) Dialing tone frequency:450hz ;

4) Employ Industrial module S im300 (900/1800/1900Mhz) , M10(850/900/1800/1900Mhz),

Wavecom Q2403A( 900/1800MHZ) to make ;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

7) SIM card supported (1.8V, 3V)

;

8) Caller ID display ;

9) DTMF Dialing ;

10) Bell signal ;

11) Polarity reversal ;

12) The RJ-11 socket which connect the phone or billing system for metering purpose ;

13) Antenna socket (SMA) ;

14) IP Presetting ;

15) Working status and Signal Strength by LED indicator;

16) IMEI Change (optional)

3,

Technical

Specifications

Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band

Frequency ranges:

A)

GSM

850

GSM

1900:

I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz

Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz

B)

GSM

900:

GSM

1800:

I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz

Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz

Phone interface: supply RJ-11 Phone Interface

Hanging voltage: 45V

Picking off voltage: 30mA

/

41mA

Dialing tone Frequency: 450Hz

Antenna interface: Antenna amplifying> 2 .5db

Sensitivity:<-104DBM

Transmitting power<3W

AC- Adapter interface: INPUT: AC 110 ~2 4 0V

OUTPUT: 5V 7A

AC-Power type: EU,US,AU,British can be optional

All manuals and user guides at all-guides.com

4

4,

Operation

Circumstance:

Operation temperature: -10c~60C

Storage temperature:-20C~70C

Operation humidity:45%-95%

Atmosphere pressure:86-106Kpa

Environment noise: <60DB

Transmitting Power:2W

Sensitivity: <-104dbm

Antenna Amplifying: >1.5db

Dialing frequency: 450Hz

Hanging voltage: 45V

Picking current: 30mA/41mA

5,Checking

Package:

ETROSS-8888 GSM 8 PORTS FWT: 1pcs

1pcs

;

Power Supply Cable: 1pcs

1pcs

,

GSM Antenna with 3m cable: 8pcs

8pcs

,

User ’ s Manual 1pcs

1pcs

.

Product dimension: L455x

L455x

W280

x

H45mm

Gift box dimension: L510x

L510x

W170x

H64mm

G.W: 4.5kg

4.5kg

6,Installation

And

Connection

The

Condition

for

Installation

The terminal asks for 110- 220V

AV

power supply. It must be installed in the area where the

GSM network can cover. The strength of the signal can affect the quality of voice.

1. Screw off the screws that are on the back of the terminal, Insert SIM card for every Sim

card holder, and then tighten the screws.

2. Install antenna. In order to ensure the quality of voice, antenna must be put beyond 1.5

from the telephone and terminal.

3. On end of the telephone line connects to the “ Phone ” port of the terminal, the other end

connects to telephone.

4. “ Power ” port connects to power adapter that is connected to 110-220V AC power supply.

1)

The

Installation

for

Connecting

to

Ordinary

Telephone

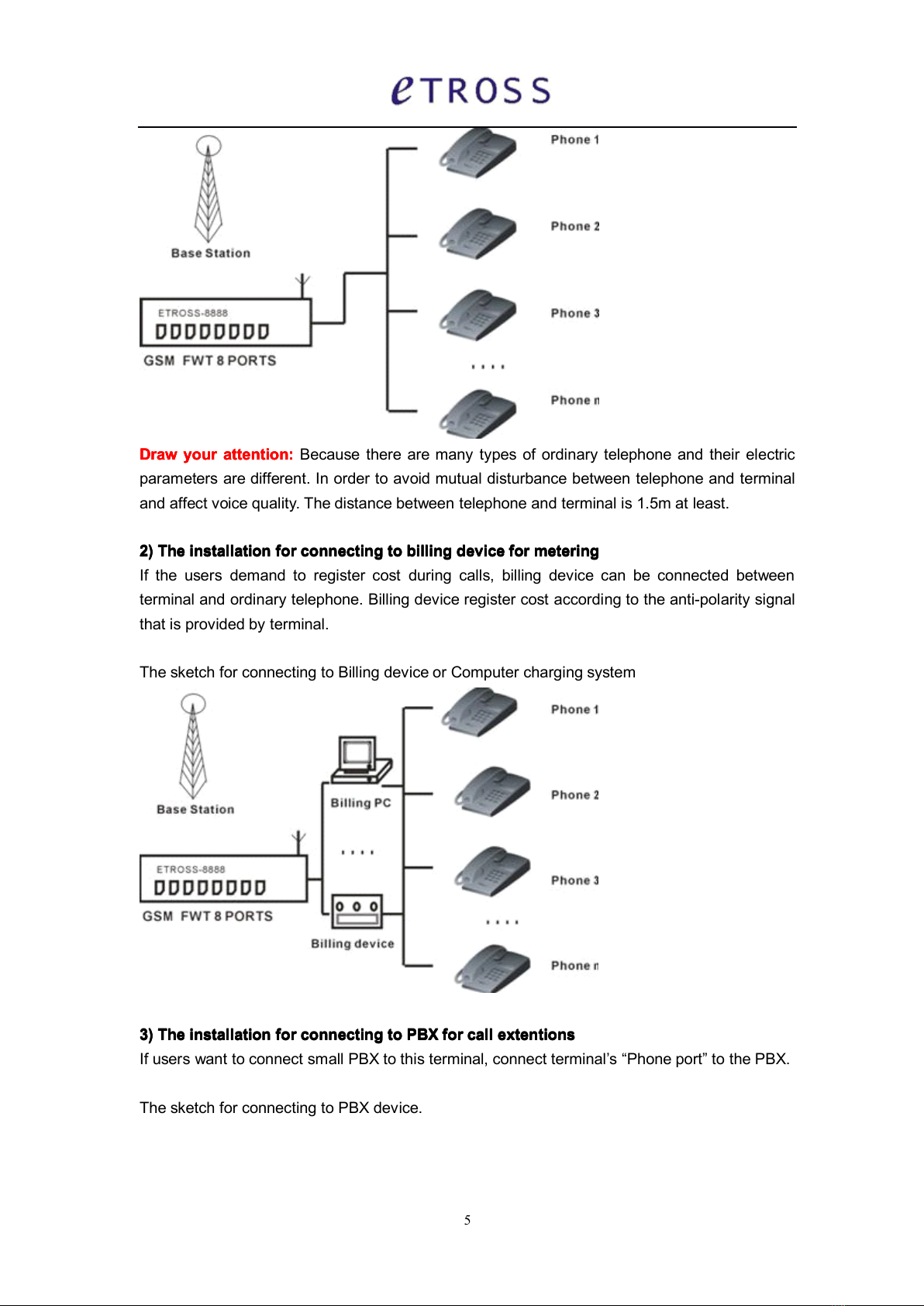

The Sketch for connecting ordinary Telephone

All manuals and user guides at all-guides.com

5

Draw

your

attention:

Because there are many types of ordinary telephone and their electric

parameters are different. In order to avoid mutual disturbance between telephone and terminal

and affect voice quality. The distance between telephone and terminal is 1.5m at least.

2)

The

installation

for

connecting

to

billing

device

for

metering

If the users demand to register cost during calls, billing device can be connected between

terminal and ordinary telephone. Billing device register cost according to the anti-polarity signal

that is provided by terminal.

The sketch for connecting to Billing device or Computer charging system

3)

The

installation

for

connecting

to

PBX

for

call

extentions

If users want to connect small PBX to this terminal, connect terminal ’ s “ Phone port ” to the PBX.

The sketch for connecting to PBX device.

All manuals and user guides at all-guides.com

6

4)

The

installation

for

connecting

VoIP

gateway

for

Call

Termination

Suppose a VoIP call originates from US, which was transferred from US Server to China Server

on

VoIP,

finally the call will be terminated from internet to GSM network and to be sent out to

the destination answer side.

The sketch for connecting to VoIP gateway

5)

The

installation

for

connecting

to

alarm

system

for

Security

The GSM FWT can substitute the PSTN for connecting to alarm system for security purpose

when PSTN failure or not available.

The sketch for connecting to alarm system

All manuals and user guides at all-guides.com

all-guides.com

7

7,

Function

Setting

Before you do the following function settings, Lift handset or press hands-free key of telephone

set, then you can press the buttons according to the following instructions to finish setting, you

will hear 2 beeps after you finish, this testify setting su ccessfully.

1)

Adjust

dial

interval

*#01# 3 0# , 01-- command

，

3 0-- time

，

Max 9.9 seconds

，

Min 0.5 seconds, factory default setting i s

3

seconds.

*If

you

use

etross-8888

for

connecting

to

VoIP

gateway,you

can

set

dial

interval

as

0.5

second,

it

can

make

PDD<5

sec

(

Method: *#01#05#);

*If

you

use

etross-8888

for

connecting

telephone,

PBX,

billing

device,

you

can

set

dial

interval

as

3

seconds

or

5

seconds

as

you

like

(Method:

*#01#30#,

set

the

dial

interval

as

3

seconds).

2)

Adjust

Earphone

Volume

*#02#15# 02-- command ，15-- volume ，Max 16 ，Min 1, factory default setting is 15.

3)Adjust

Mic.

Volume(sensitivity)

*#03#10# 03-- command ，10-- amount ，Max 16 ，Min 1, factory default setting is 10.

4)

Setting

local

area

code

*#04#*0755# 10-- command

，

*0755 — area code

，

Max 5 numbers, use "*" instead if area code i s

less than 5 digits.

5)

Setting

IP

numbers

*#05#17911# 05-- command

，

17911 — IP numbers

，

Max 5 numbers, use "*" instead if IP numb er

is less than 5 digit.

6

）setting

setting

billing

type:

*#15#00# 15---command 00----amount 00----no billing function

*#15#01# 15---command 01----amount 01---billing by reversal polarity( factorty

default setting)

*#15#02# 15---command 02----amount 02----12kz billing function

All manuals and user guides at all-guides.com

8

*#15#03# 15---command 03----amount 03----1 6 kz billing function

7

.

Blocking

incoming

calls

setting

(optional)

:

*#14#00# 14--command 00--amount 00--incoming calls available

*#14#01# 14--command 01--amount 01-blocking incoming calls

(factory default setting is 00)

8) Hide

Hide

caller

ID

setting

*#13#01# 13-command,

The terminal can show caller ID when default.

When you set *#13#01#, it means hide caller ID.

When you cancel hide caller ID, set *#13#00#

9)

Restore

to

factory

default

setting

*#99#99# Restore to factory default setting.

9,Making

Calls

and

Answer

Incoming

Calls

Making

Calls

1. Lift the handset or press “ hand-free ” key, you will hear dialing tone, then you can dial

the telephone numbers you want to call.

2. Dialing: dialing the telephone numbers you want to call

3. On completion of dialed digits, you can press “ # ” to transmit the called telephone

numbers. If you don ’

t

dial any key for continual 3 seconds during the dialing, terminal

transmits called telephone numbers automatically.

4. During calls, if the telephone numbers is not free ones, the terminal sends out anti-

polarity signal.

5. If the calling party or called party hangs up, the terminal stops sending out anti-polarity

signal.

Answering

Incoming

Calls

When some calls are coming in, if the connected telephone has the function of displaying

incoming calls, the telephone rings and displays the incoming telephone numbers. Now

users can lift the handset or press “ hand-free ” to answer it.

All manuals and user guides at all-guides.com
