EtherWAN EMC400 Manuel utilisateur

W70G-EMC400XQ2 Page 1

Installation Guide

EMC400 | 4-Slot Din-Rail Media Converter Chassis

1Unpacking

Open the carton and unpack the items. Your package

should include:

▪One 4-Slot Din-Rail Media Converter Chassis

If any items are missing or damaged, notify your

EtherWAN representative.

2Select a Location

The installation site should be free of extreme

temperatures, humidity, or excessive electromagnetic

interference. Specifically, the site should meet the

following requirements:

▪The ambient temperature should be between 0

and 45 degrees Celsius (32 to 113 degrees

Fahrenheit).

▪The relative humidity should be at least 5% and

less than 95 percent, non-condensing.

3Connect Power

Power supply is via redundant 12VDC terminal block

power inputs. However, only one power supply is

needed to operate the chassis.

▪Power supply input is 90~264VAC.

▪EMC400 Chassis Input is 12VDC.

▪Use minimum 16AWG cable for wiring.

▪Power Consumption is 19W Max. @ full

installation, depending on installed devices.

Power Input Assignment

Power 1, 2

12VDC

Terminal Block

Power Ground

Earth Ground

4Status LEDs

LED

State

Indication

PW1

Steady

PW1 on

Off

PW1 off

PW2

Steady

PW2 on

Off

PW2 off

W70G-EMC400XQ2 Page 2

Installation Guide

EMC400 | 4-Slot Din-Rail Media Converter Chassis

5Install Devices to Chassis

Each bay is equipped with a holding tray, secured to

the chassis by a retaining screw. To install a media

converter:

▪Unscrew the carrier from the desired bay first to

install a media converter onto any of the carriers.

▪Fit the media converter onto the carrier.

▪Insert the carrier to the guide rails of the bay slot

when the media converter is completely seated

onto the carrier.

▪Carefully slide in the carrier until it is fully and

firmly fitted to the power socket. Fasten the

screws on the carrier.

6Assembly, Startup, and Dismantling

Assembly: Place the device on the DIN-Rail from

above using the slot. Push the front of the device

toward the mounting surface until it audibly snaps

into place.

Startup: Connect the supply voltage to start up the

device via the terminal block.

Dismantling: Pull out the lower edge and then remove

the device from the DIN-Rail.

Manufacturer information:

EtherWAN Systems, Inc.

33F, No. 93, Sec. 1, Xintai 5th Rd., Xizhi Dist., New

Taipei City, 221 Taiwan

The full product manual can be downloaded from:

www.etherwan.com

Autres manuels EtherWAN Convertisseur de média

EtherWAN

EtherWAN EMC1600 Series Manuel utilisateur

EtherWAN

EtherWAN EL100 Manuel utilisateur

EtherWAN

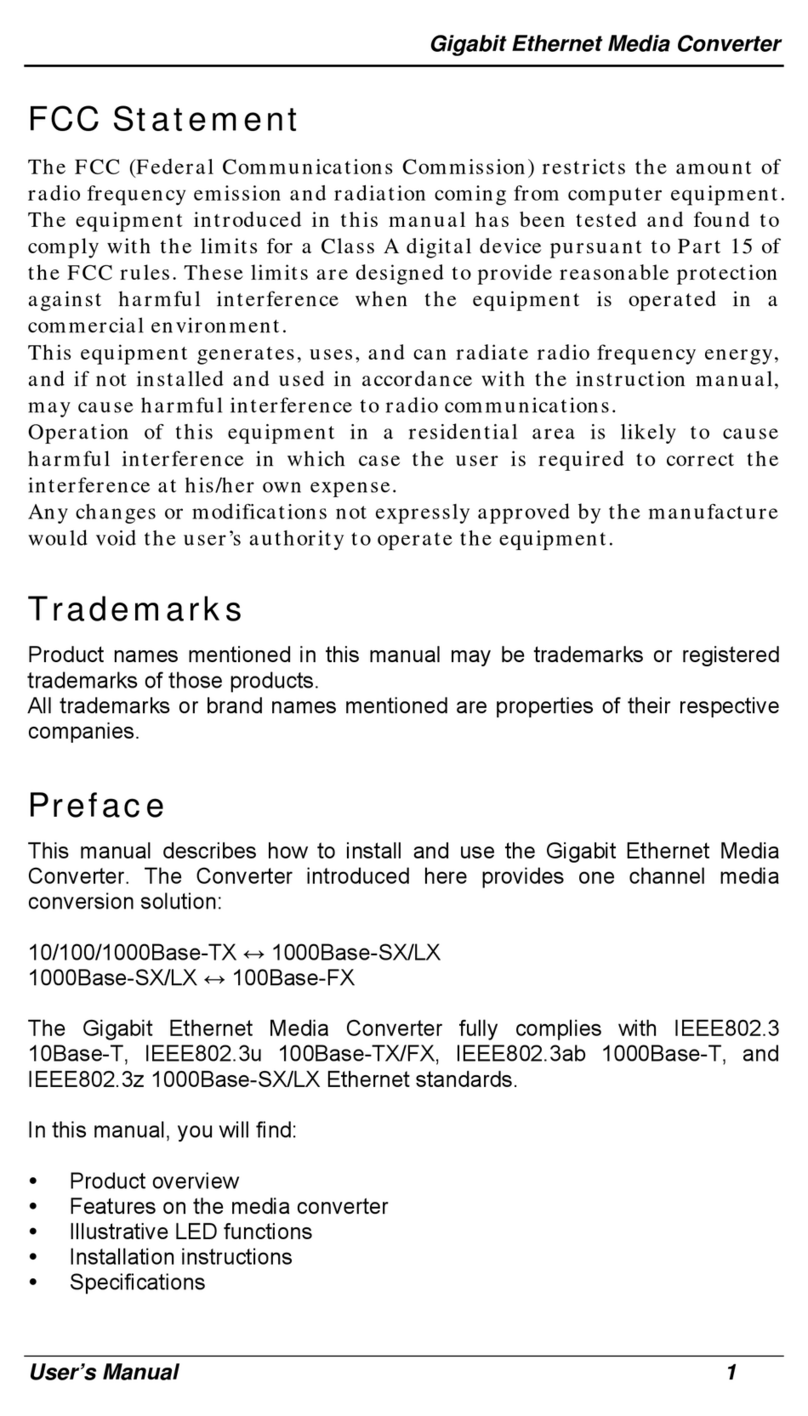

EtherWAN EM1100 Manuel utilisateur
