EtherWAN EL110 Series Manuel utilisateur

EL110

12/05/2018

W70G-EL110Q1

EL110 Seri es M edi a C o nverter

Installation Guide

1 Unpacking

Open the carton and unpack the items. Your

package should include an EL100 media

converter and this Quick Install Guide. If items

are missing or damaged, notify your EtherWAN

representative.

The full manual can be downloaded at:

https://www.etherwan.com/support/product/el

100-el110-series

2 SelectInstallationLocation

Place the equipment where it will not be

subjected to extreme temperatures, humidity, or

electromagnetic interference. Specifically, the

site you select should meet the following

requirements:

The ambient temperature should be between

32 and 113 degrees Fahrenheit (0 to 45

degrees Celsius).

The relative humidity should be less than 95

percent, non-condensing.

Surrounding electrical devices should not

exceed the electromagnetic field (RFC)

standards for IEC 801-3, Level 2 (3V/M) field

strength.

Make sure that the equipment receives

adequate ventilation. Do not block the

ventilation holes on each side of the

equipment.

The power outlet should be within 1.8 meters

of the product.

3 ConnectPower

This Converter is a plug-and-play device.

Connect the supplied AC to DC power adaptor

to the receptacle on the rear panel of the

converter, and then attach the plug into a

standard AC outlet.

Chassis Installation

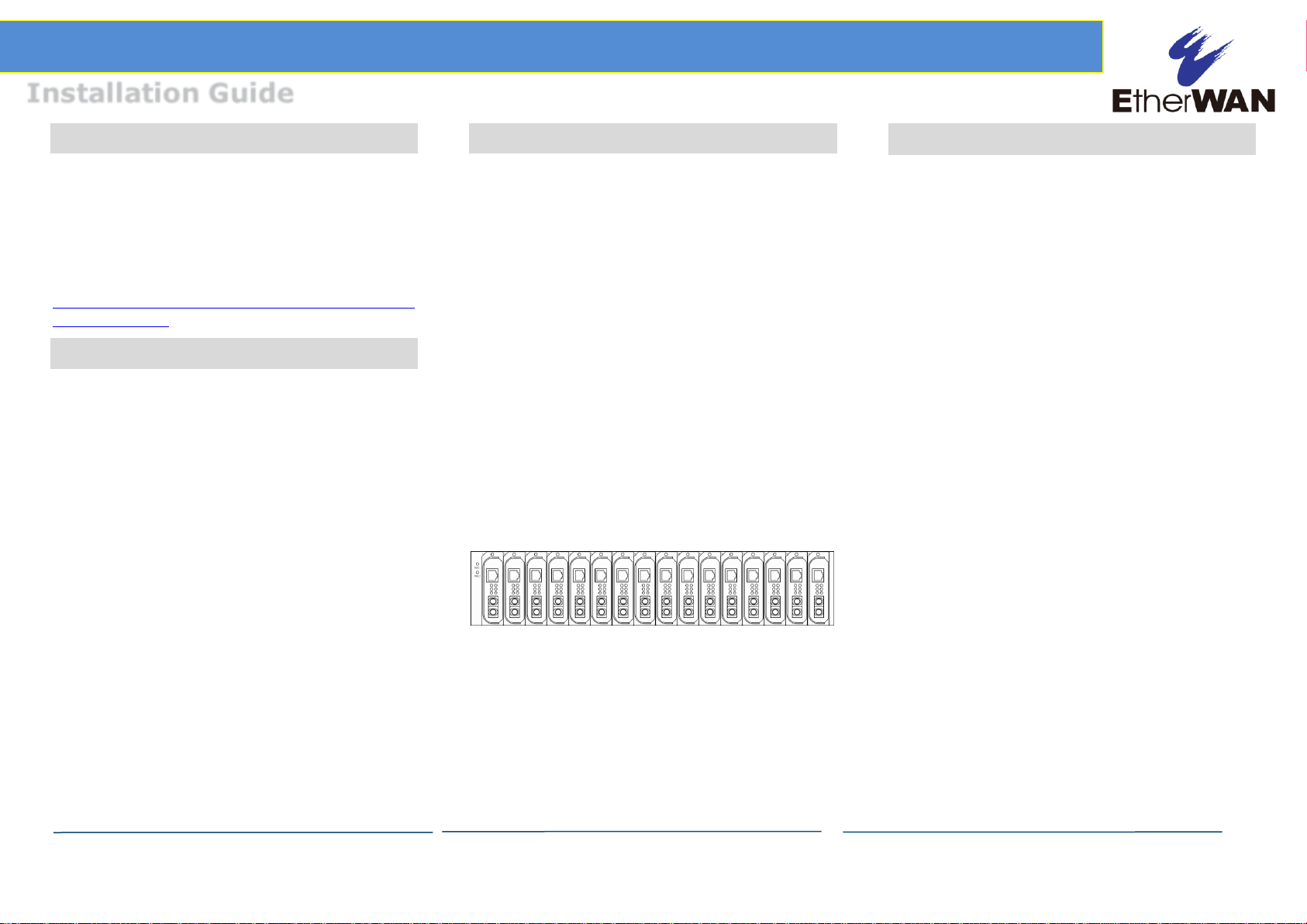

The converter can be installed into any of the

expansion slots in a compatible chassis.

Install the converter onto a carrier supplied

with the chassis:

Unscrew the carrier from the desired

expansion slot on the chassis.

Fit the converter onto the carrier, and insert

the carrier to the guide rails of the expansion

slot.

Tighten the retaining screws to fix the

carrier in the chassis.

4PortsandPortSettings

The Converter provides one TX port and one FX

port. For the FX port, it provides options of

Multi-mode fiber using SC, ST, VF-45, MT-RJ or

LC connector or

Single-mode fiber using SC or ST connector or

WDM fiber using single SC connector

The TX port uses RJ-45 connector.

Port settings are made by means of a DIP (Dual

Inline Package) switch at the rear panel of the

module.

EL110

12/05/2018

W70G-EL110Q1

E L 110 Seri es M edi a C o nve rter

Installation Guide

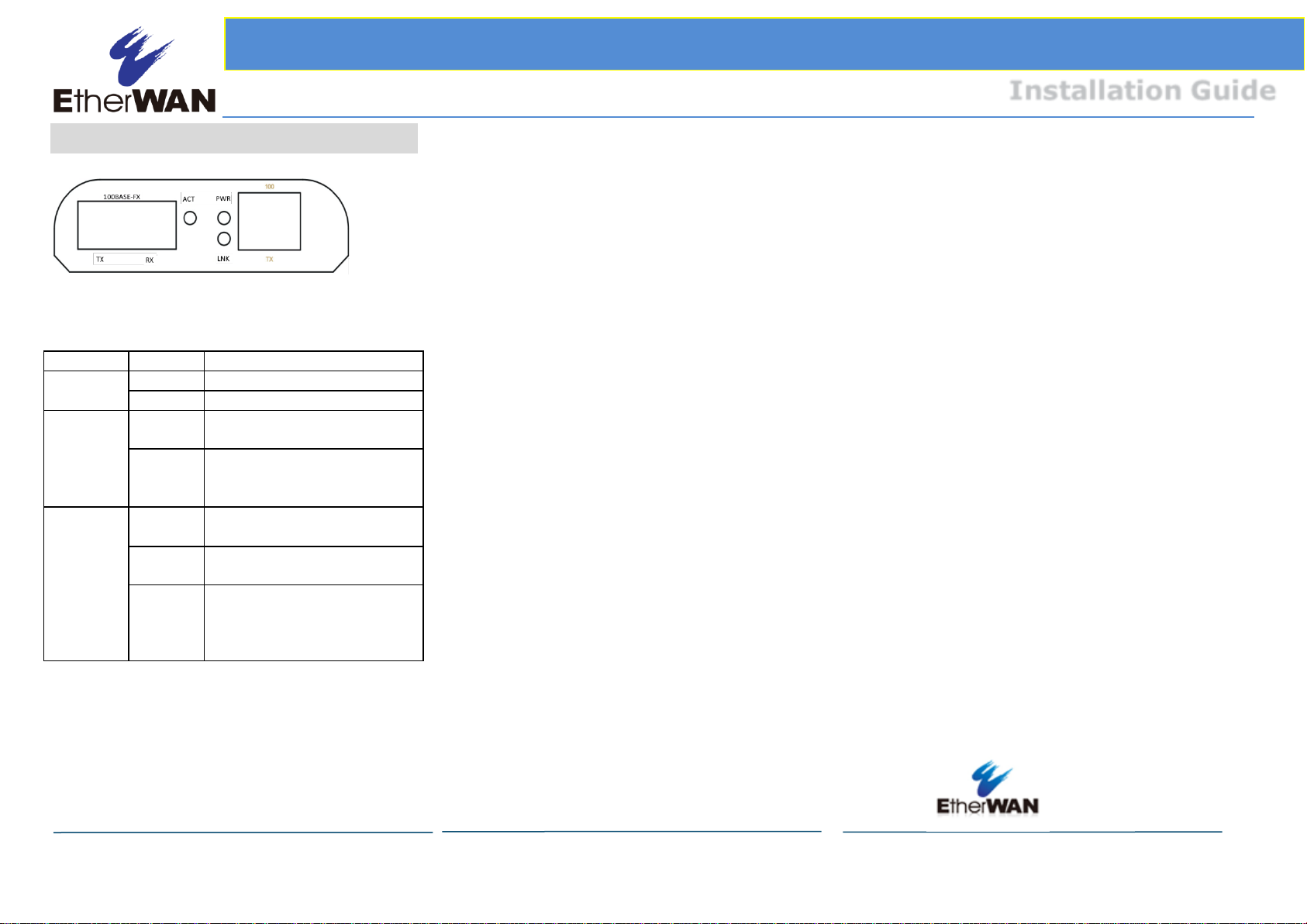

4 LED Indicators

The LED indicators give you instant feedback on

status of the converter:

LED

State

Indication

PWR

Steady

Power on

Off

Power off

LNK

Steady

Connection at the speed of

100Mbps

Off

No connection at the Speed

of 100Mpbs

ACT

Steady

Valid network connection

established

Flashing

Transmitting or receiving

data

Off

Neither valid network

connection nor

transmitting/ receiving

data

Manufacturer information:

ETHERWAN SYSTEMS, INC.

4F-7, No. 79, Sec. 1, Xintai 5th Road, Xizhi

District, New Taipei City 221, Taiwan
