Overview

Install the Yoke using the instructions that follow. Images

show a small (fos4PL8 or fos4PD8) fixture, but the instructions

are the same for all fos/4 Panel models.

WARNING: In addition to primary suspension, attach a safety cable (or other

approved safety device) to the fixture. Safety cables must be rated to support ten

times the fixture weight. Consult local standards to ensure that safety cables

meet all requirements.

Follow all safety precautions described in the

fos/4 Panel User Manual

, which is

available for download at etcconnect.com.

AVERTISSEMENT : En plus de la suspension principale, fixez une chaîne de

sécurité (ou tout autre dispositif de sécurité homologué) au projecteur. Les

chaînes de sécurité doivent être en mesure de supporter dix fois le poids du

projecteur. Consultez les normes locales pour vous assurer que les câbles de

sécurité respectent toutes les exigences.

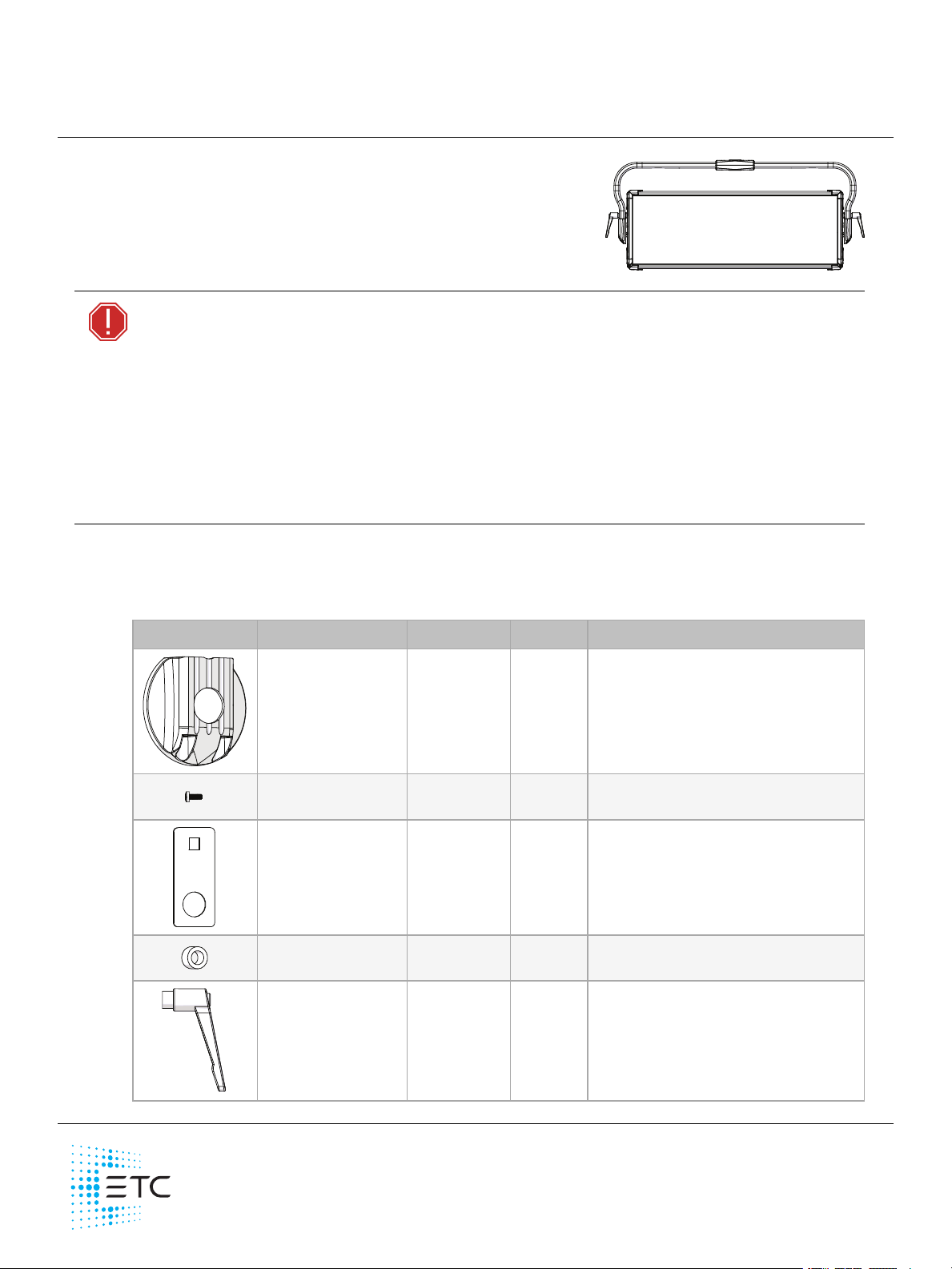

What's in the Box

In addition to the yoke, the kit includes the hardware items described below.

Image Name Part Number Quantity Description

Clutch-plate cover 7470A4022 2 fos/4 Panel clutch-plate cover

Clutch-plate cover

bolt HWM1136 4 Bolt M4 x 10 mm

Plate 7471A3063 2 fos/4 Panel pressure plate

Spacer HWM960 2 Spacer 16 mm OD x 10 mm ID x

10mm L

Tilt-lock HWM8014 2 fos/4 Panel tilt-lock

ETC Installation Guide

fos/4 Panel Yoke

fos/4 Panel Yoke Page 2 of 2 ETC

Image Name Part Number Quantity Description

Tilt-lock bolt HWM2344 2 Bolt M8 x 25 mm CARR CL-8.8

Washer (large) HW5126 2 Flat washer 5/16 .375 x .875 x .078

Washer (small) HWM2351 2 M8 washer 8.4 mm ID x 16 mm OD x

1.6mm

Yoke bolt HWM2350 2 Bolt M8 x 25 mm

Position

clutch-plate

cover and

secure with

bolts

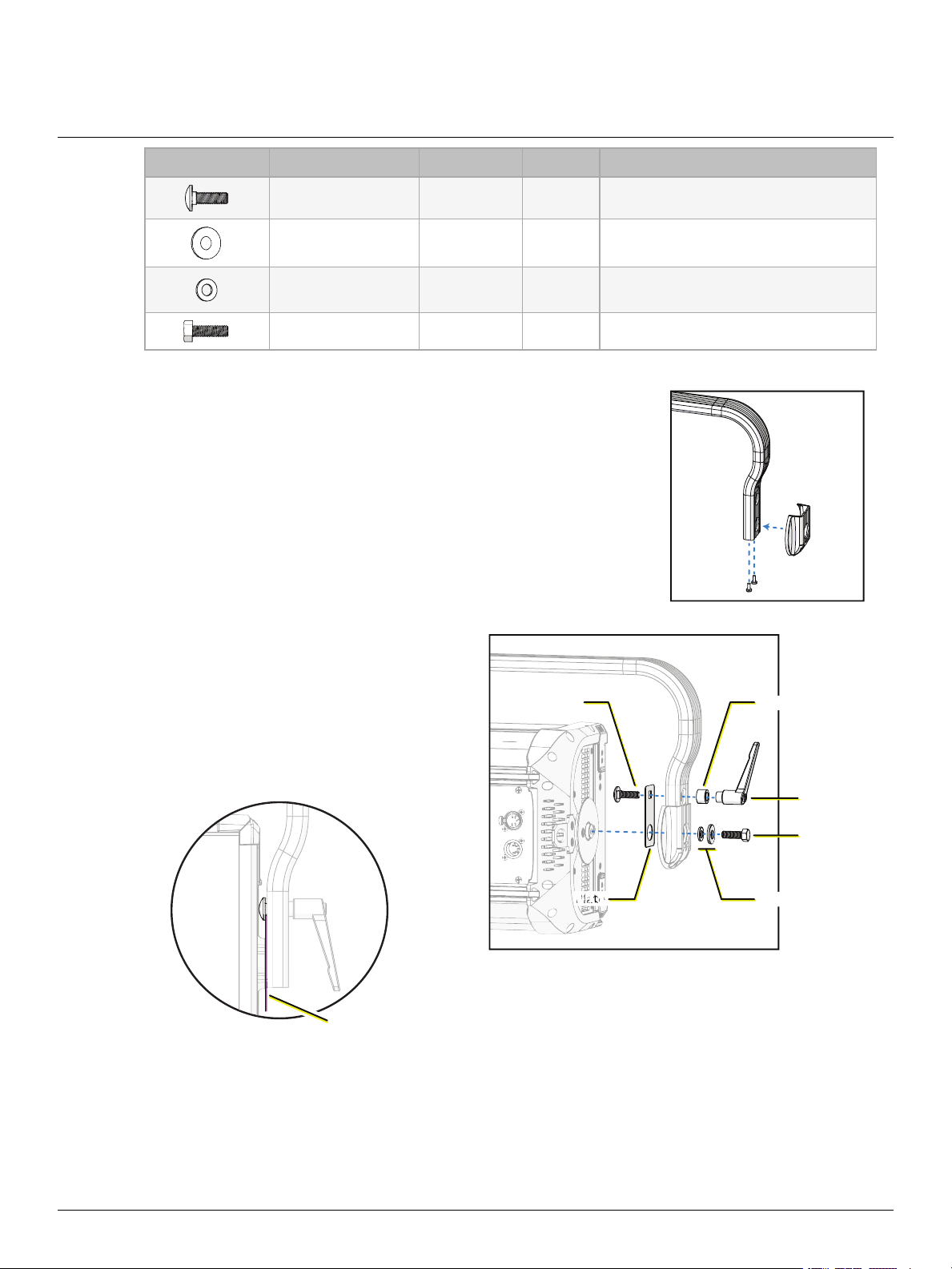

Install the Yoke

Tools required:Phillips screwdriver, 13 mm socket wrench

1. Position a clutch-plate cover on one end of the yoke, and use a

Phillips screwdriver to secure it with two clutch-plate cover bolts.

Repeat the process to attach a clutch-plate cover to the other side

of the yoke.

2. Position the fixture facedown on a flat surface.

3. Position the yoke to align with the sides of the fixture.

Tilt-lock

Spacer

Yoke bolt

Washers

Tilt-lock bolt

Plate

Use the yoke hardware to loosely attach

the yoke to one side of the fixture (as

shown in the image at right).

•

Make sure that the plate is captured by

both the tilt-lock bolt and the yoke bolt.

•

Make sure that the head of the tilt-lock

bolt is behind the circular clutch plate on

the fixture (see image below).

Circular clutch plate

(clutch-plate cover

hidden for clarity)

5. Repeat step 4 on the other side of the fixture.

6. Use the 13 mm socket wrench to tighten the yoke bolts, securing the yoke to the fixture.

7. Tighten the tilt-locks to secure the fixture position within the yoke.
