ESI E-AMT Manuel utilisateur

ASSEMBLY/ADJUSTMENT

E-AMT

MONITOR ARM ADAPTER

FOR KNOLL®ANTENNA

E-AMT Rev A 10/17

Model E-AMT-SLV

1

E-AMT MONITOR ARM ADAPTER

PLEASE REVIEW these instructions before beginning the installation. Check that

all parts and tools shown below were provided with your order. Contact your

supplier if any parts are missing. Do not discard the packaging until satised

that the product operates to your satisfaction.

The E-AMT monitor arm adapter enables attachment of select Evolve monitor

arms to Knoll®Antenna benching systems. After the E-AMT installation is

complete, follow the instructions that came with the Evolve system. The E-AMT

can work with the EVOLVE single, dual, or triple congurations.

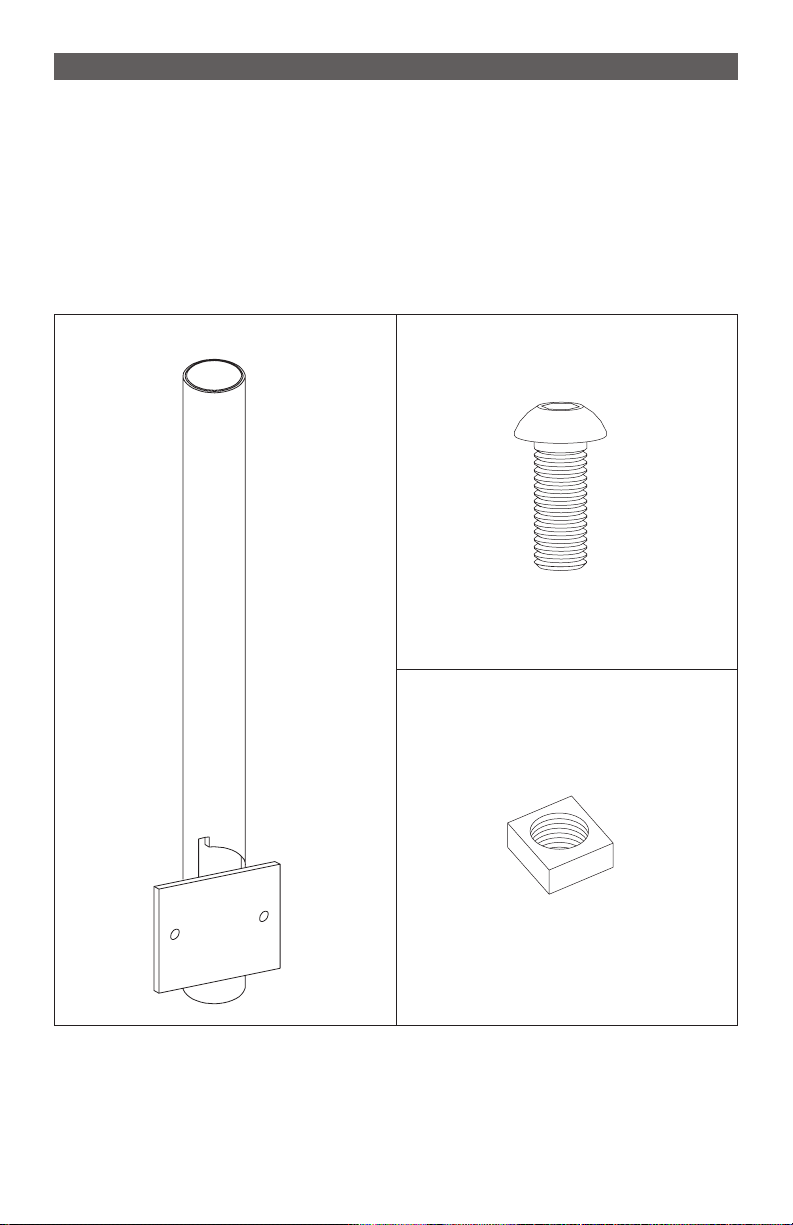

PARTS AND TOOLS PROVIDED

CAUTION: Hand-tighten screws only. Do not use power tools.

EDGE-AMT Mount (1) Button Head Screw (2)

Square Nut (2)

M8x16

2

E-AMT MONITOR ARM ADAPTER

Attach Pole Assembly to Table

1. Attach the Edge-AMT assembly to the rear beam rail mount on the

Antenna table system. Utilize the pole base end tabs to catch the end of

the rail.

2. Insert the two square nuts in the rear rail internal groove and align the holes

of the Edge-AMT assembly to the nut holes. Fasten both securely to the

Antenna rear beam rail using the button head screws and a 4mm Allen

key.

Proceed with Monitor Arm Assembly

• Begin by attaching the arm stem(s) on the Edge-AMT and build the

remaining Evolve product on the pole. Follow the standard instructions that

came with the Evolve system.

1

2

800.833.3746esiergo.com

© 2017 ESI Ergonomic Solutions. All rights reserved. E-AMT Rev A 10/17
