ESAB Caddy Arc 151i VRD Manuel utilisateur

Valid for serial no. 828-xxx-xxxx0460 825 174 GB 20120814

Caddy

Arc 151i VRD

GB Instruction manual

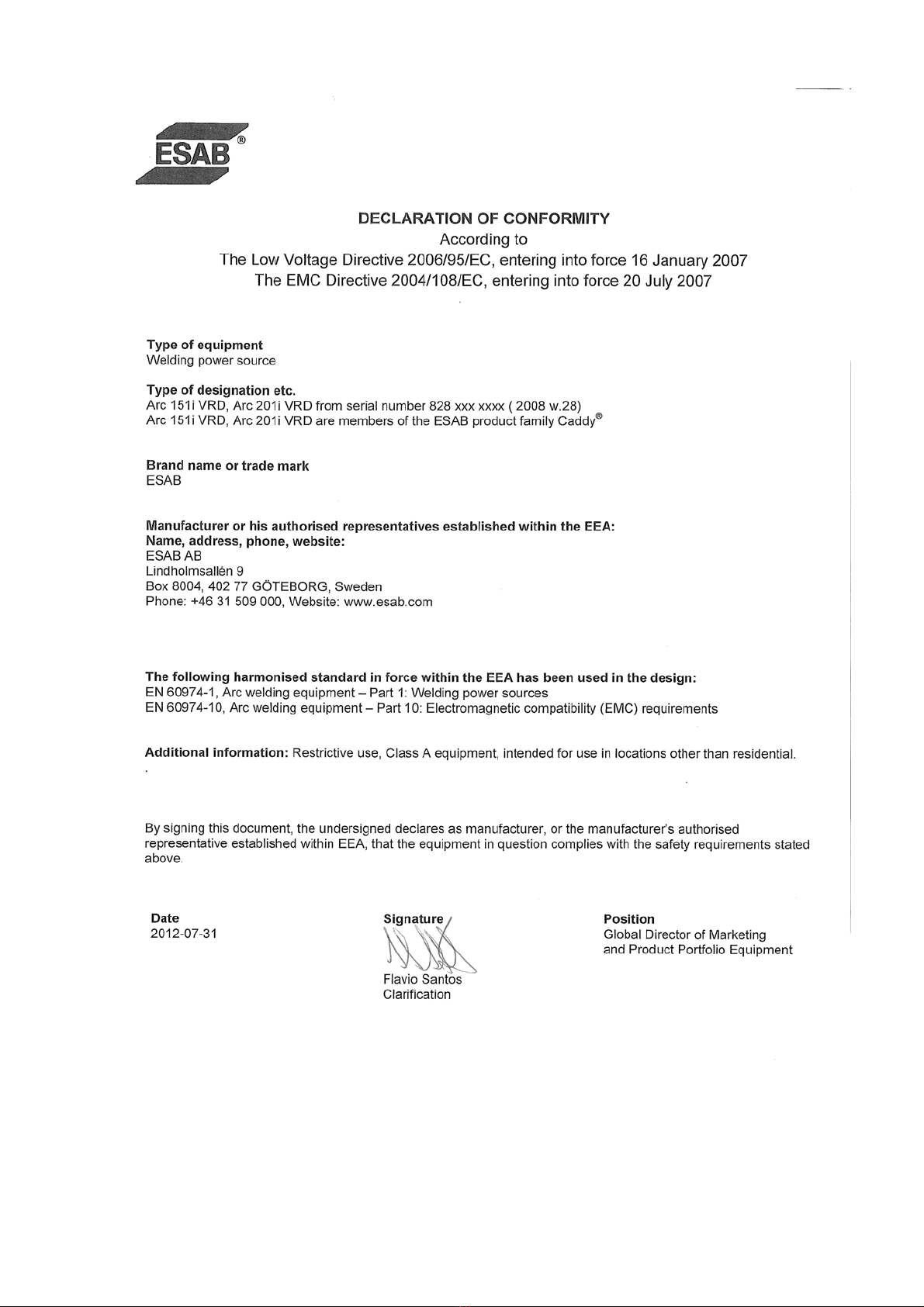

- 2 -

- 3 -

TOCe

Rights reserved to alter specifications without notice.

1 SAFETY 4...........................................................

2 INTRODUCTION 6...................................................

2.1 Equipment 6................................................................

3 TECHNICAL DATA 7.................................................

4 INSTALLATION 8....................................................

4.1 Location 8..................................................................

4.2 Mains power supply 8........................................................

4.2.1 Recommended fuse sizes and minimum cable area 9.......................

5 OPERATION 9.......................................................

5.1 PFC - Power factor correction 9...............................................

5.2 Connections and control devices 9............................................

5.3 Connection of welding and return cable 10.......................................

5.4 Overheating protection 10.....................................................

5.5 MMA welding 10.............................................................

5.6 TIG welding 11...............................................................

5.7 Remote control unit 11........................................................

6 MAINTENANCE 11....................................................

6.1 Inspection and cleaning 12....................................................

7 FAULT-TRACING 12..................................................

7.1 Fault codes 12...............................................................

8 ORDERING SPARE PARTS 13.........................................

9 DISMANTLING AND SCRAPPING 13...................................

DIAGRAM 14............................................................

ORDER NUMBER 16.....................................................

ACCESSORIES 17.......................................................

- 4 -

bh38d1e

1 SAFETY

Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment

observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding

equipment. The following recommendations should be observed in addition to the standard regulations that apply to the work

place.

All work must be carried out by trained personnel well-acquainted with the operation of the welding equipment. Incorrect oper

ation of the equipment may lead to hazardous situations which can result in injury to the operator and damage to the equipment.

1. Anyone who uses the welding equipment must be familiar with:

its operation

location of emergency stops

its function

relevant safety precautions

welding

2. The operator must ensure that:

no unauthorized person is stationed within the working area of the equipment when it is started up.

no-one is unprotected when the arc is struck

3. The workplace must:

be suitable for the purpose

be free from drafts

4. Personal safety equipment

Always wear recommended personal safety equipment, such as safety glasses, flame-proof clothing, safety gloves.

Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which could become trapped or cause burns.

5. General precautions

Make sure the return cable is connected securely.

Work on high voltage equipment may only be carried out by a qualified electrician.

Appropriate fire extinquishing equipment must be clearly marked and close at hand.

CAUTION

This product is solely intended for arc welding.

WARNING

Do not use the power source for thawing frozen pipes.

- 5 -

bh38d1e

WARNING

Read and understand the instruction manual before installing or operating.

Arc welding and cutting can be injurious to yourself and others. Take precautions when welding and

cutting. Ask for your employer's safety practices which should be based on manufacturers' hazard

data.

ELECTRIC SHOCK - Can kill

Install and earth the unit in accordance with applicable standards.

Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

Insulate yourself from earth and the workpiece.

Ensure your working stance is safe.

FUMES AND GASES - Can be dangerous to health

Keep your head out of the fumes.

Use ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone

and the general area.

ARC RAYS - Can injure eyes and burn skin.

Protect your eyes and body. Use the correct welding screen and filter lens and wear protective

clothing.

Protect bystanders with suitable screens or curtains.

FIRE HAZARD

Sparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.

NOISE - Excessive noise can damage hearing

Protect your ears. Use earmuffs or other hearing protection.

Warn bystanders of the risk.

MALFUNCTION - Call for expert assistance in the event of malfunction.

PROTECT YOURSELF AND OTHERS!

CAUTION

Read and understand the instruction manual before

installing or operating.

CAUTION

Class A equipment is not intended for use in residential locations where

the electrical power is provided by the public low-voltage supply system.

There may be potential difficulties in ensuring electromagnetic

compatibility of class A equipment in those locations, due to conducted

as well as radiated disturbances.

ESAB can provide you with all necessary welding protection and accessories.

- 6 -

bh38d1e

2 INTRODUCTION

Arc 151i is a welding current power source intended for use with coated electrodes

(MMA welding) and TIG welding.

ESAB's accessories for the product can be found on page 17.

2.1 Equipment

Arc 151i is supplied with a 3 m welding cable, return cable, 3 m mains cable and an

instruction manual for power source and control panel.

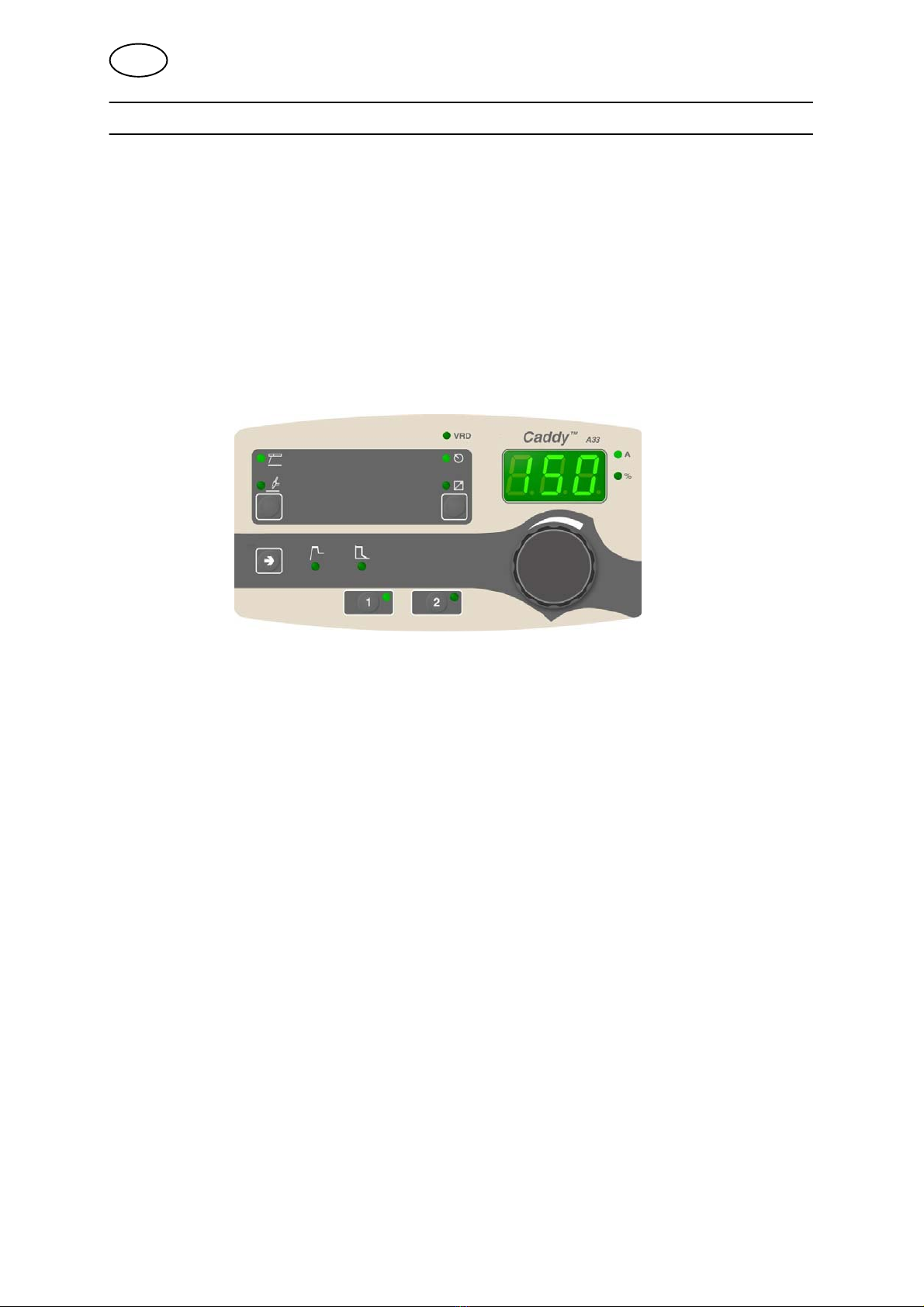

Control panel A33

Welding process parameters are controlled via the control panel.

NOTE! See the separate instruction manual for a detailed description of the control

panel.

- 7 -

bh38d1e

3 TECHNICAL DATA

Arc 151i

Mains voltage 230 V, 1 50/60 Hz

Primary current

Imax TIG

Imax MMA

14 A

22 A

Mains supply Zmax 0.35 ohm

No-load power 30 W

Setting range, MMA 4 A - 150 A

Setting range, TIG 3 - 150 A

Permissible load at MMA

25% duty cycle

60% duty cycle

100% duty cycle

150 A / 26.0 V

100 A / 24.0 V

90 A / 23.6 V

Permissible load at TIG

20% duty cycle

25% duty cycle

60% duty cycle

100% duty cycle

150 A / 16.0 V

120 A / 14.8 V

110 A / 14.4 V

Power factor at maximum current

MMA

TIG

0.99

0.98

Efficiency at maximum current

MMA

TIG

80%

77%

Open-circuit voltage MMA/TIG

with VRD

55 - 60 V

< 35 V

Operating temperature -10°C- +40°C

Transportation temperature -20°C- +55°C

Constant A-weighted sound pressure < 70 dB

Dimensions, l x b x h 418 x 188 x 208 mm

Weight 8.1 kg

Enclosure class IP 23

Application class

Mains supply, Zmax

Maximum permissible line impedance of the network in accordance with IEC 61000-3-11.

Duty cycle

The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at

a certain load without overloading. The duty cycle is valid for 40°C.

Enclosure class

The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid

objects or water. Equipment marked IP23 is designed for indoor and outdoor use.

Application class

The symbol indicates that the power source is designed for use in areas with increased

electrical hazard.

- 8 -

bh38d1e

4 INSTALLATION

The installation must be carried out by a professional.

Note

Mains supply requirements

High power equipment may, due to the primary current drawn from the mains supply, influence the

power quality of the grid. Therefore connection restrictions or requirements regarding the

maximum permissible mains impedance or the required minimum supply capacity at the interface

point to the public grid may apply for some types of equipment (see technical data). In this case it

is the responsibility of the installer or user of the equipment to ensure, by consultation with the

distribution network operator if necessary, that the equipment may be connected.

4.1 Location

Position the power source such that its cooling air inlets and outlets are not

obstructed.

4.2 Mains power supply

Check that the welding power source is connected to

the correct voltage and that the correct fuse size is used.

A protective earth connection must be made in accordance

with regulations

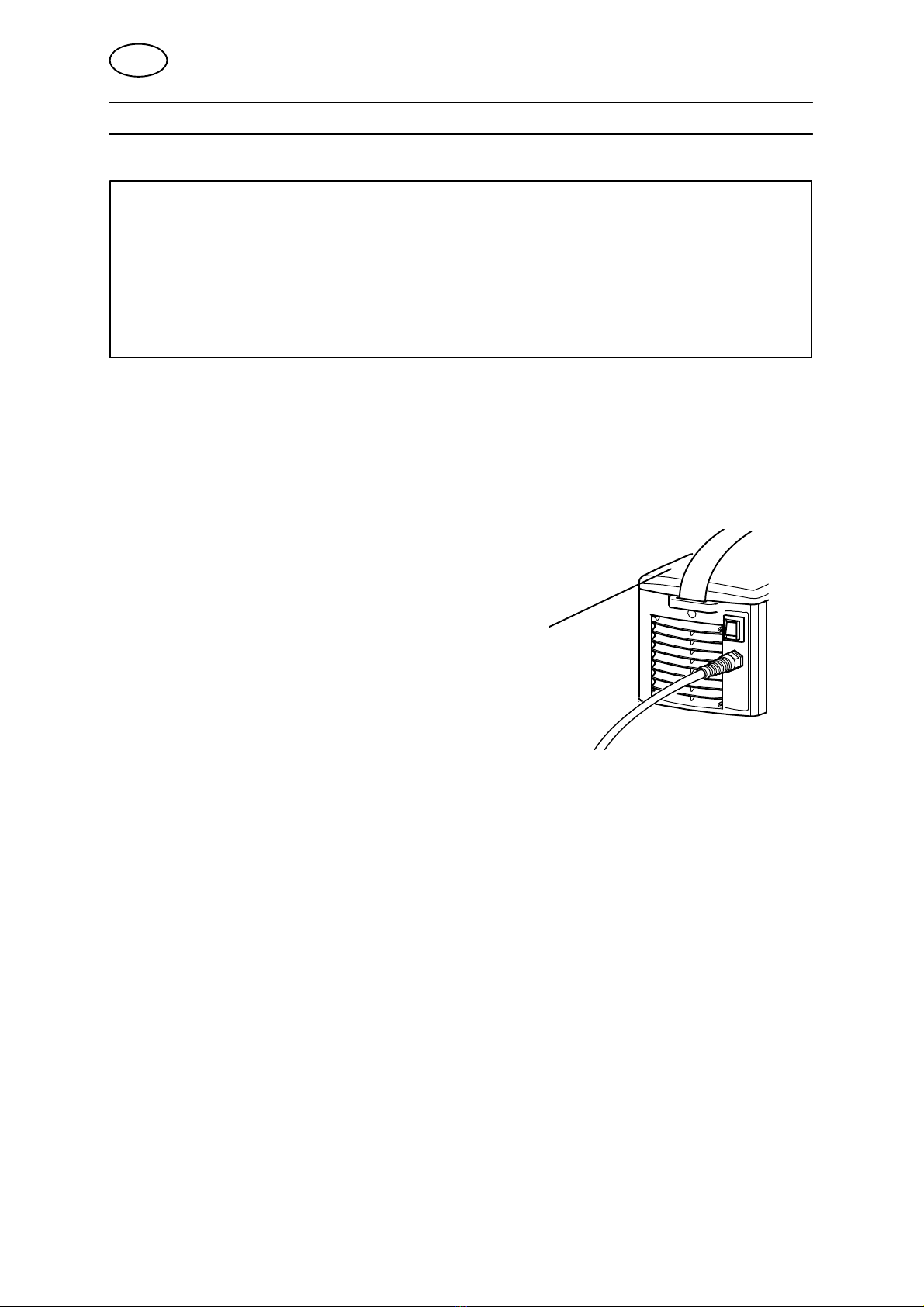

Location of rating plate

- 9 -

bh38d1e

4.2.1 Recommended fuse sizes and minimum cable area

Arc 151i

Mains voltage 230 V 10 %, 1-phase

Mains frequency 50-60 Hz

Mains cable, area 3G2.5 mm2

Phase current I1eff 11 A

Welding cable, area 16 mm2

Fuse

anti-surge

type C MCB

16 A

13 A

NOTE!

The cable area and fuse rating above comply with Swedish regulations. Use the

welding power source in accordance with the relevant national regulations.

5 OPERATION

5.1 PFC - Power factor correction

The Arc 151i is a 230 V single-phase power sources equipped with a PFC circuit

making it possible to use the full range of the machine on a 16 A fuse. The PFC also

protects the machines against fluctuating mains voltage and makes it safer to use

with a generator. The power source can operate with extra long mains cables, over

100 m, giving you a very larger working radius.

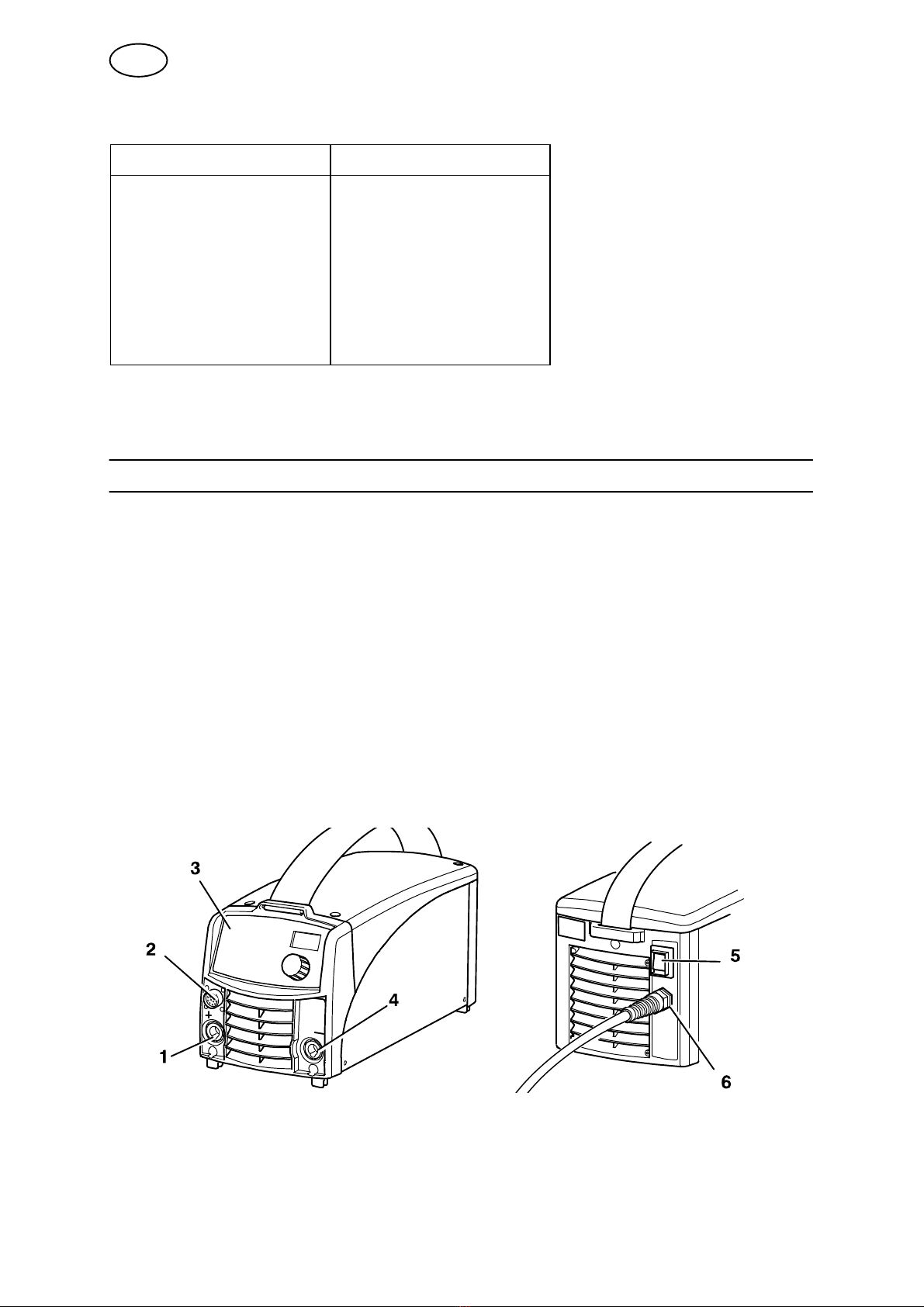

5.2 Connections and control devices

1Connection (+)

MMA: for return cable or welding cable

TIG: for return cable

4Connection (+)

MMA: for return cable or welding cable

TIG: for Tig torch l

2Connection for remote control unit 5Toggle switch for mains power supply 0 / 1

3Control panel 6Mains cable

cmha2p11

cmha2p10

- 10 -

bh38d1e

5.3 Connection of welding and return cable

The power source has two outputs, a positive terminal (+) and a negative terminal

(-), for connecting welding and return cables. The output to which the welding cable

is connected depends on the type of electrode used. The connecting polarity is

stated on the electrode packaging. Connect the welding cable to the terminal stated

on the electrode packaging.

Connect the return cable to the other output on the power source. Secure the return

cable's contact clamp to the work piece and ensure that there is good contact

between the work piece and the output for the return cable on the power source.

5.4 Overheating protection

The welding power source has a thermal overload trip which operates if the

temperature becomes too high, interrupting the welding current and lighting a yellow

indicating lamp on the front of the power source. The thermal overload trip resets

automatically when the temperature has fallen.

5.5 MMA welding

Arc 151i gives direct current, and you can weld most metals to alloy and non-alloy

steel, stainless steel and cast iron.

The power source allows you to weld most coated electrodes from Ø1.6 to Ø3.25.

MMA welding may also be referred to as welding with coated electrodes. Striking the arc

melts the electrode, and its coating forms protective slag.

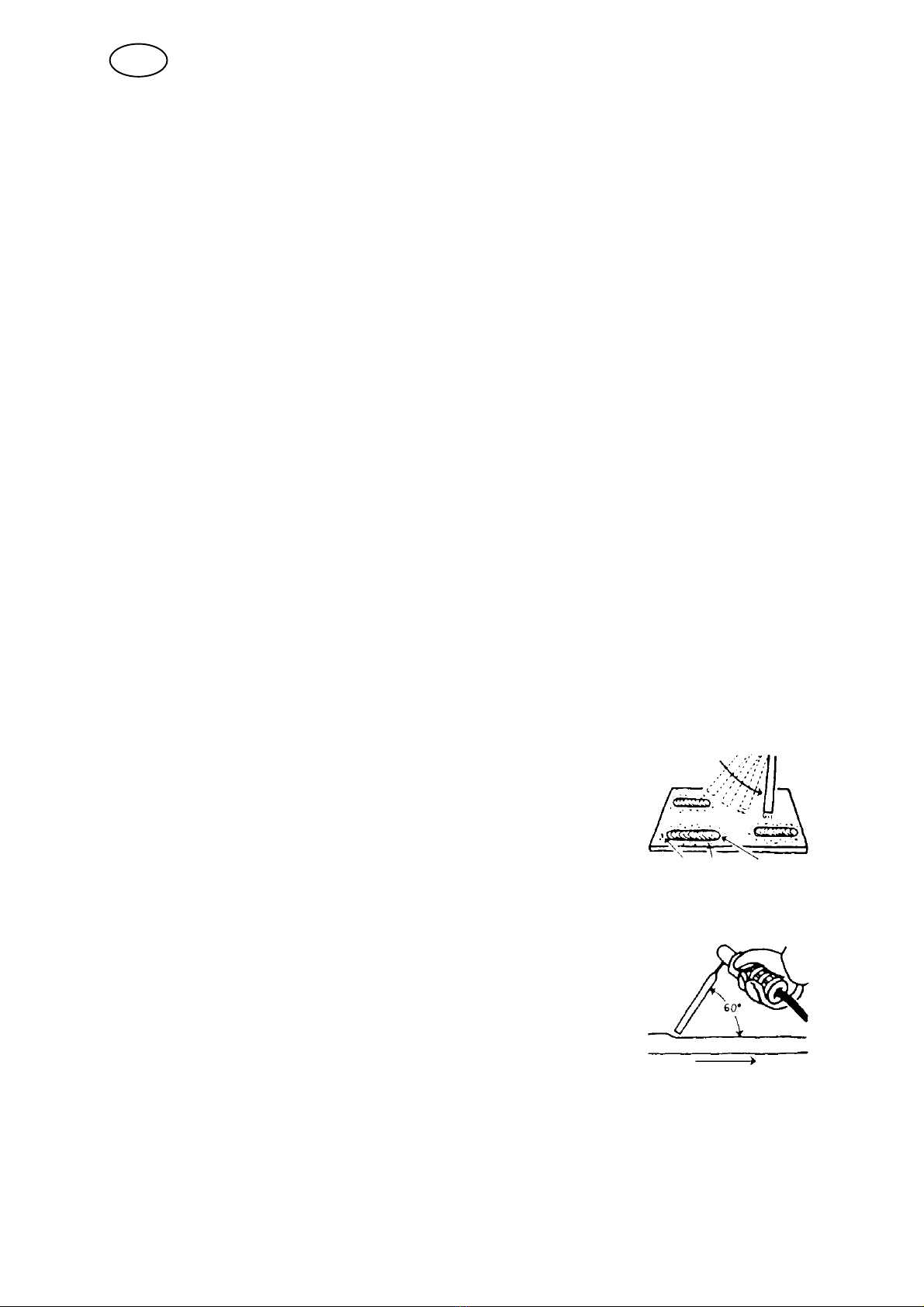

If, when striking the arc, the tip of the electrode is pressed against the metal, it immedi

ately melts and sticks to the metal, rendering continued welding impossible.

Therefore, the arc has to be struck in the same way that you would light a match.

Quickly strike the electrode against the metal, then raise it so

as to give an appropriate arc length (approx. 2 mm). If the arc

is too long, it will crackle and spit before finally going out com

pletely.

If you are working on a welding bench, check before attempting

to strike the arc that residual waste metal, pieces of electrode

or other objects on the bench do not insulate the part to be

welded.

Once the arc has been struck, move the electrode from left to

right. The electrode must be at an angle of 60°to the metal in

relation to the direction of welding.

When you want to weld wide beads, or when you want the weld

to be so thick that you have to weld in a number of layers, how

ever, you have to use lateral movements.

Autres manuels pour Caddy Arc 151i VRD

Table des matières

Autres manuels ESAB Système de soudage

ESAB

ESAB Warrior 400i CC Manuel utilisateur

ESAB

ESAB SR-B 9 Manuel utilisateur

ESAB

ESAB BOMBARDIER SVI-450i Manuel utilisateur

ESAB

ESAB ESP-50 Manuel utilisateur

ESAB

ESAB Origo Tig 3000i Manuel utilisateur

ESAB

ESAB Origo Mig 410 Manuel utilisateur

ESAB

ESAB Aristo Mig 5000i 460 V Manuel utilisateur

ESAB

ESAB CaddyArc 150 Manuel utilisateur

ESAB

ESAB Precision Plasmarc EPP-600 Manuel utilisateur

ESAB

ESAB Aristo YardFeed 2000 Manuel utilisateur

ESAB

ESAB Caddy Tig 2200i AC/DC Manuel utilisateur

ESAB

ESAB EPP-200 Manuel utilisateur

ESAB

ESAB Origo Feed 302N P0 Mode d’emploi

ESAB

ESAB Renegade ET 300iP Manuel utilisateur

ESAB

ESAB 100i Manuel utilisateur

ESAB

ESAB Renegade VOLT ES 200i Manuel utilisateur

ESAB

ESAB MultiPower 460 Pulse Manuel utilisateur

ESAB

ESAB Origo Arc 810c Manuel utilisateur

ESAB

ESAB Migmaster 275 Manuel utilisateur

ESAB

ESAB Rogue EMP 210 PRO Manuel utilisateur

ESAB

ESAB AristoPower 4600c Manuel utilisateur

ESAB

ESAB AristoMig U500 Manuel utilisateur

ESAB

ESAB Origo M 12 Feed 304 Manuel utilisateur

ESAB

ESAB A6 TFD1 Manuel utilisateur

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur

Lincoln Electric

Lincoln Electric POWER WAVE I400 Manuel utilisateur
