Ericsson G30 / G35

Fixed Wireless Terminal for GSM Mobile Networks

User G ide

EN/LZT 151 233

R1A

Table of Contents

Fixed Wireless Terminal: G30 and G35 models 3

Table of Contents

Table of Contents .............................................. 3

Welcome ........................................................... 4

Fixed Wireless Terminal ..................................... 6

Installation ......................................................... 9

Connecting Devices to the FWT....................... 15

Advanced Feat res.......................................... 20

Tro bleshooting............................................... 28

Technical Data................................................. 32

Accessories..................................................... 35

Prod ct Care and Safety.................................. 37

Warranty.......................................................... 41

Glossary .......................................................... 43

Index ............................................................... 45

Welcome

4 Fixed Wireless Terminal: G30 and G35 models

Welcome

Welcome to the User G ide for the G30 / G35 Fixed Wireless Terminal.

Important information: Some of the services described in this

guide might not be supported by all networks. Please, contact your

network operator for information on different network services

operational in your GSM network.

The latest version of this ser g ide can be downloaded from:

http://www.ericsson.com/enterprise/library/man al.shtml

Disposal of the product

Yo r prod ct sho ld not be placed in m nicipal waste. Please check local

reg lations for disposal of electronic prod cts.

Welcome

Fixed Wireless Terminal: G30 and G35 models 5

No part of this doc ment may be reprod ced witho t the written

permission of the copyright owner.

The contents of this doc ment are s bject to revision witho t notice d e

to contin ed progress in methodology, design and man fact ring.

Ericsson shall have no liability for any error or damage of any kind res lting

from the se of this doc ment.

Warranty

ERICSSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO

THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. Ericsson shall not be liable for errors contained

herein nor for incidental or conseq ential damages in connection with the

f rnishing, performance or se of this material.

Declaration of Conformity

Hereby, Ericsson Enterprise AB declares that this prod ct is in conformity

with the req irements and other relevant provisions of the E ropean

R&TTE directive 1999/5/EC.

Details to be fo nd at: http://ericsson.com/sdoc.

FCC Statement

Before a wireless terminal is available for sale to the p blic, it m st be

tested and certified to the FCC that it does not exceed the limit

established by the government adopted req irement for safe expos re.

This device complies with CFR 47 Part 15 and Part 24 of the FCC r les.

Operation is s bject to the following two conditions:

(1) This device may not ca se harmf l interference, and (2) this device

m st accept any interference received, incl ding interference that may

ca se ndesired operation.

Fixed Wireless Terminal

6 Fixed Wireless Terminal: G30 and G35 models

Fixed Wireless Terminal

Product Description

The FWT is a flexible and cost-effective sol tion for connection to the

wireless GSM network when there is no fixed line infrastr ct re or if yo

need additional telephone lines.

The G35 can also be connected to a PBX so yo can benefit from the

Least Cost Ro ting (LCR) capabilities offered by most PBX vendors to

optimize yo r costs by ro ting o tgoing calls to mobile phones thro gh

the GSM network.

The FWT allows a tomatic network searching between GSM 850/1900 or

GSM 900/1800 freq encies, ens ring world wide coverage in the GSM

networks.

The FWT feat res the latest technology, which makes it perfect for

everyday comm nication:

•Available in 2 d al-band GSM models (GSM 850/1900 or GSM

900/1800.

•Telephone line providing high q ality speech.

•Battery back- p (optional).

•PBX connectivity (only on the G35 model).

Fixed Wireless Terminal

Fixed Wireless Terminal: G30 and G35 models 7

Supplied Parts

After npacking, please check that the following parts and list of

components are incl ded:

List of Components

1. FWT nit

2. Antenna

3. 4 x mo nting screws

4. Power cable (USA, UK, EU or AUS)

5. AC/DC adapter

6. Wall mo nt bracket

7. Telephone cable

8. Q ick G ide and User G ide man als

Fixed Wireless Terminal

8 Fixed Wireless Terminal: G30 and G35 models

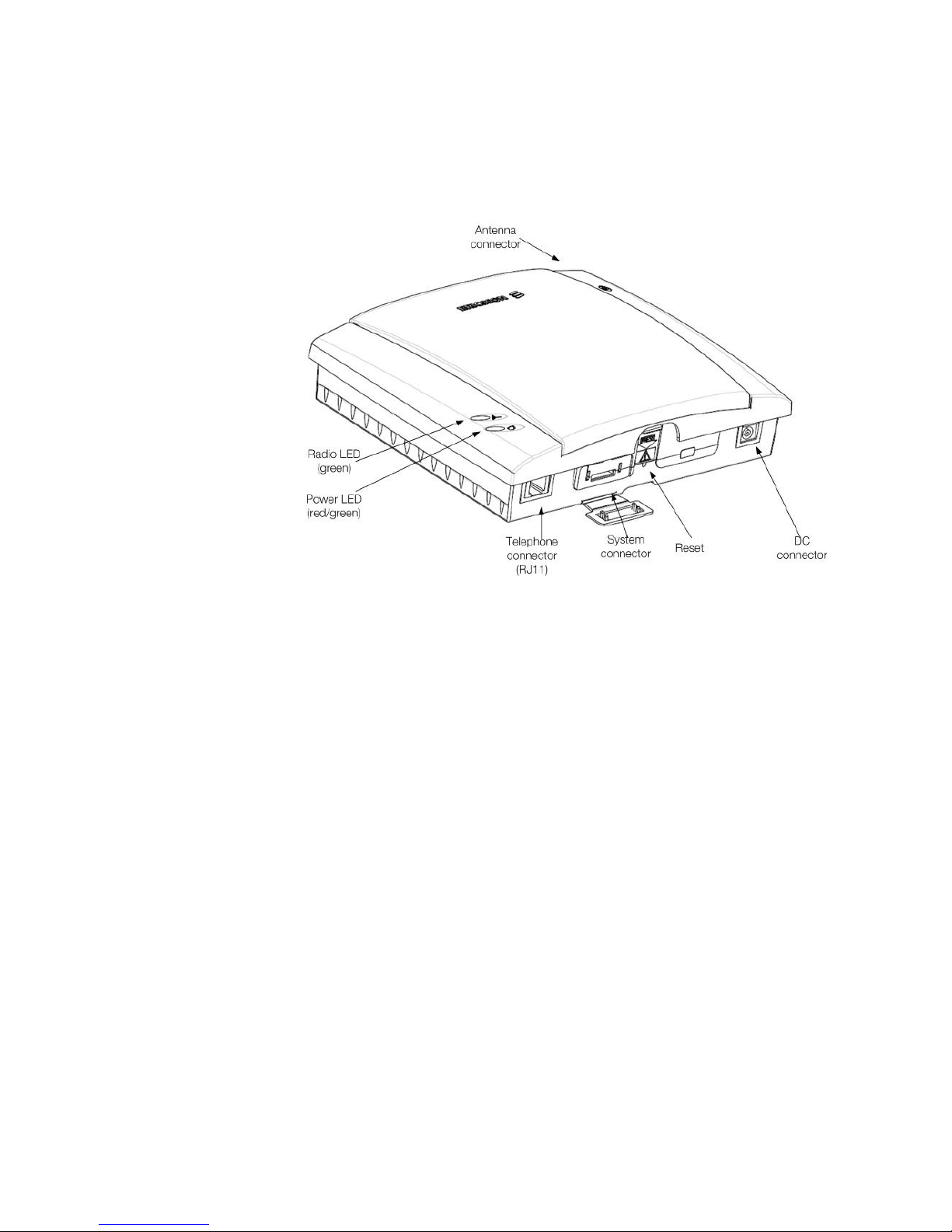

External Connector and Indicators

Installation

Fixed Wireless Terminal: G30 and G35 models 9

Installation

SIM Card

Yo r network operator provides yo with a SIM (S bscriber Identity

Mod le) card. The SIM card contains information abo t yo r telephone

n mber and the services incl ded in yo r s bscription.

Preparing Your FWT

Yo need to follow these steps before yo install the FWT on the wall and

finalize all connections.

Warning: The F T should be switched off before inserting or

removing your SIM card or connecting any devices to the F T.

Assembly

1. Connect the antenna.

Installation

10 Fixed Wireless Terminal: G30 and G35 models

2. Remove the front cover, by pressing down and p shing the small tab

that is in the center of the bottom part of the FWT. Open the SIM

Card holder and insert the SIM Card.

3. Close the SIM Card holder, placing it horizontally and sec ring it with

the sliding part of the holder.

4. Install the battery (optional) in the battery compartment (over the SIM

Card). To do so, connect the battery cable to the FWT connector.

Connect the black cable to the negative pole (-) of the battery and the

red cable to the positive pole (+). Fit the cable nder the holding tab

(over the SIM Card) and insert the battery ntil the tab fixates it.

5. Replace the front cover.

Connecting a telephone to the FWT

Connect an analog telephone to the line interface (RJ11) of the FWT.

Important: You may have to use this telephone to enter the PIN

code.
