LBI-38955
Mobile Communications
PCS
STANDARD/SCAN/DTMF
PORTABLE RADIO
Operator's Manual
Table of Contents
INTRODUCTION.......................................................................4
CONTROLS...............................................................................6
SCAN CONTROLS....................................................................12
INDICATORS.............................................................................13
CHANNEL AND VOLUME INDICATORS................14
STATUS INDICATORS ............................................16
ALERT TONES.........................................................17
POWER-UP SELF-TEST..........................................18
CARRIER CONTROL TIMER...................................18
CHANNEL BUSY LOCK-OUT..................................18
RECEIVE-ONLY CHANNEL.....................................19
TYPE 99 ALERT TONE............................................19
ANI ALERT TONE ....................................................19
PRIORITY-ONE (P1) SCAN.....................................20
RADIO/CHANNEL FAILURE....................................20
OPERATION..............................................................................20
RECEIVING A MESSAGE........................................20
SENDING A MESSAGE...........................................22
TYPE 99 OPERATION .............................................22
SCAN OPERATION..................................................24
TELEPHONE INTERCONNECT CALLS..................26
∆∆ or "H" BUTTON OPERATION...............................30
BATTERY PACKS.....................................................................32
INSTALLING THE BATTERY PACK........................32
REMOVING THE BATTERY PACK .........................33
CHARGING THE BATTERY PACKS.......................34
RECHARGEABLE BATTERY PACK DISPOSAL....36
SWIVEL MOUNT REMOVAL AND REPLACEMENT...............36
OPERATING TIPS ....................................................................37
Copyright November 1993 Ericsson GE Mobile Communications Inc.
2

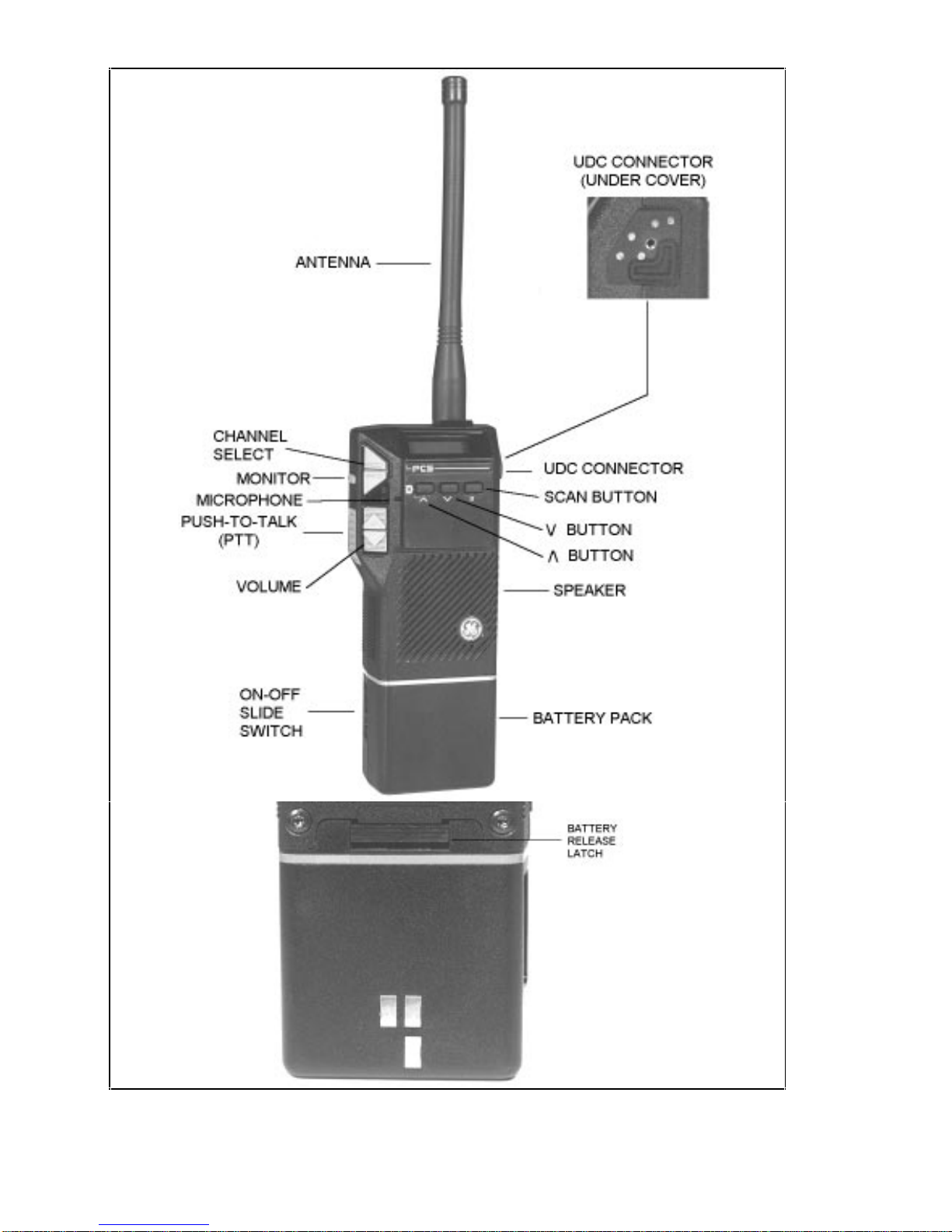

Figure 1 - PCS Standard/Scan Radio
3
INTRODUCTION
The Ericsson GE PCS™ Standard/Scan/DTMF portable radios are
lightweight, full-featured radios that provide reliable two-way
communications. The PCS comes in 2-, 8-, and 16-channel versions.
The SCAN function exists on the 8- and 16-channel radios and allows
monitoring of all channels. Any channel may be scanned with or without
a priority level. One channel can be programmed for Priority 1 (P1) and
another for Priority 2 (P2), with any or all remaining channels
programmed as non-priority channels. It also allows HOME channel
selection or Emergency mode transmission.
The User (also known as Universal) Device Connector (UDC), located
on the side of the radio, provides connections for external audio
accessories. This connector also allows the radio system personnel to
connect programming equipment and program the per-channel and
overall radio features. Consult the radio system personnel to determine
the programmed features of your radio. Features that are programmable
on a per-channel basis include:
•Receive Frequency
•Transmit Frequency
•High/Low Transmit Power
•Channel Busy Lock-Out
•Squelch Tail Elimination (STE)
•Channel Guard Encode/Decode (Tone or Digital)
•Type 99 Tone Decode
4
•Automatic Number Identification (ANI)
•Telephone Interconnect (DTMF Dial)
Features that are programmable on an overall radio basis include:
•Carrier Control Timer (CCT)
•Display Backlighting
•Alert Tones
•HOME Channel or Emergency Channel (on SCAN
versions)
•Three (3) Auto-Dial Telephone Numbers (on SCAN
versions)
5
CONTROLS
ON/OFF SWITCH The ON/OFF switch is
located on the battery pack.
Sliding this switch up to the
"ON" position will supply
power to the radio from the
battery pack. An audible
"click" will be heard.
When the radio is turned on, it
will resume operation at the
last operating state (channel,
volume, etc.) and the power-
up alert tones will be
sounded. Three (3) beeps
indicate the radio is in the
normal (receive mode); four
(4) beeps indicate the radio is
scanning. The operating
status of the radio will be
displayed in the Liquid Crystal
Display (LCD) window.
PTT BUTTON
(Push-to-Talk) Pressing the PTT button on
the side of the radio will key
the radio transmitter.
If the radio is not scanning, it
will transmit on the selected
(displayed) channel. If the
radio is scanning when the
PTT button is pressed, the
radio may be programmed to
Continued ...
6
PTT BUTTON
(Push-to-Talk)
(cont'd)
transmit on the selected
channel or on the current re-
ceive SCAN channel.
If the selected channel is pro-
grammed with Type 99 Tone
Decode enabled, pressing the
PTT button will disable Type
99 Tone Decode by switching
the radio from the Selective
Call mode to the Monitor
mode. The PTT button must
be released and then pressed
a second time to key the
radio.
MONITOR BUTTON The MONitor button has sev-
eral functions. Its operation
will vary depending upon pro-
gramming.
If the MONitor button is pro-
grammed for "squelch" op-
eration, pressing it un-
squelches the receiver for the
first three (3) seconds the
button is held. All transmis-
sion will be heard, even if
Channel Guard protected.
This allows channel monitor-
ing before transmitting. If the
button is held for more than
three (3) seconds, Channel
Guard decode will toggle ON
or OFF (if it is programmed
on the selected channel). Continued ...
7
MONITOR BUTTON
(cont'd) If the MONitor button is pro-
grammed for "Channel
Guard" operation, pressing
and releasing it within one (1)
second will toggle Channel
Guard ON or OFF. Pressing
and holding for more than one
(1) second will unsquelch the
receiver after one (1) second
and allow channel monitoring
as long as the button is held;
Channel Guard status will not
be affected.
The MONitor button is also
used to reset the radio after a
Type 99 call is received.
Quickly press and release the
button to reset the radio to re-
ceive the next Type 99 call.
VOLUME CONTROLS The speaker volume level is
controlled by the two buttons
on the side of the radio.
Pressing the VOLUME UP
(∆∆) button will increase
volume and pressing the
VOLUME DOWN (∇∇)button
will decrease the volume.
The relative volume level is
indicated in the LCD window
by four (4) bars. There are
decrease the volume. The Continued ...
8
VOLUME CONTROLS
(cont'd) relative volume level is indi-
cated in the LCD window by
four (4) bars. There are eight
levels of volume. Two levels
of volume are represented by
each bar.
Changing the volume while
the radio is squelched will
cause the radio to beep, if
programmed, at the new
selected level. No beep is
sounded if the radio is un-
squelched.
CHANNEL
SELECTION Select the transmit/receive
channel by pressing the
CHANNEL UP (∆∆) or the
CHANNEL DOWN (∇∇) but-
ton. The channel number will
be displayed in the LCD win-
dow. Press the CHANNEL
UP button to increase the
channel and press the
CHANNEL DOWN button to
decrease the channel.
Channel selection will wrap
around (Channel 1 follows
Channel 16 [or Channels 2 or
8] when increasing channels;
Channel 16 [or 2 or 8] follows
Channel 1 when decreasing
channels).
9
The three (3) buttons (top three on the DTMF keypad) are used to
control a variety of operations when used alone and to control SCAN
operations when used in conjunction with the "S" button on the 8- and
16-channel radios. Details are as follows:
NOTE
These three buttons are also used to place telephone calls
("1" - "3" digits) when the telephone interconnect feature is enabled.
In addition, the "∆∆" UP ARROW button (HOME or digit "1") selects
the HOME/EMERGENCY channel (on the SCAN versions).
∆∆
H1
The ∆∆ or "H" button
allows the following (see
SCAN Controls for further
details):
1. Add channels to
Scan list when used in
conjunction with the "S"
button (for 8- and 16-
channel radios). SCAN
must be off when adding
channels.
2. Programming of a
HOME or EMERGENCY
channel (when used
alone). This applies only
to SCAN versions.
3. BACKLIGHT the
LCD (for 2-channel
radios). The backlight will
Continued ...
