Maintenance Manual

Rockwell Modem

Model R96FT (19A705178)

U.S. Robotics Courier Modem

Model 2400 (19A149786P1)

Model V.32 (19A149786P2)

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 3SH NO. 2

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 3SH NO. 2

REVISIONS

L30

PRINTS TO

TABLE OF CONTENTS

1.0 SCOPE

2.0 DESCRIPTION

2.1 GETC SHELF

2.2 ROCKWELL MODEM BOARD

2.3 TEST SOFTWARE

3.0 SPECIFICATIONS

3.1 POWER SUPPLY

3.2 DATA TRANSMISSION

3.3 APPLICABLE DRAWINGS

4.0 TEST EQUIPMENT

5.0 TEST PROCEDURES

5.1 TEST PREPARATION

5.2 ROCKWELL MODEM TEST

6.0 PART DRAWING

6.1 VENDOR SPECIFICATION

6.2 MODEM TECHNICAL SPECIFICATIONS

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 4SH NO. 3

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 4SH NO. 3

REVISIONS

L30

PRINTS TO

1.0 SCOPE

This document describes how to test the Rockwell Modem (R96FT) to insure operation of the 9600 bps serial data

transmission used in the Public Service Trunked System and Voice Guard®System.

Mechanical and Electrical specifications are also included mounting holes and overall dimensions are on Sh. 9 of

this drawing.

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 5SH NO. 4

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 5SH NO. 4

REVISIONS

L30

PRINTS TO

2.0 DESCRIPTION

The Rockwell Modem (R96FT) is a purchased part from the Rockwell Corporation used in the GETC™ shelf. The

Rockwell Modem is used to transmit and receive 9600 bps serial data to and from four-wire dedicated unconditioned

telephone 1ines under control of the GETC shelf.

2.1 GETC SHELF

The GETC shelf (19D901868) is used to test the Rockwell Modem as part of the shelf assembly.

2.2 PHONE MODEM BOARD (ROCKWELL R96FT)

The Rockwell R96FT is a board level synchronous serial 9600 bit per second modem. The GETC logic

board contains phone 1ine interface circuits (T1, T2 etc.) that couple the phone modem to the phone line.

2.3 TEST SOFTWARE

The GETC shelf is used as a test fixture for the test of the Rockwell Modem.

The GETC exercises the testing of the Rockwell Modem via the built in test software known as SIMON on

the GETC.

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 6SH NO. 5

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 6SH NO. 5

REVISIONS

L30

PRINTS TO

3.0 SPECIFICATIONS

3.1 POWER SUPPLIES

13.8 volts nominal GETC power supply.

Refer to the GETC test specification (19A705179).

Modem Input Power +5 Volts +/-5% < 700 Ma

+12 Volts +/-5% < 20 Ma

-12 Volts +1-5% < 80 Ma

3.2 DATA RATE

Data Rate 9600 +1 -1 Bit/Second

Input Level Range - 43 dBm to 0 dBm

Output Level 0 dBm

Train Time 30 msec

3.3 APPLICABLE DRAWINGS

DRAWING NO. DRAWING NAME

19D901868 GETC SHELF

19D901855 GETC LOGIC BOARD ASSEMBLY

19D901852 GETC LOGIC BOARD SCHEMATIC DIAGRAM

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 7SH NO. 6

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 7SH NO. 6

REVISIONS

L30

PRINTS TO

4.0 RECOMMENDED TEST EQUIPMENT

Refer to the GETC test specification (19A705179).

The test equipment necessary to set up the GETC for the Rockwell Modem

test is listed blow. This setup is performed once on the specified GETC.

QTY EQUIPMENT TYPE

1 6286A DC SUPPLY WITH CURRENT LIMIT (OR EQUIVALENT.)

1 OSCILLOSCOPE MEDIUM BANDWIDTH NON-STORAGE

1 FREQUENCY METER CAPABLE OF MEASURING l2 MHz

1 STANDARD TERMINAL

1 TRIPLETT AC VOLT OHMMETER MODEL 630-PL TYPE 5 or DVM

1 19D901868 GETC shelf

1 PROM with SIMON software (standard Application software)

The equipment necessary to test the Rockwell Modem is a GETC shelf

(19D901868).

The GETC is used as a test fixture.

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 8SH NO. 7

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 8SH NO. 7

REVISIONS

L30

PRINTS TO

5.0 TEST PROCEDURES

5.1 PREPARATION FOR TEST

Refer to the GETC test specification for certain alignment procedures prior to testing of the Rockwell

Modem. Set up terminal with 19.2 KBaud rate, odd parity, full duplex, and all upper case letters. Connect

the terminal to the master communication link as follows:

SIGNAL GETC LOGIC TERMINAL

BOARD (D-TYPE CONNECTOR)

TXD J8-1 PIN 3

RXD J8-2 PIN 2

GND J8-3 PIN 7

SIMON is used to test the Rockwell Modem.

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 9SH NO. 8

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 9SH NO. 8

5.2 ROCKWELL MODEM TEST

The GETC shelf setup procedures to configure it as the test fixture for the Rockwell Modem follows. These

procedures need to be implemented only once on the specified GETC shelf to be used as the Rockwell

Modem test fixture.

1) Plug the Rockwell Modem into J3 on the GETC test fixture.

2) Install P11 between J11-1 and J11-2 on the GETC logic board.

3) Connect a jumper between J6-7 and J6-9 on the GETC.

4) Connect a jumper between J6-6 and J6-8 on the GETC.

5) Install a 680 ohm resistor (1/4 watt) between J6-8 and J6-9.

6) Adjust R1 to about half range on the GETC.

7) Adjust R2 to about half range on the GETC.

The procedures to test the Rockwell Modem follows:

l) Plug the Rockwell Modem into the test fixture.

2) Apply power (13.8 volts) to the GETC shelf and the SIMON welcome message is displayed on the

terminal. The GETC is DTP switch configured for SIMON operation prior to power up. See

19A701179 for dip switch set-up.

3) Type "TIM 19" on the terminal to set the time delay from RTS to beginning of data to 250

milliseconds.

4) Execute the SIMON command "MDS 1" to select the phone modem for subsequent BER

command.

5) Execute the SIMON command "BER DE-00=10". This command transmits data and

simultaneously checks to see that data is being received. The terminal should respond with the

following: Error Count = 0000 Receive Checksum = 00188123

If the terminal does not respond with the above data, the Rockwell Modem has failed the test and

needs to be returned to the vendor.

The test continually runs, outputting data to the terminal in 10 second intervals.

6) After four consecutive test periods (10 seconds per test period) with data outputted to the terminal,

the test can be terminated by pressing a CTRL Z or the ESC key on the terminal.

REVISIONS

L30

PRINTS TO

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 10 SH NO. 9

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY K P Dotson 11-19-86 APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 10 SH NO. 9

REVISIONS

L30

PRINTS TO

6.0 PART DRAWING

INTRODUCTION

The Rockwell R96FT is a synchronous serial 9600 bps

modem designed for multipoint and networking

applications. The R96FT allows full-duplex operation over

4-wire dedicated unconditioned lines. or half-duplex

operation over the general switched telephone network.

Proprietary fast train configurations provide training times

of 23 ms for V.29FT/9600/7200/4800, 22 ms for

V.27FT/4800. and 30 ms for V.27FT/2400. A 2400/4800

bps Gearshift configuration provides a training time of 10

ms. For applications requiring operation with international

standards, fallback configurations compatible with CCITT

recommendations V.29 and V.27 bis/ter are provided. A

300 bps FSK configuration, compatible with CCITT V.21

Channel 2, is also provided.

The small size and low power consumption of the R96FT

offer the user flexibility in formulating a 9600 bps modem

design customized for specific packaging and functional

requirements.

This data sheet corresponds to assembly number

TR96D400-061 and subsequent revisions.

FEATURES

• Proprietary Fast Train

• 2400/4800 bps Gearshift

• User Compatibility

– CCITT V.29, V.27 bis/ter and V.21 Channel 2

• Train on Data

• Full-Duplex (4-Wire)

• Half-Duplex (2-Wire)

• Programmable Tone Generation

• Dynamic Range -43 dBm to 0 dBm

• Diagnostic Capability

• Equalization:

– Automatic Adaptive

– Compromise Cable (Selectable)

– Compromise Link (Selectable)

• DTE Interface:

– Microprocessor Bus

– CCITT V.24 (RS-232-C Compatible)

• Loopbacks

– Local Analog (V.54 Loop 3)

– Remote Analog (Locally Activated)

– Remote Digital (Locally ActivatedV.54 Loop 2)

• Small Size

– 100 mm x 120 mm (4.0 in. x 4.8 in.)

• Low Power Consumption

– 3 watts, typical

• Programmable Transmit Output Level

• TTL and CMOS Compatible

GENERAL

ELECTRIC

19A705178

REV NO. TITLE CONT ON SHEET 11 SH NO. 10

ROCKWELL MODEM TEST

SPECIFICATION/PURCHASE PART DRAWING

CONT ON SHEET SH NO. FIRST MADE FOR F. C. F. O.

MADE BY R Sager APPROVALS

DCB M. R. P. D. DIV OR DEPT. 19A705178

ISSUED Nov. 19, 1986 11-18-86 LYNCHBURG LOCATION CONT ON SHEET 11 SH NO. 10

REVISIONS

L30

PRINTS TO

GENERAL SPECIFICATIONS

POWER

Voltage Tolerance Current (Max.)

+5 Vdc

+12 Vdc

-12 Vdc

±5%

<700 mA

<30 mA

<80 mA

Note: All voltages must have ripple ≤0.1 volts peak-to-peak.

ENVIRONMENTAL

Parameter Specification

Temperature

Operating

Storage 0°C to + 60°C (32 to 140°F)

-40°C to +80°C (-40 to 176°F) Stored in heat sealed antistatic

bag and shipping container

Relative Humidity Up to 90% noncondensing, or a wet bulb temperature up to

35°C, whichever is less.

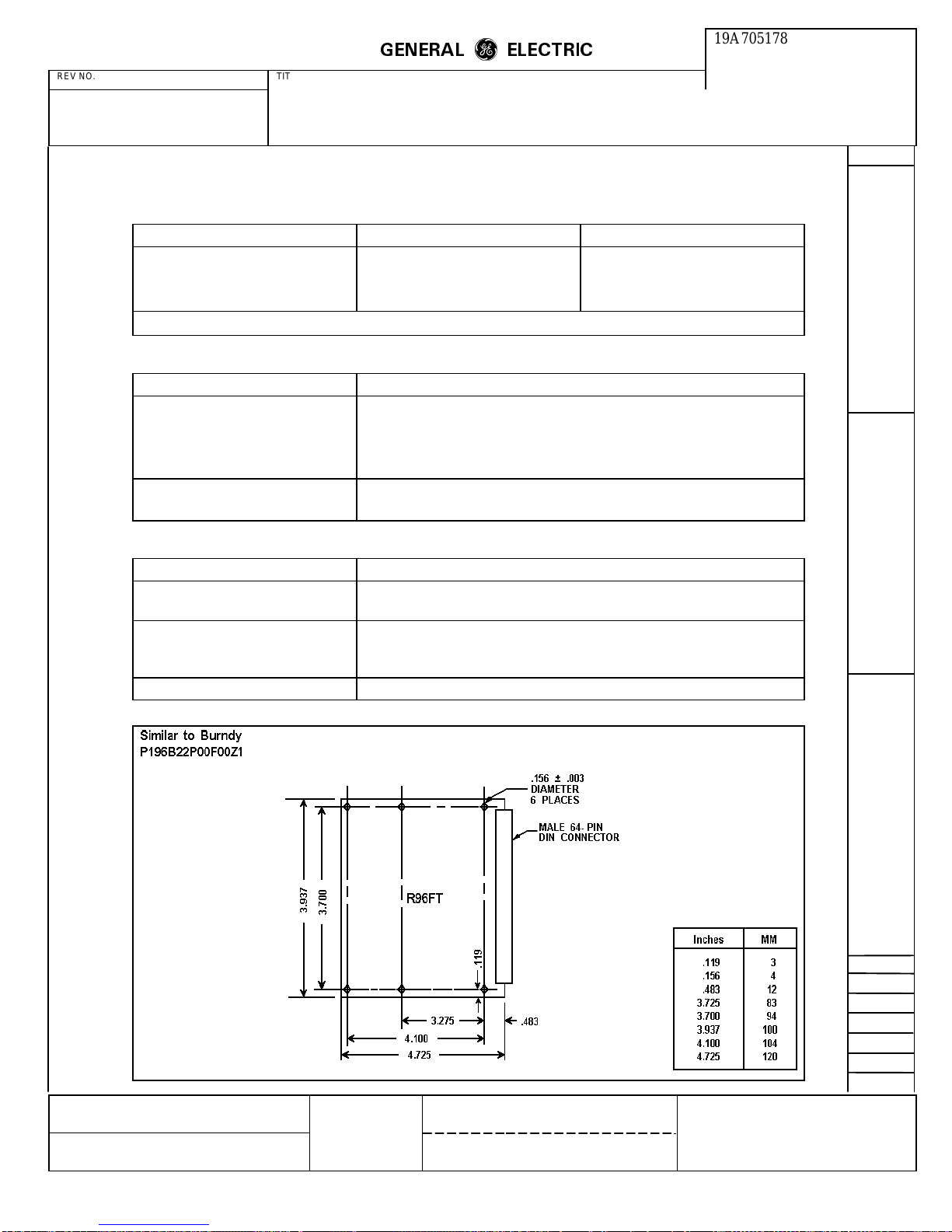

MECHANICAL

Parameter Specification

Board Structure Single PC board with single right angle header with 64 pins.

Burndy P196B32R00A00Z1 or equivalent mating connector.

Dimensions Width - 3.94 in. (100 mm)

Length - 4.72 in. (120 mm)

Height - 0.4 in. (10.2 mm)

Weight Less than 3.6 oz (100g)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ericsson Modem

Ericsson

Ericsson F3607gw Manuel utilisateur

Ericsson

Ericsson F5521gw Manuel de la liste des pièces

Ericsson

Ericsson HM210dp Manuel utilisateur

Ericsson

Ericsson F5521gw Manuel utilisateur

Ericsson

Ericsson GC 75 Manuel utilisateur

Ericsson

Ericsson HM121di Manuel utilisateur

Ericsson

Ericsson PipeRider HM200c Manuel utilisateur

Ericsson

Ericsson F251m Manuel utilisateur

Ericsson

Ericsson ZAT 19.2 Manuel utilisateur

Ericsson

Ericsson HM220d Manuel utilisateur

Ericsson

Ericsson MINI-LINK PT 2010 ETSI Manuel de la liste des pièces

Ericsson

Ericsson HM200c/HM201c Manuel utilisateur

Ericsson

Ericsson HM210DP/DI Manuel utilisateur

Ericsson

Ericsson C3607w Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
